Dimensions

Menü schließen

Order number: : LG10672
Luminous Flux: 2400 lm
Power Draw: 30 W
Light Color: warmwhite (3000 K)
Color Rendering Index (CRI): ≥80 Ra
IP Code: 20

Beam Angle: 36°
LED-Chip: Citizen COB
Housing Color: white
Dimensions: 298x111x90 mm
Cut-Out Dimensions: 285x97 mm
Warranty: 2 years

Luminous Flux

2400
lm

Power Draw

30 W

Light Color

3000 K
warmwhite

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 20

Beam Angle

36°

mounting type

Light Direction

Dimensions

(LxBxH) in mm
298x111x90

Warranty

2 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

LED Downlight Cavita is a stylish LED Downlight from Litegear®. The... more

Close menu

Product information "Cavita Triple 30-830-2400LM"

LED Downlight

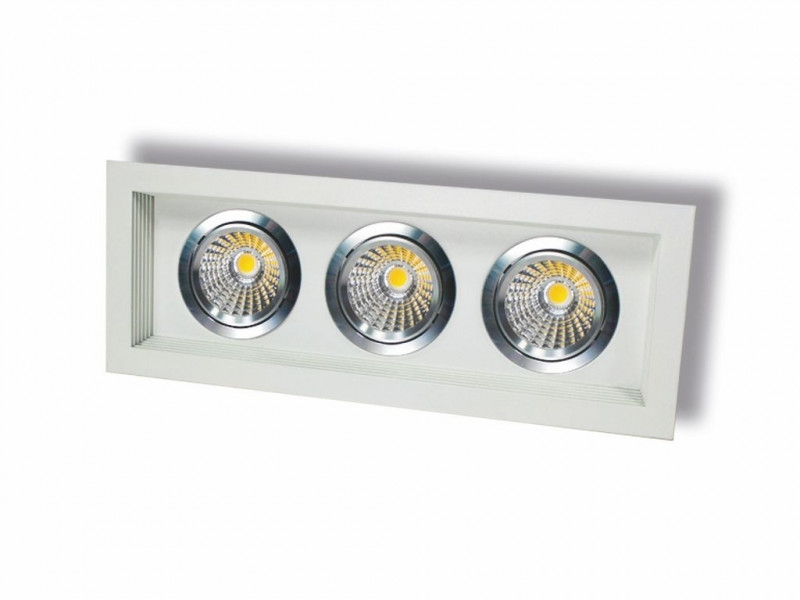

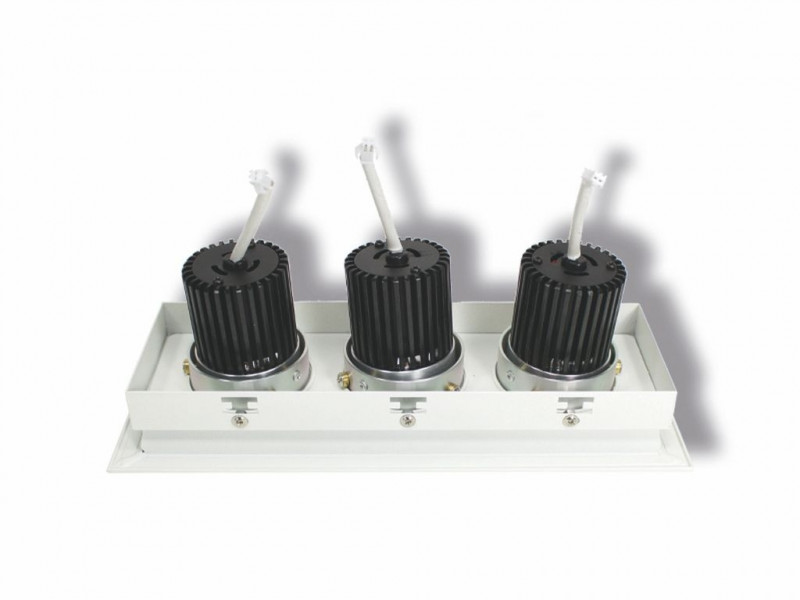

Cavita is a stylish LED Downlight from Litegear®. The modern housing is made of aluminum and holds up to 3 adjustable LED spots with reflector concentrated LED COB Chip. The Spots can be adjusted with +/-20° in each direction.

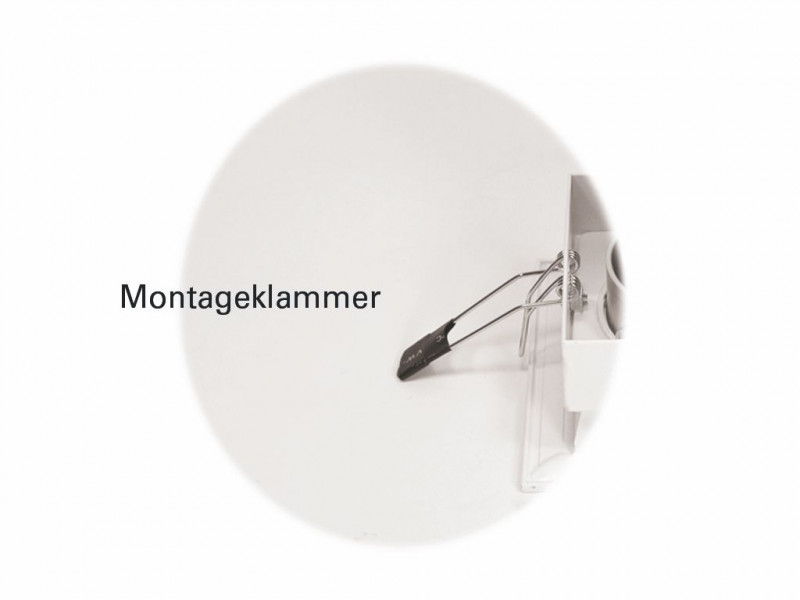

Due to hugh power saving you have low maintenance costs and a long lifespan. The housing frame is holden by spring latches in the cut outs.

Related links to "Cavita Triple 30-830-2400LM"

Zurück

Technical Details:

Luminous Flux:	2400 lm
LED Output:	27 W
Light Yield:	80 lm/W
Light Temperature:	3000 K
Light Color:	warmwhite
Color Rendering Index:	≥80 Ra
Color Consistency (SDCM):	<4
Beam Angle:	36 °
Light Emission:	downward
LED-Chip Manufacturer:	Citizen
LED-Chip:	COB
Number of LED:	3
Ignition Time:	<0,5 s

Power Consumption:	30 W
Output of Driver:	DC 27-42V, 260mA
CC/CV:	CC
Input Lamp:	plug connector
Ambient Temperature (TA):	-20°C - 40°C

Dimensions:	298x111x90 mm
Installation Depth:	90 mm
Cut-Out Dimensions:	285x97 mm
Mounting:	Decke
Montageart:	recessed
Pivot Range pan:	360 °
Pivot Range tilt:	20 °
IP Class:	20
Housing Color	white
Housing Material:	aluminum
Coating:	lacquered
Special Feature of Housing:	swivelling +/-20°
Cover:	clear
Net Weight:	659 g

Type of Packaging:	box
Dimensions of Packaging:	150x110x355
Weight incl. Packaging:	1.014 kg
Content Master Package:	12
Dimensions of Master Package:	730x320x350 mm
Weight Master Package:	12,62 kg

Product Line:	ECO Line
Warranty	2 years
Operating Hours:	>30.000 h L80/B20
Disposal Obligation:
Customs Tariff Number:	9405409990
Certifications	CE,D
Barcode:	4250557808369
optional auch dimmbare Treiber lieferbar
