CIELLA MEDI LED-Unit 14-827/840-WH 1570lm IP44
Order number: LG12100
Available soon
Prices are only visible after login.
Availability: on request
Dimensions
- Order number: : LG12100
- Luminous Flux: 1570 lm
- Power Draw: Power Select (8, 10, 12, 14 W)
- Input Current: AC 220-240V, 50/60Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 20 (44 room side)
- Beam Angle: 120°
- LED-Chip: MTC Epistar
- Housing Color: white
- Dimensions: 75x41 mm
- Warranty: 3 years
LED downlight module Litegear® Ciella LED module for combination with... more
Product information "CIELLA MEDI LED-Unit 14-827/840-WH 1570lm IP44"

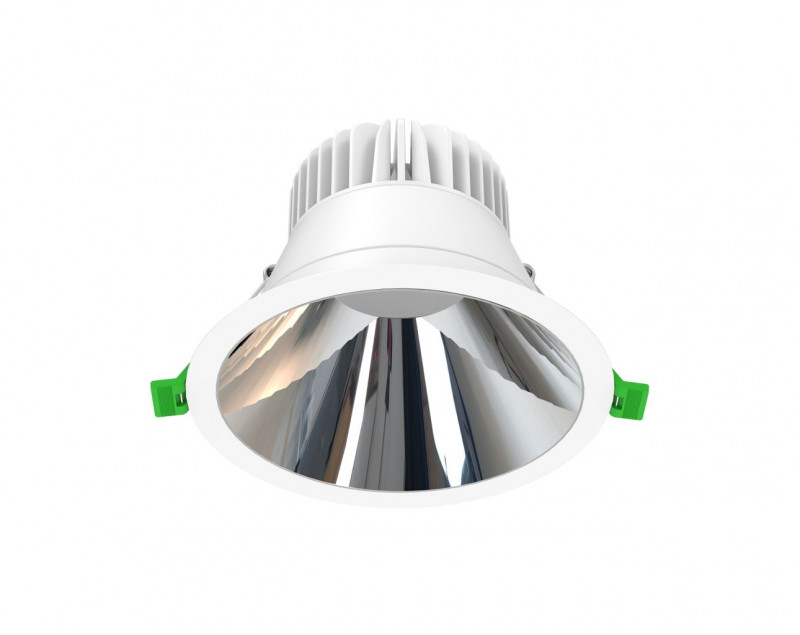

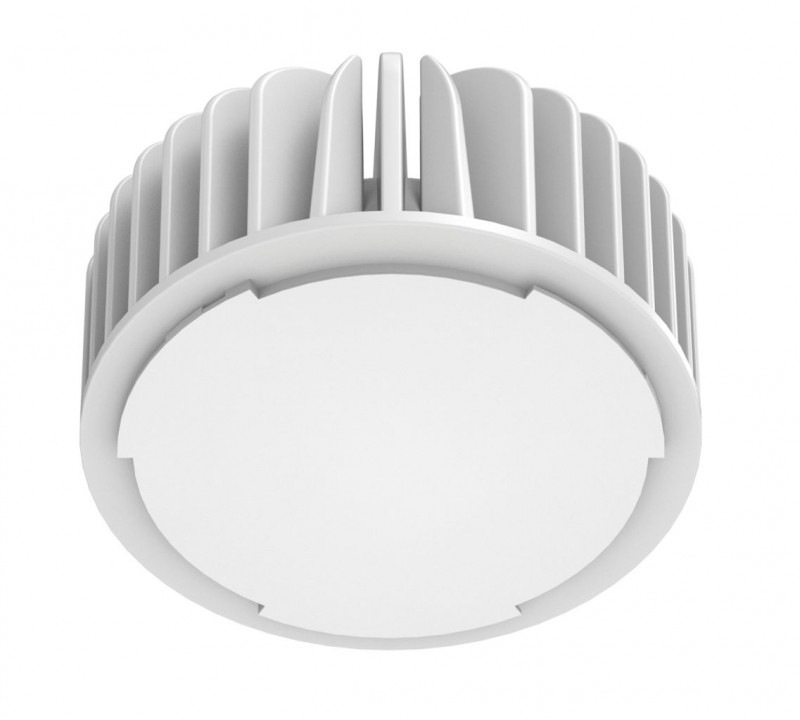

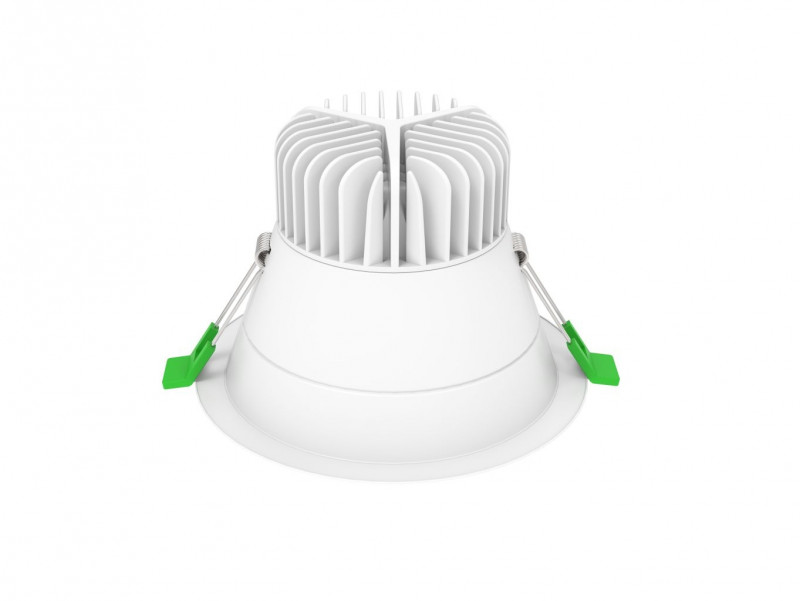

LED downlight module

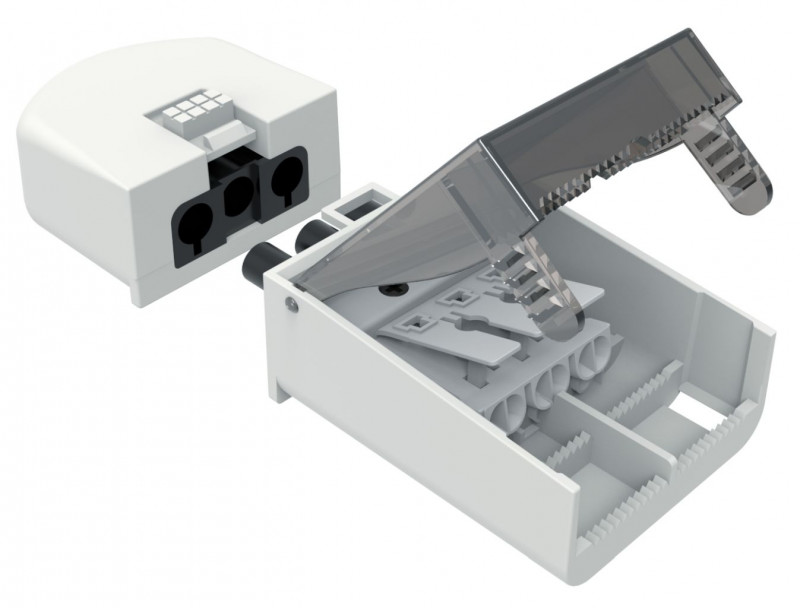

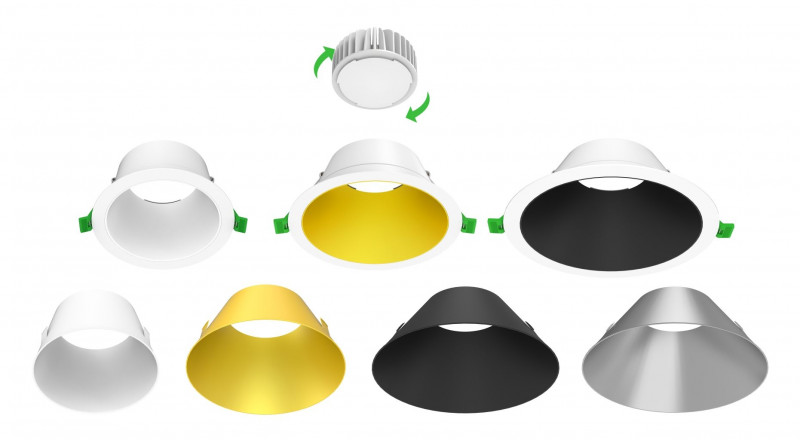

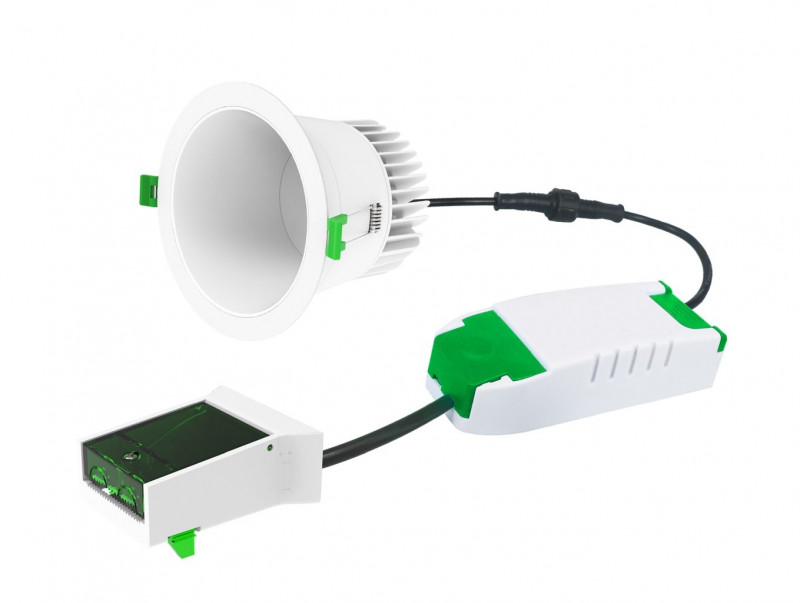

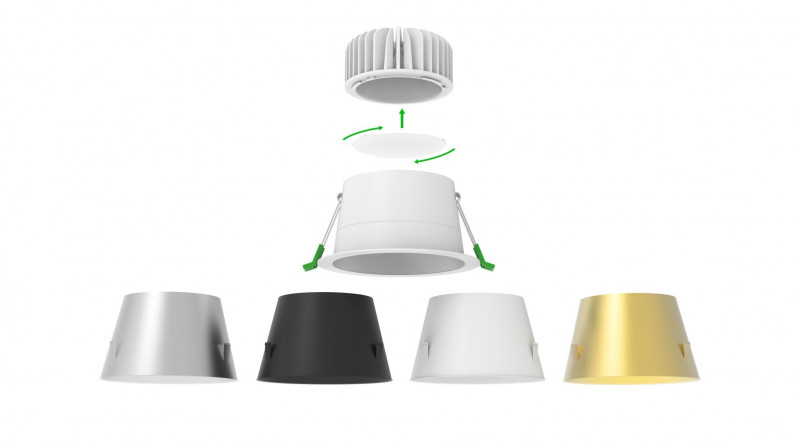

Litegear® Ciella LED module for combination with different ceiling mounting rings from 110 to 160mm in diameter. LED unit with switchable light colour: 2700, 3000, 3500, 4000 Kelvin using a switch. High system efficiency max. 120lm/W, thus Bafa eligible for refurbishment of existing buildings. Pluggable LED power supply with removable terminal box for through-wiring. The Ciella system is a lighting system for the renovation of ceiling openings of different sizes. You will receive 3 different ceiling rings for 90-100mm, 115-125mm and 140-150mm ceiling cut-outs. The LED module is turned onto the ceiling rings without tools. Power selectable LED driver 7, 10, 12, 15W in 4 steps.
Areas of application: Refurbishment of built-in lights with energy-saving lamps. 8-26W CFL G23/G24.
Corridors, offices, sales areas, walkways, hotels, sanitary areas, changing rooms, warehouses, ancillary rooms, restaurants, canteens
Related links to "CIELLA MEDI LED-Unit 14-827/840-WH 1570lm IP44"
Technical Details:
| Luminous Flux: | 1570 lm |
| LED Output: | 13 W |
| Light Yield: | 120 lm/W |
| Light Temperature: | 2700, 3000, 4000 K |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <5 |
| Beam Angle: | 120 ° |
| Light Emission: | downward |
| LED-Chip Manufacturer: | MTC |
| LED-Chip: | Epistar |
| Number of LED: | 40 |
| Ignition Time: | <0,5 s |
| Glow Wire Test 650°C/30s |  |
| Input Current: | AC 220-240V, 50/60Hz |
| Power Consumption: | Power Select (8, 10, 12, 14 W) |
| Contains Driver: | |
| Driver Manufacturer: | AGT |
| Power Factor (PF): | >0.9 |
| Input Driver: | Kabel mit Terminal |
| Output of Driver: | DC 20-40V, 200-350mA |
| CC/CV: | CC |
| Output Current Adjustable: | |
| Input Lamp: | cable with plug |
| Switching Cycles: | >30.000 |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | -20°C - 45°C |
| Storage Temperature: | -20°C - 60°C |
| Dimensions: | 75x41 mm |
| Mounting: | Decke |
| Montageart: | recessed |
| IP Class: | 20 (44 room side) |
| IK Code: | 08 |
| Housing Color | white |
| Housing Material: | Aluminium+PC |
| Coating: | lacquered |
| Special Feature of Housing: | schraubbares Modul |
| Cover: | opal |
| Net Weight: | 280 g |
| Type of Packaging: | box |
| Dimensions of Packaging: | 130x105x55 |
| Weight incl. Packaging: | 0.33 kg |
| Content Master Package: | 36 |
| Dimensions of Master Package: | 435x405x185 mm |
| Weight Master Package: | 12,5 kg |
| Product Line: | Advance Line |
| Warranty | 3 years |
| Operating Hours: | >54.000 h L80/B50 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405119090 |
| Certifications | CE |
| Barcode: | 4250557827438 |
| CCT Select: 2700, 3000, 4000K | |
| Power Select: 8, 10, 12, 14W | |
| elektr. Anschußdose für Durchgangsverdrahtung | |
| modulare Aufbau, kombinierbar mit kon.Deckenringen | |
| 1570lm@3000k and 13W | |
