Preview: Integra SMD MKII 42-830-3500LM UGR<19

Product Info (PDF)

Order number: LG10067

Prices are only visible after login.

Last Stock

Availability: low stock

Dimensions

Menü schließen

Order number: : LG10067
Luminous Flux: 3500 lm
Power Draw: 42 W
Light Color: warmwhite (3000 K)
Color Rendering Index (CRI): ≥80 Ra
IP Code: 54 (65 room side)

Beam Angle: 83°
LED-Chip: San'an SMD 2835
Housing Color: white
Dimensions: 217x121 mm
Cut-Out Dimensions: 200 mm
Warranty: 5 years

Luminous Flux

3500
lm

Power Draw

42 W

Light Color

3000 K
warmwhite

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 54

IP Class Room Side

IP 65
room side

Beam Angle

83°

mounting type

Light Direction

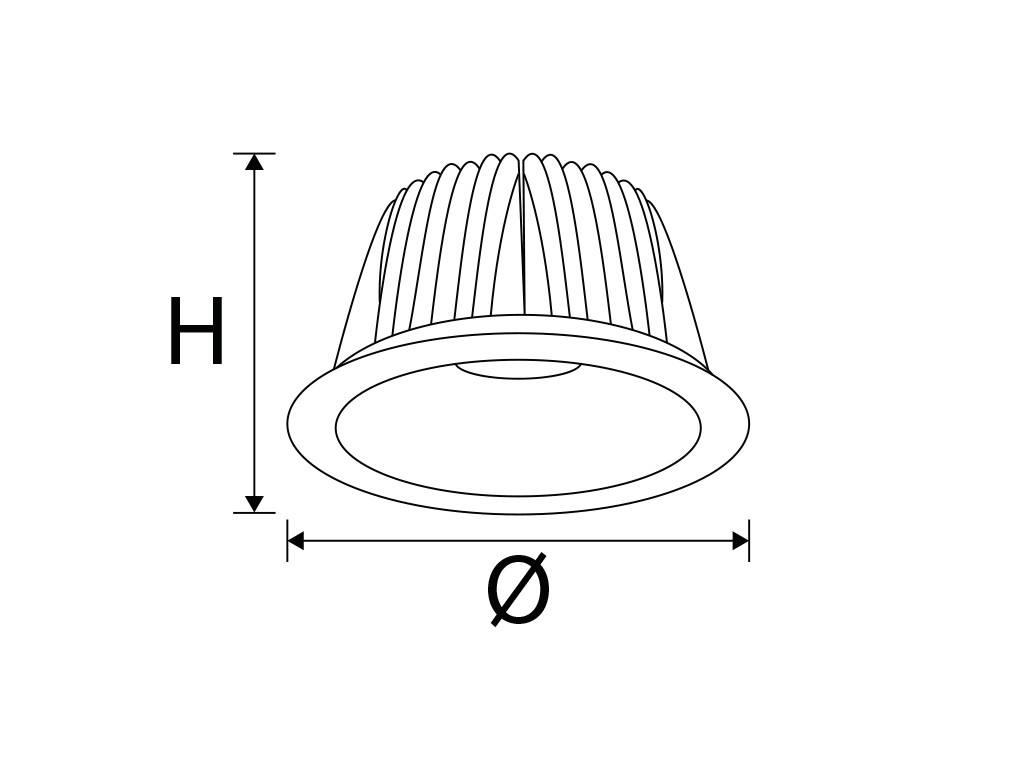

Dimensions

(ØxH) in mm
217x121

Warranty

5 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

LED Downlight The Integra SMD can be easily integrated into ceilings. They... more

Close menu

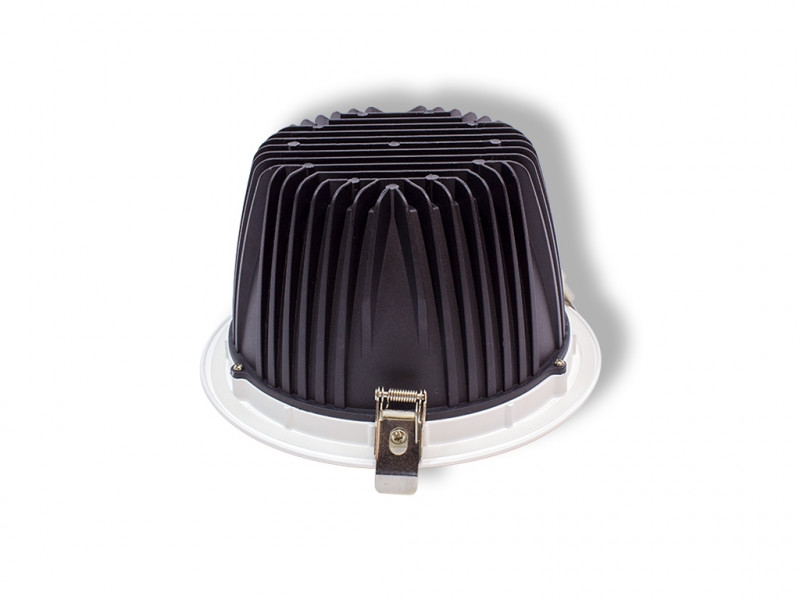

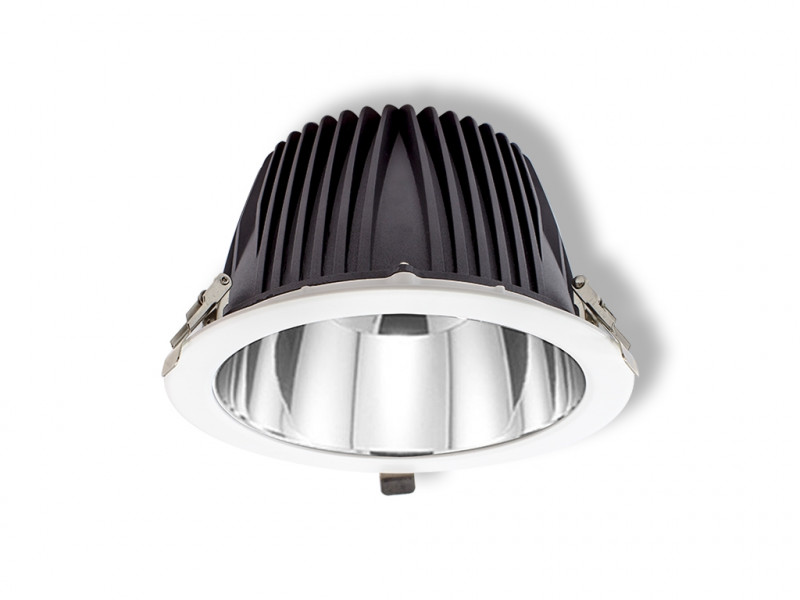

Product information "Integra SMD MKII 42-830-3500LM UGR<19"

LED Downlight

The Integra SMD can be easily integrated into ceilings. They distinguish themselves by a high light efficiency and a long lifetime. We offer the Integra-Series in different achievement classes and beam angels. Therefore the different ranges of application, as for example flat illumination can be realised for foyers, halls shops or offices. The Integra SMD Series in which the light is bundled up by a reflector is suited ideally for product presentations in shops and boutiques. Due to it´s very low glare it is perfect for computer screens. Litegear® Integra SMD has a very strong but light housing made of aluminum alloy, which is used in air planes. The LED light is generated by several SMD chips in a separate light chamber and protected by a frosted cover. Reflectors will guide the light. Integra SMD has a very high light efficency.

Related links to "Integra SMD MKII 42-830-3500LM UGR<19"

Zurück

Technical Details:

Luminous Flux:	3500 lm
LED Output:	42 W
Light Yield:	83 lm/W
Light Temperature:	3000 K
Light Color:	warmwhite
Color Rendering Index:	≥80 Ra
Color Consistency (SDCM):	<4
Beam Angle:	83 °
Unified Glare Rating (UGR):	19
Light Emission:	downward
LED-Chip Manufacturer:	San'an
LED-Chip:	SMD 2835
Ignition Time:	<0,5 s

Power Consumption:	42 W
Output of Driver:	DC 30 - 42V, 1050mA
CC/CV:	CC

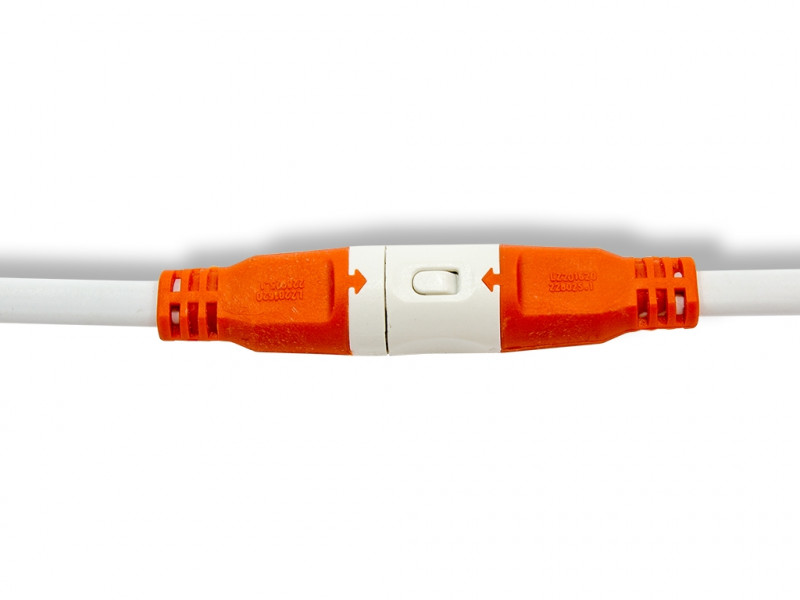

Input Lamp:	plug connector
Switching Cycles:	>100.000
Ambient Temperature (TA):	-20°C - 40°C

Dimensions:	217x121 mm
Installation Depth:	121 mm

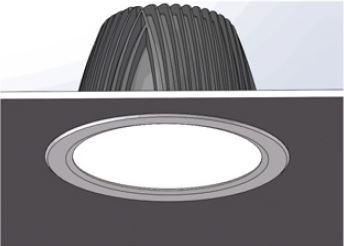

Cut-Out Dimensions:	200 mm
Mounting:	Decke
Montageart:	recessed
IP Class:	54 (65 room side)
IK Code:	08
Housing Color	white
Housing Material:	aluminum
Coating:	lacquered

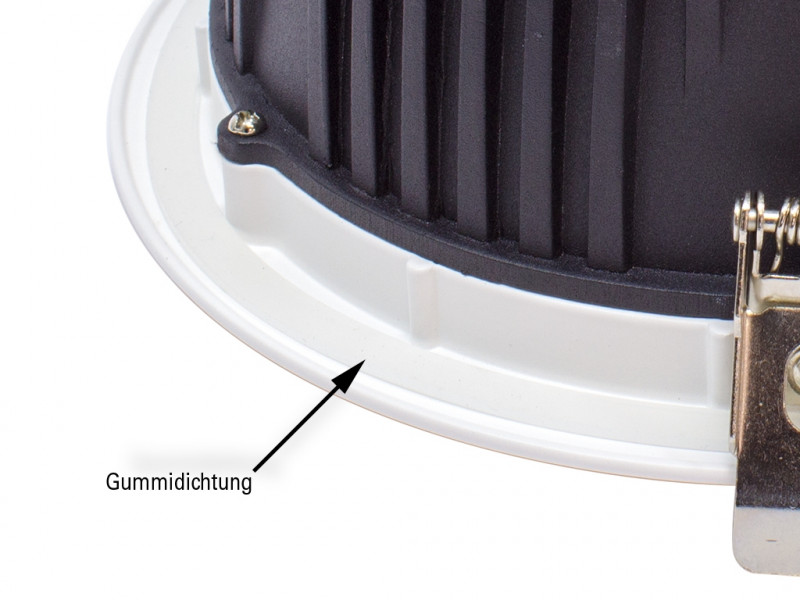

Special Feature of Housing:	IP54 room side

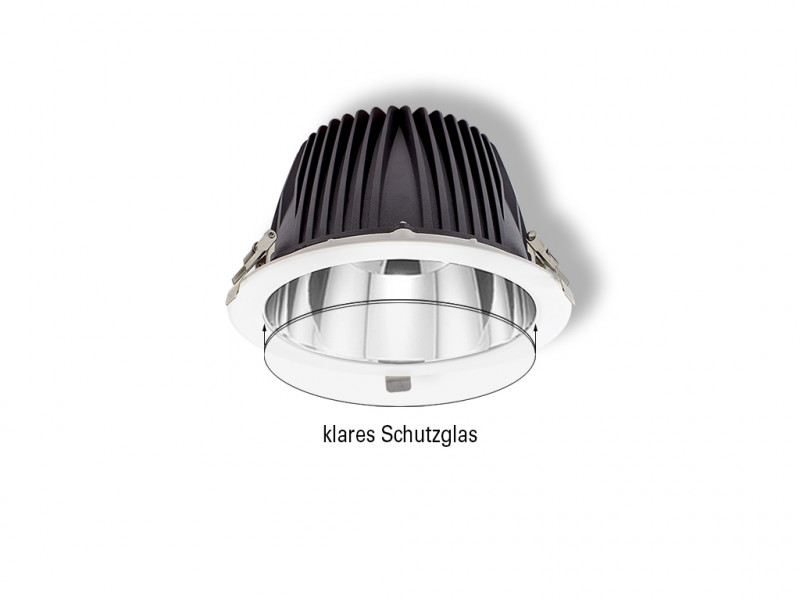

Cover:	clear
Net Weight:	1070 g

Type of Packaging:	box
Weight incl. Packaging:	1.24 kg
Content Master Package:	10
Dimensions of Master Package:	720x260x500 mm
Weight Master Package:	12,2 kg

Product Line:	Advance Line
Warranty	5 years
Operating Hours:	>50.000 h L80/B20
Disposal Obligation:
Customs Tariff Number:	9405499090
Certifications	CE
Barcode:	4250557812434
ohne Vorschaltgerät! bei Zubehör pass. EVG wählen
without power supply! choose one in accessories
IP54 raumseits

Technical Data Sheet (PDF)

Zurück

Available downloads:

Download LG10067 Integra SMD MKII 42-830-3500LM 83D (.ldt)
