Artea 23-830/840-2300LM CCT-/Power Select, Emergency Autotest

LG31242E3
Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Dimensions

Dimensions
  • LG31242E3
  • Luminous Flux: 2300 lm
  • Power Draw: Power Select (10,15,23 W)
  • Light Color: CCT Select (3000,4000 K)
  • Input Current: AC 220 - 240V, 50/60Hz, DC 180 - 240V
  • Color Rendering Index (CRI): ≥80 Ra
  • IP Code: 44
  • Beam Angle: 120°
  • LED-Chip: SMD 2835
  • Housing Color: white
  • Dimensions: 335x63 mm
  • Warranty: 5 years

Luminous Flux

2300
lm

Power Draw

24 W

Light Color

3000,4000 K
CCT Select

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 44

Beam Angle

120°

ceiling, wall

mounting type

Light Direction

Dimensions

(ØxH) in mm
335x63

Warranty

5 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

Universal surface-mounted luminaire with battery emergency light for 3 hours  ... more
Product information "Artea 23-830/840-2300LM CCT-/Power Select, Emergency Autotest"
Universal surface-mounted luminaire with battery emergency light for 3 hours

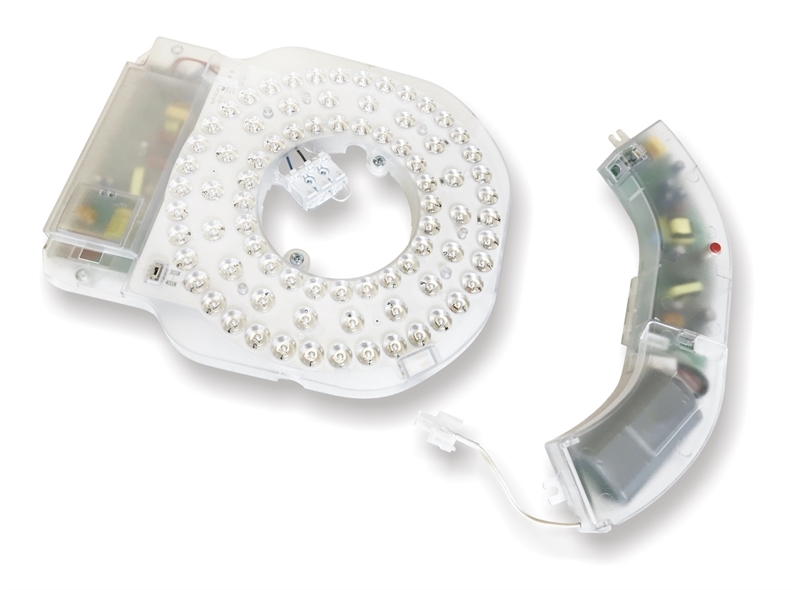

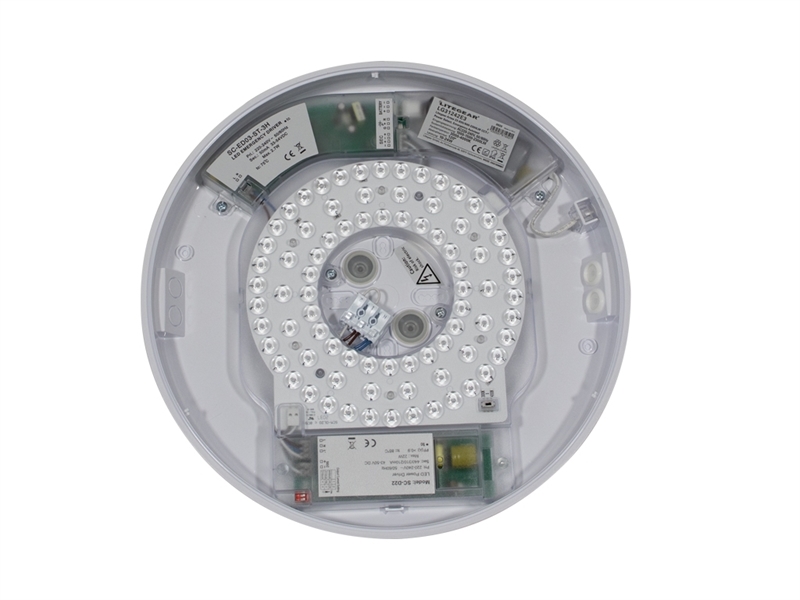

Artea is a universal wall / ceiling mounted luminaire with CCT Select 3000 / 4000K and Power Select: function output power 10-23W and luminous flux: 1000, 1500 and 2300 lumens.Artea ihas a service friendly, modular design. LED board and driver are combined on a replaceable unit. Optionally, a battery supply can be additionally connected for autonomous emergency power operation. The lluminaire has a robust, impact-resistant plastic housing which can also be used in protected outdoor areas.
Maximum 42 luminaires can be operated by a 16A fuse breaker.

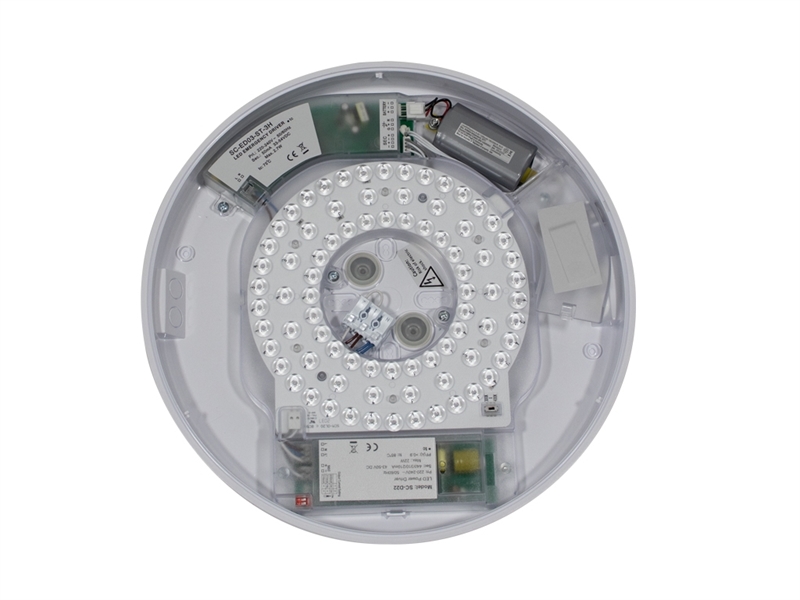

  • Including batteries and emergency switch driver in case power supply fails. Luminous flux in battery mode: 260 Lumen
  • Automatic selftest: weekly funktion test and annual long duration test

Applications: staircase house, corridors, lresidential, office, sanitary areas, storage rooms, outdoor under cannopies

Optional with motion sensor
Related links to "Artea 23-830/840-2300LM CCT-/Power Select, Emergency Autotest"
Technical Details:

Luminous Flux: 2300 lm
LED Output: 22.5 W
Light Yield: 96 lm/W
Light Temperature: 3000,4000 K
Light Color: CCT Select
Color Rendering Index: ≥80 Ra
Color Consistency (SDCM): <3
Beam Angle: 120 °
Light Emission: downward
LED-Chip: SMD 2835
Ignition Time: <0,5 s
Glow Wire Test 650°C/30s ja
Input Current: AC 220 - 240V, 50/60Hz, DC 180 - 240V
Power Consumption: Power Select (10,15,23 W)
Contains Driver: ja
Power Factor (PF): >0.9
Input Driver: terminal
CC/CV: CC
Input Lamp: Terminal
Switching Cycles: >100.000
Electrical Protection Class: II
Compatible with Emergency Current: ja
Loop-Through Cabling: ja
Ambient Temperature (TA): -20°C - 45°C
Storage Temperature: -20°C - 55°C
Dimensions: 335x63 mm
Mounting: ceiling,wall
Montageart: surface mounted
IP Class: 44
IK Code: 10
Housing Color white
Housing Material: plastic
Special Feature of Housing: modularer Aufbau
Cover: opal
Net Weight: 1316 g
Luminaire Type: Fluchtwegleuchtung
Testing Facility: automatischer Selbsttest
Battery Warranty: 1
Discharge Duration: ≥3 h
Battery Type: LiFePo4
Battery Current: 1500 mA
Battery Charge Duration: 12-16 h
Initial Charge Duration: 24 h
Charging Power Consumption: 4.5 W
Luminous Flux in Battery Mode: 260 lm
Standards for emergency luminaires: DIN EN 60598-2-22, DIN EN 62034: 2012, Anforderung nach DIN EN 50172
Type of Packaging: box
Dimensions of Packaging: 343x343x70
Weight incl. Packaging: 1.52 kg
Content Master Package: 10
Dimensions of Master Package: 745x360x365 mm
Weight Master Package: 14,9 kg
Product Line: Advance Line
Warranty 5 years
Operating Hours: >50.000 h L80/B20
Disposal Obligation: ja
Customs Tariff Number: 94051140
Certifications CE,D
Barcode: 4250557819501
Ideal für Flure/Treppenhäuser, Batterienotlicht 3h
Perfect for corridors/staircase hous, emergency 3h
Kann im Freien unter Vordächer verwendet werden!
Can be used temporarily outside under canopies
CCT Select: 3000/4000K, Power Select: 10, 15, 23W
h h
Runde LED-Wand-/Deckenanbauleuchte mit wählbarer Lichtfarbe und Leistungsanpassung more
Runde LED-Wand-/Deckenanbauleuchte mit wählbarer Lichtfarbe und Leistungsanpassung
Vorschaltgerät: LED-Treiber
Temperaturbereich: -20°C - 45°C
Lichtstrom: 2300 lm
LED-Leistung: Power Select (10,15,23 W)
Leuchten-Lichtausbeute: 96 lm/W
Farbtemperatur: 3000,4000 K
Lichtfarbe: CCT Select
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 120°
Lichtaustritt: direkt
Maße: 335x63 mm
Montageart: Aufbau (Decke,Wand)
Schutzart (DIN EN 60529): IP44
Stoßfestigkeitsgrad (IEC 62262): IK10
Außenfarbe: white
Gehäusematerial: plastic
Abdeckung: opal
Nettogewicht: 1316 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B20): 50000 h
