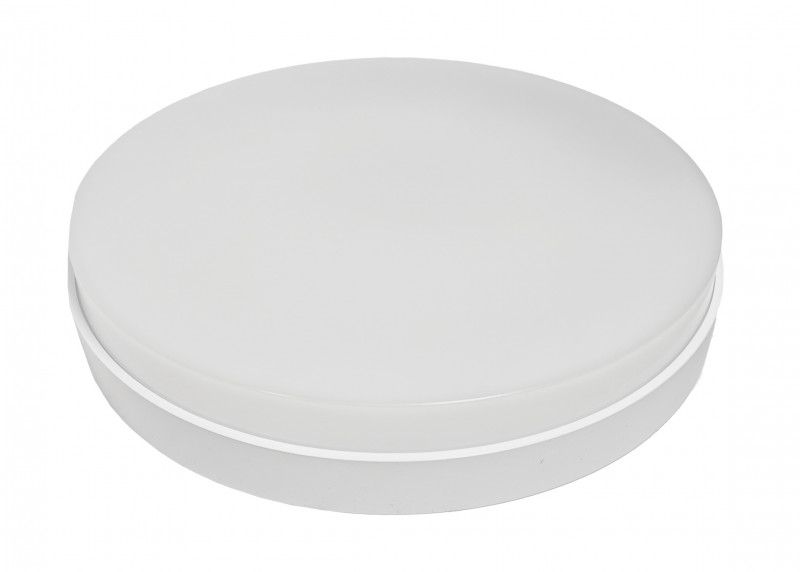

Artea MKII 23-830/835/840-2300LM CCT-/Power Select
Order number: LG31243
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Dimensions
- Order number: : LG31243
- Luminous Flux: 2300 lm
- Power Draw: Power Select (7,10,15,23 W)
- Light Color: CCT Select (3000, 3500, 4000 K)
- Input Current: AC 220 - 240V, 140-460mA, 50/60Hz, DC 180-240
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 44
- Beam Angle: 120°
- LED-Chip: Smalite SMD 2835
- Housing Color: white

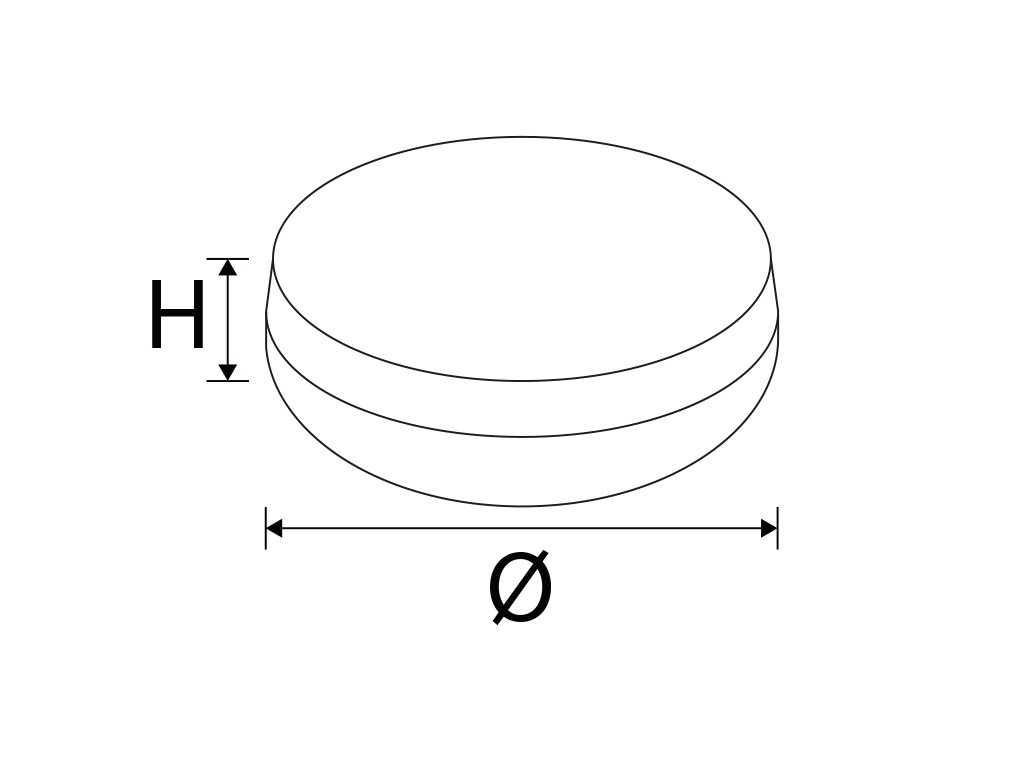

- Dimensions: 335x63 mm
- Warranty: 5 years
Universal surface-mounted luminaire Artea is a universal wall / ceiling mounted... more
Product information "Artea MKII 23-830/835/840-2300LM CCT-/Power Select"
Universal surface-mounted luminaire

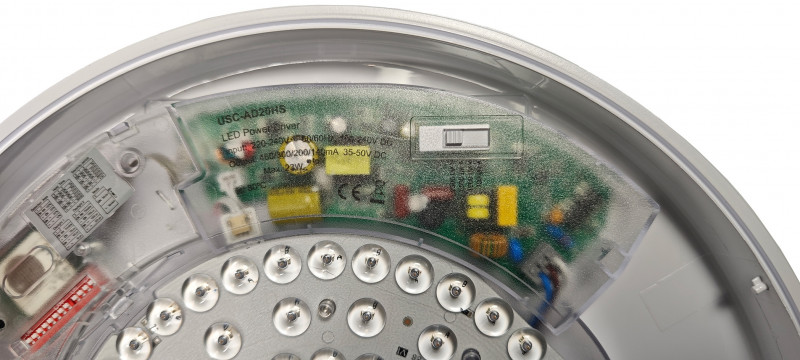

Artea is a universal wall / ceiling mounted luminaire with CCT Select 3000/3500/4000K and Power Select: function output power 7, 10, 15, 23W and luminous flux: 700, 1000, 1500 and 2300 lumens.Artea ihas a service friendly, modular design. LED board and driver are combined on a replaceable unit. Optionally, a battery supply can be additionally connected for autonomous emergency power operation. The lluminaire has a robust, impact-resistant plastic housing which can also be used in protected outdoor areas.
Maximum 42 luminaires can be operated by a 16A fuse breaker.
Can be used as slave luminaire in combination with Sensor Master luminaire.
Optional with battery emergency kit
Related links to "Artea MKII 23-830/835/840-2300LM CCT-/Power Select"
Technical Details:
| Luminous Flux: | 2300 lm |
| LED Output: | 20 W |
| Light Yield: | 100 lm/W |
| Light Temperature: | 3000, 3500, 4000 K |
| Light Color: | CCT Select |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <3 |
| Beam Angle: | 120 ° |
| Unified Glare Rating (UGR): | 22 |
| Light Emission: | downward |
| LED-Chip Manufacturer: | Smalite |
| LED-Chip: | SMD 2835 |
| Number of LED: | 80 |
| Ignition Time: | <0,5 s |
| Glow Wire Test 650°C/30s |  |
| Input Current: | AC 220 - 240V, 140-460mA, 50/60Hz, DC 180-240 |
| Power Consumption: | Power Select (7,10,15,23 W) |
| Contains Driver: | |
| Driver Manufacturer: | LMX |
| Power Factor (PF): | >0.9 |

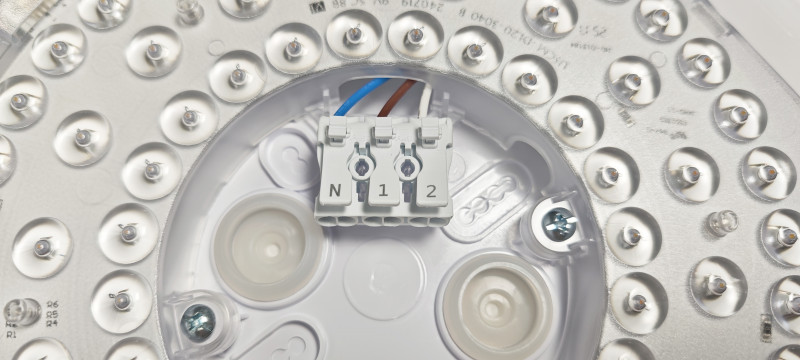

| Input Driver: | terminal |
| Output of Driver: | DC 30-50V, 460/300/200/140mAmA |
| CC/CV: | CC |
| Output Current Adjustable: | |
| Input Lamp: | Terminal |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | I |
| Loop-Through Cabling: | |
| Ambient Temperature (TA): | -25°C - 40°C |
| Storage Temperature: | -25°C - 60°C |
| Dimensions: | 335x63 mm |
| Mounting: | ceiling,wall |
| Montageart: | surface mounted |
| IP Class: | 44 |
| IK Code: | 10 |
| Housing Color | white |
| Housing Color (RAL Code): | similar 9016 |
| Housing Material: | Polycarbonat |
| Special Feature of Housing: | modularer Aufbau |
| Cover: | opal |
| Type of Packaging: | box |
| Dimensions of Packaging: | 342x342x70 |
| Weight incl. Packaging: | 1.4 kg |
| Content Master Package: | 10 |
| Dimensions of Master Package: | 743x360x365 mm |
| Weight Master Package: | 14,8 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >50.000 h L80/B20 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405114090 |
| Certifications | CE,SELV |
| Barcode: | 4250557827230 |
| Ideal für Flure und Treppenhäuser | |
| Perfect for corridors and staircase hous | |
| Kann im Freien unter Vordächer verwendet werden! | |
| Can be used temporarily outside under canopies | |
| 3CCT Select: 3000-4000K, Power Select: 7,10,15,23W | |
Runde LED-Wand-/Deckenanbauleuchte mit wählbarer Lichtfarbe und Leistungsanpassung more
Runde LED-Wand-/Deckenanbauleuchte mit wählbarer Lichtfarbe und Leistungsanpassung
Vorschaltgerät: LED-Treiber
Temperaturbereich: -25°C - 40°C
Lichtstrom: 2300 lm
LED-Leistung: Power Select (7,10,15,23 W)
Leuchten-Lichtausbeute: 100 lm/W
Farbtemperatur: 3000, 3500, 4000 K
Lichtfarbe: CCT Select
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 120°
UGR: 22
Lichtaustritt: direkt
Maße: 335x63 mm
Montageart: Aufbau (Decke,Wand)
Schutzklasse (DIN EN 61140): II
Schutzart (DIN EN 60529): IP44
Stoßfestigkeitsgrad (IEC 62262): IK10
Außenfarbe: white (9016)
Gehäusematerial: Polycarbonat
Abdeckung: opal
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B20): 50000 h
Vorschaltgerät: LED-Treiber
Temperaturbereich: -25°C - 40°C
Lichtstrom: 2300 lm
LED-Leistung: Power Select (7,10,15,23 W)
Leuchten-Lichtausbeute: 100 lm/W
Farbtemperatur: 3000, 3500, 4000 K
Lichtfarbe: CCT Select
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 120°
UGR: 22
Lichtaustritt: direkt
Maße: 335x63 mm
Montageart: Aufbau (Decke,Wand)
Schutzklasse (DIN EN 61140): II
Schutzart (DIN EN 60529): IP44
Stoßfestigkeitsgrad (IEC 62262): IK10
Außenfarbe: white (9016)
Gehäusematerial: Polycarbonat
Abdeckung: opal
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B20): 50000 h
