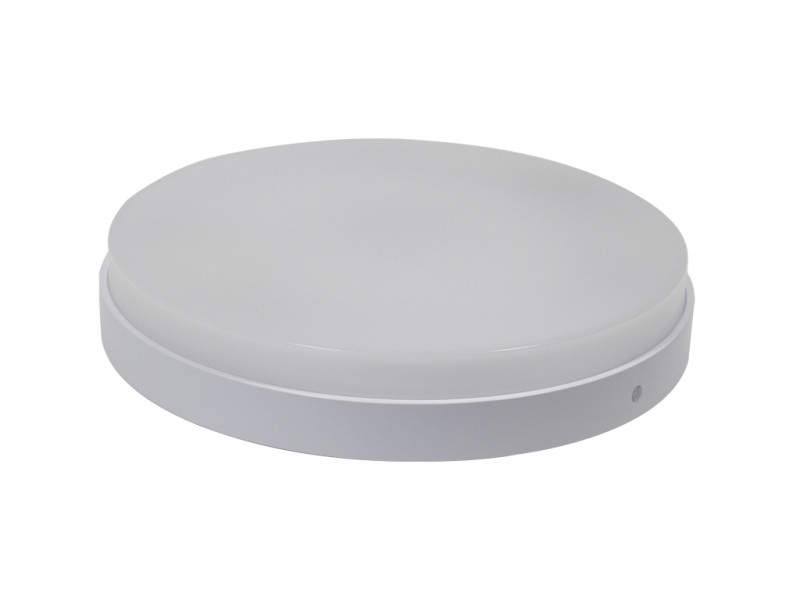

Artea 23-830/840-2300LM CCT-/Power Select, Sensor + Emergency Autotest
Order number: LG31243SE3
Available from 04/2026
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Dimensions
- Order number: : LG31243SE3
- Luminous Flux: 2300 lm
- Power Draw: Power Select (7,10,15,23 W)
- Light Color: CCT Select (3000,3500,4000 K)
- Input Current: AC 220 - 240V, 140-460mA, 50/60Hz, DC 180-240
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 44 (44 room side)
- Beam Angle: 120°
- LED-Chip: Smalite SMD 2835
- Housing Color: white

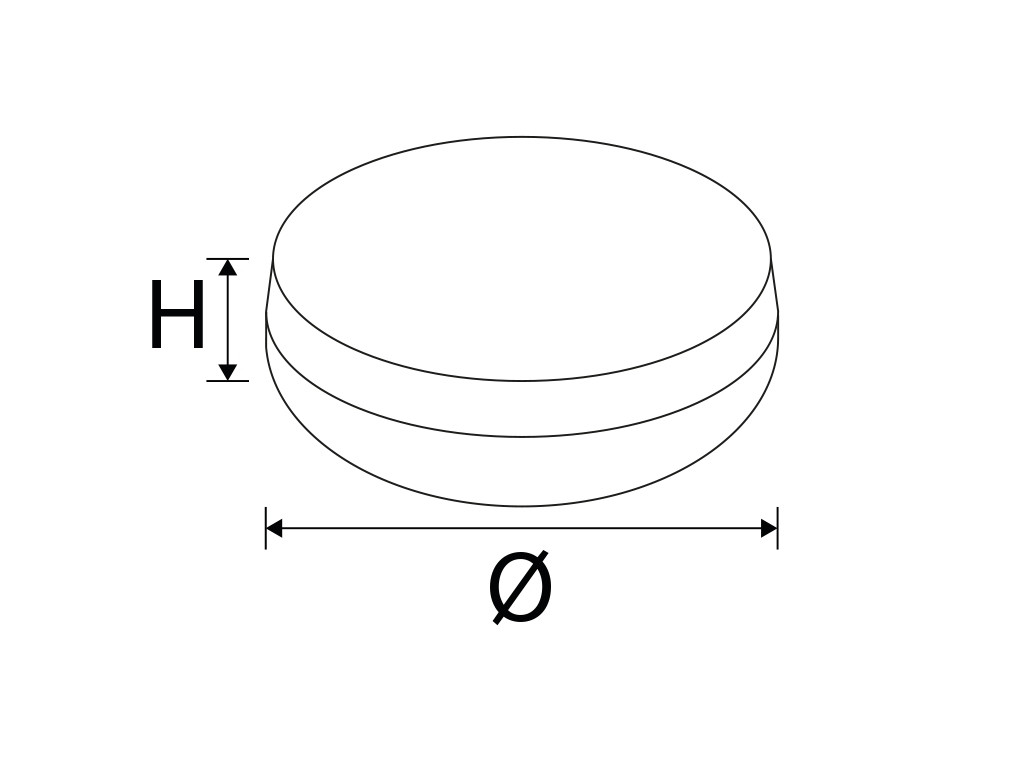

- Dimensions: 335x63 mm
- Warranty: 5 years
Universal surface-mounted luminaire with sensor and battery emergency light for 3 hours... more
Product information "Artea 23-830/840-2300LM CCT-/Power Select, Sensor + Emergency Autotest"
Universal surface-mounted luminaire with sensor and battery emergency light for 3 hours

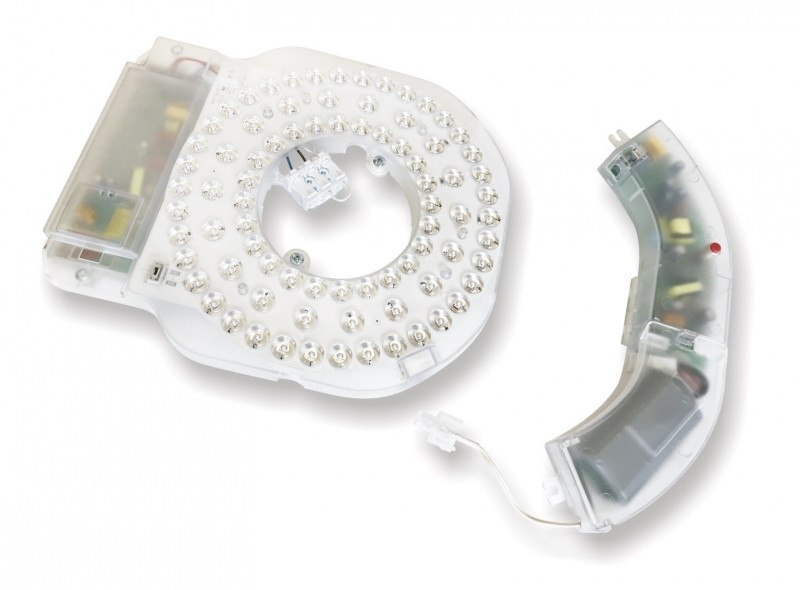

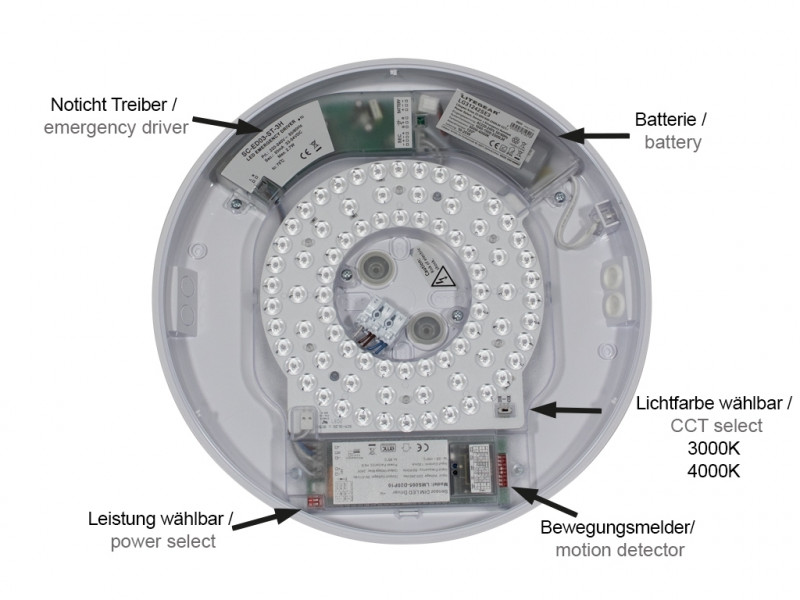

Artea is a universal wall / ceiling mounted luminaire with CCT Select 3000 / 4000K and Power Select: function output power 10-23W and luminous flux: 1000, 1500 and 2300 lumens.Artea ihas a service friendly, modular design. LED board and driver are combined on a replaceable unit. Optionally, a battery supply can be additionally connected for autonomous emergency power operation. The lluminaire has a robust, impact-resistant plastic housing which can also be used in protected outdoor areas.
Maximum 42 luminaires can be operated by a 16A fuse breaker.
- Including batteries and emergency switch driver in case electricity fails. Luminous flux in battery mode: 260 Lumen
- Automatic selftest: weekly funktion test and annual long duration test
Selectable functions for Sensor:
Detection area: 50/100% (7-14m)
Hold time: 5sek-10min.
corridor function 10/25% light level after last motion detection
hold time for corridor light function: 0 Sek., 10min, 30 min., unendlich
daylight harvesting: 5-150 Lux, aus
Related links to "Artea 23-830/840-2300LM CCT-/Power Select, Sensor + Emergency Autotest"
Technical Details:
| Luminous Flux: | 2300 lm |
| LED Output: | 20 W |
| Light Yield: | 100 lm/W |
| Light Temperature: | 3000,3500,4000 K |
| Light Color: | CCT Select |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <3 |
| Beam Angle: | 120 ° |
| Unified Glare Rating (UGR): | 19 |
| Light Emission: | downward |
| LED-Chip Manufacturer: | Smalite |
| LED-Chip: | SMD 2835 |
| Number of LED: | 80 |
| Ignition Time: | <0,5 s |
| Glow Wire Test 650°C/30s |  |
| Input Current: | AC 220 - 240V, 140-460mA, 50/60Hz, DC 180-240 |
| Power Consumption: | Power Select (7,10,15,23 W) |
| Contains Driver: | |
| Power Factor (PF): | >0.9 |
| Input Driver: | terminal |
| Output of Driver: | DC 30-50V, 140-460mA |
| CC/CV: | CC |
| Output Current Adjustable: | |
| Input Lamp: | Terminal |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | I |
| Loop-Through Cabling: | |
| Ambient Temperature (TA): | 0°C - 40°C |
| Storage Temperature: | -20°C - 40°C |
| Dimensions: | 335x63 mm |
| Mounting: | ceiling,wall |
| Montageart: | surface mounted |
| IP Class: | 44 (44 room side) |
| IK Code: | 10 |
| Housing Color | white |
| Housing Color (RAL Code): | similar 9016 |
| Housing Material: | plastic |
| Special Feature of Housing: | modularer Aufbau |
| Cover: | opal |
| Net Weight: | 1500 g |
| Luminaire Type: | Fluchtwegleuchtung |
| Testing Facility: | automatischer Selbsttest |
| Battery Warranty: | 3 |
| Discharge Duration: | ≥3 h |
| Battery Type: | LiFePo4 |
| Battery Current: | 1800 mA |
| Battery Charge Duration: | 24 h |
| Initial Charge Duration: | 24 h |
| Charging Power Consumption: | 1.5 W |
| Luminous Flux in Battery Mode: | 270 lm |
| Standards for emergency luminaires: | DIN EN 60598-2-22, DIN EN 62034: 2012, Anforderung nach DIN EN 50172 |
| Type of Packaging: | box |
| Dimensions of Packaging: | 343x343x70 |
| Weight incl. Packaging: | 1.6 kg |
| Content Master Package: | 10 |
| Dimensions of Master Package: | 745x360x365 mm |
| Weight Master Package: | 16,5 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >50.000 h L80/B20 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405114090 |
| Certifications | CE |
| Barcode: | 4250557827247 |
| Ideal für Flure/Treppenhäuser, Batterienotlicht 3h | |
| Perfect for corridors/staircase hous, emergency 3h | |
| Microwave Sensor Version, Master/Slave Mode | |
| Can be used temporarily outside under canopies | |
| 3CCT Select: 3000-4000K,Power Select: 7,10,15,23W | |
Runde LED-Wand-/Deckenanbauleuchte mit wählbarer Lichtfarbe und Leistungsanpassung more
Runde LED-Wand-/Deckenanbauleuchte mit wählbarer Lichtfarbe und Leistungsanpassung
Vorschaltgerät: LED-Treiber
Temperaturbereich: 0°C - 40°C
Lichtstrom: 2300 lm
LED-Leistung: Power Select (7,10,15,23 W)
Leuchten-Lichtausbeute: 100 lm/W
Farbtemperatur: 3000,3500,4000 K
Lichtfarbe: CCT Select
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 120°
UGR: 19
Bildschirmgerecht gemäß EN12464-1 durch begrenzte Leuchtdichten L ≤ 3000 cd/m² für Ausstrahlungswinkel oberhalb 65° rundum
Lichtaustritt: direkt
Maße: 335x63 mm
Montageart: Aufbau (Decke,Wand)
Schutzklasse (DIN EN 61140): II
Schutzart (DIN EN 60529): IP44 (IP44 raumseitig)
Stoßfestigkeitsgrad (IEC 62262): IK10
Außenfarbe: white (9016)
Gehäusematerial: plastic
Abdeckung: opal
Nettogewicht: 1500 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B20): 50000 h
Vorschaltgerät: LED-Treiber
Temperaturbereich: 0°C - 40°C
Lichtstrom: 2300 lm
LED-Leistung: Power Select (7,10,15,23 W)
Leuchten-Lichtausbeute: 100 lm/W
Farbtemperatur: 3000,3500,4000 K
Lichtfarbe: CCT Select
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 120°
UGR: 19
Bildschirmgerecht gemäß EN12464-1 durch begrenzte Leuchtdichten L ≤ 3000 cd/m² für Ausstrahlungswinkel oberhalb 65° rundum
Lichtaustritt: direkt
Maße: 335x63 mm
Montageart: Aufbau (Decke,Wand)
Schutzklasse (DIN EN 61140): II
Schutzart (DIN EN 60529): IP44 (IP44 raumseitig)
Stoßfestigkeitsgrad (IEC 62262): IK10
Außenfarbe: white (9016)
Gehäusematerial: plastic
Abdeckung: opal
Nettogewicht: 1500 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B20): 50000 h
