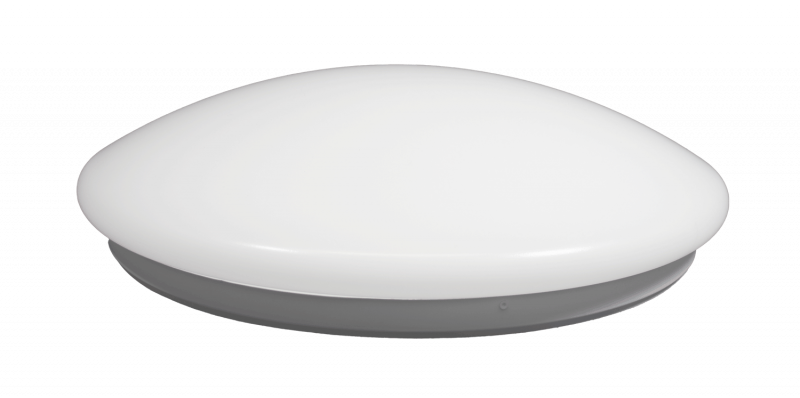

ORI-L 24-830-850-2880LM-IP64
Order number: LG5856
Available from 04/2025
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Dimensions
- Order number: : LG5856
- Luminous Flux: 2880 lm
- Power Draw: Power Select (12, 17, 24 W)
- Light Color: CCT Select (3000, 4000, 5000 K)
- Input Current: AC 220-240V, 50/60Hz, DC 200-250V
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 64
- Beam Angle: 120°
- LED-Chip: Zhaoyuan SMD 2835
- Housing Color: white
- Dimensions: 360x92 mm
- Warranty: 3 years
LED wall - / Ceiling light OneFitAll CCT Select: 3000K, 4000K, 5000... more
Product information "ORI-L 24-830-850-2880LM-IP64"
LED wall - / Ceiling light OneFitAll
- CCT Select: 3000K, 4000K, 5000 Kelvin
- Power Select: 12W, 17W, 24W
- High system efficiency: 120lm/W 2880lm@ 24W 4000K
- timeless, mushroom design
- priliminaire weather and dust proof IP64
- compact housing
- applications: stoarage rooms, corridors, residential, bath room, outside under cannopies,
- easy installation
- also available with integrated motion sensor
Related links to "ORI-L 24-830-850-2880LM-IP64"
Technical Details:
| Luminous Flux: | 2880 lm |
| LED Output: | 21 W |
| Light Yield: | 120 lm/W |
| Light Temperature: | 3000, 4000, 5000 K |
| Light Color: | CCT Select |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <6 |
| Beam Angle: | 120 ° |
| Light Emission: | downward |
| LED-Chip Manufacturer: | Zhaoyuan |
| LED-Chip: | SMD 2835 |
| Number of LED: | 40 |
| Ignition Time: | <0,5 s |
| Glow Wire Test 650°C/30s |  |
| Input Current: | AC 220-240V, 50/60Hz, DC 200-250V |
| Power Consumption: | Power Select (12, 17, 24 W) |
| Contains Driver: | |
| Driver Manufacturer: | MOHO |
| Power Factor (PF): | >0.9 |
| Input Driver: | terminal |
| Output of Driver: | DC 84-96V, 240mA |
| CC/CV: | CC |
| Output Current Adjustable: | |
| Input Lamp: | Terminal |
| Switching Cycles: | >20.000 |
| Ambient Temperature (TA): | -20°C - 40°C |
| Storage Temperature: | -20°C - 40°C |
| Dimensions: | 360x92 mm |
| Mounting: | ceiling,wall |
| Montageart: | surface mounted |
| IP Class: | 64 |
| IK Code: | 02 |
| Housing Color | white |
| Housing Color (RAL Code): | similar 9003 |
| Housing Material: | steel |
| Coating: | lacquered |
| Special Feature of Housing: | PMMA cover |
| Cover: | opal |
| Net Weight: | 597 g |
| Type of Packaging: | box |
| Dimensions of Packaging: | 400x400x100 |
| Weight incl. Packaging: | 0.935 kg |
| Content Master Package: | 5 |
| Dimensions of Master Package: | 535x420x425 mm |
| Weight Master Package: | 5,5 kg |
| Product Line: | ECO Line |
| Warranty | 3 years |
| Operating Hours: | >50.000 h L80/B10 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405119090 |
| Certifications | CE,D |
| Barcode: | 4250557825519 |
| Power Select und CCT Select | |
| weiche, gleichmäßige Ausleuchtung | |
Available downloads:
- Download (12W&3000K) LG5856_ORI-L 24-830-850-2880LM-IP64 (.ldt)
- Download (12W&4000K) LG5856_ORI-L 24-830-850-2880LM-IP64 (.ldt)
- Download (12W&5000K) LG5856_ORI-L 24-830-850-2880LM-IP64 (.ldt)
- Download (17W&3000K) LG5856_ORI-L 24-830-850-2880LM-IP64 (.ldt)
- Download (17W&4000K) LG5856_ORI-L 24-830-850-2880LM-IP64 (.ldt)
- Download (17W&5000K) LG5856_ORI-L 24-830-850-2880LM-IP64 (.ldt)
- Download (24W&3000K) LG5856_ORI-L 24-830-850-2880LM-IP64 (.ldt)
- Download (24W&4000K) LG5856_ORI-L 24-830-850-2880LM-IP64 (.ldt)
- Download (24W&5000K) LG5856_ORI-L 24-830-850-2880LM-IP64 (.ldt)
