Placida Clou XL 330 30-830-860-3255LM OneFitAll

Product Info (PDF)

Order number: LG58354

Prices are only visible after login.

Availability: on request

Dimensions

Menü schließen

Order number: : LG58354
Luminous Flux: 3255 lm
Power Draw: Power Select (18, 24, 30 W)

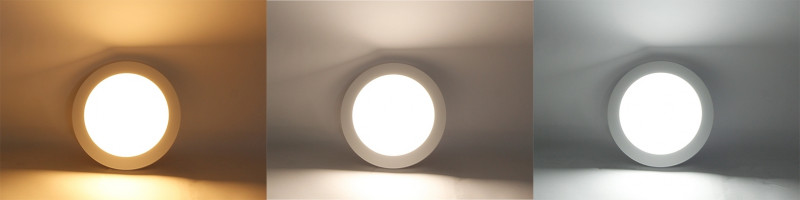

Light Color: CCT Select (3000/4000/6000 K)
Input Current: AC 200-240V, 50/60Hz
Color Rendering Index (CRI): ≥80 Ra
IP Code: 20 (44 room side)

Beam Angle: 120°
LED-Chip: SMD 2835
Housing Color: white
Dimensions: 330x19 mm
Cut-Out Dimensions: 65-310 mm
Warranty: 3 years

Luminous Flux

3255
lm

Power Draw

30 W

Light Color

3000/4000/6000 K
CCT Select

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 20

IP Class Room Side

IP 44
room side

Beam Angle

120°

ceiling, wall

mounting type

Light Direction

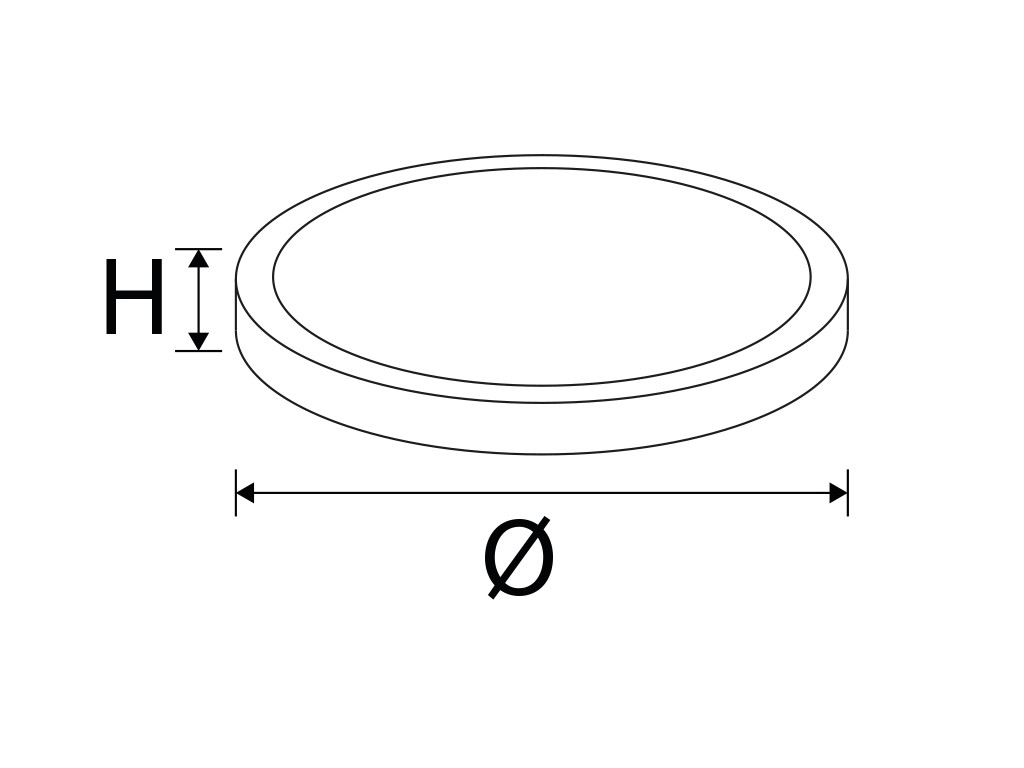

Dimensions

(ØxH) in mm
330x19

Warranty

3 years

The light source cannot be replaced

Flat LED surface-mounted luminaire with CCT color select and Power adjustment ... more

Close menu

Product information "Placida Clou XL 330 30-830-860-3255LM OneFitAll"

Flat LED surface-mounted luminaire with CCT color select and Power adjustment

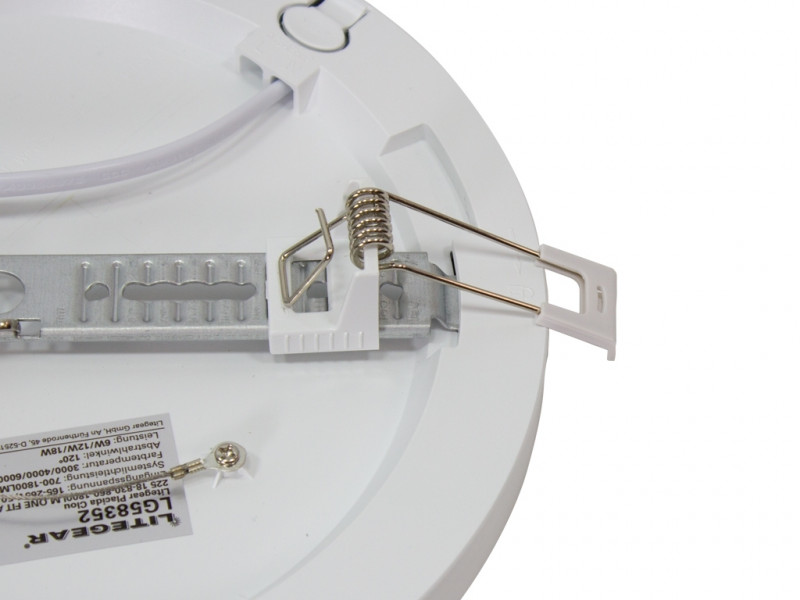

Litegear® Placida Clou XL is a universal LED surface-mounted OneFitAll luminaire with a very low overall height for installation on ceilings or walls. Due to a flexible mounting bracket with sliding spring clips, these can be quickly mounted in sawed ceiling holes of 65-210mm round cutout or 65-150mm squared holes. It can also be installed directly with screws and pegs to suspended ceilings or solid ceilings. Easy and quick installation with enclosed mounting bracket, cliips and screws. Very homogeneous flicker free light distribution and high brightness of up to 116lm/W. Ideal for illuminating commercial areas, entrance halls, corridors or offices. Selectable light color via switch: warm white 3000K, neutral white 4000K or 6000K cold white and power select switch: 6, 12 and 18W. Very flat and attractive design only 19mm body height. Mounting bracket with rotatable locking and safety rope. Built-in electronic constant current IC-driver with electrical terminal clips.

Due to the long service life and the low price, replacing existing luminaires with Placida Clou pays for itself very quickly. The long service life also reduces maintenance costs.

Applications:

corridors, office, shop, restrooms, storage rooms, residential lighting, dressing rooms

Luminousflux (Power Select) equivalent:

18W-1900-2000lm: replacement incandescent bulb 150W, CFL compact flourescent G24: 2x 18W

24W-2400-2640lm: CFL compact flourescent G24 : 2x 26W

30W-3100-3255lm: replacement for CFL compact flourescent 2x 36W

Related links to "Placida Clou XL 330 30-830-860-3255LM OneFitAll"

Zurück

Technical Details:

Luminous Flux:	3255 lm
Light Yield:	109 lm/W
Light Temperature:	3000/4000/6000 K
Light Color:	CCT Select
Color Rendering Index:	≥80 Ra
Color Consistency (SDCM):	<4
Beam Angle:	120 °
Light Emission:	downward
LED-Chip:	SMD 2835
Ignition Time:	<0,5 s

Input Current:	AC 200-240V, 50/60Hz
Power Consumption:	Power Select (18, 24, 30 W)
Contains Driver:
Power Factor (PF):	>0.9
Input Driver:	terminal
CC/CV:	CC
Output Current Adjustable:
Input Lamp:	Kabel mit Klemmen
Switching Cycles:	>50.000
Electrical Protection Class:	II
Ambient Temperature (TA):	-20°C - 45°C
Storage Temperature:	-20°C - 50°C

Dimensions:	330x19 mm
Cut-Out Dimensions:	65-310 mm
Mounting:	ceiling,wall
Montageart:	surface mounted
IP Class:	20 (44 room side)
IK Code:	04
Housing Color	white
Housing Material:	plastic
Special Feature of Housing:	Farbwahlschalter 830-860
Cover:	opal
Net Weight:	835 g

Type of Packaging:	box
Weight incl. Packaging:	0.985 kg
Content Master Package:	10
Dimensions of Master Package:	345x345x350 mm
Weight Master Package:	9,95 kg

Product Line:	ECO Line
Warranty	3 years
Operating Hours:	>30.000 h L80/B20
Disposal Obligation:
Customs Tariff Number:	9405114090
Certifications	CE,D
Barcode:	4250557822440
Über Schalter wählbare Lichtfarbe
Für gesägte Ausschnitte 65-210mm rund 225mm eckig
Aufputzmontage möglich mediums Bügel
Klemmterminal, leichte, schnelle Montage
Power Select: 18, 24, 30W

Technical Data Sheet (PDF)

Runde LED-Wand-/Deckenanbauleuchte mit wählbarer Lichtfarbe, Leistungsanpassung und sehr geringer... more

Zurück

Runde LED-Wand-/Deckenanbauleuchte mit wählbarer Lichtfarbe, Leistungsanpassung und sehr geringer Aufbauhöhe
Vorschaltgerät: LED-Treiber
Deckenausschnitt: 65-310 mm
Temperaturbereich: -20°C - 45°C
Lichtstrom: 3255 lm
LED-Leistung: Power Select (18, 24, 30 W)
Leuchten-Lichtausbeute: 109 lm/W
Farbtemperatur: 3000/4000/6000 K
Lichtfarbe: CCT Select
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 120°
Lichtaustritt: direkt
Maße: 330x19 mm
Montageart: Aufbau (Decke,Wand)
Schutzklasse (DIN EN 61140): II
Schutzart (DIN EN 60529): IP20 (IP44 raumseitig)
Stoßfestigkeitsgrad (IEC 62262): IK04
Außenfarbe: white
Gehäusematerial: plastic
Abdeckung: opal
Nettogewicht: 835 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L80/B20): 30000 h
