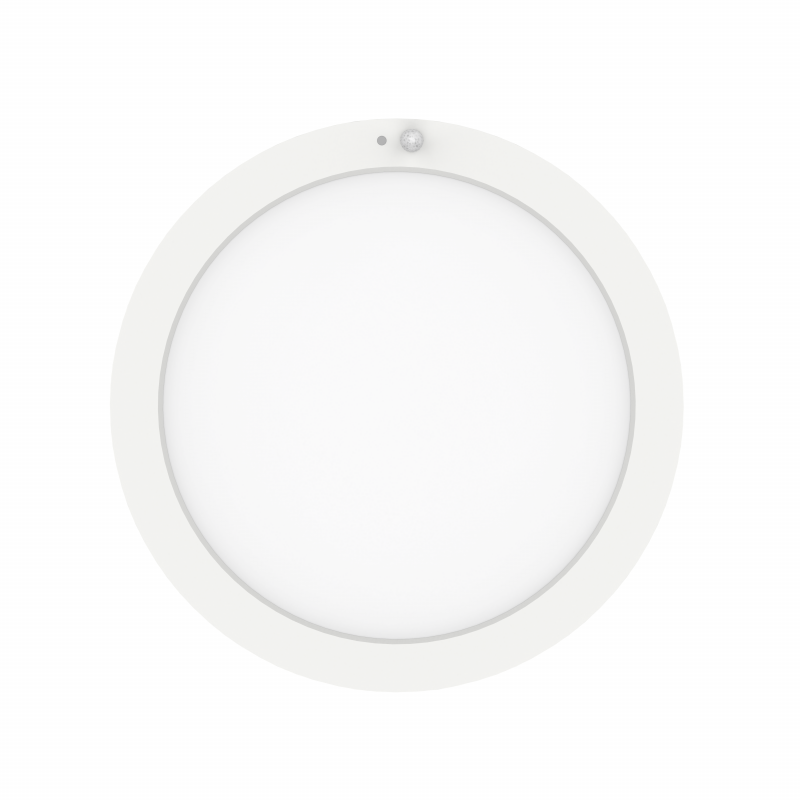

Placida Clou 232 18-830-850-2000LM PIR SENSOR OneFitAll IP54

Product Info (PDF)

Order number: LG58361

Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Dimensions

Menü schließen

Order number: : LG58361
Luminous Flux: 2000 lm
Power Draw: Power Select (6, 12, 18 W)

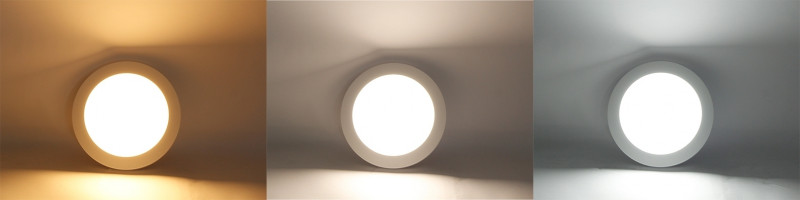

Light Color: CCT Select (3000/4000/5000 K)
Input Current: AC 220-240V, 85mA, 50/60Hz
Color Rendering Index (CRI): ≥80 Ra
IP Code: 54

Beam Angle: 115°
LED-Chip: MTC SMD 2835
Housing Color: white
Dimensions: 232x22 mm
Cut-Out Dimensions: 85-210 mm
Warranty: 3 years

Luminous Flux

2000
lm

Power Draw

18 W

Light Color

3000/4000/5000 K
CCT Select

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 54

Beam Angle

115°

ceiling, wall

mounting type

Light Direction

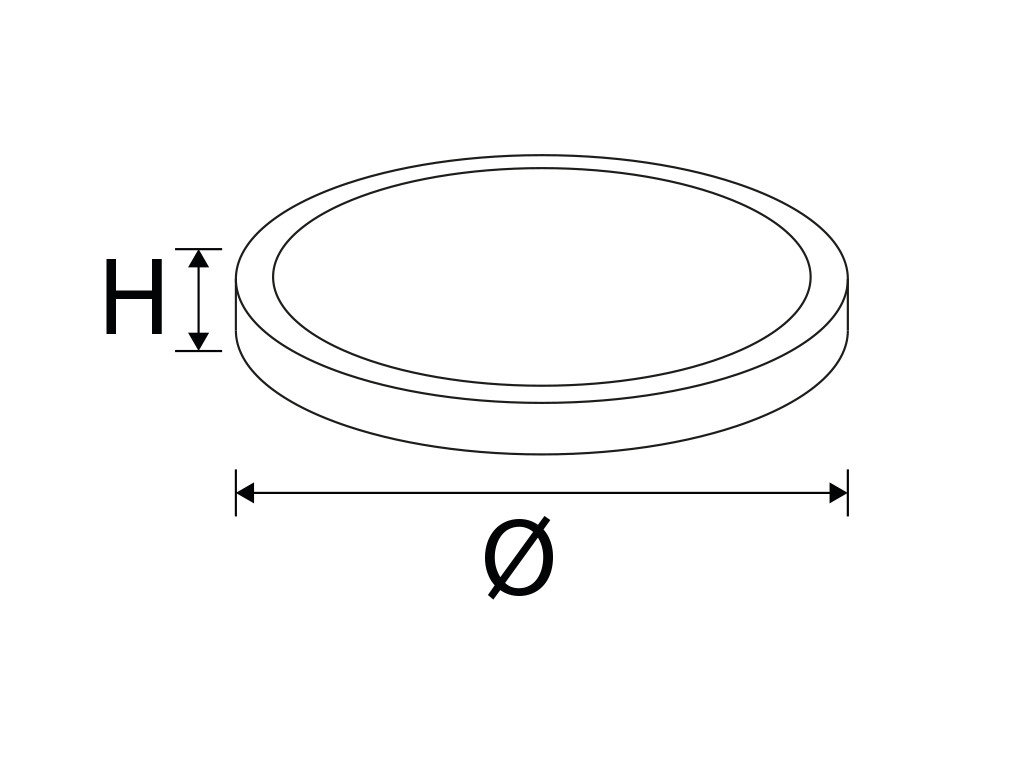

Dimensions

(ØxH) in mm
232x22

Warranty

3 years

The driver cannot be replaced

Flat LED surface-mounted luminaire with PIR Sensor, CCT color select and Power adjustment... more

Close menu

Product information "Placida Clou 232 18-830-850-2000LM PIR SENSOR OneFitAll IP54"

Flat LED surface-mounted luminaire with PIR Sensor, CCT color select and Power adjustment

Litegear® Placida Clou is a universal LED surface-mounted OneFitAll luminaire with a very low overall height for installation on ceilings or walls. Due to a flexible mounting bracket with sliding spring clips, these can be quickly mounted in sawed ceiling holes of 53-210mm round cutout or 65-150mm squared holes. It can also be installed directly with screws and pegs to suspended ceilings or solid ceilings. Easy and quick installation with enclosed mounting bracket, cliips and screws. Very homogeneous flicker free light distribution and high brightness of up to 120lm/W. Ideal for illuminating commercial areas, entrance halls, corridors or offices. Selectable light color via switch: warm white 3000K, neutral white 4000K or 5000K daylight and power select switch: 6, 12 and 18W. Very flat and attractive design only 22,5mm body height. Mounting bracket with push locking and safety rope. Built-in electronic constant current IC-driver with electrical terminal clips.Due to the long service life and the low price, replacing existing luminaires with Placida Clou pays for itself very quickly. The long service life also reduces maintenance costs.

105 to 115lm/W system efficiency in conjunction with CCT select and power select

Wire through terminals

IP54 design: can be used in bathrooms or under canopies outdoor

Integrated PIR motion sesnor: on/off switch

Daylight thereshold: 50, 150, 300 Lux

Hold time: 1, 5, 10, 20 minutes

Orientation light 10/25% selectable: 10, 60, 60 minutes, 24 hours

Applications:

corridors, office, shop, restrooms, storage rooms, residential lighting

Luminousflux (Power Select) equivalent:

6W: 660-720lm: replacement incandescent bulb 60W, Halogen 20, 35, 50W; CFL compact flourescent G23 : 7-13W, G24: 13-18W

12W: 1300-1380lm: replacement for incandescent bulb 100W, CFL compact flourescent G24 : 2 x 13W, 2 x 18W, 1 x 26W

18W: 1890-1980lm: replacement for CFL compact flourescent G24 : 2 x 26W

Related links to "Placida Clou 232 18-830-850-2000LM PIR SENSOR OneFitAll IP54"

Zurück

Technical Details:

Luminous Flux:	2000 lm
LED Output:	18 W
Light Yield:	110 lm/W
Light Temperature:	3000/4000/5000 K
Light Color:	CCT Select
Color Rendering Index:	≥80 Ra
Color Consistency (SDCM):	<4
Beam Angle:	115 °
Unified Glare Rating (UGR):	23
Light Emission:	downward
LED-Chip Manufacturer:	MTC
LED-Chip:	SMD 2835
Number of LED:	138
Ignition Time:	<0,5 s
Glow Wire Test 650°C/30s

Input Current:	AC 220-240V, 85mA, 50/60Hz
Power Consumption:	Power Select (6, 12, 18 W)
Contains Driver:
Power Factor (PF):	>0.8
Input Driver:	terminal
Output of Driver:	DC 63V, 245mA
CC/CV:	CC
Output Current Adjustable:
Input Lamp:	Terminal
Switching Cycles:	>30.000
Electrical Protection Class:	II
Loop-Through Cabling:
Ambient Temperature (TA):	-10°C - 35°C
Storage Temperature:	-20°C - 45°C

Dimensions:	232x22 mm
Installation Depth:	22 mm
Cut-Out Dimensions:	85-210 mm
Mounting:	ceiling,wall
Montageart:	surface mounted
IP Class:	54
IK Code:	03
Housing Color	white
Housing Color (RAL Code):	similar 9016
Housing Material:	plastic
Special Feature of Housing:	Farbwahlschalter 830-850
Cover:	opal
Net Weight:	490 g

Type of Packaging:	box
Dimensions of Packaging:	240x240x31
Weight incl. Packaging:	0.585 kg
Content Master Package:	20
Dimensions of Master Package:	500x335x265 mm
Weight Master Package:	12,14 kg

Product Line:	Essential Line
Warranty	3 years
Operating Hours:	>30.000 h L70/B50
Disposal Obligation:
Customs Tariff Number:	9405114090
Certifications	CE
Barcode:	4250557827940
Über Schalter wählb. Lichtfarbe 3000, 4000, 5000K
Eingebauter IR-Bewegungsmelder/ PIR Sensor
Aufputzmontage mediums Bügel,Durchgangsverdrahtung
Orientierungslicht, max. 110lm/Watt @4000K
Vielseitige Einsatzmöglichkeiten, Power Select

Technical Data Sheet (PDF)

Runde LED-Wand-/Deckenanbauleuchte mit wählbarer Lichtfarbe, Leistungsanpassung und sehr geringer... more

Zurück

Runde LED-Wand-/Deckenanbauleuchte mit wählbarer Lichtfarbe, Leistungsanpassung und sehr geringer Aufbauhöhe
Vorschaltgerät: LED-Treiber
Deckenausschnitt: 85-210 mm
Einbautiefe: 22 mm
Temperaturbereich: -10°C - 35°C
Lichtstrom: 2000 lm
LED-Leistung: Power Select (6, 12, 18 W)
Leuchten-Lichtausbeute: 110 lm/W
Farbtemperatur: 3000/4000/5000 K
Lichtfarbe: CCT Select
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 115°
UGR: 23
Lichtaustritt: direkt
Maße: 232x22 mm
Montageart: Aufbau (Decke,Wand)
Schutzklasse (DIN EN 61140): II
Schutzart (DIN EN 60529): IP54
Stoßfestigkeitsgrad (IEC 62262): IK03
Außenfarbe: white (9016)
Gehäusematerial: plastic
Abdeckung: opal
Nettogewicht: 490 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L70/B50): 30000 h
