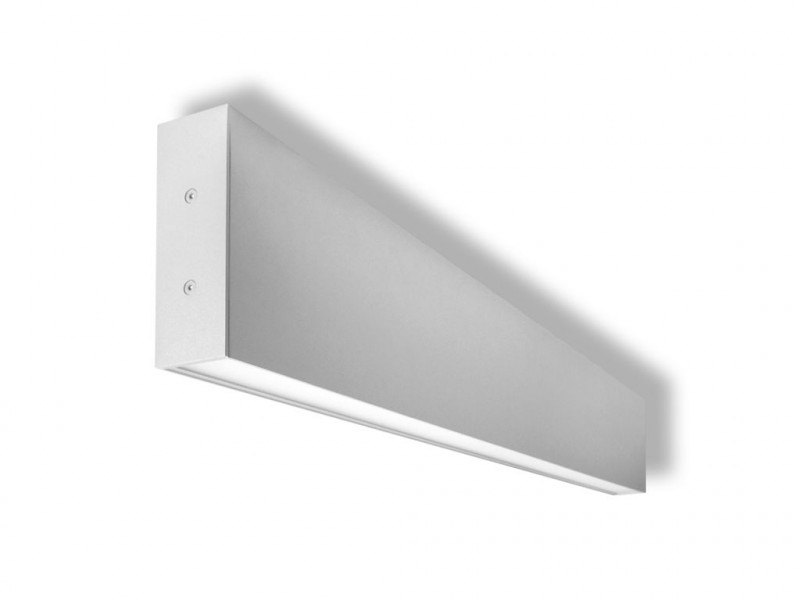

Rectangula UP/Down 67-840-5000LM
Order number: LG10602
Preise sind erst nach der Anmeldung sichtbar.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Dimensions
- Order number: : LG10602
- Luminous Flux: 5000 lm
- Power Draw: 68 W
- Light Color: neutralwhite (4000 K)
- Input Current: AC 220 - 240V, 50/60Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 20
- Beam Angle: 60°
- LED-Chip: Samsung SMD 5630
- Housing Color: silver
- Dimensions: 1200x50x210 mm
- Warranty: 3 years
LED wall light Rectangula Up/Down is a timeless LED wall light with silver... more
Product information "Rectangula UP/Down 67-840-5000LM"
LED wall light
Rectangula Up/Down is a timeless LED wall light with silver housing and direct and indirect light output. Due to high efficient and energy saving LED boards the user can save up to 55% of electricity based on flourescent versions. The LED boards are covered with frosted covers to reduce the glare and protect the chips from dust. The integrated quality LED driver is based on a long lifespan. That helps to reduce maintenance costs for the user. The ligt beams are focused, so Rectangula can be used in hospitals, health care, medical rooms, offices and corridors.
Applications:
- Hostital
- Patient's room
- Care home
- Consulting rooms
- Management
Related links to "Rectangula UP/Down 67-840-5000LM"
Technical Details:
| Luminous Flux: | 5000 lm |
| LED Output: | 64 W |
| Light Yield: | 74 lm/W |
| Light Temperature: | 4000 K |
| Light Color: | neutralwhite |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <4 |
| Beam Angle: | 60 ° |
| Light Emission: | upward/downward |
| LED-Chip Manufacturer: | Samsung |
| LED-Chip: | SMD 5630 |
| Ignition Time: | <0,5 s |
| Input Current: | AC 220 - 240V, 50/60Hz |
| Power Consumption: | 68 W |
| Contains Driver: |  |
| Driver Manufacturer: | Osram |
| Power Factor (PF): | >0.95 |
| Input Driver: | cable with flying leads |
| Output of Driver: | DC 2x 48V, 700mA |
| CC/CV: | CC |
| Input Lamp: | terminal |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | -20°C - 45°C |

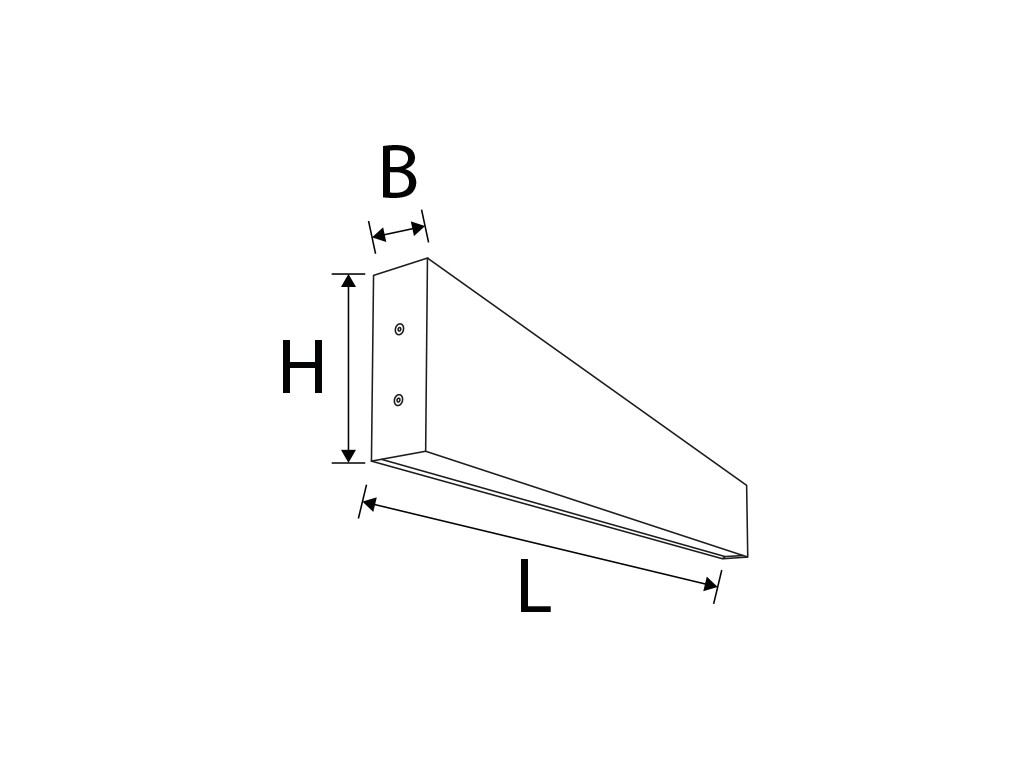

| Dimensions: | 1200x50x210 mm |

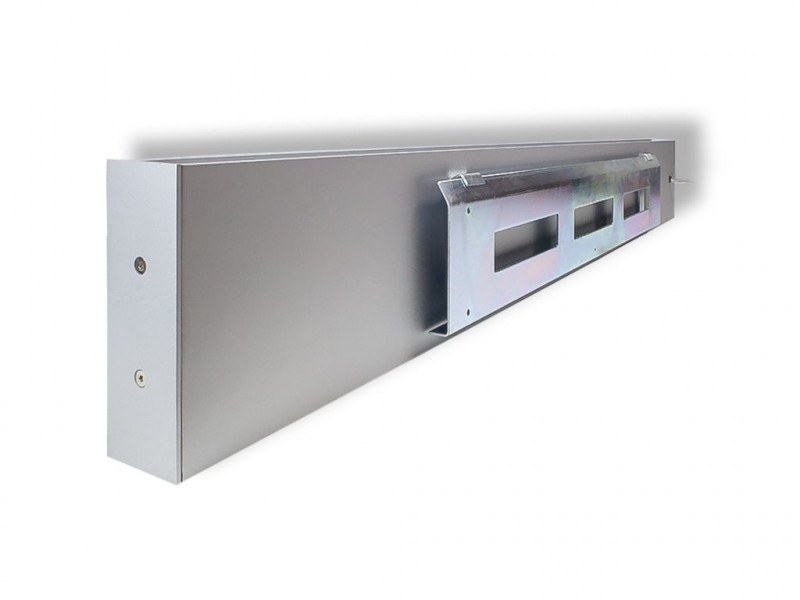

| Mounting: | Wand |
| Montageart: | surface mounted |
| IP Class: | 20 |
| Housing Color | silver |
| Housing Material: | aluminum |
| Coating: | lacquered |
| Special Feature of Housing: | externally switchable up/down |
| Cover: | opal |
| Net Weight: | 5570 g |
| Type of Packaging: | box |
| Dimensions of Packaging: | 1300x260x250 |
| Weight incl. Packaging: | 6.69 kg |
| Content Master Package: | 2 |
| Dimensions of Master Package: | 1300x250x270 mm |
| Weight Master Package: | 7,8 kg |
| Product Line: | Premio Line |
| Warranty | 3 years |
| Operating Hours: | >50.000 h L80/B20 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405409990 |
| Certifications | CE,RoHS,EMC,LVD,D |
| Barcode: | 4250557805887 |

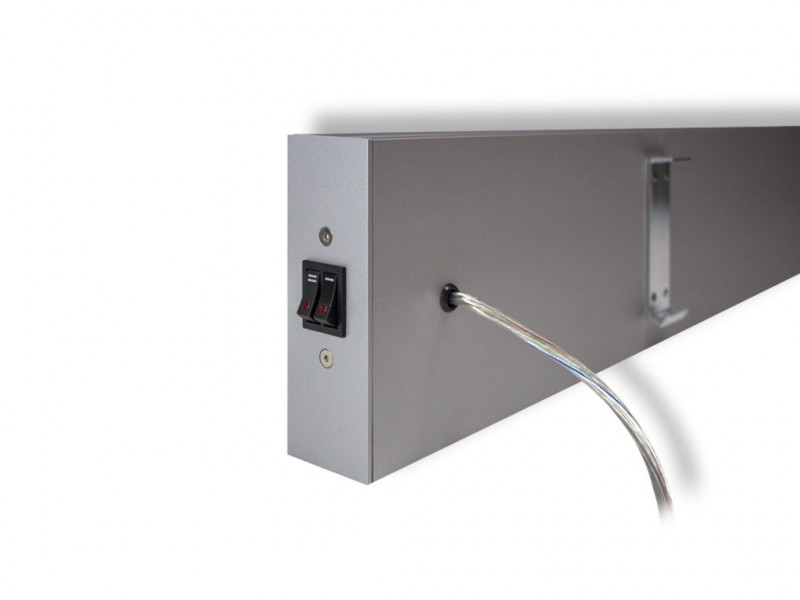

| Licht oben/unten separat schaltbar | |
| über seitlichen integrierten Schalter | |
