RENOVIA 127/36-40-827-860-4800LM BAP, PMMA Remote CCT-Adjust + Dim
Order number: LG59087
Prices are only visible after login.
Availability: low stock
- Order number: : LG59087
- Luminous Flux: 4800 lm
- Power Draw: 40 W

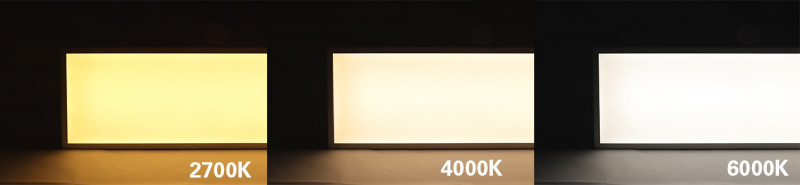

- Light Color: Vario CCT (2700-6000 K)
- Input Current: AC 200-240V, 50/60Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 40
- Beam Angle: 90°
- LED-Chip: SMD
- Housing Color: white
- Dimensions: 1270x360x55 mm
- Warranty: 5 years
Surface mounting renovation luminaire Renovia serves as a replacement for... more
Product information "RENOVIA 127/36-40-827-860-4800LM BAP, PMMA Remote CCT-Adjust + Dim"

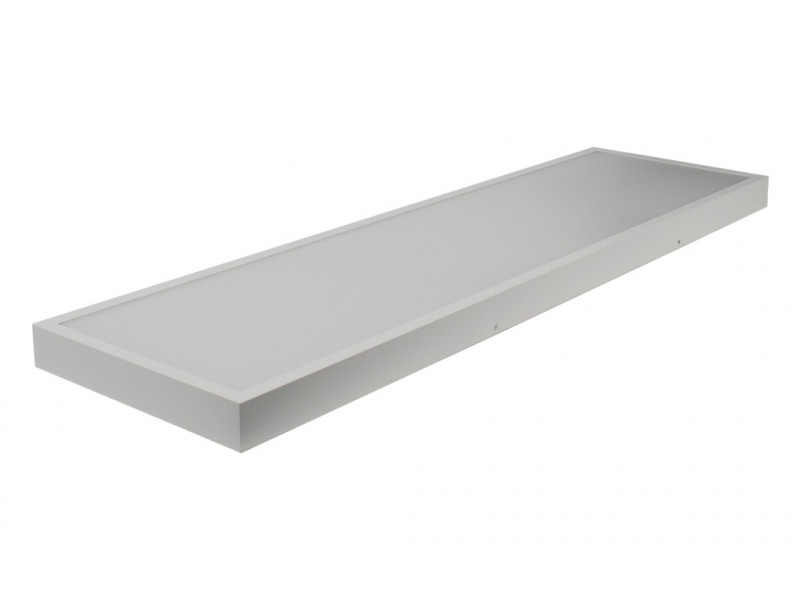

Surface mounting renovation luminaire
Renovia serves as a replacement for traditional surface mounted louver luminaires with fluorescent tubes. The larger housing can easily cover dirty edges outside the old luminaire housing, so no need for a complete ceiling painting.

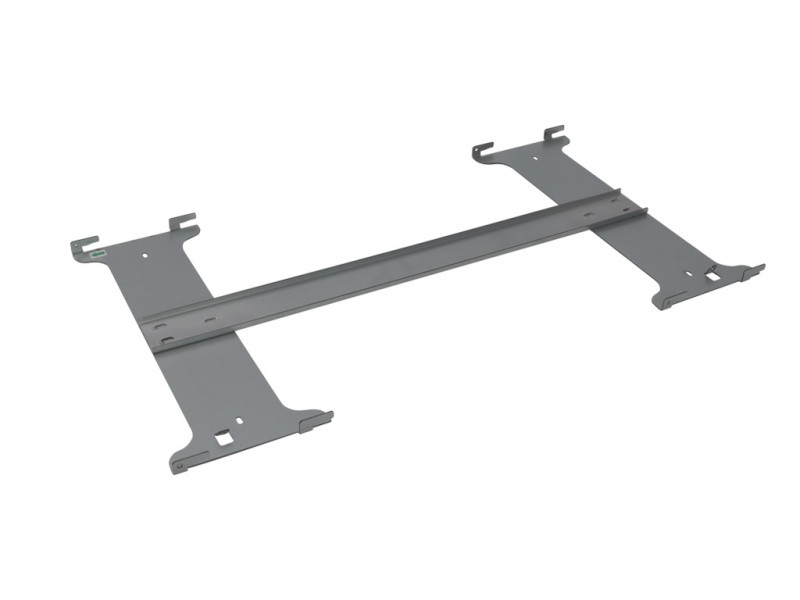

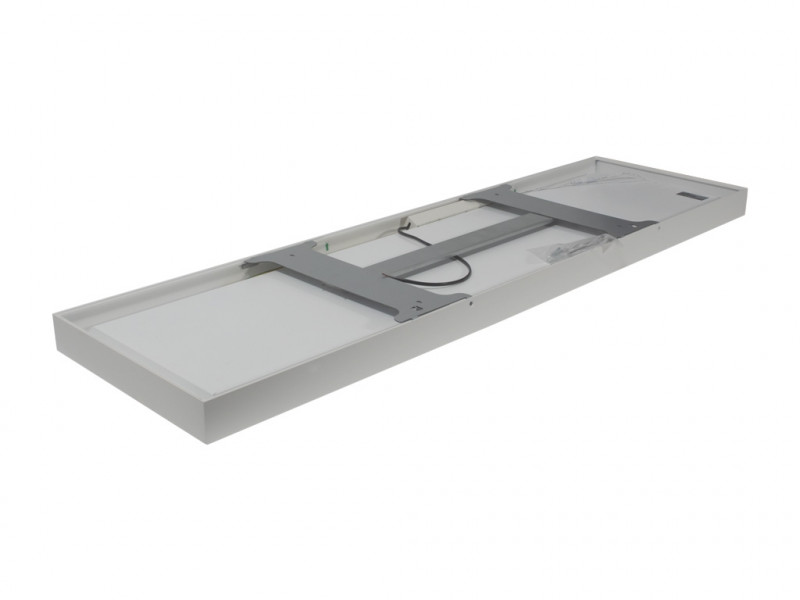

Easy installation due to separate ceiling mount plate with electronic ballast with terminal. The LED light is simply hung in the holder, easy for service! Uniform, wide light distribution with low glare due to microprismatics optical material. Optical part made of UV and temperature-resistant polymethyl methacrylate (PMMA). Eye-friendly, flicker-free LED light. Long life wireless controlled electronic driver for CCT change and dimming via remote controller
- Dimming and CCT adjust by included remote controller
- Available in 2 different sizes and power ranges.
Applications:

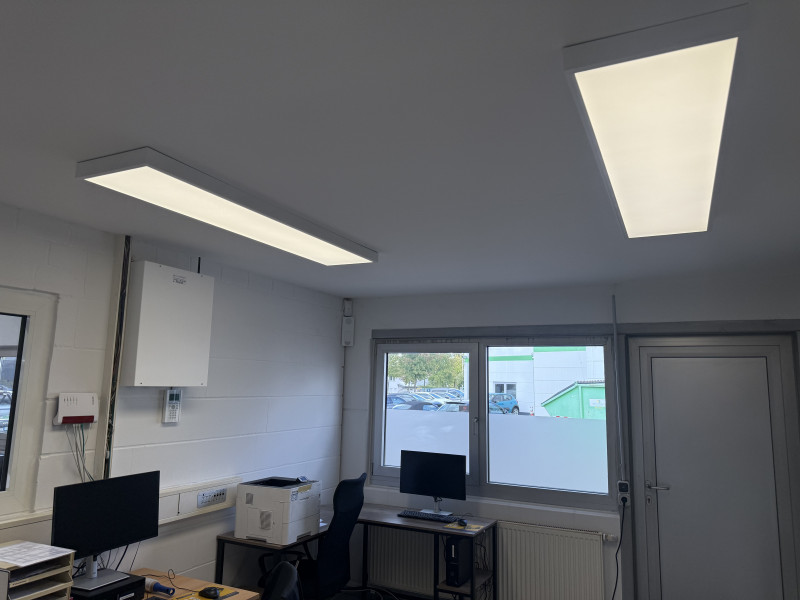

- Office, conference room, computer workstation BAP UGR <19 EN12464-1
- laboratory, hospital, fitness center
- hall and reception
- Sanitary facilities and corridoors
Related links to "RENOVIA 127/36-40-827-860-4800LM BAP, PMMA Remote CCT-Adjust + Dim"
Technical Details:
| Luminous Flux: | 4800 lm |
| Light Yield: | 120 lm/W |
| Light Temperature: | 2700-6000 K |
| Light Color: | Vario CCT |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <3 |
| Beam Angle: | 90 ° |
| Unified Glare Rating (UGR): | 19 |
| Light Emission: | downward |
| Dimmable: |  |
| Method of Dimming: | Funk |
| LED-Chip: | SMD |
| Number of LED: | 80 |
| Ignition Time: | <0,5 s |
| Input Current: | AC 200-240V, 50/60Hz |
| Power Consumption: | 40 W |
| Contains Driver: | |
| Driver Manufacturer: | TIGGI |
| Power Factor (PF): | >0.9 |
| Input Driver: | terminal |
| Output of Driver: | DC 25-40V, 1000mA |
| CC/CV: | CC |
| Output Current Adjustable: | |
| Input Lamp: | plug connector |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | -20°C - 45°C |
| Storage Temperature: | -20°C - 55°C |
| Dimensions: | 1270x360x55 mm |
| Mounting: | ceiling,wall |
| Montageart: | surface mounted |
| IP Class: | 40 |
| IK Code: | 03 |
| Housing Color | white |
| Housing Color (RAL Code): | similar 9016 |
| Housing Material: | aluminum |
| Coating: | powder-coated |
| Special Feature of Housing: | zweiget. Anbaugehäuse |
| Cover: | Mikroprismatisch PMMA |
| Net Weight: | 4821 g |
| Type of Packaging: | box |
| Weight incl. Packaging: | 6.5 kg |
| Content Master Package: | 4 |
| Dimensions of Master Package: | 1330x375x420 mm |
| Weight Master Package: | 23,78 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >50.000 h L80/B10 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405119090 |
| Certifications | CE,D |
| Barcode: | 4250557823348 |
| Funkfernbedienbarer LED Treiber 40W Dim | |
| stufenlose Farbwahl: 2700-6000 Kelvin | |
| PMMA Lightguideplate, anti yellow | |
| Bildschirmarbeitsplatztauglich DIN EN12464-1 | |
| Renovierungsleuchte Ersatz f.Rasterleuchten 2x58W | |
