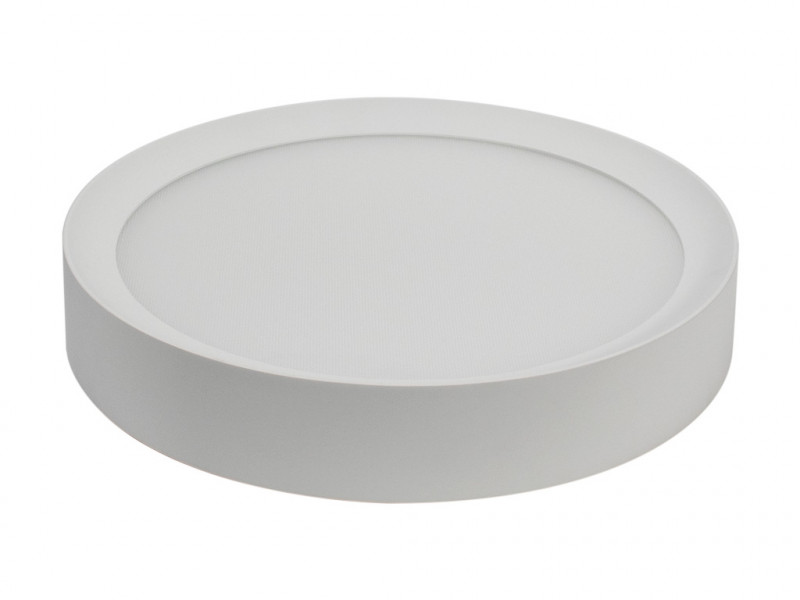

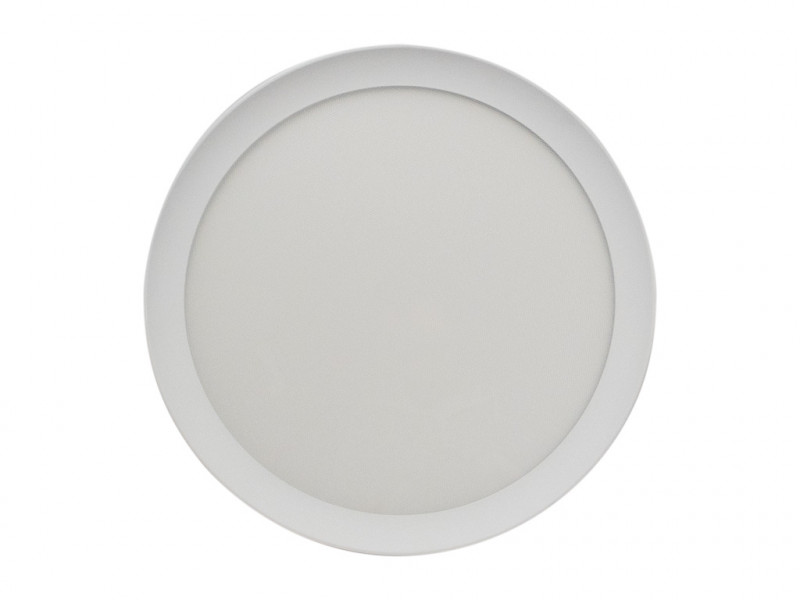

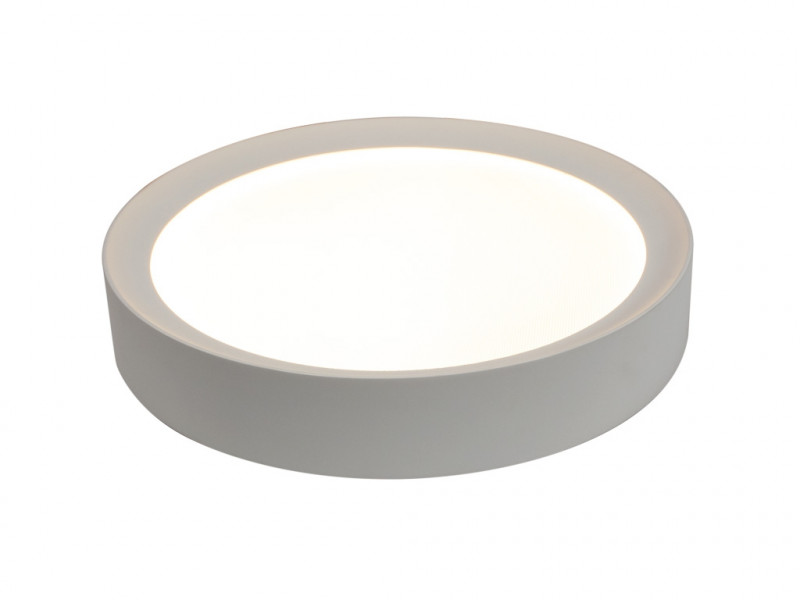

Rotura 350 30-830-2700LM
Order number: LG58226
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Dimensions
- Order number: : LG58226
- Luminous Flux: 2700 lm
- Power Draw: 30 W
- Light Color: warmwhite (3000 K)
- Input Current: AC 220 - 240V, 50/60Hz
- Color Rendering Index (CRI): ≥84 Ra
- IP Code: 20 (54 room side)
- Beam Angle: 90°
- LED-Chip: Samsung SMD 2835
- Housing Color: white
- Dimensions: 350x50 mm
- Warranty: 5 years
Ceiling light Newtura is a round surface-mounted luminaire with an integrated... more
Product information "Rotura 350 30-830-2700LM"
Ceiling light

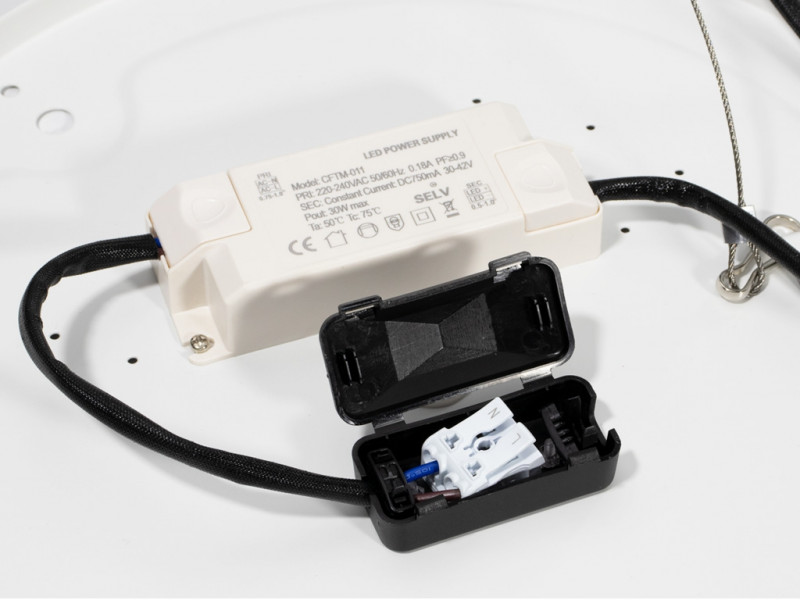

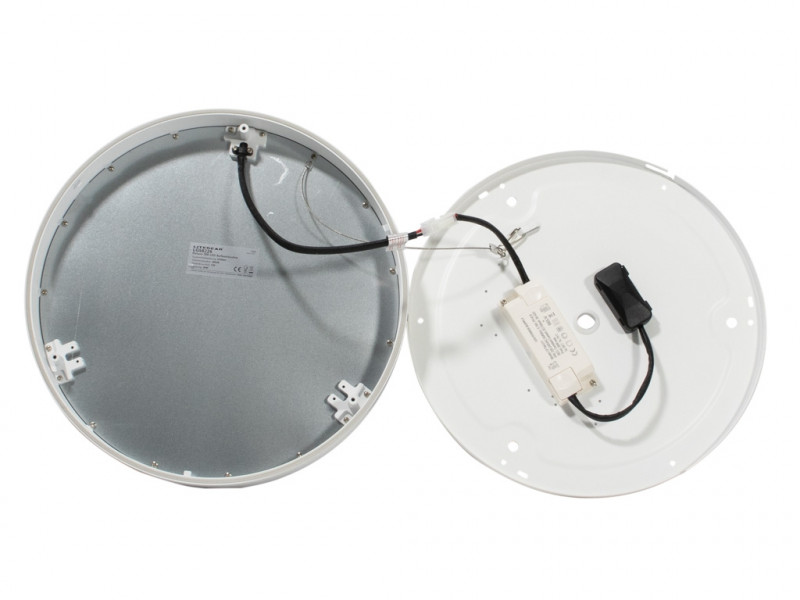

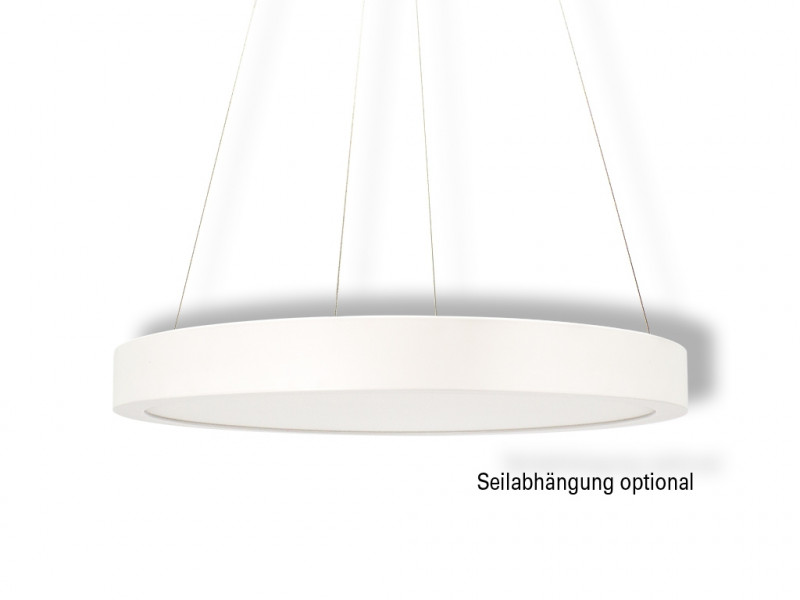

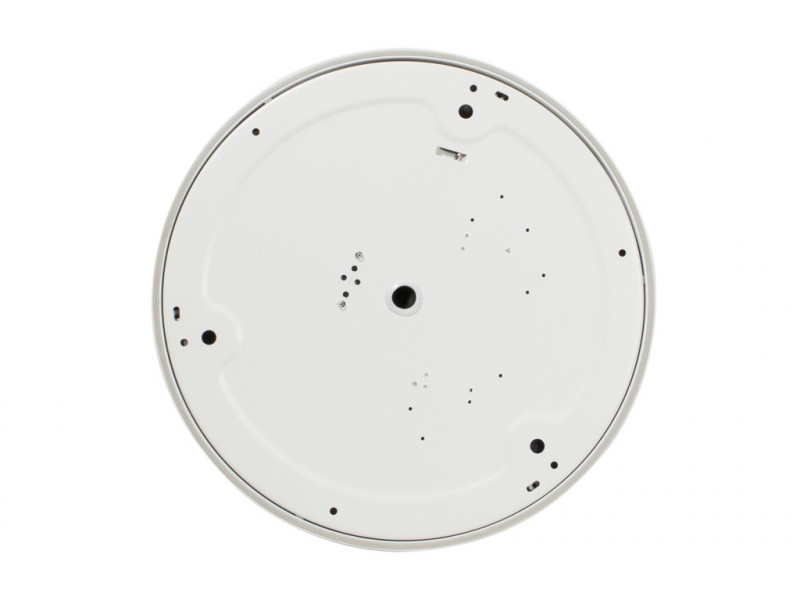

Newtura is a round surface-mounted luminaire with an integrated LED driver. Optionally also available as a dimmable version (Dali or 0-10V). Easy assembly thanks to separate mounting plate and twist lock with additional fall protection using a safety rope. Integrated electrical terminal block for power loop. Can also be suspended using a rope set. On request, the lamp can also be equipped with an internal microwave sensor or battery emergency light pack. As a dimmable variant with Meanwell® LC-45 driver, it is also suitable for operation on emergency power central battery systems in accordance with EN 60598-2-22. Due to the large internal space, emergency switch relais can also be integrated.
High quality Samsung LED chips for long life and high luminous flux maintenance. Elegant and high-quality die-cast aluminum housing. Universal mounting options. Available in 2 light colors: 3000 Kelvin warm white and 4000 Kelvin neutral white. UGR <19 can be used in office applications.
optional decoration rings available.
Related links to "Rotura 350 30-830-2700LM"
Technical Details:
| Luminous Flux: | 2700 lm |
| LED Output: | 29 W |
| Light Yield: | 90 lm/W |
| Light Temperature: | 3000 K |
| Light Color: | warmwhite |
| Color Rendering Index: | ≥84 Ra |
| Color Consistency (SDCM): | <4 |
| Beam Angle: | 90 ° |
| Unified Glare Rating (UGR): | 19 |
| Light Emission: | downward |
| LED-Chip Manufacturer: | Samsung |
| LED-Chip: | SMD 2835 |
| Ignition Time: | <0,5 s |
| Input Current: | AC 220 - 240V, 50/60Hz |
| Power Consumption: | 30 W |
| Contains Driver: |  |
| Power Factor (PF): | >0.96 |
| Input Driver: | terminal |
| Output of Driver: | DC 33-46V, 750mA |
| CC/CV: | CC |
| Input Lamp: | terminal |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | -20°C - 40°C |
| Storage Temperature: | -40°C - 60°C |
| Dimensions: | 350x50 mm |
| Mounting: | ceiling,wall |
| Montageart: | surface mounted |
| IP Class: | 20 (54 room side) |
| Housing Color | white |
| Housing Material: | aluminum |
| Coating: | powder-coated |
| Cover: | clear prismatic |
| Net Weight: | 2754 g |
| Type of Packaging: | box |
| Weight incl. Packaging: | 2.95 kg |
| Content Master Package: | 6 |
| Dimensions of Master Package: | 595x595x400 mm |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >50.000 h L80/B20 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405119090 |
| Certifications | CE,LM80,SELV |
| Barcode: | 4250557823270 |
| integr. Motionsensor: optional/ on demand | |
| Dali Driver: optional/ on demand | |
| Fangseil und Drehverschluß | |
