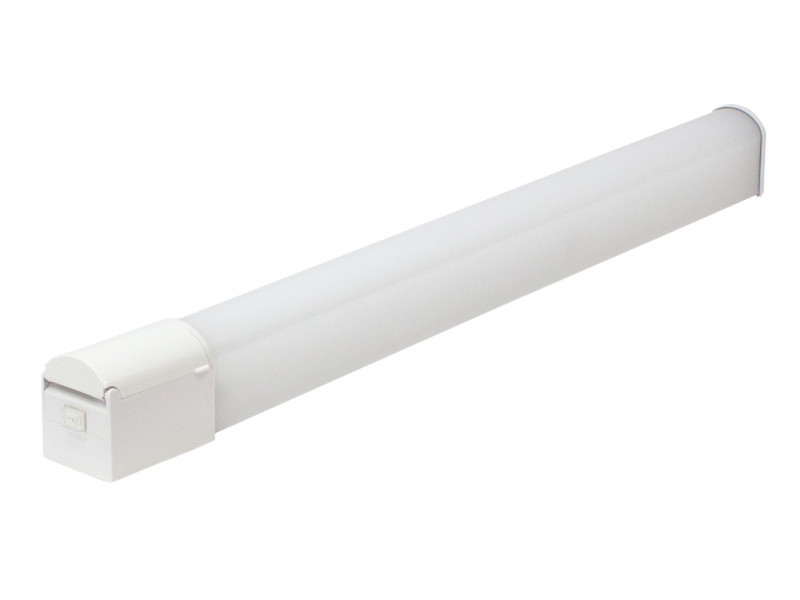

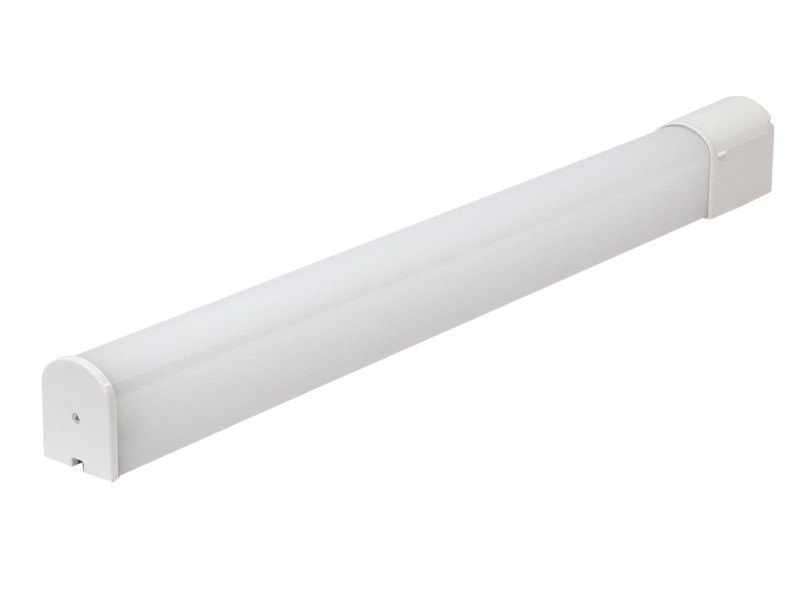

Spila round 600-15-830 1200LM switch / Socket

LG40107
Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Dimensions

Dimensions
  • LG40107
  • Luminous Flux: 1200 lm
  • Power Draw: 15 W
  • Light Color: warmwhite (3000 K)
  • Input Current: AC 220 - 240V, 50/60Hz
  • Color Rendering Index (CRI): ≥80 Ra
  • IP Code: 44
  • Beam Angle: 133°
  • LED-Chip: SMD 2835
  • Housing Color: white
  • Dimensions: 680x65x53 mm
  • Warranty: 3 years

Luminous Flux

1200
lm

Power Draw

15 W

Light Color

3000 K
warmwhite

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 44

Beam Angle

133°

wall

mounting type

Dimensions

(LxBxH) in mm
680x65x53

Warranty

3 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

LED Mirrorlight   Spila is a stylish LED mirror light from Litegear®.... more
Product information "Spila round 600-15-830 1200LM switch / Socket"
LED Mirrorlight

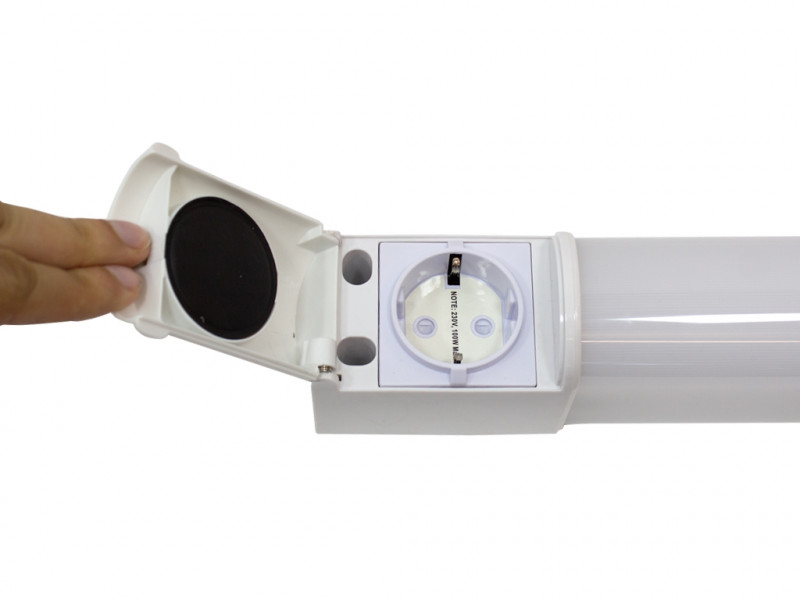

Spila is a stylish LED mirror light from Litegear®. Waterproof version, perfect for bathrooms and dressing rooms. Spila has a sleek and timeless shape and is made of splash proof plastic. The opal light cover has a wide light distribution and a low glare rate. Spila is available in different length and in different CCT light colors. We can offer this nice luminaire also with an integrated German Schuko power socket. Long lifespan due to LED chip technology. High luminous flux. Integrated power supply and easy installtion with included screws and dowels for wall installtion.
Related links to "Spila round 600-15-830 1200LM switch / Socket"
Technical Details:

Luminous Flux: 1200 lm
LED Output: 14 W
Light Yield: 80 lm/W
Light Temperature: 3000 K
Light Color: warmwhite
Color Rendering Index: ≥80 Ra
Color Consistency (SDCM): <6
Beam Angle: 133 °
Unified Glare Rating (UGR): 22
LED-Chip: SMD 2835
Ignition Time: <1 s
Input Current: AC 220 - 240V, 50/60Hz
Power Consumption: 15 W
Contains Driver: ja
Power Factor (PF): >0.9
Input Driver: terminal
CC/CV: CC
Input Lamp: terminal
Switching Cycles: >15.000
Ambient Temperature (TA): -10°C - 40°C
Dimensions: 680x65x53 mm
Mounting: Wand
Montageart: surface mounted
IP Class: 44
IK Code: 04
Housing Color white
Housing Material: plastic
Special Feature of Housing: with switch/outlet
Cover: opal
Net Weight: 635 g
Type of Packaging: box
Dimensions of Packaging: 700x65x75
Weight incl. Packaging: 0.754 kg
Content Master Package: 10
Dimensions of Master Package: 725x350x175 mm
Weight Master Package: 7,62 kg
Product Line: ECO Line
Warranty 3 years
Operating Hours: >30.000 h L80/B20
Disposal Obligation: ja
Customs Tariff Number: 9405114090
Certifications CE,D
Barcode: 4250557808970
LED-Spiegelleuchte mit Schutzart IP44 und Schalter more
LED-Spiegelleuchte mit Schutzart IP44 und Schalter
Vorschaltgerät: LED-Treiber
Temperaturbereich: -10°C - 40°C
Lichtstrom: 1200 lm
LED-Leistung: 15 W
Leuchten-Lichtausbeute: 80 lm/W
Farbtemperatur: 3000 K
Lichtfarbe: warmwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <6
Abstrahlwinkel: 133°
UGR: 22
Maße: 680x65x53 mm
Montageart: Aufbau (Wand)
Schutzart (DIN EN 60529): IP44
Stoßfestigkeitsgrad (IEC 62262): IK04
Außenfarbe: white
Gehäusematerial: plastic
Abdeckung: opal
Nettogewicht: 635 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L80/B20): 30000 h
