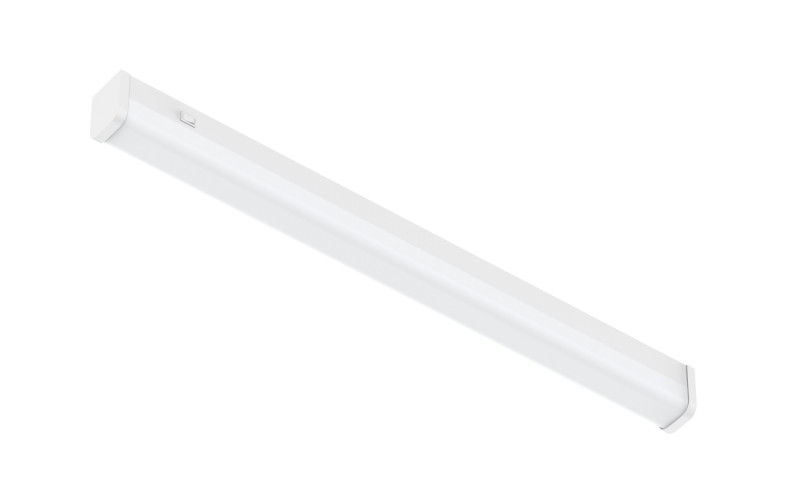

Spila Square 900-15-830/57-1900LM
Order number: LG40122
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Dimensions
- Order number: : LG40122
- Luminous Flux: 1900 lm
- Power Draw: 15 W
- Light Color: dualwhite
- Input Current: AC 200 - 240V, 70mA, 50/60Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 44
- Beam Angle: 150°
- LED-Chip: SMD 2835
- Housing Color: white
- Dimensions: 900x61x77,5 mm
- Warranty: 5 years
LED Mirrorlight with switch Spila is a stylish LED mirror light... more
Product information "Spila Square 900-15-830/57-1900LM"
LED Mirrorlight with switch
- Spila is a stylish LED mirror light from Litegear®.
- Waterproof version, perfect for bathrooms and dressing rooms.
- Spila has a sleek and timeless shape and is made of splash proof plastic.
- The opal light cover has a wide light distribution and a low glare rate.
- CCT selectable: by switch: 3000K, 4000K, 5700 Kelvin
- Long lifespan due to LED chip technology. High luminous flux.
- Integrated power supply and easy installtion with included screws and dowels for wall installtion.
Related links to "Spila Square 900-15-830/57-1900LM"
Technical Details:
| Luminous Flux: | 1900 lm |
| LED Output: | 12 W |
| Light Yield: | 127 lm/W |
| Light Color: | dualwhite |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <6 |
| Beam Angle: | 150 ° |
| LED-Chip: | SMD 2835 |
| Ignition Time: | <1 s |
| Glow Wire Test 650°C/30s |  |
| Input Current: | AC 200 - 240V, 70mA, 50/60Hz |
| Power Consumption: | 15 W |
| Contains Driver: | |
| Power Factor (PF): | >0.9 |
| Input Driver: | terminal |
| CC/CV: | CC |
| Input Lamp: | terminal |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | -20°C - 45°C |
| Storage Temperature: | -40°C - 60°C |
| Dimensions: | 900x61x77,5 mm |
| Mounting: | ceiling,wall |
| Montageart: | surface mounted |
| IP Class: | 44 |
| IK Code: | 08 |
| Housing Color | white |
| Housing Color (RAL Code): | similar 9016 |
| Housing Material: | plastic/Stahl |
| Special Feature of Housing: | PC mit chalter |
| Cover: | opal |
| Net Weight: | 791 g |
| Type of Packaging: | box |
| Weight incl. Packaging: | 0.99 kg |
| Content Master Package: | 12 |
| Dimensions of Master Package: | 955x340x305 mm |
| Weight Master Package: | 14,5 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >50.000 h L80/B20 |
| Disposal Obligation: | |
| Customs Tariff Number: | 94051140 |
| Certifications | CE,D |
| Barcode: | 4250557822648 |
| Lichtfarbe umschaltbar: 3000K, 4000K, 5700K | |
| Gehäuse schlagzäh mit Schalter | |
| Spiegelleuchte mit geringer Blendung | |
| IEC61000-4-5(L-N:0,5KV) | |
| 1770-1900lm | |
LED-Spiegelleuchte mit Schutzart IP44 more
LED-Spiegelleuchte mit Schutzart IP44
Vorschaltgerät: LED-Treiber
Temperaturbereich: -20°C - 45°C
Lichtstrom: 1900 lm
LED-Leistung: 15 W
Leuchten-Lichtausbeute: 127 lm/W
Lichtfarbe: dualwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <6
Abstrahlwinkel: 150°
Maße: 900x61x77,5 mm
Montageart: Aufbau (Decke,Wand)
Schutzklasse (DIN EN 61140): II
Schutzart (DIN EN 60529): IP44
Stoßfestigkeitsgrad (IEC 62262): IK08
Außenfarbe: white (9016)
Gehäusematerial: plastic/Stahl
Abdeckung: opal
Nettogewicht: 791 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B20): 50000 h
Vorschaltgerät: LED-Treiber
Temperaturbereich: -20°C - 45°C
Lichtstrom: 1900 lm
LED-Leistung: 15 W
Leuchten-Lichtausbeute: 127 lm/W
Lichtfarbe: dualwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <6
Abstrahlwinkel: 150°
Maße: 900x61x77,5 mm
Montageart: Aufbau (Decke,Wand)
Schutzklasse (DIN EN 61140): II
Schutzart (DIN EN 60529): IP44
Stoßfestigkeitsgrad (IEC 62262): IK08
Außenfarbe: white (9016)
Gehäusematerial: plastic/Stahl
Abdeckung: opal
Nettogewicht: 791 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B20): 50000 h
