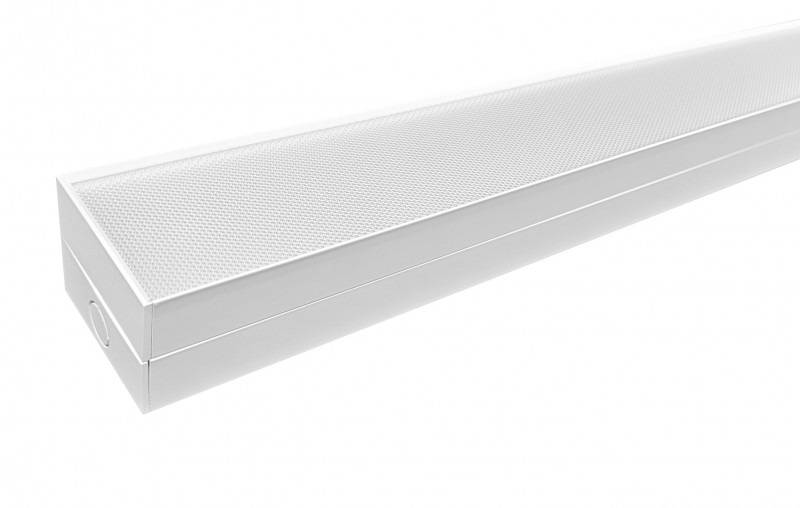

TRABES 150-40-CCT-4800lm 120lm/W BEG
Order number: LG14912
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Dimensions
- Order number: : LG14912
- Luminous Flux: 4800 lm
- Power Draw: 40 W
- Light Color: CCT Select (3000,3500,4000 K)
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 20
- Beam Angle: 90°
- LED-Chip: San'an SMD 2835
- Housing Color: white
- Dimensions: 1500x80x63,5 mm
- Warranty: 5 years
elegant LED batten light Stylish and easy installing LED batten light... more
Product information "TRABES 150-40-CCT-4800lm 120lm/W BEG"
elegant LED batten light
- Stylish and easy installing LED batten light
- Consisting of 2 housing parts: trunk installation housing and optical part. Both will be joined together by internal mechanical spring clips
- Power feed in and through from middle and sides
- Low glare rating, optical prismatic diffusor design for computer work places, UGR<19 with homogenous light distribution
- Integrated LED driver and CCT select switch: 3000K, 3500K, 4000K
- Easy installation with screws on concrete, wood or plasterboard ceilings
Applications:
office, school, health care, fitness, nursing homes, hospital, university, storage rooms
Related links to "TRABES 150-40-CCT-4800lm 120lm/W BEG"
Technical Details:
| Luminous Flux: | 4800 lm |
| Light Yield: | 120 lm/W |
| Light Temperature: | 3000,3500,4000 K |
| Light Color: | CCT Select |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <4 |
| Beam Angle: | 90 ° |
| Unified Glare Rating (UGR): | 19 |
| Light Emission: | downward |
| LED-Chip Manufacturer: | San'an |
| LED-Chip: | SMD 2835 |
| Number of LED: | 624 |
| Ignition Time: | <0,5 s |
| Power Consumption: | 40 W |
| Contains Driver: |  |
| Driver Manufacturer: | Boke |
| Power Factor (PF): | >0.95 |
| Input Driver: | terminal |
| Output of Driver: | DC 28-42V, 1000mA |
| CC/CV: | CC |
| Input Lamp: | Terminal |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | I |
| Compatible with Emergency Current: | |
| Ambient Temperature (TA): | -15°C - 50°C |
| Storage Temperature: | -25°C - 55°C |
| Dimensions: | 1500x80x63,5 mm |
| Mounting: | ceiling,wall |
| Montageart: | surface mounted |
| IP Class: | 20 |
| IK Code: | 03 |
| Housing Color | white |
| Housing Material: | Aluminium + PC |
| Coating: | powder-coated |
| Special Feature of Housing: | 2-teilig |
| Cover: | clear prismatic |
| Net Weight: | 2000 g |
| Dimensions of Packaging: | 1511x90x75 |
| Weight incl. Packaging: | 2.26 kg |
| Content Master Package: | 6 |
| Dimensions of Master Package: | 1530x240x205 mm |
| Weight Master Package: | 14,47 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >50.000 h L80/B10 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405 11 90 90 |
| Certifications | CE,SELV,D |
| Barcode: | 4250557824529 |
| CCT Select: 3000, 3500, 4000 Klevin | |
| geeignet für Bildschirmarbeitsplätze | |
| 120lm/W Systemleistung | |
