Preview: Vatura IP 14-827-840-1400lm IP65 IK10 Black

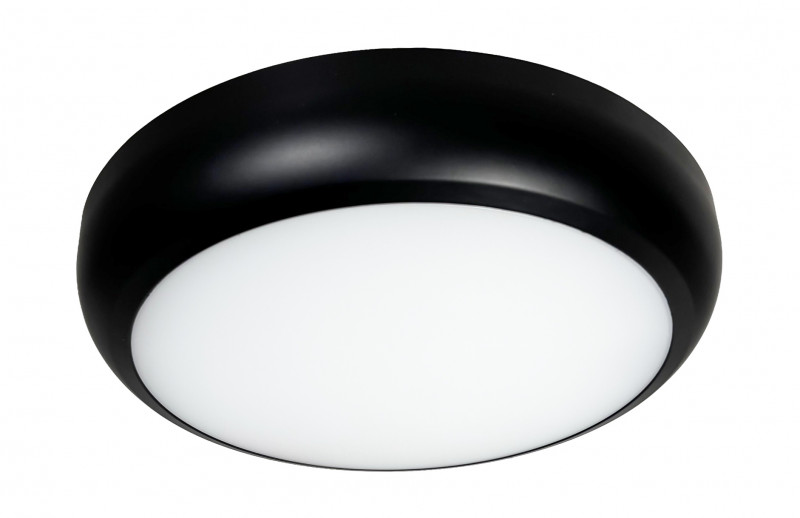

Vatura IP 14-827-840-1400lm IP65 IK10 Black

Product Info (PDF)

Order number: LG31226

Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Dimensions

Menü schließen

Order number: : LG31226
Luminous Flux: 1400 lm
Power Draw: Power Select (9, 12, 14 W)
Light Color: CCT Select (3000, 4000, 5000 K)
Color Rendering Index (CRI): ≥80 Ra
IP Code: 65

Beam Angle: 100°
LED-Chip: SMD 2835
Housing Color: black matt
Dimensions: 320x82 mm
Warranty: 5 years

Luminous Flux

1400
lm

Power Draw

14 W

Light Color

3000, 4000, 5000 K
CCT Select

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 65

Beam Angle

100°

ceiling, wall

mounting type

Light Direction

Dimensions

(ØxH) in mm
320x82

Warranty

5 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

LED Ceiling light The Litegear® Vatura LED ceilinglights are made to... more

Close menu

Product information "Vatura IP 14-827-840-1400lm IP65 IK10 Black"

LED Ceiling light

The Litegear® Vatura LED ceilinglights are made to be installed on ceilings or walls in corridoors, rooms or staircases. They have a low power consumption and a long lifespan. The LED light has no IR wavelength hence, so that you will feel no heat immision on your skin. Vatura is a stylish design LED surface light with high lightoutput and low glare. Litegear® Vatura can easily replace lamps with with energy saver lamps. This LED ceiling lights has a timeless design and is easy to instal. It is delivered withl an integrated driver. On strong advantage of LED is the full light output straigt after switching them on. No wait time as known from lanterns with CFL lamps. Litegear® LEDs are free of mercury or other toxic substances.

CCT Select: 2700K, 3000K, 4000K

Power Select switch: 9, 12, 14W Output power

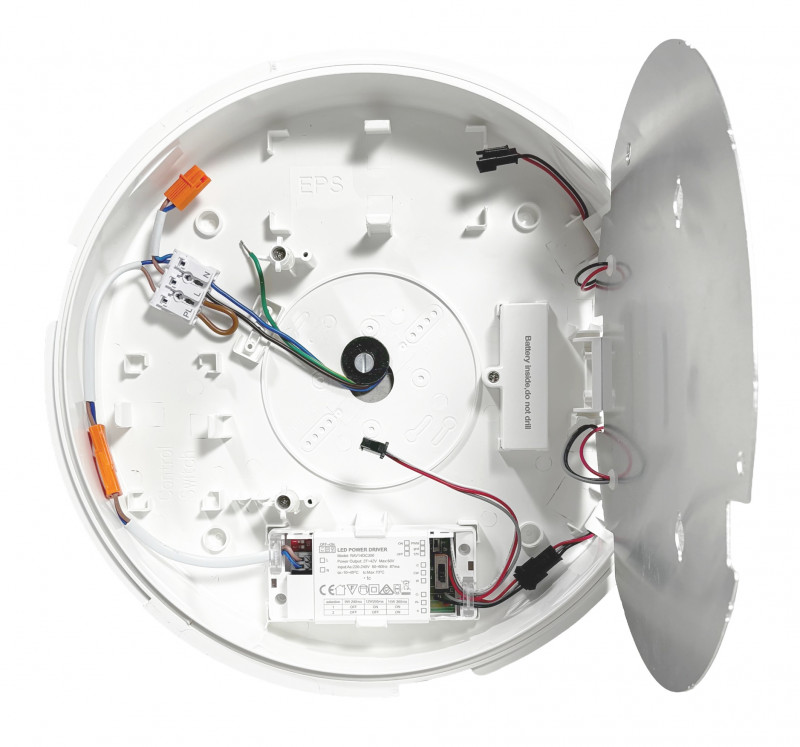

Prepared for up grade with microwave cooridor sensor with dimming and battery emergency pack.
UV protected painting in white mat and black mat
Easy plug and play, terminal clamp for through wireing
High ingress protection and spary water aprooved

Applications:

staircase house, walkways, corridor, hall, living room, terrace, balkony, outdoor on walls and ceilings

Related links to "Vatura IP 14-827-840-1400lm IP65 IK10 Black"

Zurück

Technical Details:

Luminous Flux:	1400 lm
LED Output:	25.2 W
Light Yield:	120 lm/W
Light Temperature:	3000, 4000, 5000 K
Light Color:	CCT Select
Color Rendering Index:	≥80 Ra
Color Consistency (SDCM):	<6
Beam Angle:	100 °
Light Emission:	downward
LED-Chip:	SMD 2835
Number of LED:	126
Ignition Time:	<0,5 s
Glow Wire Test 650°C/30s

Power Consumption:	Power Select (9, 12, 14 W)
Contains Driver:
Driver Manufacturer:	Rayven
Power Factor (PF):	>0.7
Input Driver:	terminal
Output of Driver:	DC 27-42V, 300mA
CC/CV:	CC
Output Current Adjustable:
Input Lamp:	Terminal
Switching Cycles:	>50.000
Electrical Protection Class:	II
Compatible with Emergency Current:
Loop-Through Cabling:
Ambient Temperature (TA):	-10°C - 45°C
Storage Temperature:	-20°C - 60°C

Dimensions:	320x82 mm
Mounting:	ceiling,wall
Montageart:	surface mounted
IP Class:	65
IK Code:	10
Housing Color	black matt
Housing Material:	PC/ABS
Coating:	lacquered
Special Feature of Housing:	wetterfest und schlagzäh
Cover:	opal
Net Weight:	891 g

Type of Packaging:	box
Weight incl. Packaging:	1.084 kg
Content Master Package:	10
Dimensions of Master Package:	670x450x345 mm
Weight Master Package:	11,7 kg

Product Line:	Advance Line
Warranty	5 years
Operating Hours:	>50.000 h L80/B20
Disposal Obligation:
Customs Tariff Number:	9405499090
Certifications	CE
Barcode:	4250557827407
Ideal für Flur und Treppenhäuser
Perfect for corridors and staircase house
Kann im Freien unter Vordächer verwendet werden!
Can be used temporarily outdoor under canopies

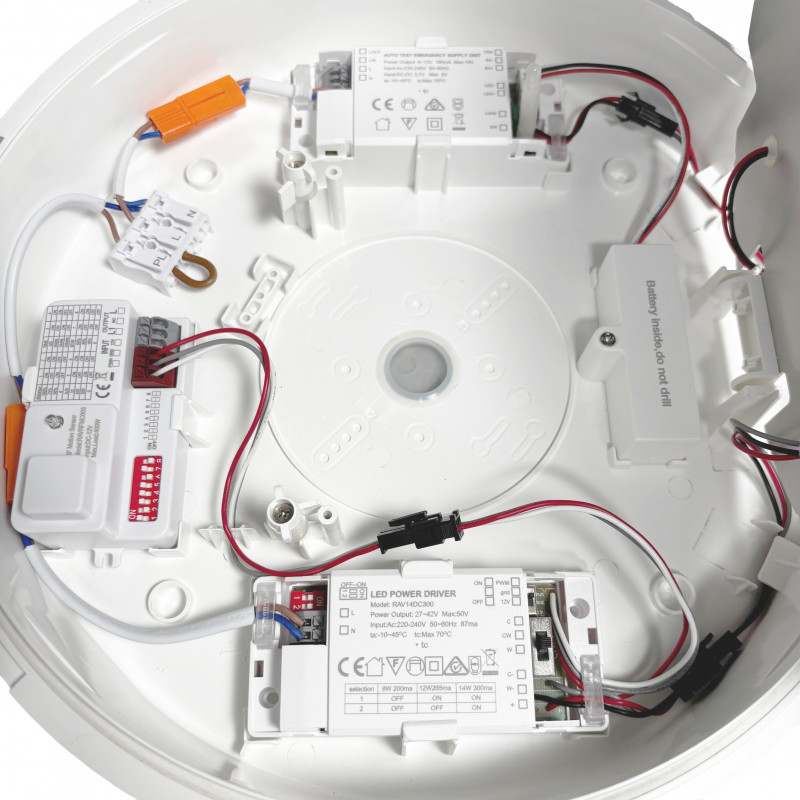

Option: Sensor & Battery Emergency Module

Technical Data Sheet (PDF)
