JUPITA HighBay 200-830/857-31000LM 1-10V Dim

Product Info (PDF)

Order number: LG13280

Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Dimensions

Menü schließen

Order number: : LG13280
Luminous Flux: 31000 lm
Power Draw: 200 W
Light Color: dualwhite
Input Current: AC 100-277V, 50/60Hz
Color Rendering Index (CRI): ≥80 Ra
IP Code: 65

Beam Angle: 105°
LED-Chip: Samsung SMD 2835
Housing Color: black
Dimensions: 271x215 mm
Warranty: 5 years

Luminous Flux

31000
lm

Power Draw

200 W

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 65

Beam Angle

105°

mounting type

Light Direction

Dimensions

(ØxH) in mm
271x215

Warranty

5 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

Universal LED Highbay: One Fit All series Litegear® Jupita LED Highbay... more

Close menu

Product information "JUPITA HighBay 200-830/857-31000LM 1-10V Dim"

Universal LED Highbay: One Fit All series

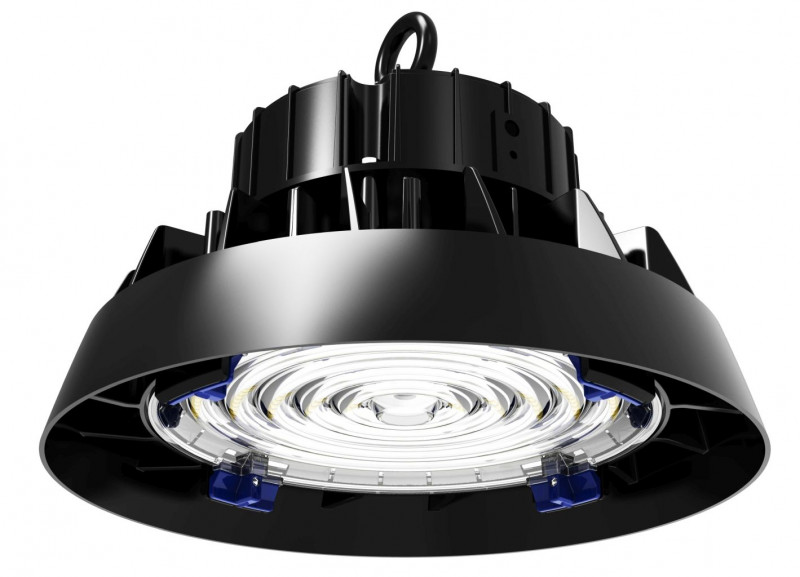

Litegear® Jupita LED Highbay made of durable and lightweight alluminum. Perfect heat dissipation through large, vertical cooling fins with low dirt deposition to optimise the heat dissipation. LED board with high quality Samsung SMD2835 LED chips. The ballast and the LED board are protected against dust and moisture according to the IP65 directive. Light chamber with impact-resistant protective lens according to IK08 specification.

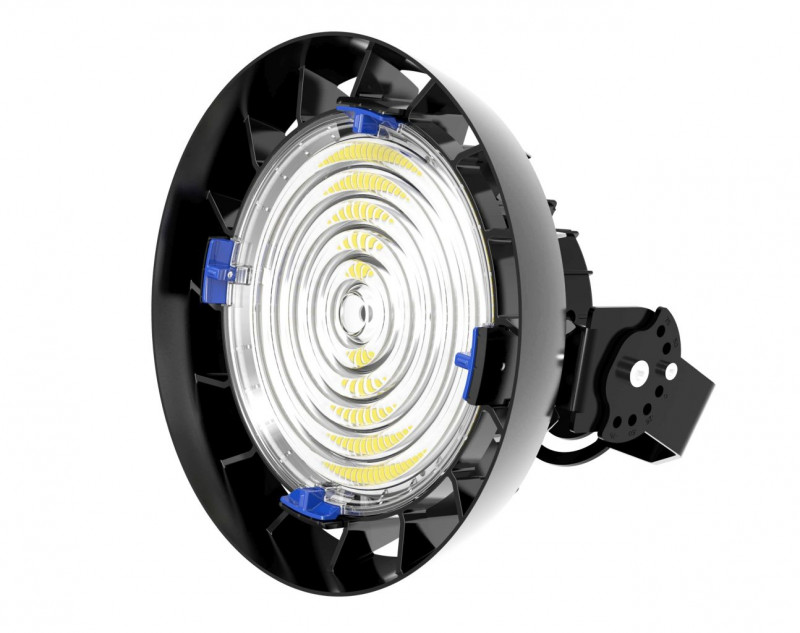

Selectable beam angle by turning the lens from 60°, 90° to 105°. Selectable Power: 100W, 150W, 200W, max. 31000 Lumen output. CCT select: 3000K, 4200K, 5700 Kelvin

High-quality components promise a long, lifespan of up to 50,000 operating hours L80 / B10 for the LED chips. High system efficiency of up to 155 lumens / watt guarantees high efficiency with low maintenance costs and fast amortization when you replace old discharge Highbays with our Jupita LED lights.

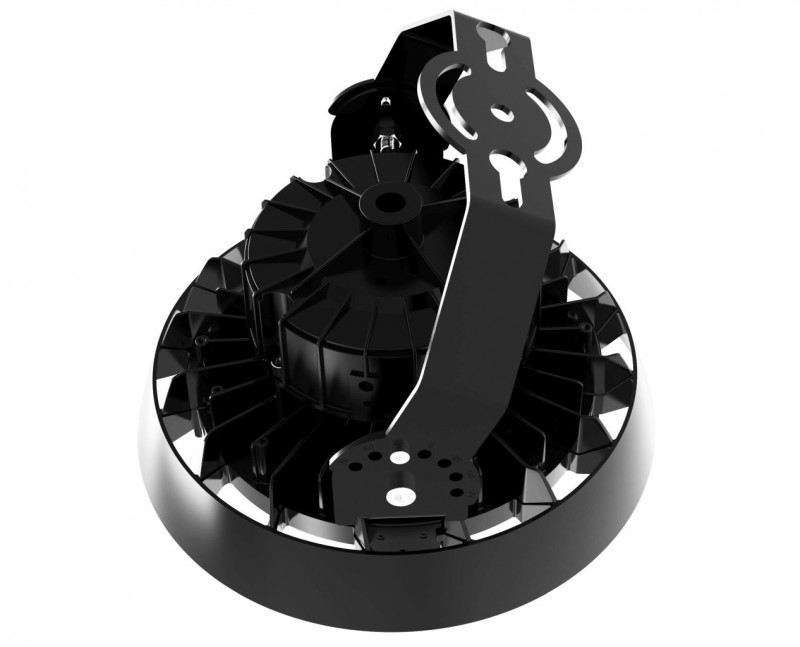

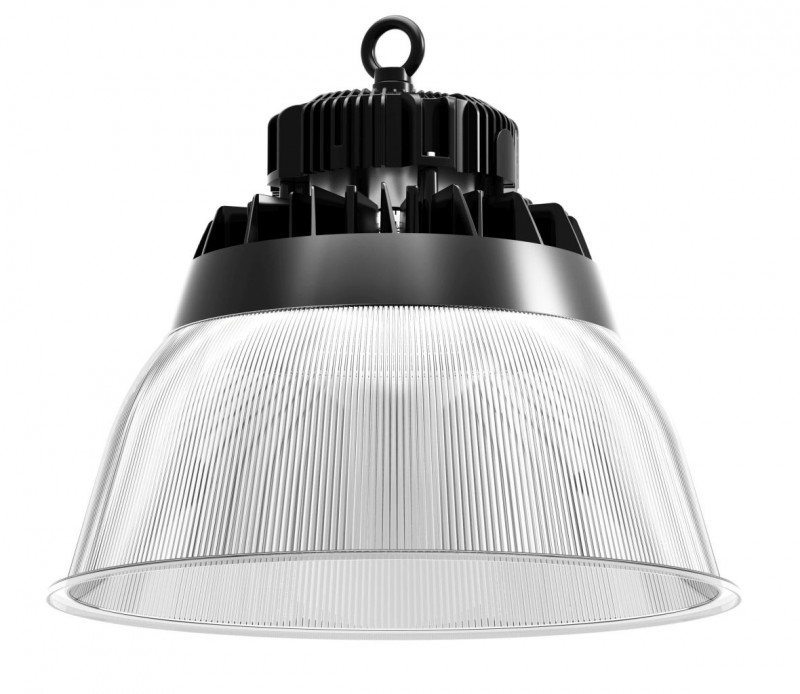

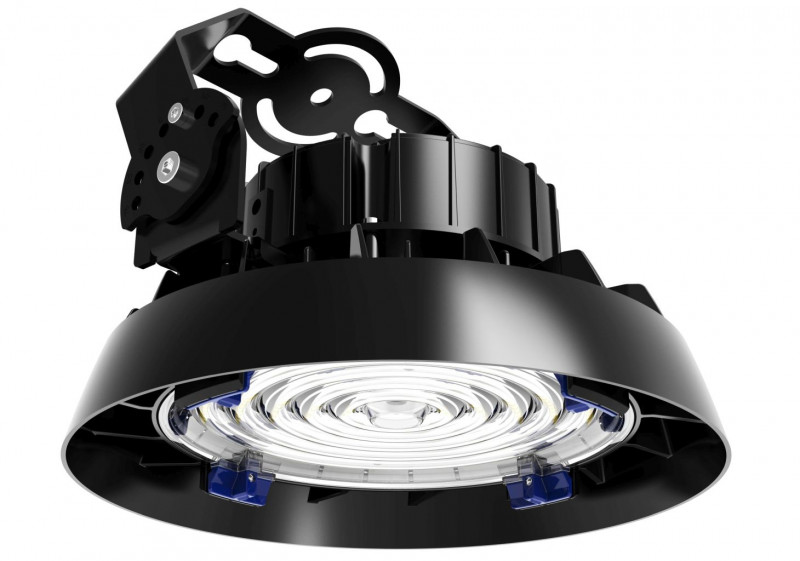

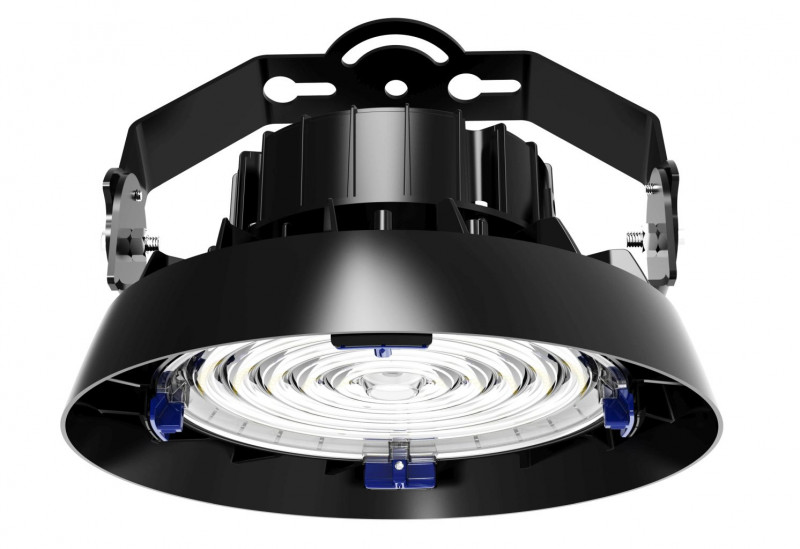

The luminaire can be attached to steel cables or chains by means of a ring eyebolt. Optionally, we also offer a mounting bracket for attachment to concrete ceilings or walls. As an accessory, we offer a comprehensive range of suitable sensors, refractors.

Comparability with discharge lamps: 100W LED equals 250W HQI, 150W LED equals: 400W HQL, 200W LED corresponds to >400W HQI

Applications: Industry, sports halls, retail space, exhibition, showroom, warehouses, loading areas and canopies

Related links to "JUPITA HighBay 200-830/857-31000LM 1-10V Dim"

Zurück

Technical Details:

Luminous Flux:	31000 lm
Light Yield:	155 lm/W
Light Color:	dualwhite
Color Rendering Index:	≥80 Ra
Color Consistency (SDCM):	<3
Beam Angle:	105 °
Unified Glare Rating (UGR):	24
Light Emission:	downward
Dimmable:
Method of Dimming:	1-10V,PWM
LED-Chip Manufacturer:	Samsung
LED-Chip:	SMD 2835
Number of LED:	532
Ignition Time:	<0,5 s

Input Current:	AC 100-277V, 50/60Hz
Power Consumption:	200 W
Contains Driver:
Driver Manufacturer:	Lifud
Power Factor (PF):	>0.95
Input Driver:	cable with flying leads
CC/CV:	CC
Output Current Adjustable:
Input Lamp:	terminal
Switching Cycles:	>100.000
Electrical Protection Class:	I
Ambient Temperature (TA):	-40°C - 45°C
Storage Temperature:	-40°C - 70°C

Dimensions:	271x215 mm
Mounting:	Decke
Montageart:	surface mounted
IP Class:	65
IK Code:	08
Housing Color	black
Housing Material:	aluminum
Coating:	powder-coated
Cover:	Lens
Net Weight:	3005 g

Type of Packaging:	box
Dimensions of Packaging:	305x305x205
Weight incl. Packaging:	3.49 kg
Content Master Package:	1
Dimensions of Master Package:	305x305x205 mm
Weight Master Package:	3,5 kg

Product Line:	Advance Line
Warranty	5 years
Operating Hours:	>50.000 h L80/B10
Disposal Obligation:
Customs Tariff Number:	9405119090
Certifications	CE,LM80
Barcode:	4250557822259
Surge predect: L-N: 4KV, L/N-Ground 6KV
beam angle select: 60°, 90°, 105° Zoom
UGR <24, optinal refractor, bracket
Power select: 100, 150, 200W, 3in1 Dim 1-10V, PWM
CCT select: 3000, 4200, 5700K

Technical Data Sheet (PDF)
