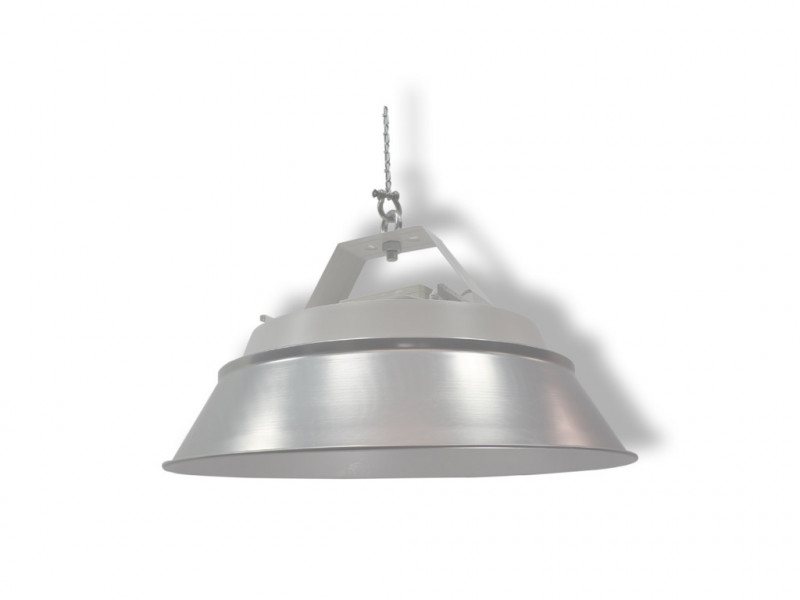

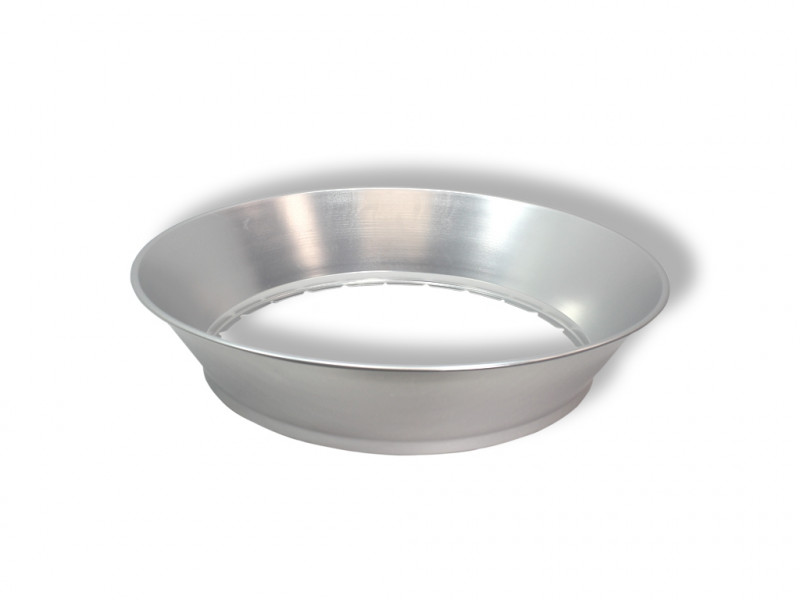

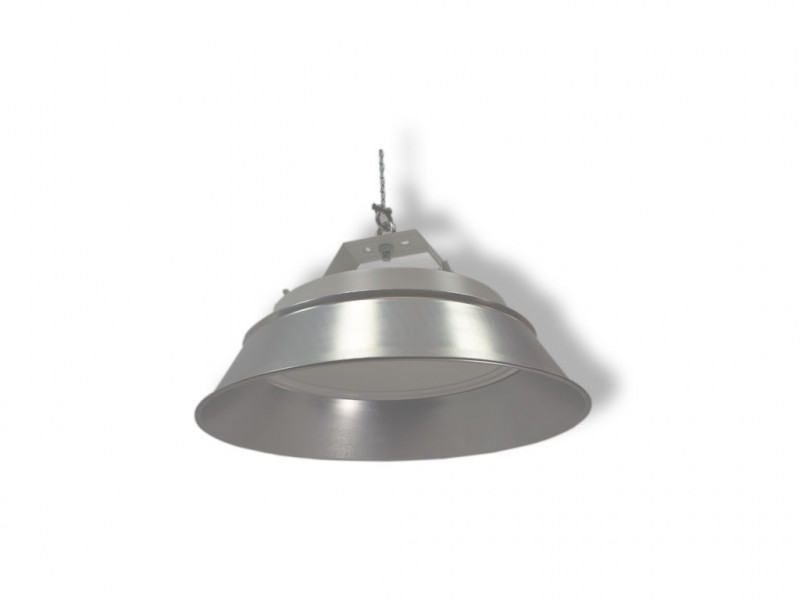

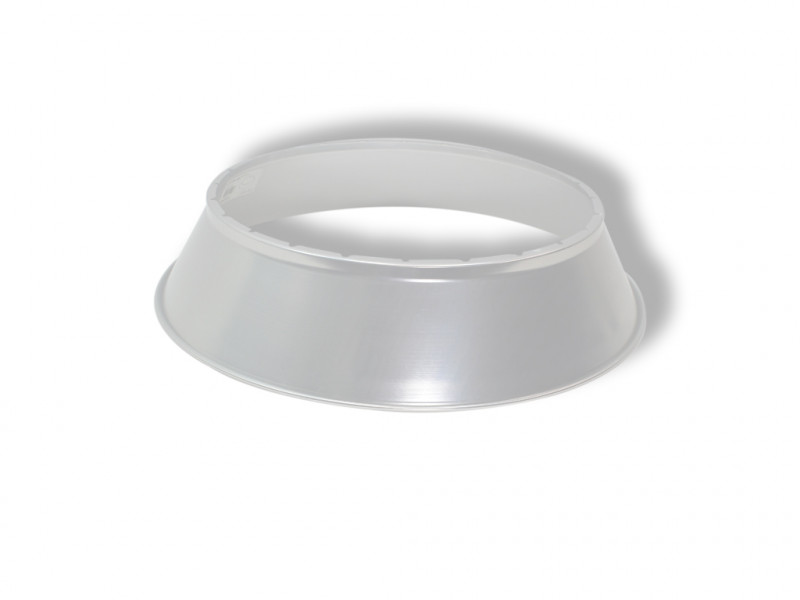

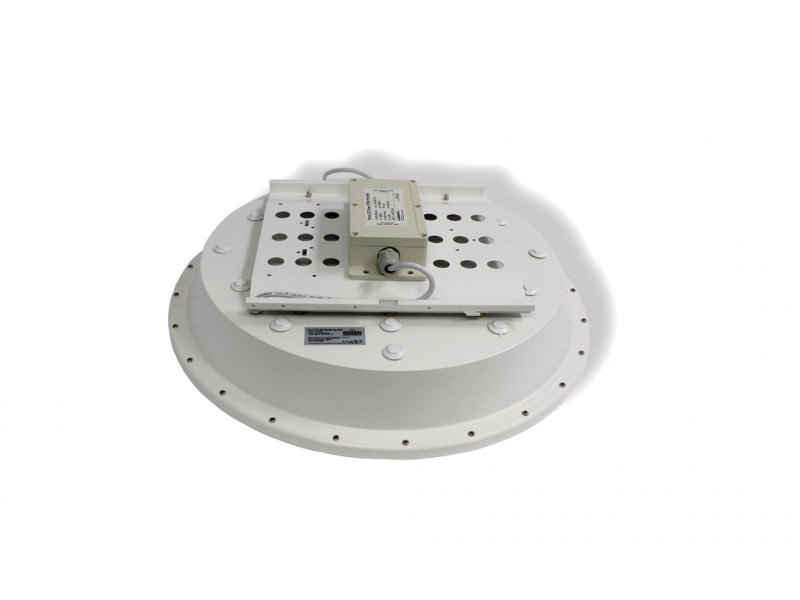

Phirna HighBay Reflektor

LG13295
Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

  • LG13295
  • Dimensions: 720x155 mm
  • Warranty: 3 years

mounting type

Light Direction

Dimensions

(ØxH) in mm
720x155

Warranty

3 years

LED Highbay   Litegear® Phirna LED-highbay is made of high-quality aluminum... more
Product information "Phirna HighBay Reflektor"
LED Highbay

Litegear® Phirna LED-highbay is made of high-quality aluminum and with an optical, opal PC cover underneath the LED light sources. Phirna convinces with a very good system efficiency of up to 150 lumen / watt. With over 22,000 lumens of total luminous flux, this Litegear highbay luminaire is at a similar level to other LED spotlights with 180-200 watt power consumption. Thanks to its IP65 design, the LED light can also be used outdoors or in halls with high dust levels. Phirna is also ideal as a sports hall lamp. The flicker-free, emissive light protects the eyes and the broad beam angle produces a large, homogeneous illumination. Optionally, the lamp can also be equipped with dimmable LED drivers. The light color is similar to the daylight. This hall floodlight can be suspended by means of steel cables or chains or screwed directly to ceilings.

Comparability with discharge lamps:

150W Phirna LED equals: 400W HQL

advantages:
  • very low weight
  • optimum heat dissipation through large-surface aluminum housing
  • weatherproof: IP65-IK08 suitable for outdoor use
  • High system efficiency: up to 150lm / W
  • long life: up to 50,000 hours L80B10
  • optional extensive accessories

Applications:
Industry, sports halls, retail space, exhibition, showroom, warehouses, loading areas and canopies

You can connect up to 9 pcs. Phirna highbay on a 10A C circuit breaker or 15 pcs. on a 16A C circuit breaker.
Related links to "Phirna HighBay Reflektor"
Technical Details:

Light Emission: downward
Dimmable: ja
Method of Dimming: 1-10V,PWM
Input Driver: cable with flying leads
CC/CV: CC
Switching Cycles: >100.000
Electrical Protection Class: II
Ambient Temperature (TA): -20°C - 50°C
Dimensions: 720x155 mm
Mounting: Decke
Montageart: surface mounted
Cover: opal
Net Weight: 865 g
Type of Packaging: bag
Weight incl. Packaging: 0.978 kg
Content Master Package: 5
Dimensions of Master Package: 830x280x830 mm
Weight Master Package: 7,52 kg
Product Line: Advance Line
Warranty 3 years
Disposal Obligation: ja
Customs Tariff Number: 9405409990
Certifications CE,RoHS,LM80,EMC,LVD,D
Barcode: 4250557812083
