Order number: LG13206.1
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Short information
- Order number: : LG13206.1
- Luminous Flux: 14000 lm
- Power Draw: 100 W
- Light Color: neutralwhite (4000 K)
- Input Current: AC 100-305V, 430mA, 50/60Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 65
- Beam Angle: 120°
- LED-Chip: Cree SMD 2835
- Housing Color: black
- Dimensions: 245x175 mm
- Warranty: 5 years
Luminous Flux
14000
lm
Power Draw
100 W
Light Color
4000 K
neutralwhite
Color Rendering Index (CRI)
CRI
>80 Ra
IP Code
IP 65
Beam Angle
120°
mounting type
Light Direction
Dimensions
(ØxH) in mm
245x175
Warranty
5 years
The light source may only be replaced by qualified persons
The driver may only be replaced by qualified persons
LED Highbay Litegear® Osira LED Highbay made of durable and lightweight... more

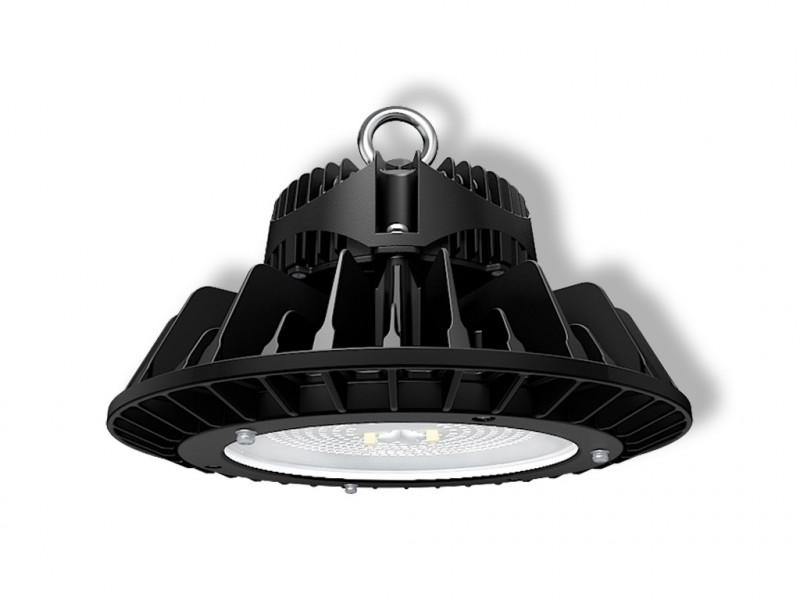

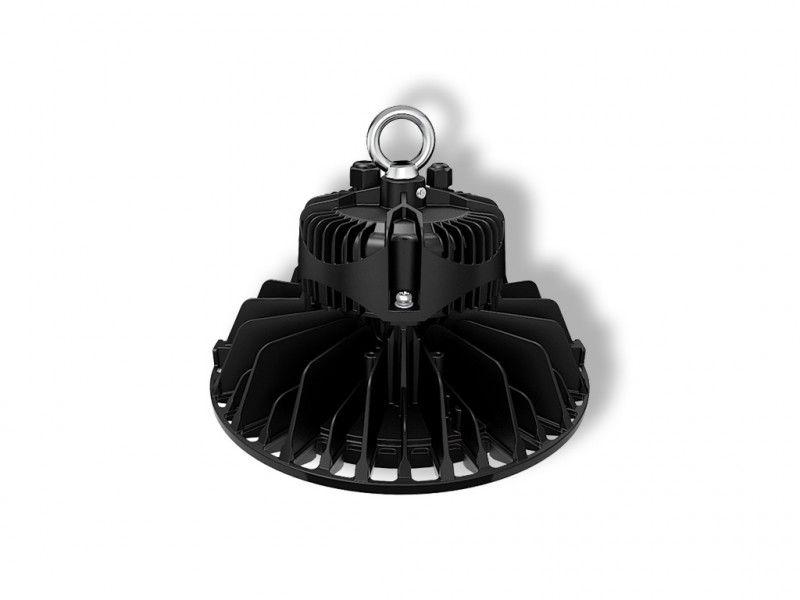

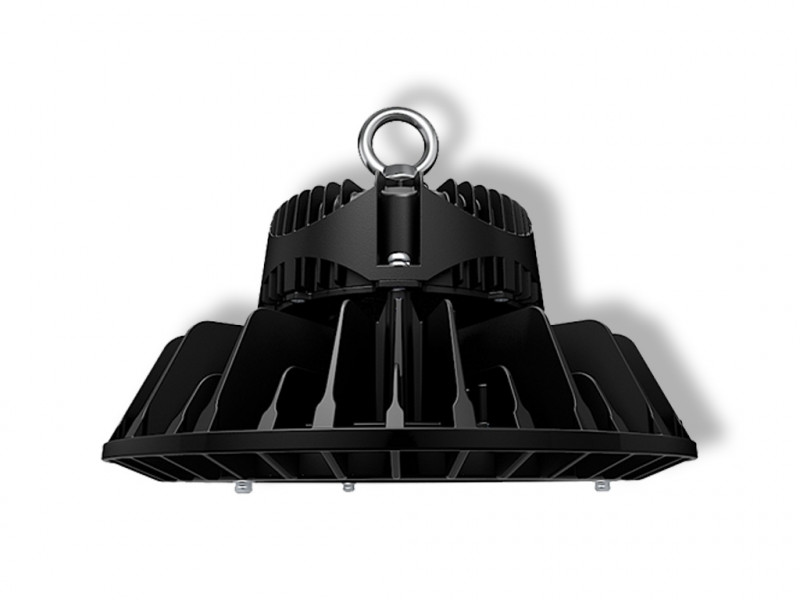

Product information "Osira HighBay MKII 100-840-14000LM DIM"
LED Highbay
Litegear® Osira LED Highbay made of durable and lightweight magnesium alloy. Perfect heat dissipation through large, vertical cooling fins with low dirt deposition to optimise the heat dissipation. LED board with high quality SMD3030 LED chips from LG Innotek - Korea. The ballast and the LED board are protected against dust and moisture according to the IP65 directive. Light chamber with impact-resistant protective glass according to IK08 specification.
The original beam angle is 120 °. However, this can be adapted by means of a lens or reflector to the requirements of the user.
High-quality components promise a long, lifespan of up to 100,000 operating hours L70 / B50 for the LED chips. High system efficiency of up to 140 lumens / watt guarantees high efficiency with low maintenance costs and fast amortization when you replace old discharge Highbays with our Osira LED light.
The luminaire can be attached to steel cables or chains by means of a ring eyebolt. Optionally, we also offer a mounting bracket for attachment to concrete ceilings or walls. As an accessory, we offer a comprehensive range of suitable sensors, reflectors, lenses, ball guards and dust covers.
LED driver with Aux output: DC 12V , 50mA can be used for sensor
Comparability with discharge lamps:
- 100W Osira LED equals 250W HQI
- 150W Osira LED equals: 400W HQL
- 200W Osira LED corresponds to 400 / 500W HQI
Applications:
Industry, sports halls, retail space, exhibition, showroom, warehouses, loading areas and canopies
Related links to "Osira HighBay MKII 100-840-14000LM DIM"
Technical Details:
Luminous Flux: | 14000 lm |
LED Output: | 97 W |
Light Yield: | 140 lm/W |
Light Temperature: | 4000 K |
Light Color: | neutralwhite |
Color Rendering Index: | ≥80 Ra |
Color Consistency (SDCM): | <3 |
Beam Angle: | 120 ° |
Unified Glare Rating (UGR): | 25 |
Light Emission: | downward |
Dimmable: | |
Method of Dimming: | 1-10V,PWM |
LED-Chip Manufacturer: | Cree |
LED-Chip: | SMD 2835 |
Number of LED: | 169 |
Ignition Time: | <0,5 s |
Input Current: | AC 100-305V, 430mA, 50/60Hz |
Power Consumption: | 100 W |
Contains Driver: | |
Driver Manufacturer: | Sosen |
Power Factor (PF): | >0.95 |
Input Driver: | cable with flying leads |
Output of Driver: | DC 90-130V, 700-1000mA |
CC/CV: | CC |
Input Lamp: | terminal |
Switching Cycles: | >50.000 |
Electrical Protection Class: | I |
Ambient Temperature (TA): | -40°C - 50°C |
Storage Temperature: | -40°C - 60°C |
Dimensions: | 245x175 mm |
Mounting: | Decke |
Montageart: | surface mounted |
IP Class: | 65 |
IK Code: | 08 |
Housing Color | black |
Housing Material: | aluminum |
Coating: | lacquered |
Cover: | clear |
Net Weight: | 2660 g |
Type of Packaging: | box |
Dimensions of Packaging: | 295x295x265 |
Weight incl. Packaging: | 3.3 kg |
Content Master Package: | 1 |
Dimensions of Master Package: | 295x295x265 mm |
Weight Master Package: | 3,529 kg |
Product Line: | Advance Line |
Warranty | 5 years |
Operating Hours: | >100.000 h L70/B50 |
Disposal Obligation: | |
Customs Tariff Number: | 9405119090 |
Certifications | CE,LM80 |
Barcode: | 4250557821313 |
Magnesium Alloy Gehäuse/housing | |
TGIC Beschichtung/Coating | |
UGR <25 mit 60° Reflektor | |
optional auch mit whiteem Gehäuse lieferbar | |
optional in white housing available |
LED-Hallentiefstrahler aus hochwertigem und leichten Magnesium Alloy mit vielseitigem Zubehör more
LED-Hallentiefstrahler aus hochwertigem und leichten Magnesium Alloy mit vielseitigem Zubehör
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: -40°C - 50°C
Lichtstrom: 14000 lm
LED-Leistung: 100 W
Leuchten-Lichtausbeute: 140 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 120°
UGR: 25
Lichtaustritt: direkt
Maße: 245x175 mm
Montageart: Aufbau (Decke)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP65
Stoßfestigkeitsgrad (IEC 62262): IK08
Außenfarbe: black
Gehäusematerial: Aluminium
Gehäusebeschichtung: lackiert
Abdeckung: klar
Nettogewicht: 2660 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L70/B50): 100000 h
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: -40°C - 50°C
Lichtstrom: 14000 lm
LED-Leistung: 100 W
Leuchten-Lichtausbeute: 140 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 120°
UGR: 25
Lichtaustritt: direkt
Maße: 245x175 mm
Montageart: Aufbau (Decke)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP65
Stoßfestigkeitsgrad (IEC 62262): IK08
Außenfarbe: black
Gehäusematerial: Aluminium
Gehäusebeschichtung: lackiert
Abdeckung: klar
Nettogewicht: 2660 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L70/B50): 100000 h
Available downloads:
- Download LG13206.1_Osira HighBay MKII 100-840-14000LM DIM (120D) (.ldt)
- Download LG13206.1_Osira HighBay MKII 100-840-14000LM DIM (60D AL) (.ldt)
- Download LG13206.1_Osira HighBay MKII 100-840-14000LM DIM (70D PC) (.ldt)
- Download LG13206.1_Osira HighBay MKII 100-840-14000LM DIM (90D AL) (.ldt)
- Download Manual Osira HB (.pdf)
