Preview: Osira MKII HighBay 150-840-21000LM DIM

Product Info (PDF)

Order number: LG13216.1

Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Menü schließen

Order number: : LG13216.1
Luminous Flux: 21000 lm
Power Draw: 150 W
Light Color: neutralwhite (4000 K)
Input Current: AC 100-305V, 660mA, 50/60Hz
Color Rendering Index (CRI): ≥80 Ra
IP Code: 65

Beam Angle: 120°
LED-Chip: Cree SMD 2835
Housing Color: black
Dimensions: 280x202 mm
Warranty: 5 years

Luminous Flux

21000
lm

Power Draw

150 W

Light Color

4000 K
neutralwhite

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 65

Beam Angle

120°

mounting type

Light Direction

Dimensions

(ØxH) in mm
280x202

Warranty

5 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

LED Highbay Litegear® Osira LED Highbay made of durable and lightweight... more

Close menu

Product information "Osira MKII HighBay 150-840-21000LM DIM"

LED Highbay

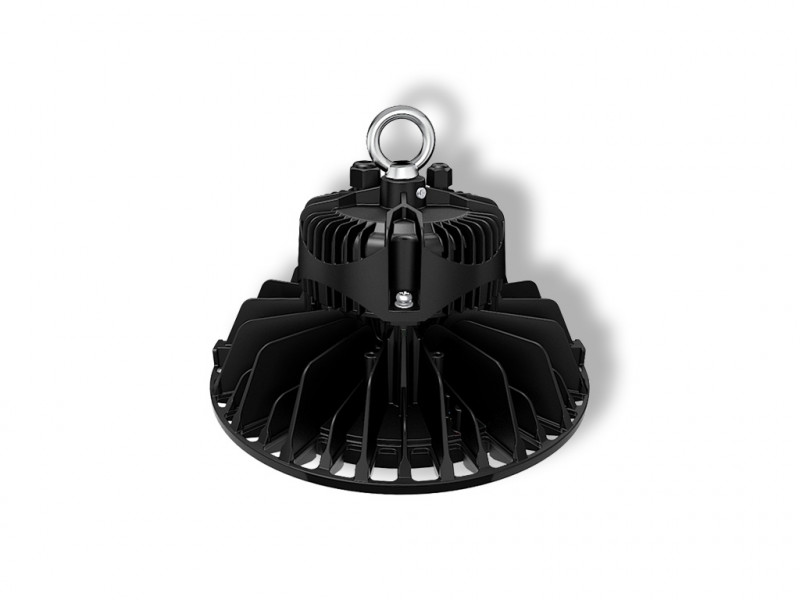

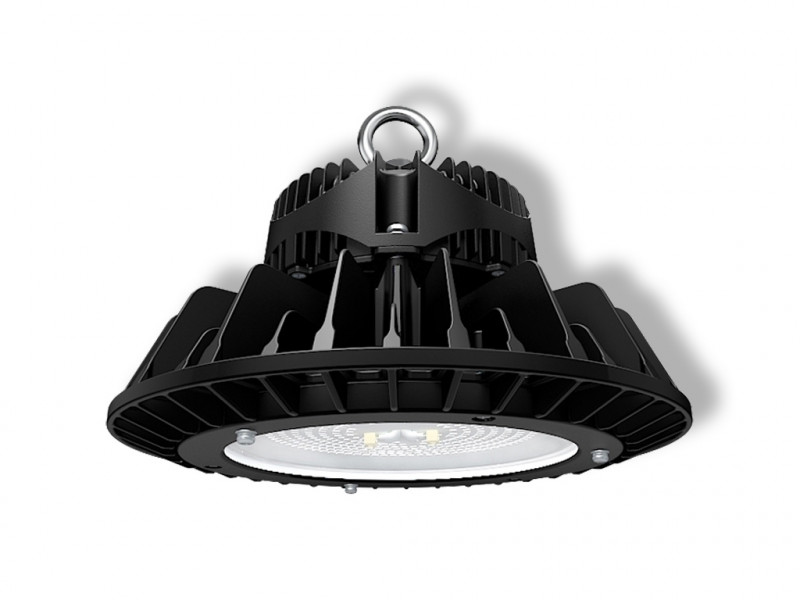

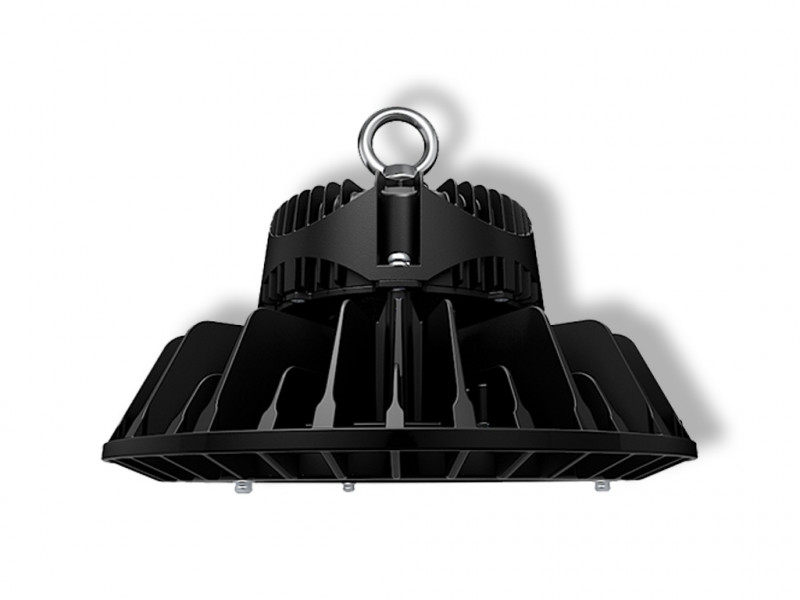

Litegear® Osira LED Highbay made of durable and lightweight magnesium alloy. Perfect heat dissipation through large, vertical cooling fins with low dirt deposition to optimise the heat dissipation. LED board with high quality SMD3030 LED chips from LG Innotek - Korea. The ballast and the LED board are protected against dust and moisture according to the IP65 directive. Light chamber with impact-resistant protective glass according to IK08 specification.

The original beam angle is 120 °. However, this can be adapted by means of a lens or reflector to the requirements of the user.

High-quality components promise a long, lifespan of up to 100,000 operating hours L70 / B50 for the LED chips. High system efficiency of up to 140 lumens / watt guarantees high efficiency with low maintenance costs and fast amortization when you replace old discharge Highbays with our Osira LED light.

The luminaire can be attached to steel cables or chains by means of a ring eyebolt. Optionally, we also offer a mounting bracket for attachment to concrete ceilings or walls. As an accessory, we offer a comprehensive range of suitable sensors, reflectors, lenses, ball guards and dust covers.

LED driver with Aux output: DC12V, 50mA can be used for sensor

Comparability with discharge lamps:

100W Osira LED equals 250W HQI
150W Osira LED equals: 400W HQL
200W Osira LED corresponds to 400 / 500W HQI

Applications:

Industry, sports halls, retail space, exhibition, showroom, warehouses, loading areas and canopies

Related links to "Osira MKII HighBay 150-840-21000LM DIM"

Zurück

Technical Details:

Luminous Flux:	21000 lm
LED Output:	144 W
Light Yield:	140 lm/W
Light Temperature:	4000 K
Light Color:	neutralwhite
Color Rendering Index:	≥80 Ra
Color Consistency (SDCM):	<3
Beam Angle:	120 °
Light Emission:	downward
Dimmable:
Method of Dimming:	1-10V,PWM
LED-Chip Manufacturer:	Cree
LED-Chip:	SMD 2835
Number of LED:	264
Ignition Time:	<0,5 s

Input Current:	AC 100-305V, 660mA, 50/60Hz
Power Consumption:	150 W
Contains Driver:
Driver Manufacturer:	Sosen
Power Factor (PF):	>0.95
Input Driver:	cable with flying leads
Output of Driver:	DC 180-260V, 520-750mA
CC/CV:	CC
Input Lamp:	terminal
Switching Cycles:	>100.000
Electrical Protection Class:	I
Ambient Temperature (TA):	-40°C - 50°C
Storage Temperature:	-40°C - 60°C

Dimensions:	280x202 mm
Mounting:	Decke
Montageart:	surface mounted
IP Class:	65
IK Code:	08
Housing Color	black
Housing Material:	aluminum
Coating:	lacquered
Cover:	clear
Net Weight:	3400 g

Type of Packaging:	box
Dimensions of Packaging:	330x330x275
Weight incl. Packaging:	4.5 kg
Content Master Package:	1
Dimensions of Master Package:	330x330x275 mm
Weight Master Package:	4,18 kg

Product Line:	Advance Line
Warranty	5 years
Operating Hours:	>100.000 h L70/B50
Disposal Obligation:
Customs Tariff Number:	9405119090
Certifications	CE,LM80
Barcode:	4250557821320
Magnesium Alloy Gehäuse/housing
TGIC Beschichtung/Coating
UGR <25 mit 60° Reflektor
optional auch mit whiteem Gehäuse lieferbar
optional in white housing available

Technical Data Sheet (PDF)

Zurück

LED-Hallentiefstrahler aus hochwertigem und leichten Magnesium Alloy mit vielseitigem Zubehör more

Zurück

LED-Hallentiefstrahler aus hochwertigem und leichten Magnesium Alloy mit vielseitigem Zubehör
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: -40°C - 50°C
Lichtstrom: 21000 lm
LED-Leistung: 150 W
Leuchten-Lichtausbeute: 140 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 120°
Lichtaustritt: direkt
Maße: 280x202 mm
Montageart: Aufbau (Decke)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP65
Stoßfestigkeitsgrad (IEC 62262): IK08
Außenfarbe: black
Gehäusematerial: Aluminium
Gehäusebeschichtung: lackiert
Abdeckung: klar
Nettogewicht: 3400 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L70/B50): 100000 h

Zurück
