SATURNA HighBay 150-240-840/850-25500-40000LM max.170lm/W DIM 0-10V
Order number: LG13266
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
- Order number: : LG13266
- Luminous Flux: 38400 lm
- Power Draw: Power Select (150, 200, 240 W)
- Light Color: CCT Select (4000-5000 K)
- Input Current: AC 90-305V, 50/60Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 65
- Beam Angle: 90°
- LED-Chip: Liteon SMD 2835
- Housing Color: black
- Dimensions: 320x120 mm
- Warranty: 5 years
LED Highbay Litegear® Saturna LED Highbay made of durable and lightweight... more
Product information "SATURNA HighBay 150-240-840/850-25500-40000LM max.170lm/W DIM 0-10V"
LED Highbay

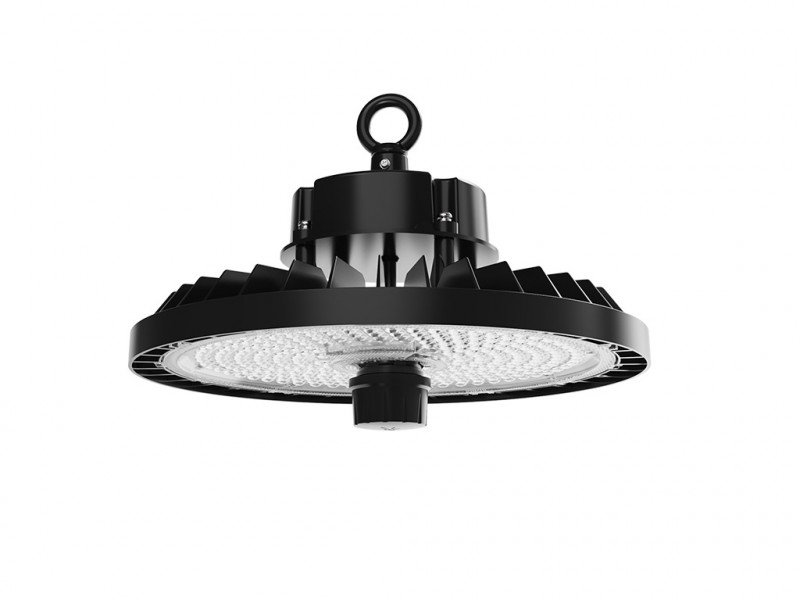

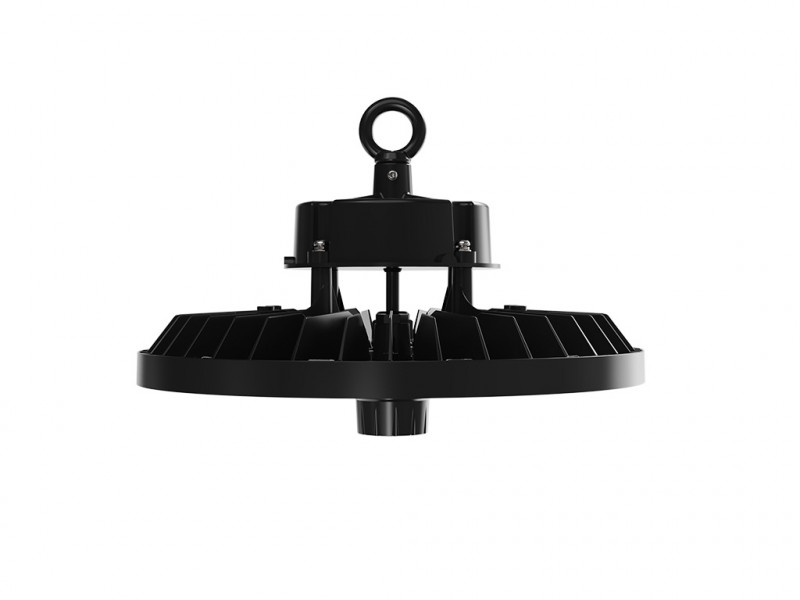

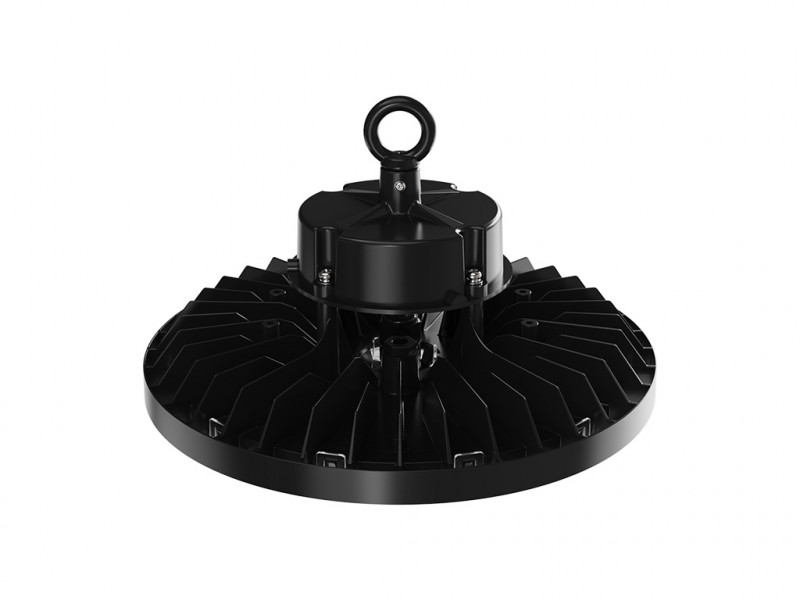

Litegear® Saturna LED Highbay made of durable and lightweight alluminum. Perfect heat dissipation through large, vertical cooling fins with low dirt deposition to optimise the heat dissipation. LED board with high quality SMD2835 LED chips from Liteon. The ballast and the LED board are protected against dust and moisture according to the IP65 directive. Light chamber with impact-resistant protective glass according to IK08 specification.
The beam angle is 90 ° with a added lenscover. However, this can be adapted by means of a lens or reflector to the requirements of the user.
High-quality components promise a long, lifespan of up to 100,000 operating hours L70 / B50 for the LED chips. High system efficiency of up to 170 lumens / watt guarantees high efficiency with low maintenance costs and fast amortization when you replace old discharge Highbays with our Saturna LED light.

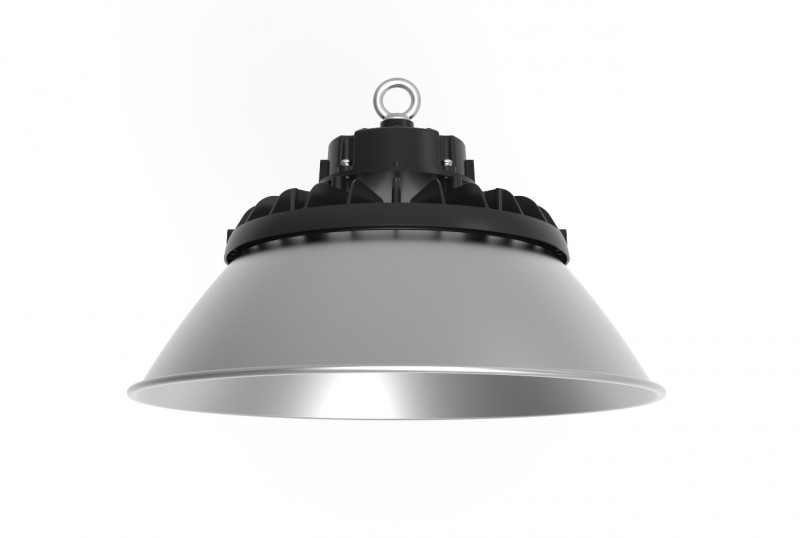

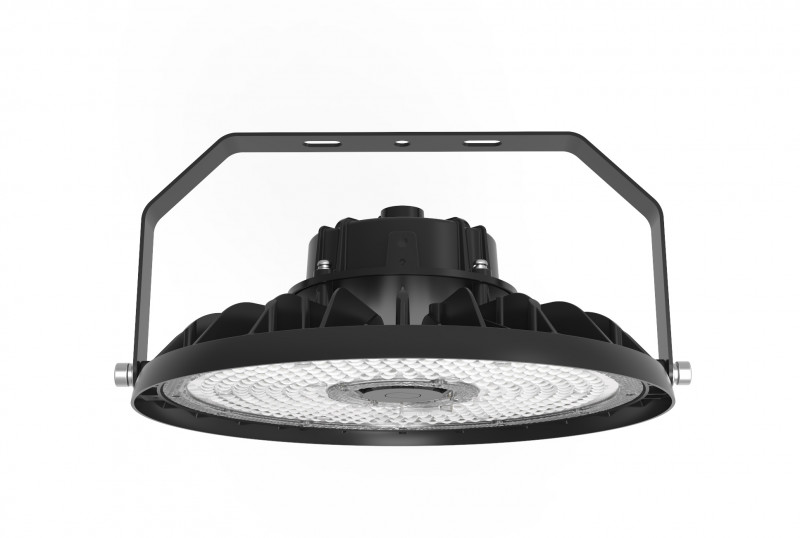

The luminaire can be attached to steel cables or chains by means of a ring eyebolt. Optionally, we also offer a mounting bracket for attachment to concrete ceilings or walls. As an accessory, we offer a comprehensive range of suitable sensors, reflectors, lenses, ball guards and dust covers.
LED driver with Aux output: DC12V, 50mA and 0-10V dimming option can be used for sensor
Comparability with discharge lamps:
- 100W Osira LED equals 250W HQI
- 150W Osira LED equals: 400W HQL
- 200W Osira LED corresponds to 400 / 500W HQI
Applications:
Industry, sports halls, retail space, exhibition, showroom, warehouses, loading areas and canopies
Related links to "SATURNA HighBay 150-240-840/850-25500-40000LM max.170lm/W DIM 0-10V"
Technical Details:
| Luminous Flux: | 38400 lm |
| Light Yield: | 160 lm/W |
| Light Temperature: | 4000-5000 K |
| Light Color: | CCT Select |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <4 |
| Beam Angle: | 90 ° |
| Unified Glare Rating (UGR): | 25 |
| Light Emission: | downward |
| Dimmable: |  |
| Method of Dimming: | 1-10V,PWM |
| LED-Chip Manufacturer: | Liteon |
| LED-Chip: | SMD 2835 |
| Number of LED: | 624 |
| Ignition Time: | <0,5 s |
| Input Current: | AC 90-305V, 50/60Hz |
| Power Consumption: | Power Select (150, 200, 240 W) |
| Contains Driver: | |
| Driver Manufacturer: | Sosen |
| Power Factor (PF): | >0.97 |
| Input Driver: | cable with flying leads |
| CC/CV: | CC |
| Output Current Adjustable: | |
| Input Lamp: | terminal |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | I |
| Ambient Temperature (TA): | -40°C - 50°C |
| Storage Temperature: | -40°C - 70°C |
| Dimensions: | 320x120 mm |
| Mounting: | Decke |
| Montageart: | surface mounted |
| IP Class: | 65 |
| IK Code: | 08 |
| Housing Color | black |
| Housing Material: | aluminum |
| Coating: | lacquered |
| Cover: | Lens |
| Net Weight: | 2600 g |
| Type of Packaging: | box |
| Weight incl. Packaging: | 4.1 kg |
| Content Master Package: | 1 |
| Dimensions of Master Package: | 375x375x200 mm |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >100.000 h L70/B50 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405119090 |
| Certifications | CE,LM80,D |
| Barcode: | 4250557823980 |
| 150W: 25500lm, 200W: 33000lm, 240W: 38400lm | |
| TGIC Beschichtung/Coating | |
| UGR <19 mit 60° Linse, max. 170lm/W | |
| 1-10V Dim und 12V DC Ausgang für Sensor | |
| vorbereitet für Radar Sensor | |
Available downloads:
- Download (150W& 5000K)LG13266_SATURNA HighBay 150-240-840-850-25500-40000LM max.170lm-W DIM 0-10V (.ldt)
- Download (150W)LG13266_SATURNA HighBay 150-240-840-850-25500-40000LM max.170lm-W DIM 0-10V (.ldt)
- Download (200W& 5000K)LG13266_SATURNA HighBay 150-240-840-850-25500-40000LM max.170lm-W DIM 0-10V (.ldt)
- Download (200W)LG13266_SATURNA HighBay 150-240-840-850-25500-40000LM max.170lm-W DIM 0-10V (.ldt)
- Download (240W& 5000K)LG13266_SATURNA HighBay 150-240-840-850-25500-40000LM max.170lm-W DIM 0-10V (.ldt)
- Download (240W)LG13266_SATURNA HighBay 150-240-840-850-25500-40000LM max.170lm-W DIM 0-10V (.ldt)
