Exima Line 1200 50-860-5250LM
Order number: LG30774
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Dimensions
- Order number: : LG30774
- Luminous Flux: 5250 lm
- Power Draw: 50 W
- Light Color: cold white (6000 K)
- Input Current: AC 100 - 277V, 230mA, 50/60Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 66
- Beam Angle: 130°
- LED-Chip: San'an SMD 2835
- Housing Color: silvergrey
- Dimensions: 1285x126x88 mm
- Warranty: 5 years
LED Ex-proof luminaire The Litegear® Exima Line is a waterproof LED fixture with... more
Product information "Exima Line 1200 50-860-5250LM"

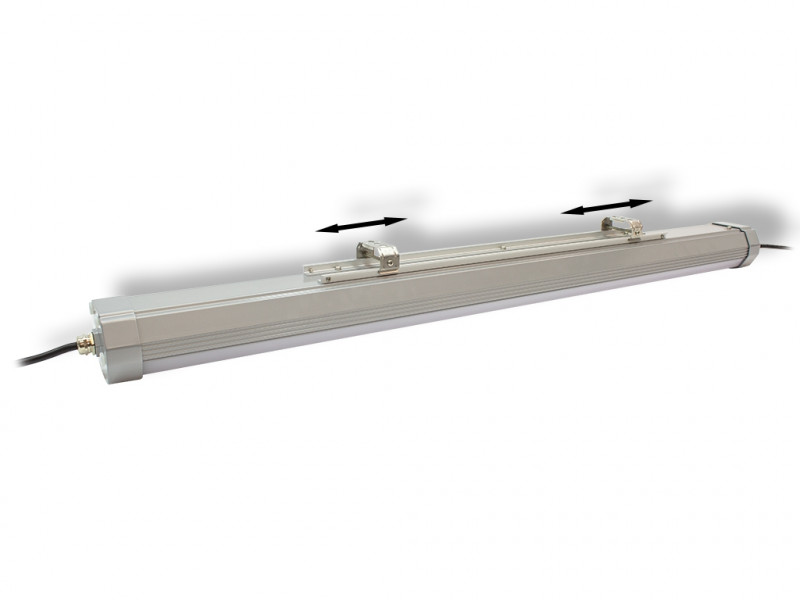

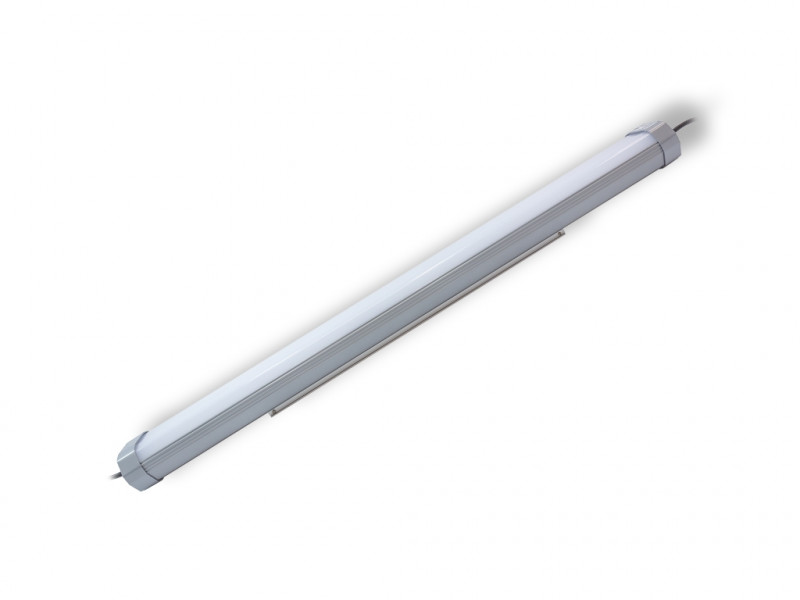

LED Ex-proof luminaire
The Litegear® Exima Line is a waterproof LED fixture with IP66 standard, high mechanical protection and European ATEX certificate. Exima Line is equipped with SMD LED Chips and available in different lengths and power classes. Available in different color temperatures.
Characteristics
It is made using a special aluminum housing, anti-corrosion performance, stainless steel screws, and PC cover. Suitable for long-term highly corrosive environment of offshore platforms, chlor-alkali,hydrogen sulfide, etc.
The anti corrosion,abrasion proof, power coated cover which is dust proof, water proof,make the lamp an excellent option for all kinds of high environment.
All 304 stainless steel bracket screw (customizable 316),can effectively guarantee the long-term strength and strong corrosion problems of lamps.
Terminals are provided at both ends,can be directly wired in parallel, eliminating the junction box and installation costs.
A variety of installation as optional: ceiling, oil derrick, the side walls, curved rods, boom,etc.

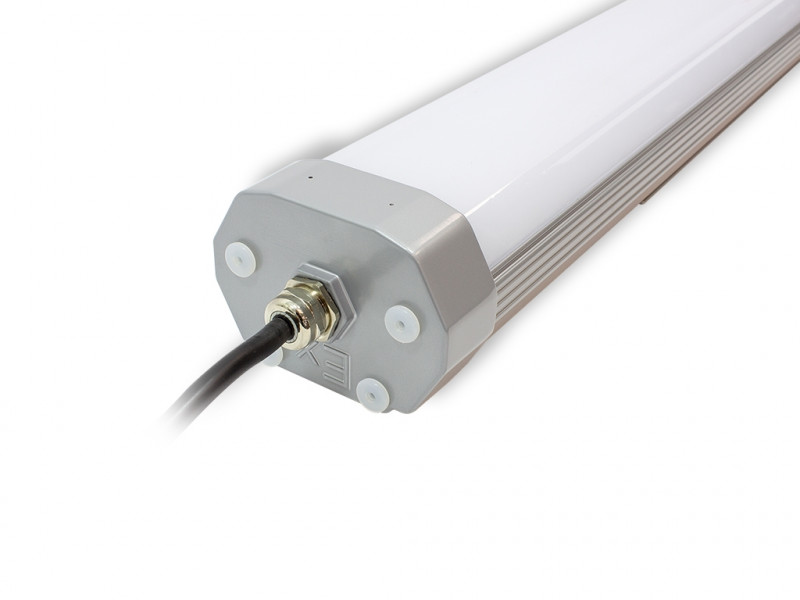

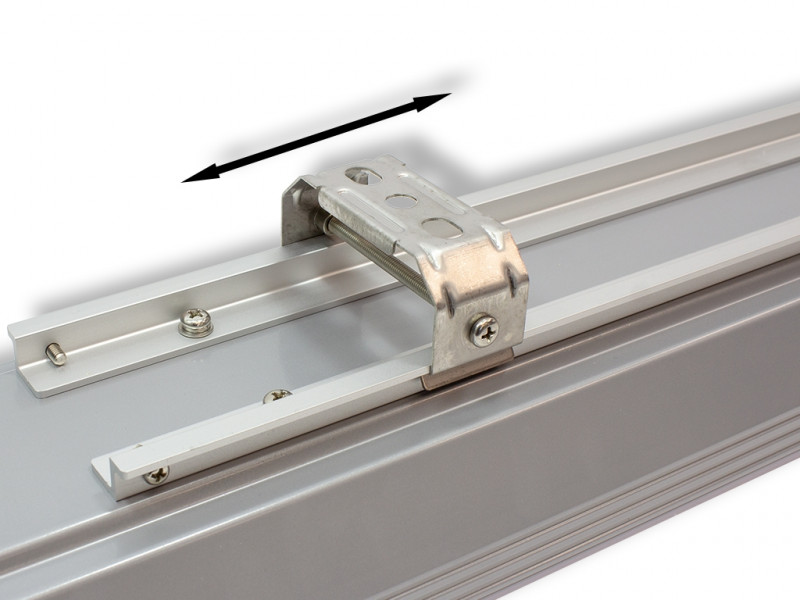

Exima Line has a high system efficency. All electric components are mounted in the housing to be protected against water, damp and dust. Wires can enter trough tightened cable glands to keep moisture outside. For easy installtion 2 brackets are included. Steel rops for hanging can be bought separately as an accessory. This waterproof luminaire is equipped with long lasting and efficient LED technology to reduce cost for electricity and maintenance to a minimum. Exima is Rohs compliant, hence free of mercury or other toxic materials.
Explosion Zones:
- 1/2 gas: IIC T6 Gb
- 21/22 dust tb IIIC T80°C Db
Atex: II 2 G Ex emb IIC T6 Gb
Atex: II 2 D Ex tb IIIC T80°C Db IP66
- ATEX-2014/34/EU
- EN 60079-0:2012+A11:2013
- EN 60079-7:2015
- EN 60079-18:2015
- EN 60079-31:2014
- EMC-2014/30/EU
- LVD-2014/35/EU
- RoHS-2011/65/EU
- IK10
Related links to "Exima Line 1200 50-860-5250LM"
Technical Details:
| Luminous Flux: | 5250 lm |
| LED Output: | 48 W |
| Light Yield: | 105 lm/W |
| Light Temperature: | 6000 K |
| Light Color: | cold white |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <6 |
| Beam Angle: | 130 ° |
| Light Emission: | downward |
| LED-Chip Manufacturer: | San'an |
| LED-Chip: | SMD 2835 |
| Number of LED: | 1380 |
| Ignition Time: | <0,5 s |
| Input Current: | AC 100 - 277V, 230mA, 50/60Hz |
| Power Consumption: | 50 W |
| Contains Driver: |  |
| Driver Manufacturer: | Sosen |
| Power Factor (PF): | >0.98 |
| Input Driver: | terminal |
| CC/CV: | CC |
| Input Lamp: | cable with flying leads |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | I |
| Ambient Temperature (TA): | -40°C - 55°C |
| Dimensions: | 1285x126x88 mm |
| Mounting: | ceiling,wall |
| IP Class: | 66 |
| IK Code: | 10 |
| Housing Color | silvergrey |
| Housing Material: | aluminum |
| Coating: | lacquered |
| Special Feature of Housing: | explosion protected |
| Cover: | opal |
| Net Weight: | 7500 g |
| Type of Packaging: | box |
| Dimensions of Packaging: | 1340x190x170 |
| Weight incl. Packaging: | 8.63 kg |
| Content Master Package: | 1 |
| Dimensions of Master Package: | 1340x190x170 mm |
| Weight Master Package: | 8,63 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >50.000 h L80/B20 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405499090 |
| Certifications | CE,D |
| Barcode: | 4250557809908 |
| ATEX zertifiziert durch Produzent | |
| EX Schutzzone: 1+2/21+22 | |
| Power Link: in/out by Atex cable glands | |
| Atex: II 2 G Ex emb IIC T6 Gb | |
| Atex II 2 D Ex tb IIIC T80°C Db - IP66 | |
