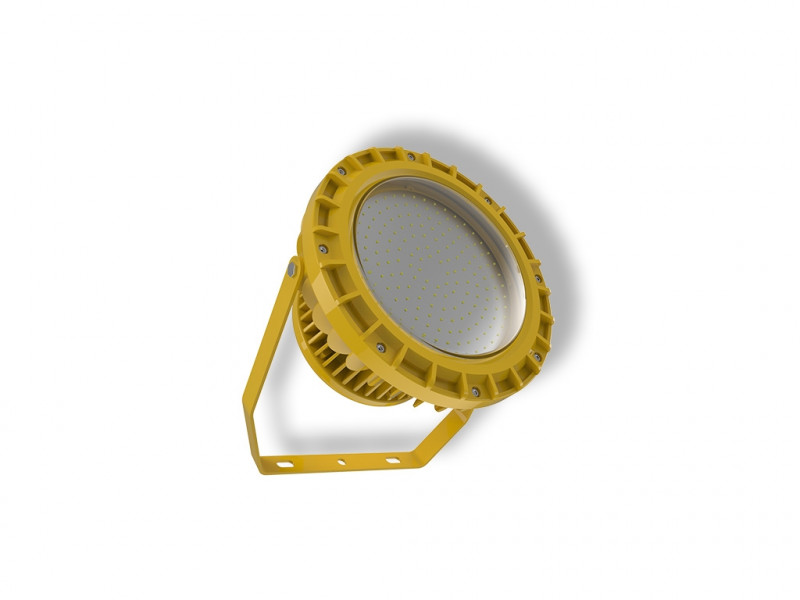

Exima HB150-760-20000LM
Order number: LG30798
Prices are only visible after login.
Availability: on request
- Order number: : LG30798
- Luminous Flux: 20000 lm
- Power Draw: 150 W
- Light Color: cold white (6000 K)
- Input Current: AC 85-305V, 50/60Hz
- Color Rendering Index (CRI): ≥70 Ra
- IP Code: 66
- Beam Angle: 120°
- LED-Chip: Cree SMD 2835
- Housing Color: orange
- Warranty: 3 years
EX protected LED highbay lights The Litegear® Exima HB is a weatherproof,... more
Product information "Exima HB150-760-20000LM"
EX protected LED highbay lights
The Litegear® Exima HB is a weatherproof, explosion-proof LED luminaire according to IP protection class and ATEX standard for use in atmospheres with highly flammable dusts or gases.
Explosion-proof, impact-resistant aluminum housing. Weatherproof and dustproof to IP66 standard! EX Protection class: II 2 G Ex IIC T5 Gb Zone I, II, Dust, 20, 21, 22 and IIA, IIB, IIC explosive gases. The fixture is equipped with high-quality Cree SMD3030 chips and has a high-quality power supply from Meanwell with 92% system efficiency. The luminaire can be mounted by means of hooks on ropes, chains, rods or on a pipe fitting. Optionally, we also offer a mounting bracket for wall mounting. Good system efficiency of up to 130 lumens/watt and long LED life up to 50,000 hours.
Related links to "Exima HB150-760-20000LM"
Technical Details:
| Luminous Flux: | 20000 lm |
| LED Output: | 144 W |
| Light Yield: | 133 lm/W |
| Light Temperature: | 6000 K |
| Light Color: | cold white |
| Color Rendering Index: | ≥70 Ra |
| Color Consistency (SDCM): | <6 |
| Beam Angle: | 120 ° |
| Light Emission: | downward |
| LED-Chip Manufacturer: | Cree |
| LED-Chip: | SMD 2835 |
| Ignition Time: | <0,5 s |
| Input Current: | AC 85-305V, 50/60Hz |
| Power Consumption: | 150 W |
| Contains Driver: |  |
| Driver Manufacturer: | Meanwell |
| Power Factor (PF): | >0.95 |
| Input Driver: | terminal |
| CC/CV: | CC |
| Input Lamp: | cable with flying leads |
| Switching Cycles: | >50.000 |
| Electrical Protection Class: | I |
| Ambient Temperature (TA): | -20°C - 45°C |
| Mounting: | Decke |
| Montageart: | surface mounted |
| IP Class: | 66 |
| IK Code: | 10 |
| Housing Color | orange |
| Housing Material: | aluminum |
| Coating: | lacquered |
| Special Feature of Housing: | explosion protected |
| Cover: | opal |
| Net Weight: | 9500 g |
| Type of Packaging: | box |
| Dimensions of Packaging: | 330x330x365 |
| Weight incl. Packaging: | 12 kg |
| Content Master Package: | 1 |
| Dimensions of Master Package: | 330x330x365 mm |
| Weight Master Package: | 12 kg |
| Product Line: | Advance Line |
| Warranty | 3 years |
| Operating Hours: | >50.000 h L70/B20 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405409990 |
| Certifications | CE,LM80,D |
| Barcode: | 4250557814414 |
| ATEX zertifiziert durch Produzent | |
| EX Schutzzone: II 2G Ex mb d IIC T5 Gb | |
| Coorosion proof WF2 | |
| surge predection: 6KV | |
| Dimming: option | |
