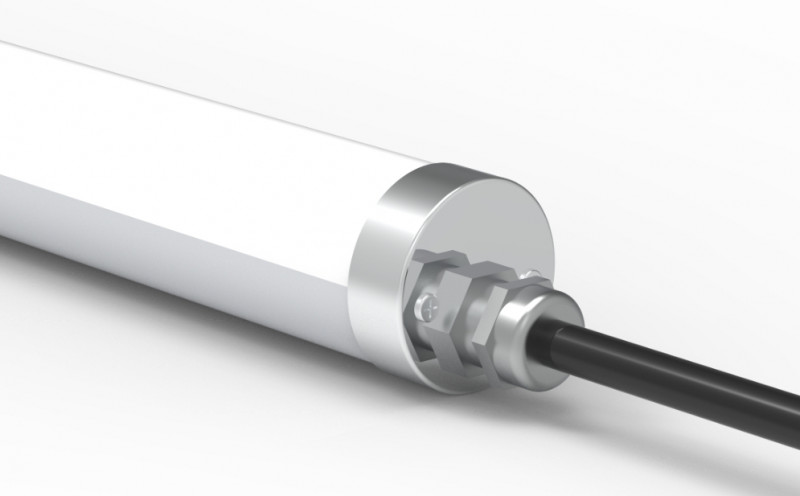

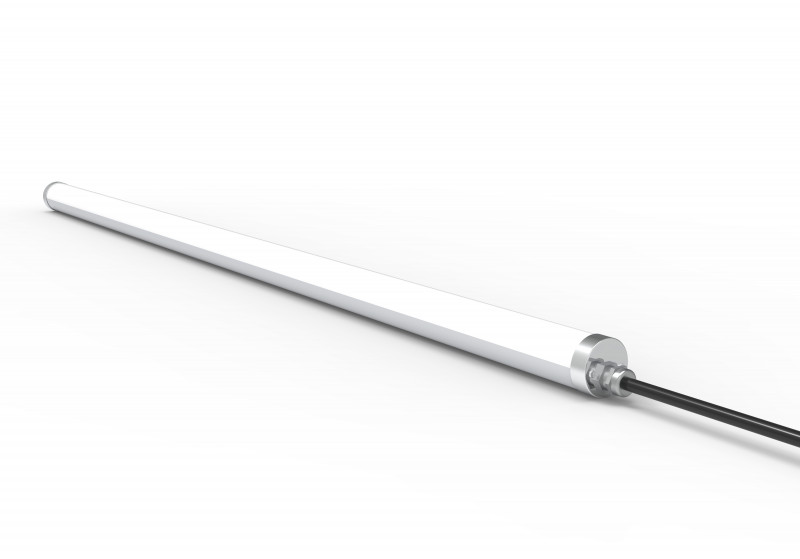

Cappila ECO 1200 20-830-2800lm internal wire through terminals
Order number: LG30796
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Dimensions
- Order number: : LG30796
- Luminous Flux: 2800 lm
- Power Draw: 20 W
- Light Color: warmwhite (3000 K)
- Input Current: AC 200 - 240V, 50/60Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 65
- Beam Angle: 120°
- LED-Chip: SMD 2835
- Housing Color: white
- Dimensions: 1200x45 mm
- Warranty: 5 years
Tough Industrial luminaire Litegear® Cappila ECO is a robust damp and waterproof... more
Product information "Cappila ECO 1200 20-830-2800lm internal wire through terminals"
Tough Industrial luminaire
Litegear® Cappila ECO is a robust damp and waterproof LED fixture. Cappila is available in different lengths and different power classes.
The body is made from strong polycarbonat (PC). All electric components are mounted in the plastic tube and well protected. For easy installtion 2 stainless steel brackets are included. Steel ropes for hanging can be bought separately as an accessory. Cappila is developed for parking lots, food factories, industrial sloughtery, warehouse or to be used in truck service area. You can find more details in our extra Litegear Cappila brochure. This waterproof luminaire is equipped with long lasting and efficient LED technology to reduce cost for electricity and maintenance to a minimum. Long LED lifespan and almost no maintenance costs. Many benefits for an afforable luminaire that can easily convince customers to go for this innovative Litegear® LED series.

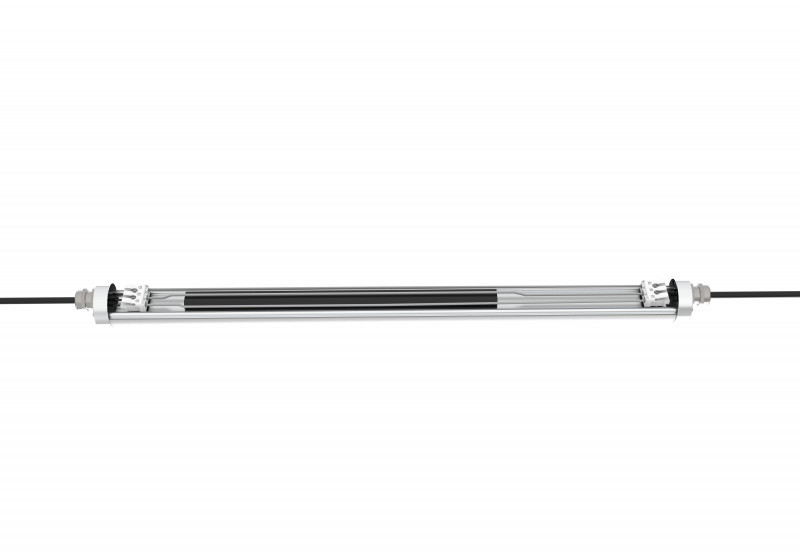

Version with internal wire through link and electrical terminals on both sides.
Applications:
Production, car and truck service, dusty invironment, factory, meat production, laboratory, horticulture, car wash
Related links to "Cappila ECO 1200 20-830-2800lm internal wire through terminals"
Technical Details:
| Luminous Flux: | 2800 lm |
| LED Output: | 20 W |
| Light Yield: | 140 lm/W |
| Light Temperature: | 3000 K |
| Light Color: | warmwhite |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <4 |
| Beam Angle: | 120 ° |
| LED-Chip: | SMD 2835 |
| Ignition Time: | <0,5 s |
| Input Current: | AC 200 - 240V, 50/60Hz |
| Power Consumption: | 20 W |
| Contains Driver: |  |
| Power Factor (PF): | >0.95 |
| CC/CV: | CC |
| Input Lamp: | cable with flying leads |
| Switching Cycles: | >200.000 |
| Loop-Through Cabling: | |
| Ambient Temperature (TA): | -20°C - 45°C |
| Storage Temperature: | -40°C - 60°C |
| Dimensions: | 1200x45 mm |
| Length of Tube: | 1200 mm |
| Mounting: | ceiling,wall |
| Montageart: | surface mounted |
| IP Class: | 65 |
| IK Code: | 08 |
| Housing Color | white |
| Housing Material: | Polycarbonat |
| Special Feature of Housing: | Tube |
| Cover: | opal |
| Net Weight: | 769 g |
| Type of Packaging: | box |
| Weight incl. Packaging: | 0.9 kg |
| Content Master Package: | 16 |
| Dimensions of Master Package: | 1290x245x245 mm |
| Weight Master Package: | 13,21 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >50.000 h L80/B20 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405114090 |
| Certifications | CE,LM80,D |
| Barcode: | 4250557823911 |
| Rohrleuchte | |
| Tube Light | |
| Edelstahlendkappen | |
| Durchgangsverdrahtung | |
| beidseitige Terminalklemmen | |
