Order number: LG30768
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Short information
- Order number: : LG30768
- Luminous Flux: 8700 lm
- Power Draw: 60 W
- Light Color: cold white (6000 K)
- Input Current: AC 220 - 240V, 50/60Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 69
- Beam Angle: 240°
- LED-Chip: San'an SMD 2835
- Housing Color: white/Chrom
- Dimensions: 70x1490 mm
- Warranty: 5 years
Luminous Flux
8700
lm
Power Draw
60 W
Light Color
6000 K
cold white
Color Rendering Index (CRI)
CRI
>80 Ra
IP Code
IP 69
Beam Angle
240°
ceiling, wall
mounting type
Light Direction
Dimensions
(ØxH) in mm
70x1490
Warranty
5 years
Fully damp proof Industrial luminaire Litegear® Cappila XTreme MKIII is... more
Product information "Cappila XTreme MKIII 1500 60-860-8700lm"
Fully damp proof Industrial luminaire

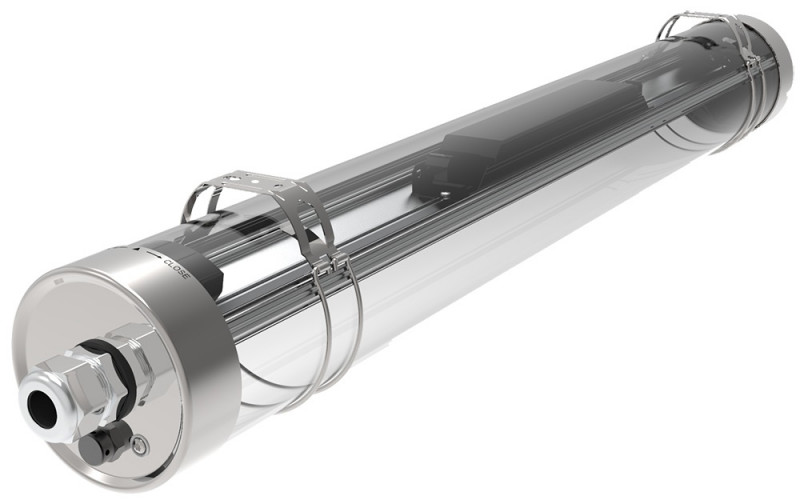

Litegear® Cappila XTreme MKIII is a robust damp and waterproof LED fixture.

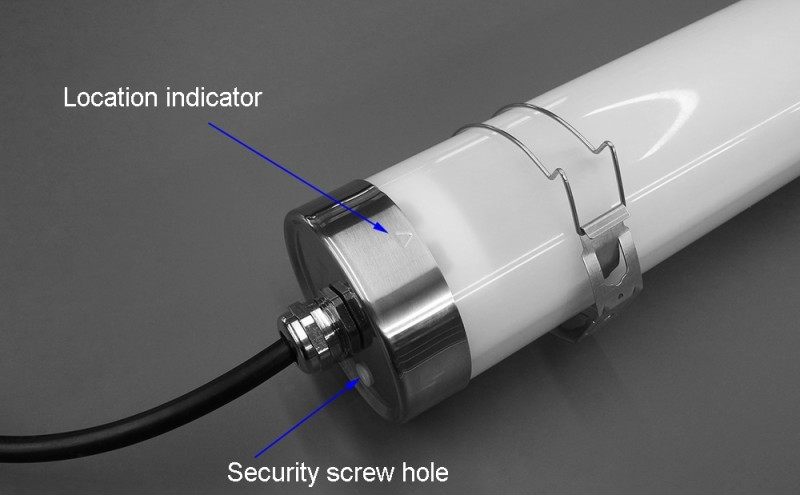

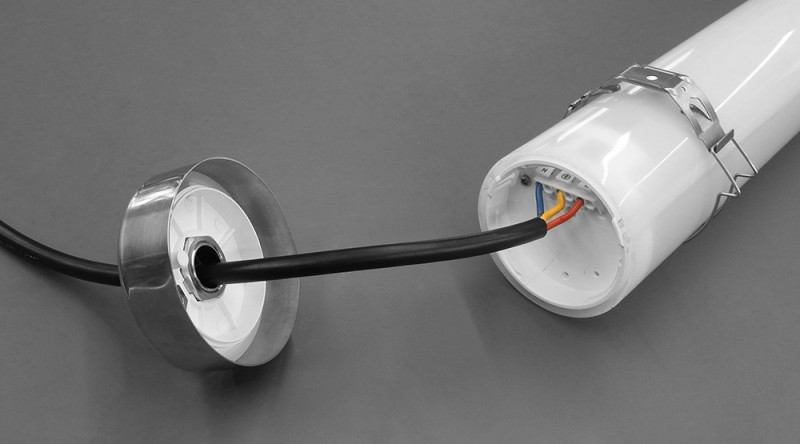

The body is made from strong polycarbonat (PC). All electric components are mounted in the plastic tube. Wires can be connected by internal electrical terminal on both sides for through wireing. The endcaps are turnable for easy access. For easy installtion 2 stainless steel brackets are included. Steel ropes for hanging can be bought separately as an accessory. Cappila XTreme is developed for parking lots, food factories, industrial sloughtery, warehouse or to be used in truck service area. This waterproof luminaire is equipped with long lasting and efficient LED technology to reduce cost for electricity and maintenance to a minimum. Long LED lifespan and almost no maintenance costs. Many benefits for an afforable luminaire that can easily convince customers to go for this innovative Litegear® LED series. High impact resistancy IK10 and fully waterproof housing IP69K. Wide beamangle of 240° with smooth and even light distribution.
Applications:
- Food factory
- parking lots
- Truck and train service
- car wash
- gas station
Related links to "Cappila XTreme MKIII 1500 60-860-8700lm"
Technical Details:
Luminous Flux: | 8700 lm |
Light Yield: | 145 lm/W |
Light Temperature: | 6000 K |
Light Color: | cold white |
Color Rendering Index: | ≥80 Ra |
Color Consistency (SDCM): | <4 |

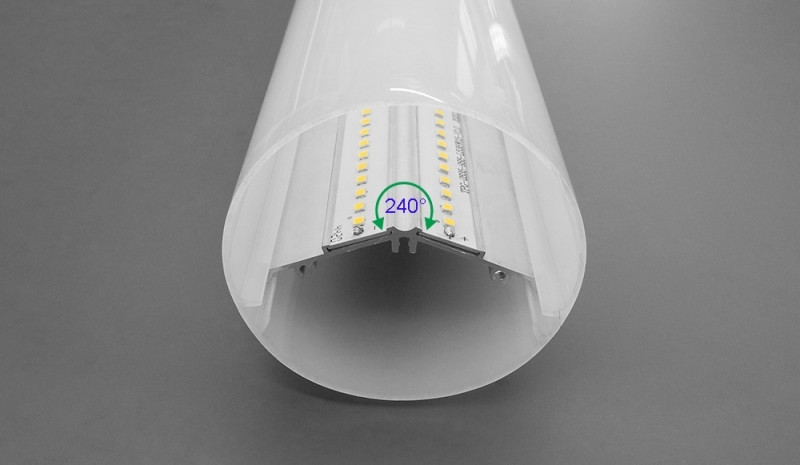

Beam Angle: | 240 ° |
Unified Glare Rating (UGR): | 25 |
Light Emission: | downward |
LED-Chip Manufacturer: | San'an |
LED-Chip: | SMD 2835 |
Ignition Time: | <0,5 s |
Input Current: | AC 220 - 240V, 50/60Hz |
Power Consumption: | 60 W |
Contains Driver: | |
Driver Manufacturer: | Tridonic |
Power Factor (PF): | >0.92 |
Input Driver: | terminal |
CC/CV: | CC |
Input Lamp: | Terminal |
Switching Cycles: | >100.000 |
Electrical Protection Class: | I |
Compatible with Emergency Current: | |
Loop-Through Cabling: | |
Ambient Temperature (TA): | -20°C - 45°C |
Storage Temperature: | -20°C - 60°C |
Dimensions: | 70x1490 mm |
Mounting: | ceiling,wall |
Montageart: | surface mounted |
IP Class: | 69 |
IK Code: | 10 |
Housing Color | white/Chrom |
Housing Material: | Polycarbonat |
Special Feature of Housing: | Tube |
Cover: | opal |
Net Weight: | 1807 g |
Type of Packaging: | box |
Dimensions of Packaging: | 1580x90x90 |
Weight incl. Packaging: | 2.1 kg |
Content Master Package: | 10 |
Dimensions of Master Package: | 1615x435x200 mm |
Weight Master Package: | 21,85 kg |
Product Line: | Premio Line |
Warranty | 5 years |
Operating Hours: | >50.000 h L80/B10 |
Disposal Obligation: | |
Customs Tariff Number: | 9405114090 |
Certifications | CE,LM80,D |
Barcode: | 4250557821214 |
Extrem robuste LED-Industrieleuchte in Rohroptik mit IP69 für widrige Umgebungen more
Extrem robuste LED-Industrieleuchte in Rohroptik mit IP69 für widrige Umgebungen
Vorschaltgerät: LED-Treiber
Temperaturbereich: -20°C - 45°C
Lichtstrom: 8700 lm
LED-Leistung: 60 W
Leuchten-Lichtausbeute: 145 lm/W
Farbtemperatur: 6000 K
Lichtfarbe: kaltwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 240°
UGR: 25
Lichtaustritt: direkt
Maße: 70x1490 mm
Montageart: Aufbau (Decke,Wand)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP69
Stoßfestigkeitsgrad (IEC 62262): IK10
Außenfarbe: white/Chrom
Gehäusematerial: Polycarbonat
Abdeckung: opal
Nettogewicht: 1807 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B10): 50000 h
Vorschaltgerät: LED-Treiber
Temperaturbereich: -20°C - 45°C
Lichtstrom: 8700 lm
LED-Leistung: 60 W
Leuchten-Lichtausbeute: 145 lm/W
Farbtemperatur: 6000 K
Lichtfarbe: kaltwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 240°
UGR: 25
Lichtaustritt: direkt
Maße: 70x1490 mm
Montageart: Aufbau (Decke,Wand)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP69
Stoßfestigkeitsgrad (IEC 62262): IK10
Außenfarbe: white/Chrom
Gehäusematerial: Polycarbonat
Abdeckung: opal
Nettogewicht: 1807 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B10): 50000 h
