Order number: LG32247DA
Prices are only visible after login.
Availability: on request
- Order number: : LG32247DA
- Luminous Flux: 8100 lm
- Power Draw: 50 W
- Light Color: neutralwhite (4000 K)
- Input Current: AC 220 - 240V, 50/60Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 20
- Beam Angle: 90°
- LED-Chip: SMD 2835
- Housing Color: white
- Dimensions: 1490x60x11 mm
- Warranty: 5 years
(LxBxH) in mm
Linear LED tracklight for 3-phase trackrails Elegant, flat LED luminaire with... more
Product information "Modulux Linear LED- Modul 150-35/50-840-8100lm-WH DALI"
Linear LED tracklight for 3-phase trackrails
Elegant, flat LED luminaire with integrated 3-phase track adapter which is completely integrated in the standard track rails. Elegant, ultra flat appearance only 11mm high and 60mm wide. Available with symmetrical 60/90/120° or asymmetrical light dispersion 2 x 45° with multi-lens panel. Ideal for illuminating supermarket shelves, retail areas, exhibition halls, extremely high luminous flux up to 8000 lumens with only 50W consumption corresponding to up to 160 lumens / watt.

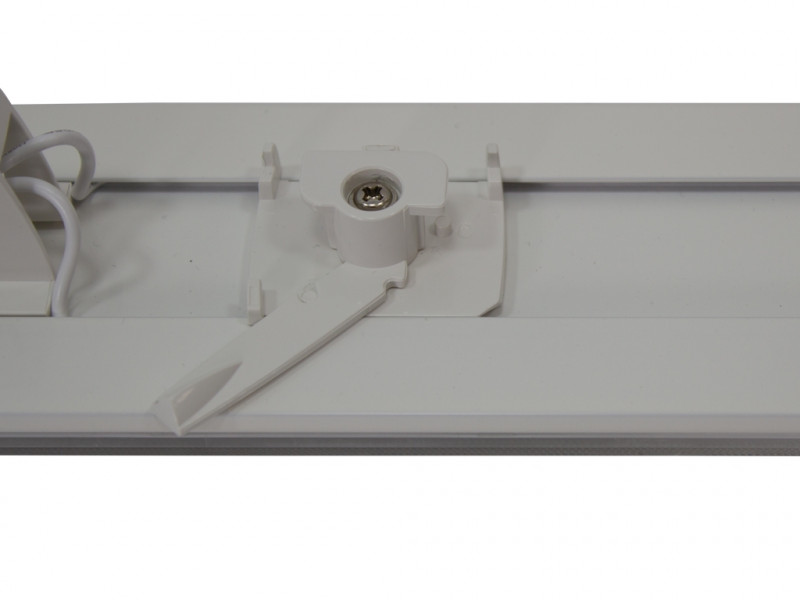

- Easy and fast installation using 3-phase trackrail adapters.
- 3 selectable power phases, compatible with all common track systems
- Adjustment output power: Adjustable LED driver 35, 40, 45, 50Watt
- Modular structure of the lens panel
- The individual modules can be seamlessly lined up. It creates the impression of a continuous line of light.
- Good heat dissipation and optimal light distribution
- Also available with dimmable Dali driver on request.
- Available in 2 housing colors: black, white optional also in silver (clarify minimum quantity beforehand)
- Long-life LED technology: up to 50,000 hours L80 B10
- Standard light colors. 3000K, 4000K optional: 2700K, 3500K, 5000K, 6000K
- available in two lengths: 60cm and 150cm
Related links to "Modulux Linear LED- Modul 150-35/50-840-8100lm-WH DALI"
|Luminous Flux:||8100 lm|
|LED Output:||48 W|
|Light Yield:||162 lm/W|
|Light Temperature:||4000 K|
|Color Rendering Index:||≥80 Ra|
|Color Consistency (SDCM):||<4|
|Beam Angle:||90 °|
|Method of Dimming:||DALI|
|Ignition Time:||<0,5 s|
|Input Current:||AC 220 - 240V, 50/60Hz|
|Power Consumption:||50 W|
|Power Factor (PF):||>0.95|
|Input Driver:||lighting track|
|Output of Driver:||DC 55-80V, 710mA|
|Output Current Adjustable:|
|Input Lamp:||Power rail|
|Electrical Protection Class:||I|
|Ambient Temperature (TA):||-20°C - 45°C|
|Storage Temperature:||-20°C - 55°C|
|Special Feature of Housing:||3-Phase adapter|
|Net Weight:||1150 g|
|Type of Packaging:||none|
|Weight incl. Packaging:||1.15 kg|
|Content Master Package:||10|
|Dimensions of Master Package:||1570x350x240 mm|
|Weight Master Package:||14,55 kg|
|Product Line:||Advance Line|
|Operating Hours:||>50.000 h L80/B10|
|Customs Tariff Number:||9405409990|
|Spezial Optik für Supermarktregale optional|
|optional optics for shelf lighting in supermarket|
|Power adjust: 35/40/45/50W 5300-8000LM max.|
