Order number: LG32257DA
Available soon
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Short information
- Order number: : LG32257DA
- Luminous Flux: 7500 lm
- Power Draw: Power Select (35,40,45,50 W)
- Light Color: neutralwhite (4000 K)
- Input Current: AC 220 - 240V, 50/60Hz
- Color Rendering Index (CRI): ≥90 Ra
- IP Code: 20
- Beam Angle: 60°
- LED-Chip: SMD 2835
- Housing Color: white
- Dimensions: 1490x60x11 mm
- Warranty: 5 years
Luminous Flux
7500
lm
Power Draw
50 W
Light Color
4000 K
neutralwhite
Color Rendering Index (CRI)
CRI
>90 Ra
IP Code
IP 20
Beam Angle
60°
Light Direction
Dimensions
(LxBxH) in mm
1490x60x11
Warranty
5 years
The light source may only be replaced by qualified persons
The driver may only be replaced by qualified persons
Linear LED tracklight for 3-phase trackrails Elegant, flat LED luminaire with... more

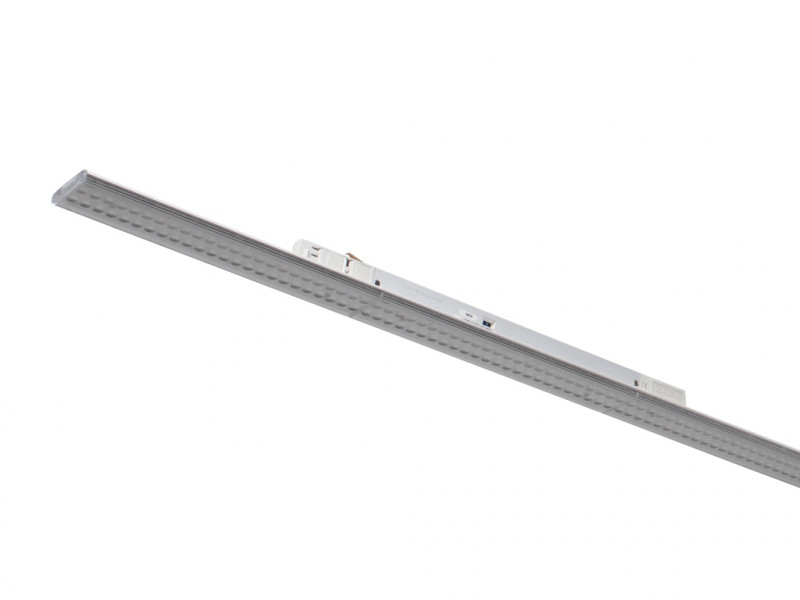

Product information "Modulux Linear LED- Modul 150-35/50-840-7500lm-WH Dali Dim"

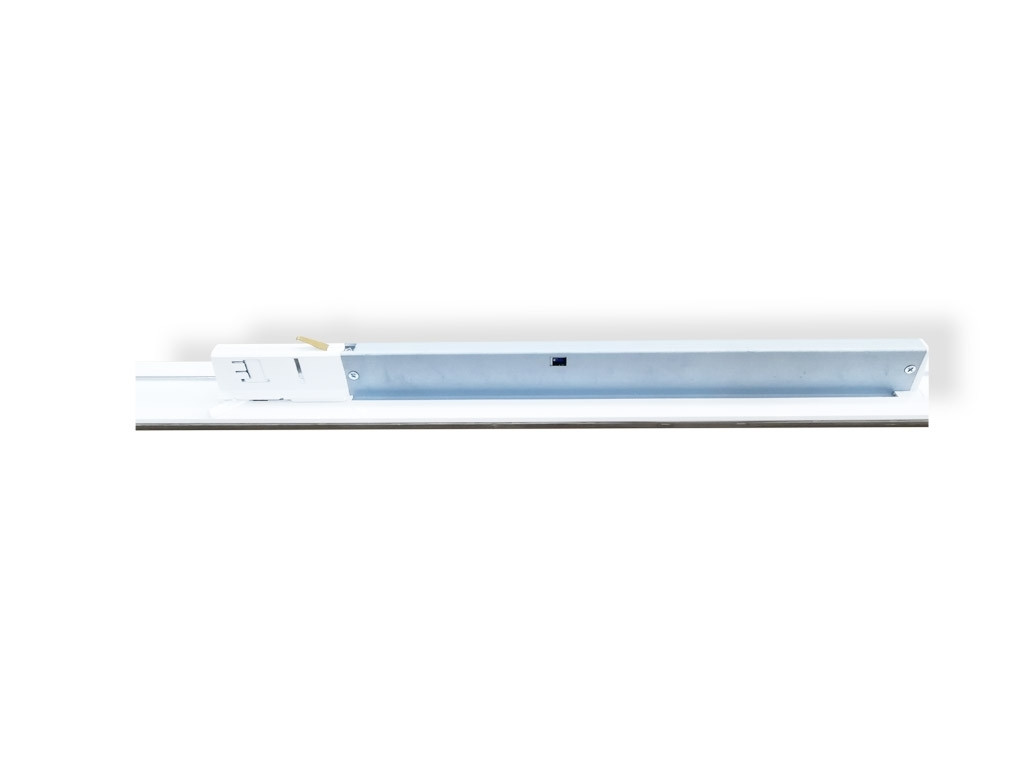

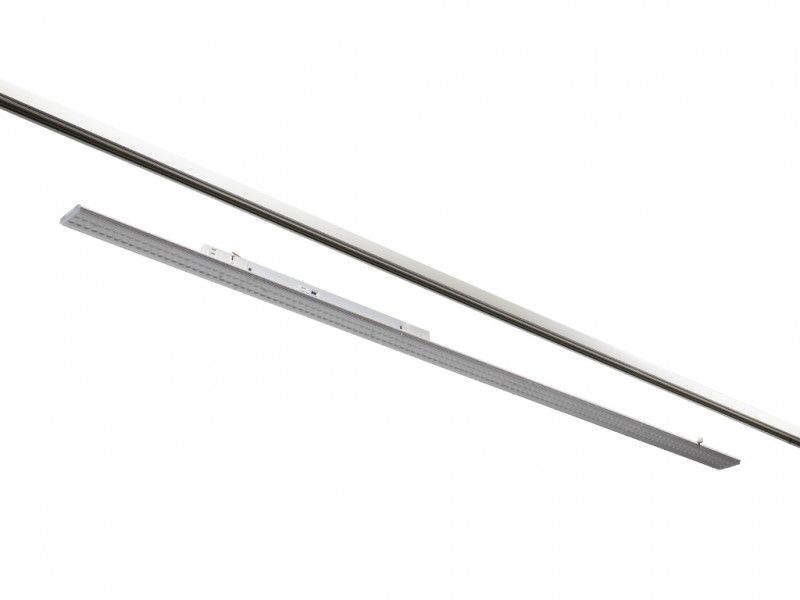

Linear LED tracklight for 3-phase trackrails
Elegant, flat LED luminaire with integrated 3-phase track adapter which is completely integrated in the standard track rails. Elegant, ultra flat appearance only 11mm high and 60mm wide. Available with symmetrical 60/90/120° or asymmetrical light dispersion 2 x 45° with multi-lens panel. Ideal for illuminating supermarket shelves, retail areas, exhibition halls, extremely high luminous flux up to 8000 lumens with only 50W consumption corresponding to up to 160 lumens / watt.
Beamangle: 60° UGR<16, can be used for PC workspaces

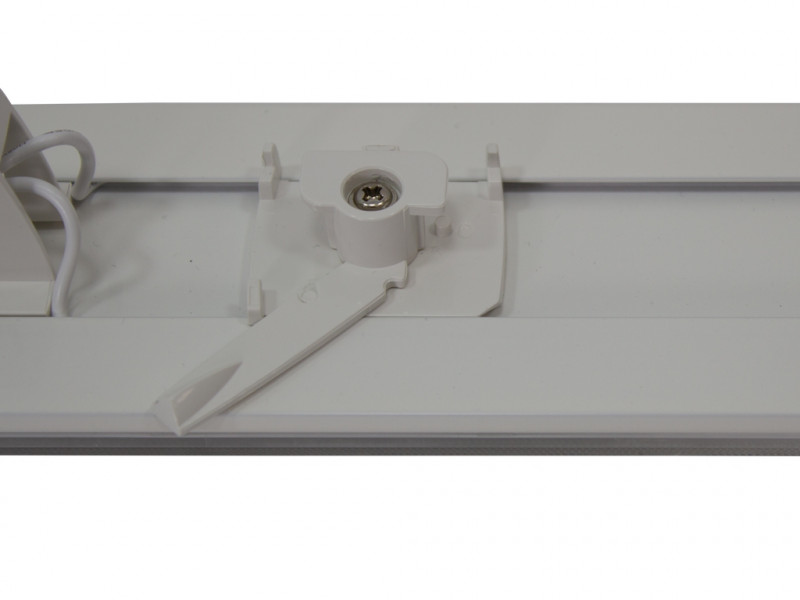

- Easy and fast installation using 3-phase trackrail adapters.
- 3 selectable power phases, compatible with all common track systems
- Adjustment output power: Adjustable LED driver 35, 40, 45, 50Watt

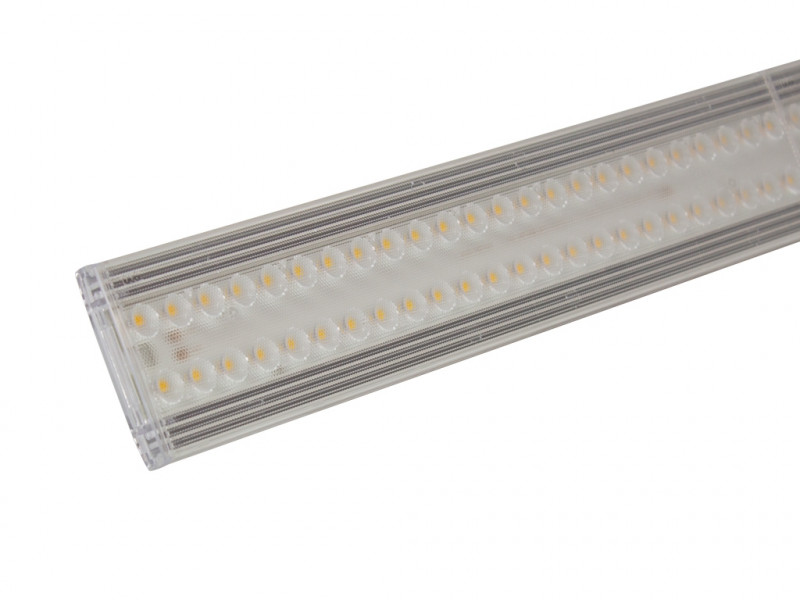

- Modular structure of the lens panel
- The individual modules can be seamlessly lined up. It creates the impression of a continuous line of light.
- Good heat dissipation and optimal light distribution
- Also available with dimmable Dali driver on request.
- Available in 2 housing colors: black, white optional also in silver (clarify minimum quantity beforehand)
- Long-life LED technology: up to 50,000 hours L80 B10
- Standard light colors. 3000K, 4000K optional: 2700K, 3500K, 5000K, 6000K
- available in two lengths: 60cm and 150cm
Related links to "Modulux Linear LED- Modul 150-35/50-840-7500lm-WH Dali Dim"
Technical Details:
Luminous Flux: | 7500 lm |
LED Output: | 48 W |
Light Yield: | 150 lm/W |
Light Temperature: | 4000 K |
Light Color: | neutralwhite |
Color Rendering Index: | ≥90 Ra |
Color Consistency (SDCM): | <4 |
Beam Angle: | 60 ° |
Unified Glare Rating (UGR): | 16 |
Light Emission: | downward |
Dimmable: | |
Method of Dimming: | DALI,Push-Dim |
LED-Chip: | SMD 2835 |
Ignition Time: | <0,5 s |
Input Current: | AC 220 - 240V, 50/60Hz |
Power Consumption: | Power Select (35,40,45,50 W) |
Contains Driver: | |
Driver Manufacturer: | Litegear |
Power Factor (PF): | >0.95 |
Input Driver: | lighting track |
Output of Driver: | DC 55-80V, 710mA |
CC/CV: | CC |
Output Current Adjustable: | |
Input Lamp: | Power rail |
Switching Cycles: | >100.000 |
Electrical Protection Class: | I |
Ambient Temperature (TA): | -20°C - 45°C |
Storage Temperature: | -20°C - 55°C |
Dimensions: | 1490x60x11 mm |
Mounting: | Decke |
IP Class: | 20 |
IK Code: | 03 |
Housing Color | white |
Housing Material: | aluminum |
Coating: | powder-coated |
Special Feature of Housing: | 3-Phase adapter |
Cover: | Lens |
Net Weight: | 1150 g |
Type of Packaging: | none |
Weight incl. Packaging: | 1.15 kg |
Content Master Package: | 10 |
Dimensions of Master Package: | 1570x350x240 mm |
Weight Master Package: | 14,55 kg |
Product Line: | Advance Line |
Warranty | 5 years |
Operating Hours: | >50.000 h L80/B10 |
Disposal Obligation: | |
Customs Tariff Number: | 9405119090 |
Certifications | CE,TÜV,D |
Barcode: | 4250557824857 |
Spezial Optik für Supermarktregale optional | |
optional optics for shelf lighting in supermarket | |
60° symmetric | |
Power adjust: 35/40/45/50W 5300-8100LM max. |
LED-Lichtbandleuchte mit integriertem 3-Phasenstromschienenadapter more
LED-Lichtbandleuchte mit integriertem 3-Phasenstromschienenadapter
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: -20°C - 45°C
Lichtstrom: 7500 lm
LED-Leistung: Power Select (35,40,45,50 W)
Leuchten-Lichtausbeute: 150 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >90
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 60°
UGR: 16
Bildschirmgerecht gemäß EN12464-1 durch begrenzte Leuchtdichten L ≤ 3000 cd/m² für Ausstrahlungswinkel oberhalb 65° rundum
Lichtaustritt: direkt
Maße: 1490x60x11 mm
Montageart: (Decke)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP20
Stoßfestigkeitsgrad (IEC 62262): IK03
Außenfarbe: white
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: Linse
Nettogewicht: 1150 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B10): 50000 h
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: -20°C - 45°C
Lichtstrom: 7500 lm
LED-Leistung: Power Select (35,40,45,50 W)
Leuchten-Lichtausbeute: 150 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >90
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 60°
UGR: 16
Bildschirmgerecht gemäß EN12464-1 durch begrenzte Leuchtdichten L ≤ 3000 cd/m² für Ausstrahlungswinkel oberhalb 65° rundum
Lichtaustritt: direkt
Maße: 1490x60x11 mm
Montageart: (Decke)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP20
Stoßfestigkeitsgrad (IEC 62262): IK03
Außenfarbe: white
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: Linse
Nettogewicht: 1150 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B10): 50000 h
Available downloads:
- Download (35W) LG32257DA_Modulux Linear LED-Tracklight Modul 150-35_50-840-8100lm-WH Dali Dim (.ldt)
- Download (40W) LG32257DA_Modulux Linear LED-Tracklight Modul 150-35_50-840-8100lm-WH Dali Dim (.ldt)
- Download (45W) LG32257DA_Modulux Linear LED-Tracklight Modul 150-35_50-840-8100lm-WH Dali Dim (.ldt)
- Download (50W) LG32257DA_Modulux Linear LED-Tracklight Modul 150-35_50-840-8100lm-WH Dali Dim (.ldt)
