Modulux WING Linear LED- Modul 60-14/20-930-2800lm-WH
Order number: LG32260
Prices are only visible after login.
Availability: on request
- Order number: : LG32260
- Luminous Flux: 2800 lm
- Power Draw: 20 W
- Light Color: warmwhite (3000 K)
- Input Current: AC 220 - 240V, 150mA, 50/60Hz
- Color Rendering Index (CRI): ≥90 Ra
- IP Code: 20
- LED-Chip: SMD 2835
- Housing Color: white
- Dimensions: 600x120x12 mm
- Warranty: 5 years
Product information "Modulux WING Linear LED- Modul 60-14/20-930-2800lm-WH"
Related links to "Modulux WING Linear LED- Modul 60-14/20-930-2800lm-WH"
Technical Details:
| Luminous Flux: | 2800 lm |
| LED Output: | 20 W |
| Light Yield: | 140 lm/W |
| Light Temperature: | 3000 K |
| Light Color: | warmwhite |
| Color Rendering Index: | ≥90 Ra |
| Color Consistency (SDCM): | <4 |
| Light Emission: | downward |
| LED-Chip: | SMD 2835 |
| Ignition Time: | <0,5 s |
| Input Current: | AC 220 - 240V, 150mA, 50/60Hz |
| Power Consumption: | 20 W |
| Contains Driver: |  |
| Power Factor (PF): | >0.95 |
| Input Driver: | lighting track |
| Output of Driver: | DC 55-80V, 280mA |
| CC/CV: | CC |
| Output Current Adjustable: | |
| Input Lamp: | Power rail |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | I |
| Compatible with Emergency Current: | |
| Ambient Temperature (TA): | -25°C - 60°C |
| Storage Temperature: | -40°C - 85°C |
| Dimensions: | 600x120x12 mm |
| Mounting: | Decke |
| IP Class: | 20 |
| IK Code: | 03 |
| Housing Color | white |
| Housing Material: | aluminum |
| Coating: | powder-coated |

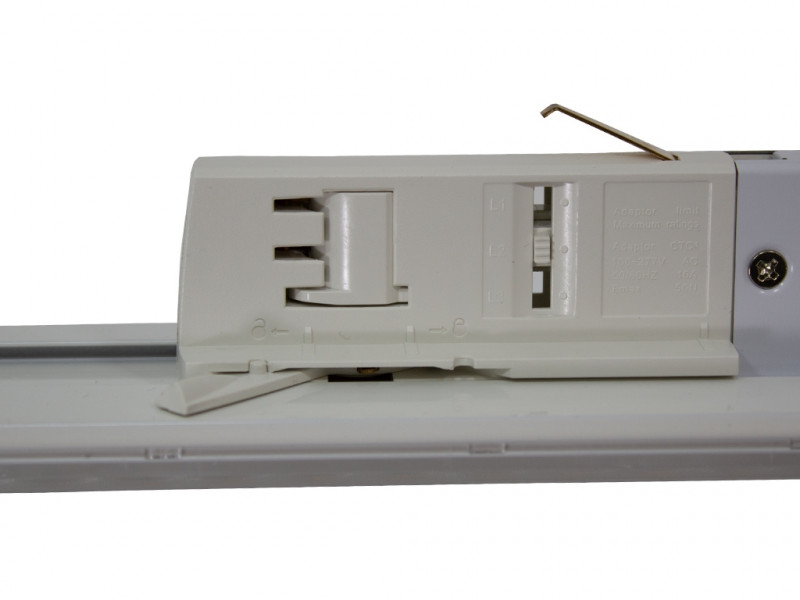

| Special Feature of Housing: | 3-Phase adapter |
| Cover: | Lens |
| Net Weight: | 1000 g |
| Type of Packaging: | none |
| Content Master Package: | 10 |
| Dimensions of Master Package: | 680x430x350 mm |
| Weight Master Package: | 11,8 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >60.000 h L80/B10 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405 11 90 90 |
| Certifications | CE,TÜV,D |
| spezille Optik für Supermarktregale | |
| special optics for shelf lighting in supermarkets | |
| 2 x 90° x 30° double asymmetric + 90° down prism. | |

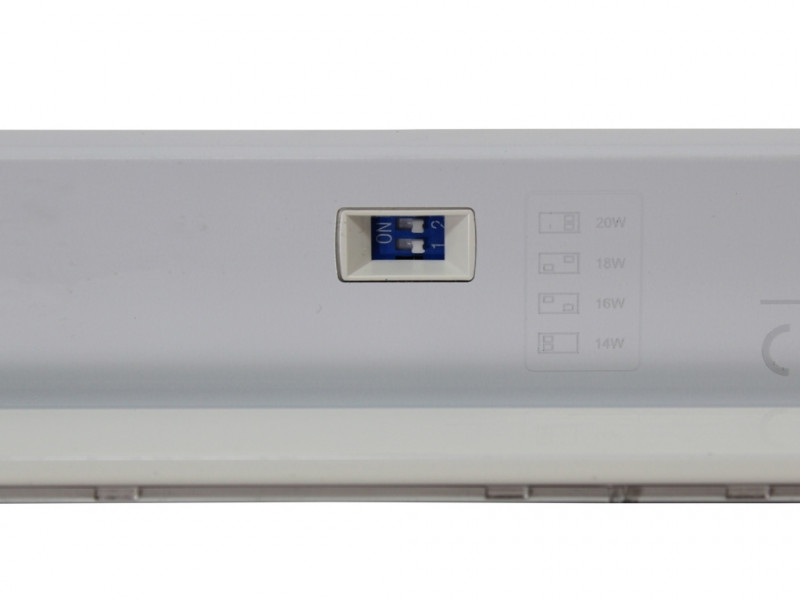

| Power adjust: 14/16/18/20W 2000-2800LM max. | |
LED-Lichtbandleuchte mit integriertem 3-Phasenstromschienenadapter more
LED-Lichtbandleuchte mit integriertem 3-Phasenstromschienenadapter
Vorschaltgerät: LED-Treiber
Temperaturbereich: -25°C - 60°C
Lichtstrom: 2800 lm
LED-Leistung: 20 W
Leuchten-Lichtausbeute: 140 lm/W
Farbtemperatur: 3000 K
Lichtfarbe: warmwhite
Farbwiedergabeindex (Ra): >90
Farbtoleranz (SDCM): <4
Lichtaustritt: direkt
Maße: 600x120x12 mm
Montageart: (Decke)
Schutzart (DIN EN 60529): IP20
Stoßfestigkeitsgrad (IEC 62262): IK03
Außenfarbe: white
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: Linse
Nettogewicht: 1000 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B10): 60000 h
Vorschaltgerät: LED-Treiber
Temperaturbereich: -25°C - 60°C
Lichtstrom: 2800 lm
LED-Leistung: 20 W
Leuchten-Lichtausbeute: 140 lm/W
Farbtemperatur: 3000 K
Lichtfarbe: warmwhite
Farbwiedergabeindex (Ra): >90
Farbtoleranz (SDCM): <4
Lichtaustritt: direkt
Maße: 600x120x12 mm
Montageart: (Decke)
Schutzart (DIN EN 60529): IP20
Stoßfestigkeitsgrad (IEC 62262): IK03
Außenfarbe: white
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: Linse
Nettogewicht: 1000 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B10): 60000 h
