MODULUX OFFICE Linear LED- Modul 60-18/24-930-3420lm-BK DALI DIM
Order number: LG3229DABK
Available soon
Prices are only visible after login.
Availability: on request
- Order number: : LG3229DABK
- Luminous Flux: 3420 lm
- Power Draw: Power Select (18,20,22,24 W)
- Light Color: warmwhite (3000 K)
- Input Current: AC 200-240V, 50/60Hz
- Color Rendering Index (CRI): ≥90 Ra
- IP Code: 40
- Beam Angle: 90°
- LED-Chip: SMD 2835
- Housing Color: black
- Dimensions: 600x62x20 mm
- Warranty: 5 years
Linear LED tracklight for 3-phase trackrails Elegant, flat LED luminaire with... more
Product information "MODULUX OFFICE Linear LED- Modul 60-18/24-930-3420lm-BK DALI DIM"

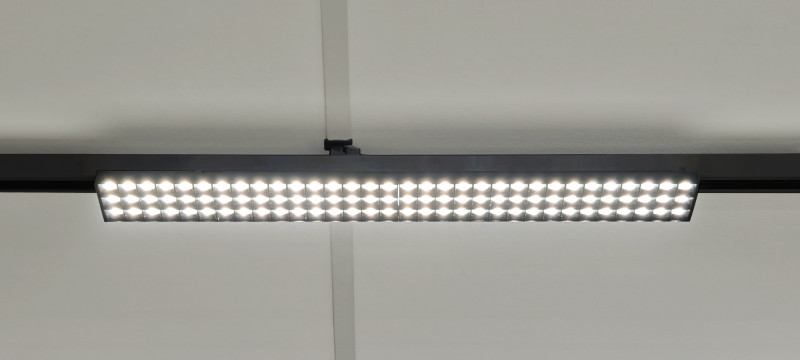

Linear LED tracklight for 3-phase trackrails

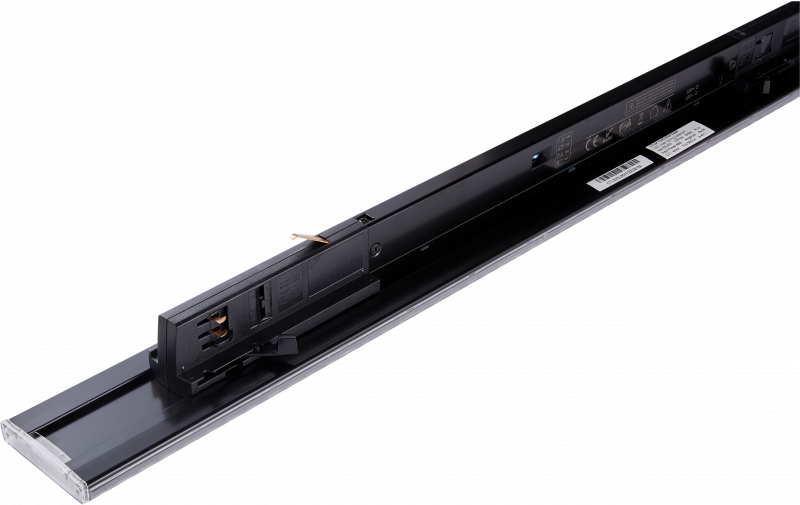

Elegant, flat LED luminaire with integrated 3-phase track adapter which is completely integrated in the standard track rails. Elegant, ultra flat appearance only 11mm high and 60mm wide. Version with optimized Glare rating UGR<19 DIN EN 12464-1.
Perfect for office applications, supermarket cashier area, show room, corridors, exhibition
- Easy and fast installation using 3-phase trackrail adapters.
- 3 selectable power phases, compatible with all common track systems
- Adjustment output power select: Adjustable LED driver 18, 20, 22, 24 Watt
- DALI 2.0 Push Dim
- Modular structure of LED louver
- The individual modules can be seamlessly lined up. It creates the impression of a continuous line of light.
- Good heat dissipation and optimal light distribution
- Also available with dimmable Dali 2.0 driver on request.
- Available in 2 housing colors: black, white
- Long-life LED technology: up to 50,000 hours L80 B10
- Standard light colors. 3000K, 4000K optional: 2700K, 3500K, 5000K, 6000K
- available in two lengths: 60cm and 150cm
Related links to "MODULUX OFFICE Linear LED- Modul 60-18/24-930-3420lm-BK DALI DIM"
Technical Details:
| Luminous Flux: | 3420 lm |
| Light Yield: | 143 lm/W |
| Light Temperature: | 3000 K |
| Light Color: | warmwhite |
| Color Rendering Index: | ≥90 Ra |
| Color Consistency (SDCM): | <3 |
| Beam Angle: | 90 ° |
| Light Emission: | downward |
| Dimmable: |  |
| Method of Dimming: | DALI,Push-Dim |
| LED-Chip: | SMD 2835 |
| Ignition Time: | <0,5 s |
| Glow Wire Test 650°C/30s | |
| Input Current: | AC 200-240V, 50/60Hz |
| Power Consumption: | Power Select (18,20,22,24 W) |
| Contains Driver: | |
| Power Factor (PF): | >0.95 |
| Input Driver: | lighting track |
| CC/CV: | CC |
| Output Current Adjustable: | |
| Input Lamp: | Power rail |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | I |
| Ambient Temperature (TA): | -20°C - 40°C |
| Storage Temperature: | -40°C - 85°C |
| Dimensions: | 600x62x20 mm |
| Mounting: | Decke |
| Montageart: | surface mounted |
| IP Class: | 40 |
| IK Code: | 04 |
| Housing Color | black |
| Housing Material: | aluminum |
| Coating: | powder-coated |
| Special Feature of Housing: | 3-Phase adapter |
| Cover: | Louver |
| Net Weight: | 550 g |
| Type of Packaging: | none |
| Content Master Package: | 10 |
| Dimensions of Master Package: | 670x350x240 mm |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >60.000 h L80/B10 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405119090 |
| Certifications | CE,TÜV,D |
| Spezial Optik für Büro, Showroom, Kassenzone | |
| Special optics for office, showroom, cashier area | |
| 90° symmetric | |
| Power adjust: 18/20/22/24W | |
| Für 3-Phasenstromschien/ for 3 phase trackrail | |
LED-Stromschienenleuchte mit integriertem 3-Phasenstromschienenadapter für Büroanwendung,... more
LED-Stromschienenleuchte mit integriertem 3-Phasenstromschienenadapter für Büroanwendung, Kassenzone, Verkaufsflächen, Schulungsräume
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: -20°C - 40°C
Lichtstrom: 3420 lm
LED-Leistung: Power Select (18,20,22,24 W)
Leuchten-Lichtausbeute: 143 lm/W
Farbtemperatur: 3000 K
Lichtfarbe: warmwhite
Farbwiedergabeindex (Ra): >90
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 90°
Lichtaustritt: direkt
Maße: 600x62x20 mm
Montageart: Aufbau (Decke)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP40
Stoßfestigkeitsgrad (IEC 62262): IK04
Außenfarbe: black
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: Louver
Nettogewicht: 550 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B10): 60000 h
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: -20°C - 40°C
Lichtstrom: 3420 lm
LED-Leistung: Power Select (18,20,22,24 W)
Leuchten-Lichtausbeute: 143 lm/W
Farbtemperatur: 3000 K
Lichtfarbe: warmwhite
Farbwiedergabeindex (Ra): >90
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 90°
Lichtaustritt: direkt
Maße: 600x62x20 mm
Montageart: Aufbau (Decke)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP40
Stoßfestigkeitsgrad (IEC 62262): IK04
Außenfarbe: black
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: Louver
Nettogewicht: 550 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B10): 60000 h
