Modulux BATWING Linear LED- Modul 150-45/60-940-9600lm-WH DALI2
Order number: LG32296DAWH
Available soon
Prices are only visible after login.
Availability: on request
Dimensions
- Order number: : LG32296DAWH
- Luminous Flux: 9600 lm
- Power Draw: Power Select (45, 50, 55, 60 W)
- Light Color: neutralwhite (4000 K)
- Input Current: AC 220 - 240V, 259-340mA, 50/60Hz
- Color Rendering Index (CRI): ≥90 Ra
- IP Code: 20
- LED-Chip: EBRIGHT SMD 2835
- Housing Color: white
- Dimensions: 1492x100x12 mm
- Warranty: 5 years
Linear LED tracklight for 3-phase trackrails with Dali dimming driver Elegant,... more
Product information "Modulux BATWING Linear LED- Modul 150-45/60-940-9600lm-WH DALI2"

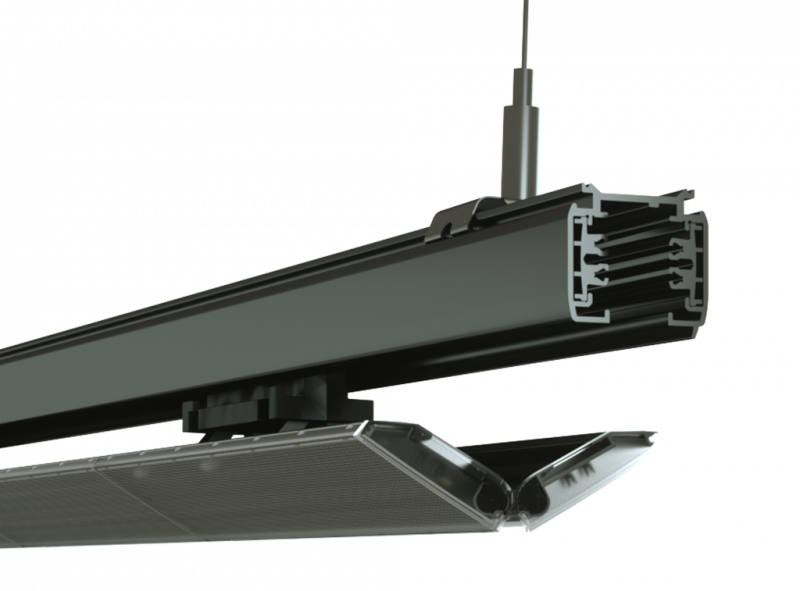

Linear LED tracklight for 3-phase trackrails with Dali dimming driver

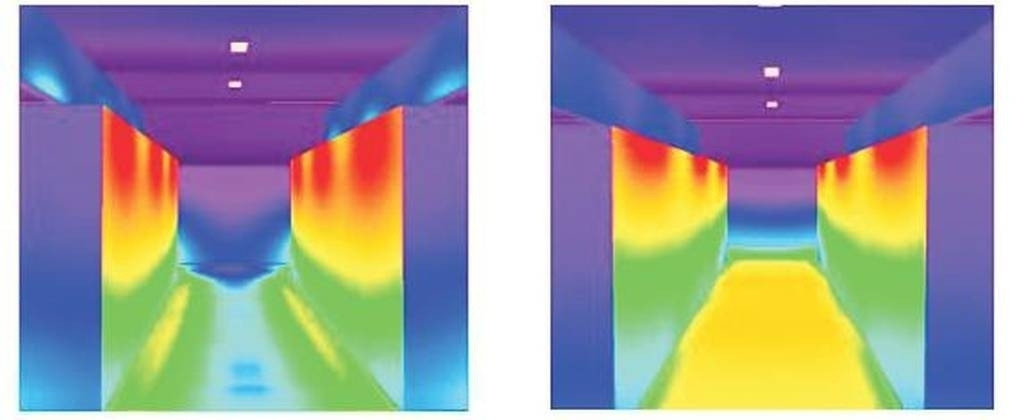

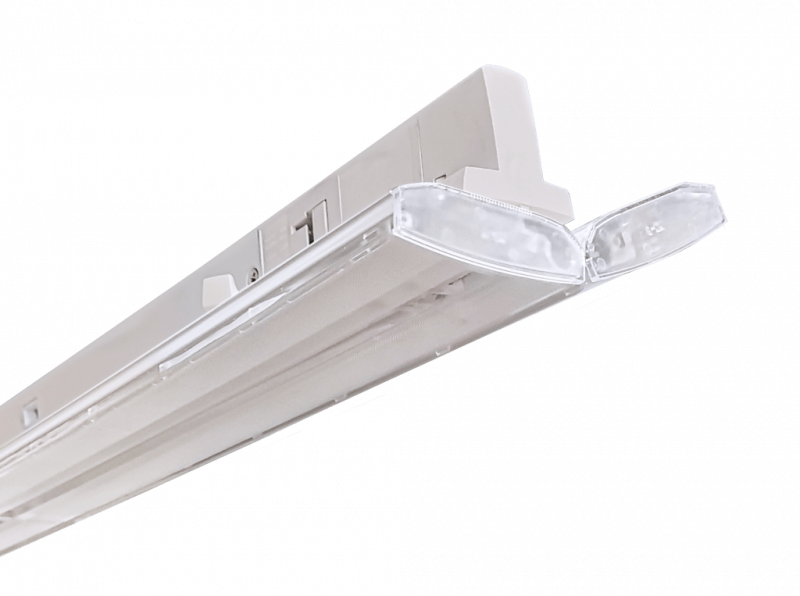

Elegant, flat LED luminaire with integrated 3-phase track adapter which is completely integrated in the standard track rails. Elegant, ultra flat appearance only 12mm high and 100mm wide. Special LED Lenspanel with 20° x 90° beamangle.The wings ar adjustrable by 30° each. Ideal for illuminating supermarket shelves, retail areas, exhibition halls, extremely high luminous flux up to 9600 lumens with only 60W consumption corresponding to up to 160 lumens / watt.

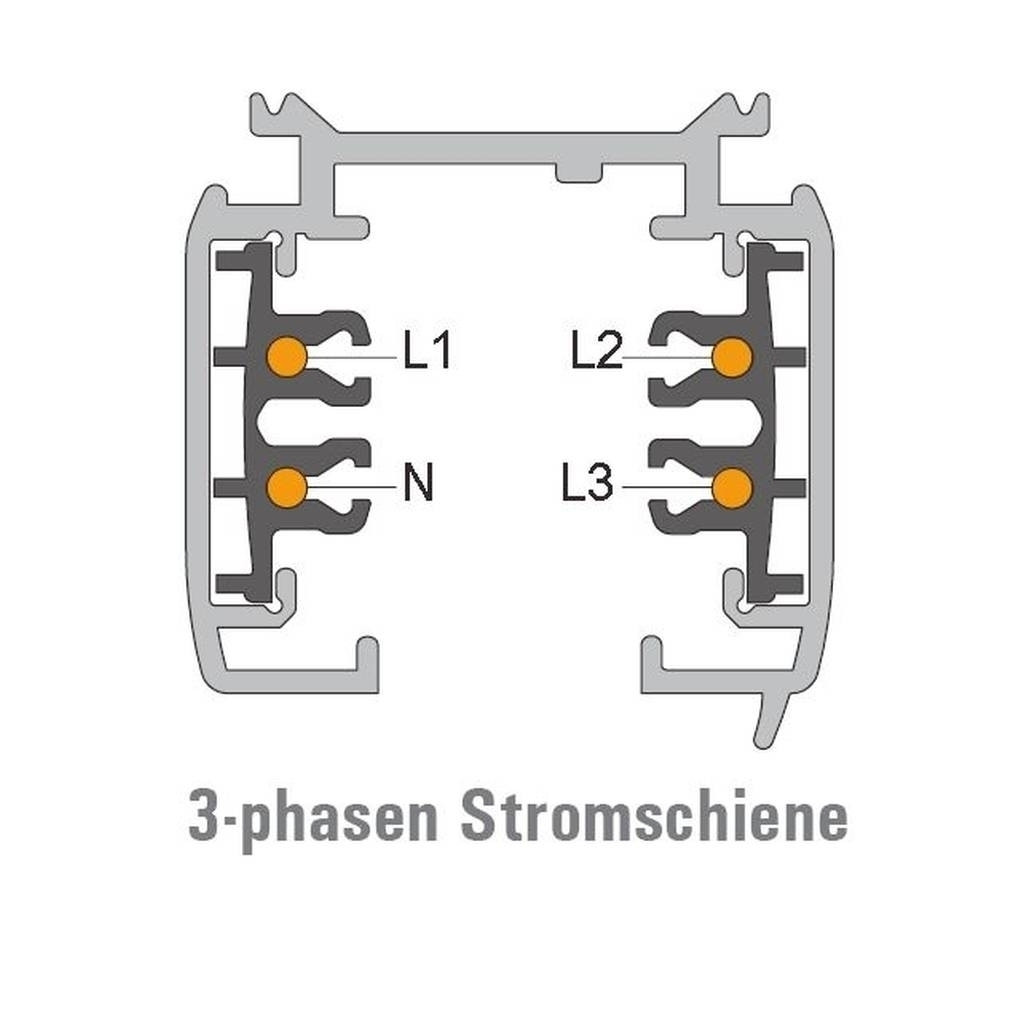

- Easy and fast installation using 3-phase trackrail adapters for 4 to 6 wires Dali rails
- 3 selectable power phases, compatible with all common track systems
- Adjustment output power: Adjustable LED driver 45, 50, 55, 60Watt
- Dali 2 LED driver with integrated design
- Modular structure of the lens panel
- The individual modules can be seamlessly lined up. It creates the impression of a continuous line of light.
- Good heat dissipation and optimal light distribution
- Available in 2 housing colors: black, white optional also in silver (clarify minimum quantity beforehand)
- Long-life LED technology: up to 70,000 hours L80 B20
- Standard light colors. 3000K, 4000K optional: 2700K, 3500K, 5000K, 6000K
- available in two lengths: 60cm and 150cm
Related links to "Modulux BATWING Linear LED- Modul 150-45/60-940-9600lm-WH DALI2"
Technical Details:
| Luminous Flux: | 9600 lm |
| LED Output: | 60 W |
| Light Yield: | 160 lm/W |
| Light Temperature: | 4000 K |
| Light Color: | neutralwhite |
| Color Rendering Index: | ≥90 Ra |
| Color Consistency (SDCM): | <3 |
| Unified Glare Rating (UGR): | 25 |
| Light Emission: | downward |
| Dimmable: |  |
| Method of Dimming: | DALI,Push-Dim |
| LED-Chip Manufacturer: | EBRIGHT |
| LED-Chip: | SMD 2835 |
| Number of LED: | 240 |
| Ignition Time: | <0,5 s |
| Glow Wire Test 650°C/30s | |
| Input Current: | AC 220 - 240V, 259-340mA, 50/60Hz |
| Power Consumption: | Power Select (45, 50, 55, 60 W) |
| Contains Driver: | |
| Driver Manufacturer: | Litegear |
| Power Factor (PF): | >0.95 |
| Input Driver: | lighting track |
| CC/CV: | CC |
| Output Current Adjustable: | |
| Input Lamp: | Power rail |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | I |
| Compatible with Emergency Current: | |
| Ambient Temperature (TA): | -25°C - 50°C |
| Storage Temperature: | -40°C - 85°C |
| Dimensions: | 1492x100x12 mm |
| Mounting: | Decke,Stromschiene |
| IP Class: | 20 |
| IK Code: | 03 |
| Housing Color | white |
| Housing Color (RAL Code): | similar 9016 |
| Housing Material: | steel |
| Coating: | powder-coated |
| Special Feature of Housing: | 3-Phase adapter |
| Cover: | Lens |
| Net Weight: | 1800 g |
| Type of Packaging: | none |
| Weight incl. Packaging: | 2.1 kg |
| Content Master Package: | 10 |
| Dimensions of Master Package: | 1570x390x290 mm |
| Weight Master Package: | 21 kg |
| Product Line: | Premio Line |
| Warranty | 5 years |
| Operating Hours: | >70.000 h L80/B20 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405499090 |
| Certifications | CE,TÜV |
| spezille Optik für Supermarktregale | |
| special optics for shelf lighting in supermarkets | |
| 2 x 90° x 20° double asymmetric 30° adjustable til | |
| Power adjust: 45/50/55/60W 9600LM max. 160lm/W | |
LED-Lichtbandleuchte mit integriertem 3-Phasenstromschienenadapter more
LED-Lichtbandleuchte mit integriertem 3-Phasenstromschienenadapter
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: -25°C - 50°C
Lichtstrom: 9600 lm
LED-Leistung: Power Select (45, 50, 55, 60 W)
Leuchten-Lichtausbeute: 160 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >90
Farbtoleranz (SDCM): <3
UGR: 25
Lichtaustritt: direkt
Maße: 1492x100x12 mm
Montageart: (Decke,Stromschiene)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP20
Stoßfestigkeitsgrad (IEC 62262): IK03
Außenfarbe: white (9016)
Gehäusematerial: Stahl
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: Linse
Nettogewicht: 1800 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B20): 70000 h
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: -25°C - 50°C
Lichtstrom: 9600 lm
LED-Leistung: Power Select (45, 50, 55, 60 W)
Leuchten-Lichtausbeute: 160 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >90
Farbtoleranz (SDCM): <3
UGR: 25
Lichtaustritt: direkt
Maße: 1492x100x12 mm
Montageart: (Decke,Stromschiene)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP20
Stoßfestigkeitsgrad (IEC 62262): IK03
Außenfarbe: white (9016)
Gehäusematerial: Stahl
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: Linse
Nettogewicht: 1800 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B20): 70000 h
