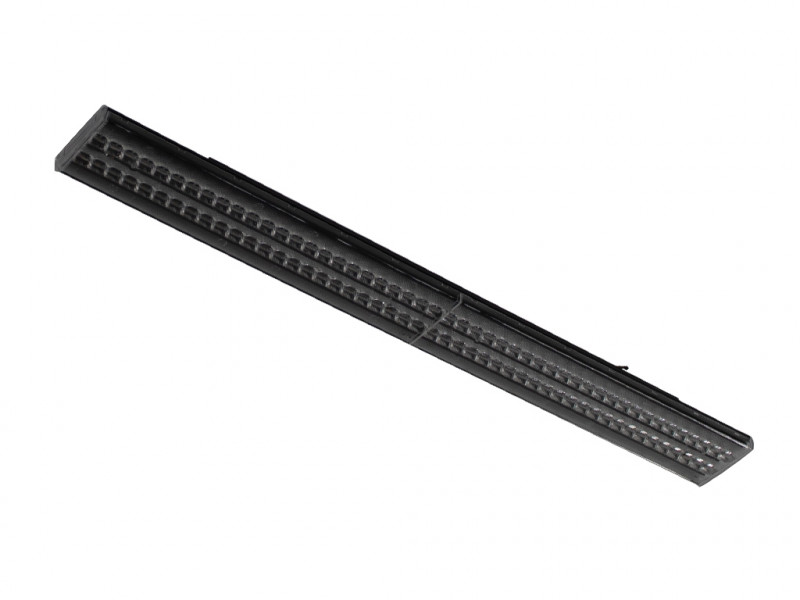

Modulux Linear LED- Modul 60-18/24-930-940-3400lm-BK
Order number: LG32233BK
Available from 08/2026
Prices are only visible after login.
Availability: on request
- Order number: : LG32233BK
- Luminous Flux: 3408 lm
- Power Draw: Power Select (18, 20, 22, 24 W)
- Light Color: CCT Select (3000, 3500, 4000 K)
- Input Current: AC 220 - 240V, 160mA, 50/60Hz
- Color Rendering Index (CRI): ≥90 Ra
- IP Code: 20
- Beam Angle: 90°
- LED-Chip: Everlight SMD 2835
- Housing Color: black
- Dimensions: 600x61x30 mm
- Warranty: 5 years
Linear LED tracklight for 3-phase trackrails Elegant, flat LED luminaire with... more
Product information "Modulux Linear LED- Modul 60-18/24-930-940-3400lm-BK"

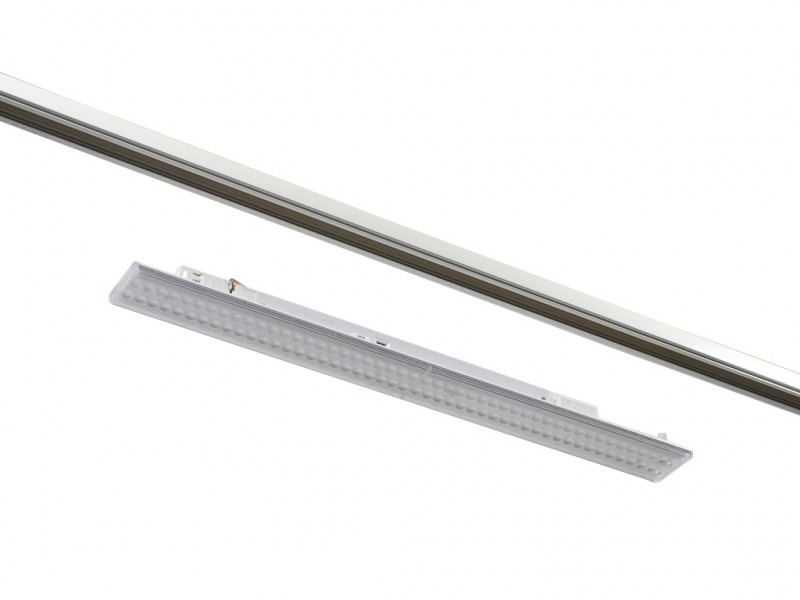

Linear LED tracklight for 3-phase trackrails

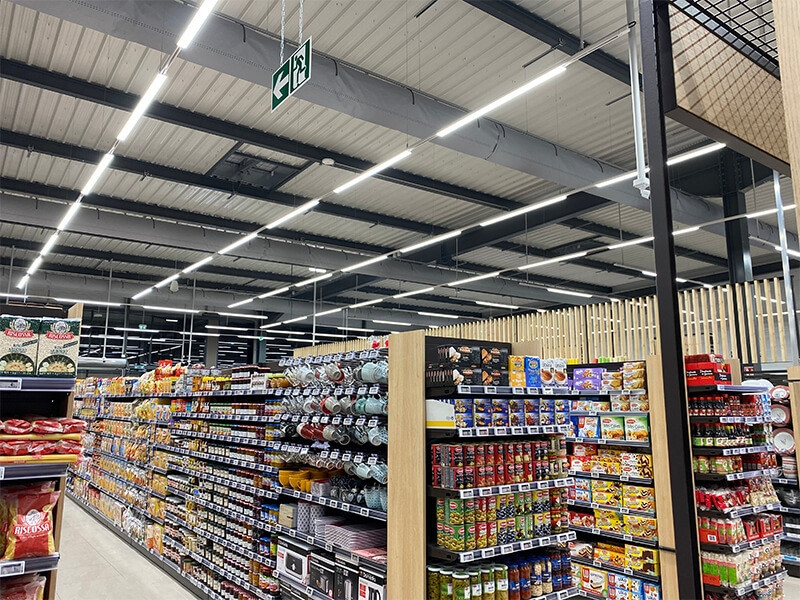

Elegant, flat LED luminaire with integrated 3-phase track adapter which is completely integrated in the standard track rails. Elegant, ultra flat appearance only 11mm high and 60mm wide. Available with symmetrical 60/90/120° or asymmetrical light dispersion 2 x 45° with multi-lens panel. Ideal for illuminating supermarket shelves, retail areas, exhibition halls, extremely high luminous flux up to 9200 lumens with only 24W consumption corresponding to up to 142 lumens / watt.

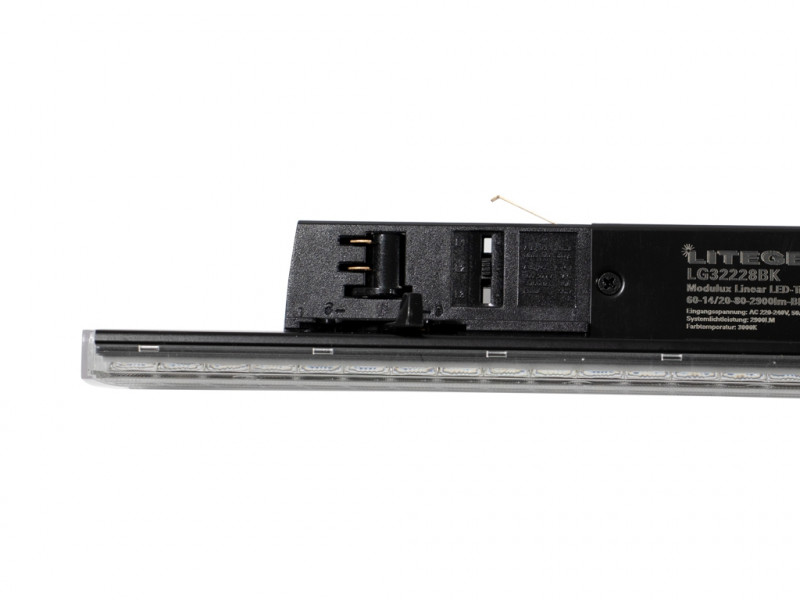

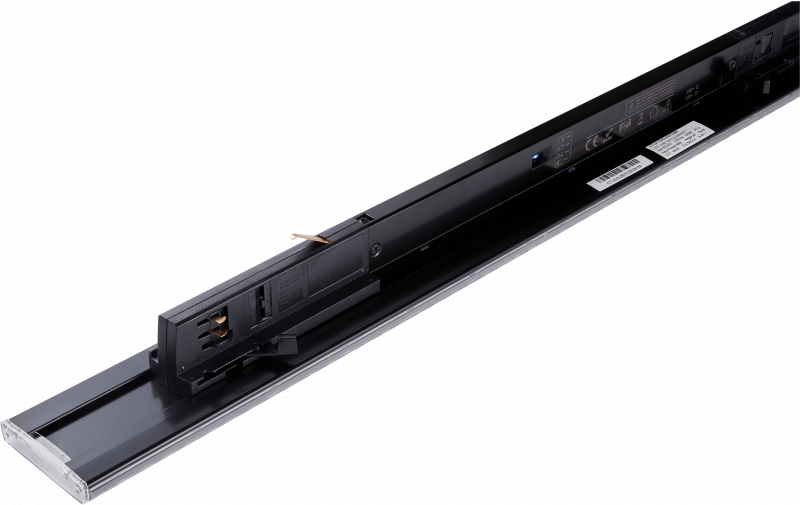

- Easy and fast installation using 3-phase trackrail adapters.
- 3 selectable power phases, compatible with all common track systems
- Adjustment output power: Adjustable LED driver 18,20,22,24 Watt
- selectable light colour: CCT select: 3000K, 3500K, 4000K

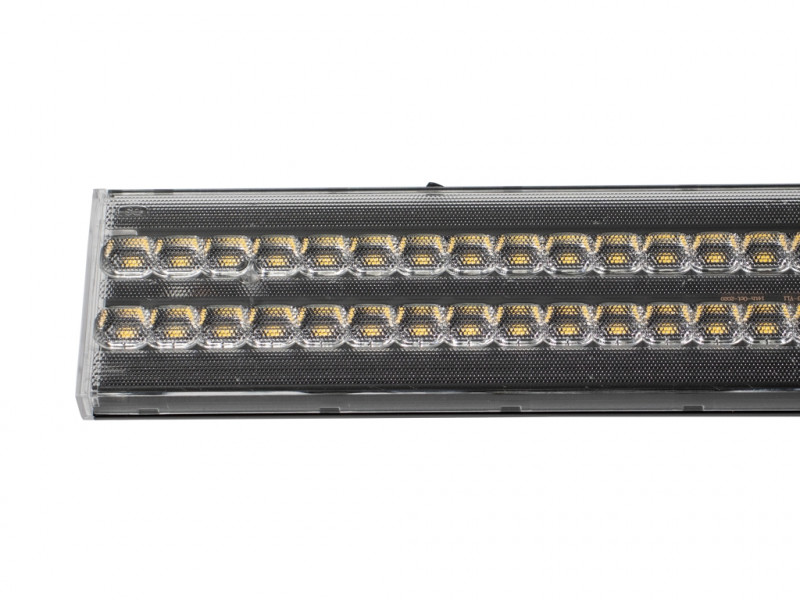

- Modular structure of the lens panel
- The individual modules can be seamlessly lined up. It creates the impression of a continuous line of light.
- Good heat dissipation and optimal light distribution
- Also available with dimmable Dali driver on request.
- Available in 2 housing colors: black, white optional also in silver (clarify minimum quantity beforehand)
- Long-life LED technology: up to 100,000 hours L80 B50
- Standard light colors. 3000K, 4000K optional: 2700K, 3500K, 5000K, 6000K
- available in two lengths: 60cm and 150cm
Related links to "Modulux Linear LED- Modul 60-18/24-930-940-3400lm-BK"
Technical Details:
| Luminous Flux: | 3408 lm |
| LED Output: | 24 W |
| Light Yield: | 142 lm/W |
| Light Temperature: | 3000, 3500, 4000 K |
| Light Color: | CCT Select |
| Color Rendering Index: | ≥90 Ra |
| Color Consistency (SDCM): | <4 |
| Beam Angle: | 90 ° |
| Unified Glare Rating (UGR): | 24 |
| Light Emission: | downward |
| LED-Chip Manufacturer: | Everlight |
| LED-Chip: | SMD 2835 |
| Number of LED: | 96 |
| Ignition Time: | <1 s |
| Glow Wire Test 650°C/30s |  |
| Input Current: | AC 220 - 240V, 160mA, 50/60Hz |
| Power Consumption: | Power Select (18, 20, 22, 24 W) |
| Contains Driver: | |
| Driver Manufacturer: | CORESHINE |
| Power Factor (PF): | >0.95 |
| Input Driver: | lighting track |
| Output of Driver: | DC 85-144V |
| CC/CV: | CC |
| Output Current Adjustable: | |
| Input Lamp: | Power rail |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | -25°C - 60°C |
| Storage Temperature: | -40°C - 85°C |
| Dimensions: | 600x61x30 mm |
| Mounting: | Decke,Stromschiene |
| IP Class: | 20 |
| IK Code: | 03 |
| Housing Color | black |
| Housing Color (RAL Code): | similar 9017 |
| Housing Material: | steel |
| Coating: | powder-coated |
| Special Feature of Housing: | 3-Phase adapter |
| Cover: | clear |
| Net Weight: | 650 g |
| Type of Packaging: | none |
| Weight incl. Packaging: | 80 kg |
| Content Master Package: | 10 |
| Dimensions of Master Package: | 680x350x240 mm |
| Weight Master Package: | 8 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >100.000 h L80/B50 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405119090 |
| Certifications | CE,TÜV |
| Barcode: | 4250557827858 |
| 90° symmetric | |
| Power adjust: 18/20/22/24W 2556-3408LM max. @3500K | |
| 3000K: 127lm/W, 3500K: 142lm/W, 4000K: 131lm/W | |
LED-Lichtbandleuchte mit integriertem 3-Phasenstromschienenadapter more
LED-Lichtbandleuchte mit integriertem 3-Phasenstromschienenadapter
Vorschaltgerät: LED-Treiber
Temperaturbereich: -25°C - 60°C
Lichtstrom: 3408 lm
LED-Leistung: Power Select (18, 20, 22, 24 W)
Leuchten-Lichtausbeute: 142 lm/W
Farbtemperatur: 3000, 3500, 4000 K
Lichtfarbe: CCT Select
Farbwiedergabeindex (Ra): >90
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 90°
UGR: 24
Lichtaustritt: direkt
Maße: 600x61x30 mm
Montageart: (Decke,Stromschiene)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP20
Stoßfestigkeitsgrad (IEC 62262): IK03
Außenfarbe: black (9017)
Gehäusematerial: Stahl
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: klar
Nettogewicht: 650 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B50): 100000 h
Vorschaltgerät: LED-Treiber
Temperaturbereich: -25°C - 60°C
Lichtstrom: 3408 lm
LED-Leistung: Power Select (18, 20, 22, 24 W)
Leuchten-Lichtausbeute: 142 lm/W
Farbtemperatur: 3000, 3500, 4000 K
Lichtfarbe: CCT Select
Farbwiedergabeindex (Ra): >90
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 90°
UGR: 24
Lichtaustritt: direkt
Maße: 600x61x30 mm
Montageart: (Decke,Stromschiene)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP20
Stoßfestigkeitsgrad (IEC 62262): IK03
Außenfarbe: black (9017)
Gehäusematerial: Stahl
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: klar
Nettogewicht: 650 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B50): 100000 h
