Preview: Movara MKIII 70/38-930-3340LM BL

Product Info (PDF)

Order number: LG14176

Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Dimensions

Menü schließen

Order number: : LG14176
Luminous Flux: 3340 lm
Power Draw: 38 W
Light Color: warmwhite (3000 K)
Input Current: AC 220 - 240V, 50/60Hz
Color Rendering Index (CRI): ≥90 Ra
IP Code: 20

Beam Angle: 90x60°
LED-Chip: Bridgelux COB
Housing Color: black
Dimensions: 196x75x175 mm
Warranty: 3 years

Luminous Flux

3340
lm

Power Draw

38 W

Light Color

3000 K
warmwhite

Color Rendering Index (CRI)

CRI
>90 Ra

IP Code

IP 20

Beam Angle

90x60°

mounting type

Dimensions

(LxBxH) in mm
196x75x175

Warranty

3 years

The light source may only be replaced by qualified persons

LED Tracklight With the Movara MKII Litegear® presents the update of the... more

Close menu

Product information "Movara MKIII 70/38-930-3340LM BL"

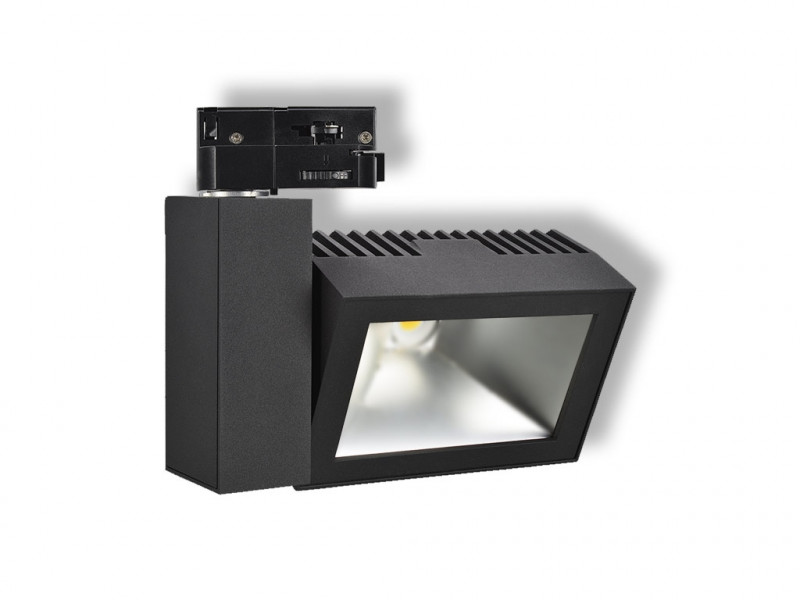

LED Tracklight

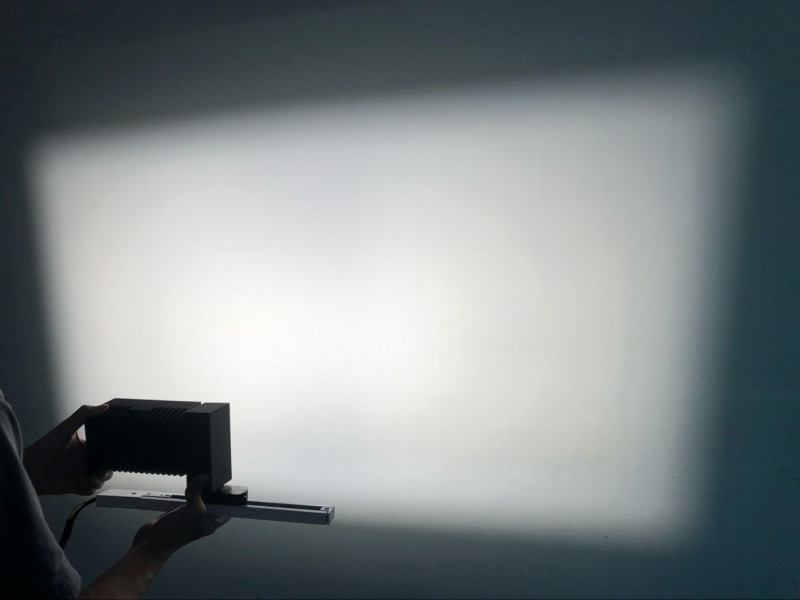

With the Movara MKII Litegear® presents the update of the successful Movara series. Movara is characterized by a wide, symmetrical dispersion of 90 x 60° and is therefore suitable for illuminating walls, banners and shelves, for example in supermarkets. High-quality components such as ENEC certified electronic drivers with a 3-year manufacturer's warranty and COB chips from Bridgelux ensure a long and reliable operating life of up to 35,000 hours L80. The Movara track spotlight is available in 3 light colors from warm white to neutral white and in 3 housing colors (black, white, silver). 3 phases can be selected and tapped via the trackrail adapter. The Tracklight can be rotated by 355 ° and swiveled by 90 ° for perfect positioning.

Related links to "Movara MKIII 70/38-930-3340LM BL"

Zurück

Technical Details:

Luminous Flux:	3340 lm
LED Output:	38 W
Light Yield:	88 lm/W
Light Temperature:	3000 K
Light Color:	warmwhite
Color Rendering Index:	≥90 Ra
Color Consistency (SDCM):	<3
Beam Angle:	90x60 °
Light Emission:	sideward
LED-Chip Manufacturer:	Bridgelux
LED-Chip:	COB
Number of LED:	1
Ignition Time:	<0,5 s

Input Current:	AC 220 - 240V, 50/60Hz
Power Consumption:	38 W
Contains Driver:

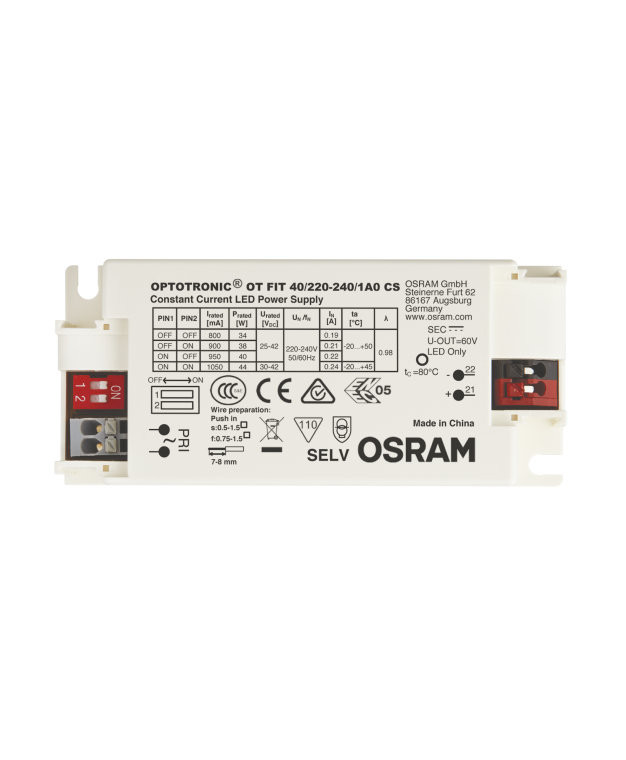

Driver Manufacturer:	Osram
Power Factor (PF):	>0.98
Input Driver:	lighting track
Output of Driver:	DC 33-42V, 1050mA
CC/CV:	CC
Output Current Adjustable:
Input Lamp:	Power rail
Switching Cycles:	>100.000
Electrical Protection Class:	II
Ambient Temperature (TA):	-10°C - 40°C
Storage Temperature:	-20°C - 55°C

Dimensions:	196x75x175 mm
Mounting:	Decke
Montageart:	surface mounted
Pivot Range pan:	355 °
Pivot Range tilt:	90 °
IP Class:	20
Housing Color	black
Housing Material:	aluminum
Coating:	powder-coated
Special Feature of Housing:	3-Phase Track Adapter
Cover:	clear
Net Weight:	886 g

Type of Packaging:	box
Dimensions of Packaging:	200x75x175
Weight incl. Packaging:	0.948 kg
Content Master Package:	24
Dimensions of Master Package:	610x320x370 mm
Weight Master Package:	23,3 kg

Product Line:	Advance Line
Warranty	3 years
Operating Hours:	>35.000 h L80/B10
Disposal Obligation:
Customs Tariff Number:	9405119090
Certifications	CE,LM80
Barcode:	4250557812694
Wall Washer
für Werbeflächen oder Verkaufsregale
for banners or shelfs
Anzahl/Qty. 16A fuse: 25 pcs.
Strom einstellbar: 800/900/950/1050mA 29-38W

Technical Data Sheet (PDF)

Zurück

Quadratischer Stromschienenstrahler mit breitem, symmetrischem Abstrahlverhalten more

Zurück

Quadratischer Stromschienenstrahler mit breitem, symmetrischem Abstrahlverhalten
Vorschaltgerät: LED-Treiber
Temperaturbereich: -10°C - 40°C
Lichtstrom: 3340 lm
LED-Leistung: 38 W
Leuchten-Lichtausbeute: 88 lm/W
Farbtemperatur: 3000 K
Lichtfarbe: warmwhite
Farbwiedergabeindex (Ra): >90
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 90x60°
Lichtaustritt: direkt
Maße: 196x75x175 mm
Montageart: Aufbau (Decke)
Schutzart (DIN EN 60529): IP20
Außenfarbe: black
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: klar
Nettogewicht: 886 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L80/B10): 35000 h

Zurück

Available downloads:
