Movara MKII 70/38-930-3340LM WH

LG14171
Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Dimensions

Dimensions
  • LG14171
  • Luminous Flux: 3340 lm
  • Power Draw: 38 W
  • Light Color: warmwhite (3000 K)
  • Input Current: AC 220 - 240V, 50/60Hz
  • Color Rendering Index (CRI): ≥90 Ra
  • IP Code: 20
  • Beam Angle: 90x70°
  • LED-Chip: Luminus COB
  • Housing Color: white
  • Dimensions: 196x75x175 mm
  • Warranty: 3 years

Luminous Flux

3340
lm

Power Draw

38 W

Light Color

3000 K
warmwhite

Color Rendering Index (CRI)

CRI
>90 Ra

IP Code

IP 20

Beam Angle

90x70°

mounting type

Dimensions

(LxBxH) in mm
196x75x175

Warranty

3 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

LED Tracklight   With the Movara MKII Litegear® presents the update of the... more
Product information "Movara MKII 70/38-930-3340LM WH"

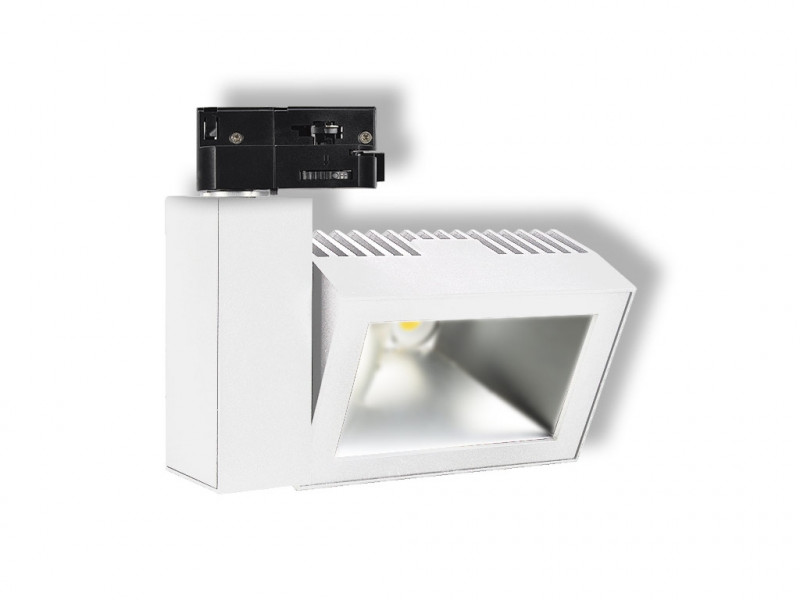

LED Tracklight

With the Movara MKII Litegear® presents the update of the successful Movara series. Movara is characterized by a wide, symmetrical dispersion of 90 x 60° and is therefore suitable for illuminating walls, banners and shelves, for example in supermarkets. High-quality components such as ENEC certified electronic drivers with a 3-year manufacturer's warranty and COB chips from Luminus ensure a long and reliable operating life of up to 35,000 hours L80. The Movara track spotlight is available in 3 light colors from warm white to neutral white and in 3 housing colors (black, white, silver). 3 phases can be selected and tapped via the trackrail adapter. The Tracklight can be rotated by 355 ° and swiveled by 90 ° for perfect positioning.
Related links to "Movara MKII 70/38-930-3340LM WH"
Technical Details:

Luminous Flux: 3340 lm
LED Output: 38 W
Light Yield: 88 lm/W
Light Temperature: 3000 K
Light Color: warmwhite
Color Rendering Index: ≥90 Ra
Color Consistency (SDCM): <3
Beam Angle: 90x70 °
Light Emission: sideward
LED-Chip Manufacturer: Luminus
LED-Chip: COB
Number of LED: 1
Ignition Time: <0,5 s
Input Current: AC 220 - 240V, 50/60Hz
Power Consumption: 38 W
Contains Driver: ja

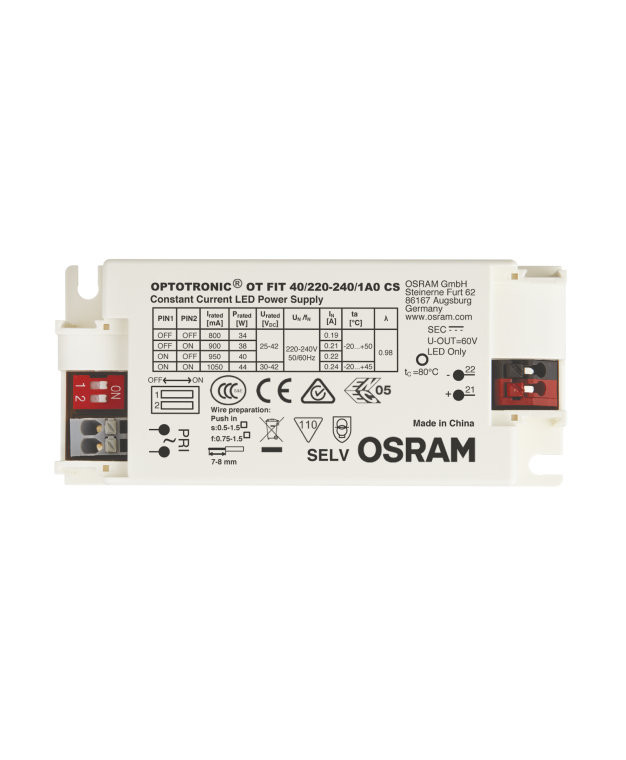

Driver Manufacturer: Osram
Power Factor (PF): >0.98
Input Driver: lighting track
Output of Driver: DC 33-42V, 1050mA
CC/CV: CC
Output Current Adjustable: ja
Input Lamp: Power rail
Switching Cycles: >100.000
Electrical Protection Class: II
Ambient Temperature (TA): -10°C - 40°C
Storage Temperature: -40°C - 60°C
Dimensions: 196x75x175 mm
Mounting: Decke
Montageart: surface mounted
Pivot Range pan: 355 °
Pivot Range tilt: 90 °
IP Class: 20
Housing Color white
Housing Color (RAL Code): similar 9010
Housing Material: aluminum
Coating: powder-coated
Special Feature of Housing: 3-Phase Track Adapter
Cover: clear
Net Weight: 886 g
Type of Packaging: box
Dimensions of Packaging: 200x75x175
Weight incl. Packaging: 0.948 kg
Content Master Package: 24
Dimensions of Master Package: 610x320x370 mm
Weight Master Package: 23,3 kg
Product Line: Advance Line
Warranty 3 years
Operating Hours: >35.000 h L80/B10
Disposal Obligation: ja
Customs Tariff Number: 9405119090
Certifications CE,LM80
Barcode: 4250557812670
Wallwasher
für Werbeflächen und Verkaufsregale
for banners and shelfs
Anzahl/Qty. 16A fuse: 25 pcs.
Strom einstellbar: 800/900/950/1050mA 29-38W
Quadratischer Stromschienenstrahler mit breitem, symmetrischem Abstrahlverhalten more
Quadratischer Stromschienenstrahler mit breitem, symmetrischem Abstrahlverhalten
Vorschaltgerät: LED-Treiber
Temperaturbereich: -10°C - 40°C
Lichtstrom: 3340 lm
LED-Leistung: 38 W
Leuchten-Lichtausbeute: 88 lm/W
Farbtemperatur: 3000 K
Lichtfarbe: warmwhite
Farbwiedergabeindex (Ra): >90
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 90x70°
Lichtaustritt: direkt
Maße: 196x75x175 mm
Montageart: Aufbau (Decke)
Schutzart (DIN EN 60529): IP20
Außenfarbe: white (9010)
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: klar
Nettogewicht: 886 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L80/B10): 35000 h
