Order number: LG14172
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Short information
- Order number: : LG14172
- Luminous Flux: 3450 lm
- Power Draw: 38 W
- Light Color: neutralwhite (4000 K)
- Input Current: AC 220 - 240V, 50/60Hz
- Color Rendering Index (CRI): ≥90 Ra
- IP Code: 20
- Beam Angle: 90x60°
- LED-Chip: Bridgelux COB
- Housing Color: white
- Dimensions: 196x75x175 mm
- Warranty: 3 years
Luminous Flux
3450
lm
Power Draw
38 W
Light Color
4000 K
neutralwhite
Color Rendering Index (CRI)
CRI
>90 Ra
IP Code
IP 20
Beam Angle
90x60°
mounting type
Dimensions
(LxBxH) in mm
196x75x175
Warranty
3 years
The light source may only be replaced by qualified persons
The driver may only be replaced by qualified persons
LED Tracklight With the Movara MKII Litegear® presents the update of the... more

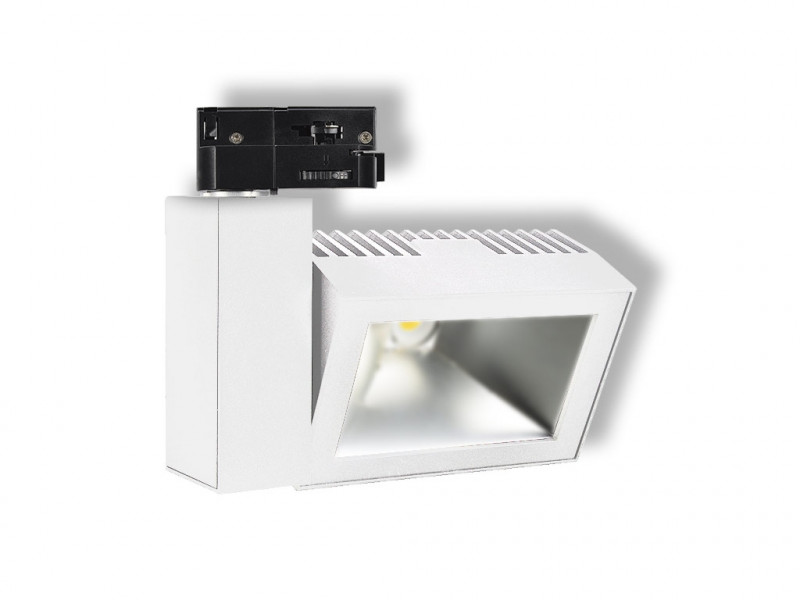

Product information "Movara MKIII 70/38-940-3450LM WH"
LED Tracklight
With the Movara MKII Litegear® presents the update of the successful Movara series. Movara is characterized by a wide, symmetrical dispersion of 90 x 60° and is therefore suitable for illuminating walls, banners and shelves, for example in supermarkets. High-quality components such as ENEC certified electronic drivers with a 3-year manufacturer's warranty and COB chips from Bridelux ensure a long and reliable operating life of up to 35,000 hours L80. The Movara track spotlight is available in 3 light colors from warm white to neutral white and in 3 housing colors (black, white, silver). 3 phases can be selected and tapped via the trackrail adapter. The Tracklight can be rotated by 355 ° and swiveled by 90 ° for perfect positioning.
Related links to "Movara MKIII 70/38-940-3450LM WH"
Technical Details:
Luminous Flux: | 3450 lm |
LED Output: | 38 W |
Light Yield: | 91 lm/W |
Light Temperature: | 4000 K |
Light Color: | neutralwhite |
Color Rendering Index: | ≥90 Ra |
Color Consistency (SDCM): | <3 |
Beam Angle: | 90x60 ° |
Light Emission: | sideward |
LED-Chip Manufacturer: | Bridgelux |
LED-Chip: | COB |
Number of LED: | 1 |
Ignition Time: | <0,5 s |
Input Current: | AC 220 - 240V, 50/60Hz |
Power Consumption: | 38 W |
Contains Driver: | |

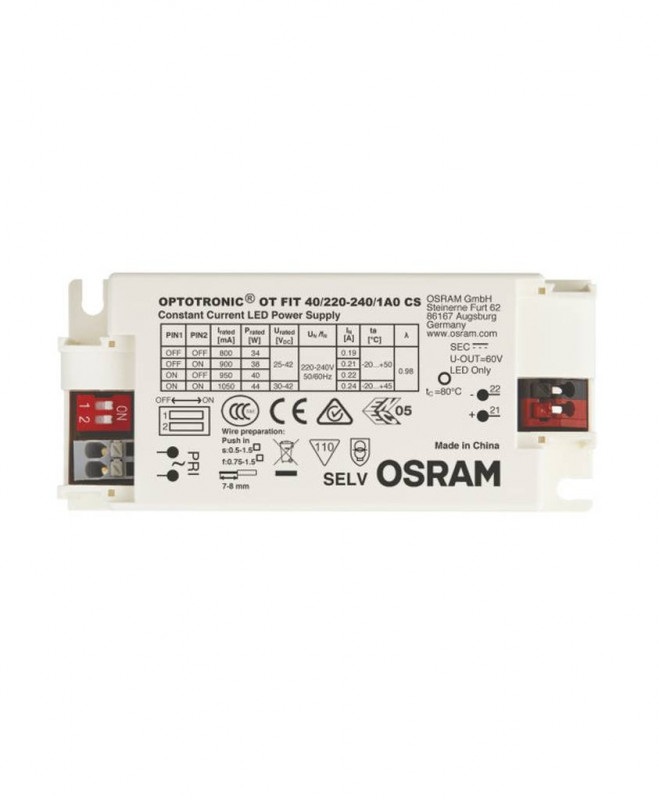

Driver Manufacturer: | Osram |
Power Factor (PF): | >0.98 |
Input Driver: | lighting track |
Output of Driver: | DC 33-42V, 1050mA |
CC/CV: | CC |
Output Current Adjustable: | |
Input Lamp: | Power rail |
Switching Cycles: | >100.000 |
Electrical Protection Class: | II |
Ambient Temperature (TA): | -10°C - 40°C |
Storage Temperature: | -40°C - 60°C |
Dimensions: | 196x75x175 mm |
Mounting: | Decke |
Montageart: | surface mounted |
Pivot Range pan: | 355 ° |
Pivot Range tilt: | 90 ° |
IP Class: | 20 |
Housing Color | white |
Housing Color (RAL Code): | similar 9010 |
Housing Material: | aluminum |
Coating: | powder-coated |
Special Feature of Housing: | 3-Phase Track Adapter |
Cover: | clear |
Net Weight: | 886 g |
Type of Packaging: | box |
Dimensions of Packaging: | 200x75x175 |
Weight incl. Packaging: | 0.948 kg |
Content Master Package: | 24 |
Dimensions of Master Package: | 610x320x370 mm |
Weight Master Package: | 23,3 kg |
Product Line: | Advance Line |
Warranty | 3 years |
Operating Hours: | >35.000 h L80/B10 |
Disposal Obligation: | |
Customs Tariff Number: | 9405119090 |
Certifications | CE,LM80 |
Barcode: | 4250557812687 |
Wallwasher | |
für Werbebanner oder Verkaufsregale | |
for banners or shelfs | |
Anzahl/Qty. 16A fuse: 25 pcs. | |
Strom einstellbar: 800/900/950/1050mA 29-38W |
Quadratischer Stromschienenstrahler mit breitem, symmetrischem Abstrahlverhalten more
Quadratischer Stromschienenstrahler mit breitem, symmetrischem Abstrahlverhalten
Vorschaltgerät: LED-Treiber
Temperaturbereich: -10°C - 40°C
Lichtstrom: 3450 lm
LED-Leistung: 38 W
Leuchten-Lichtausbeute: 91 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >90
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 90x60°
Lichtaustritt: direkt
Maße: 196x75x175 mm
Montageart: Aufbau (Decke)
Schutzart (DIN EN 60529): IP20
Außenfarbe: white (9010)
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: klar
Nettogewicht: 886 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L80/B10): 35000 h
Vorschaltgerät: LED-Treiber
Temperaturbereich: -10°C - 40°C
Lichtstrom: 3450 lm
LED-Leistung: 38 W
Leuchten-Lichtausbeute: 91 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >90
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 90x60°
Lichtaustritt: direkt
Maße: 196x75x175 mm
Montageart: Aufbau (Decke)
Schutzart (DIN EN 60529): IP20
Außenfarbe: white (9010)
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: klar
Nettogewicht: 886 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L80/B10): 35000 h
