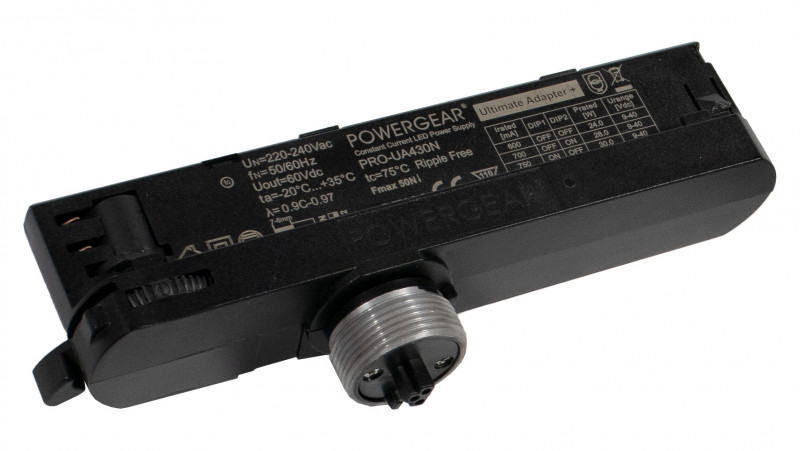

Varia-Flex Inline Treiber
Order number: LG14565W
Prices are only visible after login.
Availability: low stock
Modular LED track spotlight driver Conceiled Inline LED driver... more
Product information "Varia-Flex Inline Treiber"
Modular LED track spotlight driver
- Conceiled Inline LED driver for Varia-Flex tracklight series
- selectable power: 23,27,29,31W
- easy assembly with DC plug and turnlock
- suitable for common 3-phase track rails
The Varia Flex tracklight from the German manufacturer Litegear is probably the most innovative LED surface-mounted spotlight in the world. The modular, service-friendly design allows the reflector, the LED module and the LED driver to be replaced in seconds without tools. So you can change the LED chip color with a different light color afterwards or equip the reflector against one with a more optimal beam angle.The power adjustment of the LED power supplies by means of a small slider switches is also brilliant. The power of the LED track lights can be adjusted in 4 steps. Hereby one achieves either maximum performance or achieves maximum power savings.
Varia Flex is extremly flexible!
Varia is assembled according to her personal configuration in Germany.
- Changeable and adjustable LED Driver: 23-31W
- Exchangeable LED COB module with the best quality of light and high efficiency max. 130lm/W: CRI> 90 with improved color rendering
- Selectable standard light colors: 2700K, 3000K, 4000K, 5000K, Gold for baked goods, Fresh Meat and Meat Plus for meat and sausage products, Exciting Color for fashion or 3500K
- long life: up to 50,000 hours L80
- various lenses available
- 3-phase power adapter, compatible with all standard track rails
- 2 housing colors available: white, black
- passive cooling, aluminum heat sink
- modular design
maximum quantity of 31W (0,17A current) tracklights per circuit breaker:
10A: 27 pcs., 16A: 42 pcs., 20A: 52 pcs.
Related links to "Varia-Flex Inline Treiber"
Technical Details:
| Ignition Time: | <0,5 s |
| Glow Wire Test 650°C/30s |  |
| Input Current: | AC 220 - 240V, 50/60Hz |
| Power Consumption: | Power Select (24, 28, 30, 32 W) |
| Contains Driver: | |
| Driver Manufacturer: | Powergear |
| Power Factor (PF): | >0.95 |
| Input Driver: | plug connector |
| Output of Driver: | DC 9-40V, 600-800mA |
| CC/CV: | CC |
| Output Current Adjustable: | |
| Input Lamp: | Power rail |
| Switching Cycles: | >25.000 |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | -15°C - 40°C |
| Storage Temperature: | -20°C - 50°C |
| Dimensions: | 162x32x41 mm |
| IP Class: | 20 |
| Housing Color | white |
| Housing Material: | plastic |
| Net Weight: | 116 g |
| Weight incl. Packaging: | 0.17 kg |
| Content Master Package: | 50 |
| Dimensions of Master Package: | 370x255x285 mm |
| Weight Master Package: | 6,53 kg |
| Product Line: | Premio Line |
| Warranty | 3 years |
| Operating Hours: | >50.000 h |
| Disposal Obligation: | |
| Customs Tariff Number: | 8504408390 |
| Certifications | CE,LM80 |
| Barcode: | 4250557826257 |
| Inline LED-Treiber für Varia-Flex | |
| Inline LED driver for Varia -Flex | |
| Power Select | |
Modularer Stromschienenstrahler für komplett werkzeuglosen Austausch aller Komponenten, mit... more
Modularer Stromschienenstrahler für komplett werkzeuglosen Austausch aller Komponenten, mit Leistungsanpassung
Vorschaltgerät: LED-Treiber
Temperaturbereich: -15°C - 40°C
LED-Leistung: Power Select (24, 28, 30, 32 W)
Maße: 162x32x41 mm
Schutzklasse (DIN EN 61140): II
Schutzart (DIN EN 60529): IP20
Außenfarbe: white
Gehäusematerial: plastic
Nettogewicht: 116 g
Garantie: 3 Jahre
Mittlere Lebensdauer: 50000 h
Vorschaltgerät: LED-Treiber
Temperaturbereich: -15°C - 40°C
LED-Leistung: Power Select (24, 28, 30, 32 W)
Maße: 162x32x41 mm
Schutzklasse (DIN EN 61140): II
Schutzart (DIN EN 60529): IP20
Außenfarbe: white
Gehäusematerial: plastic
Nettogewicht: 116 g
Garantie: 3 Jahre
Mittlere Lebensdauer: 50000 h
