VARIA-FLEX Stromschienenstrahlertubus max. 32W
Order number: LG14562
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Dimensions
Modular LED track spotlight housing The Varia-Flex track spotlight from the... more
Product information "VARIA-FLEX Stromschienenstrahlertubus max. 32W"

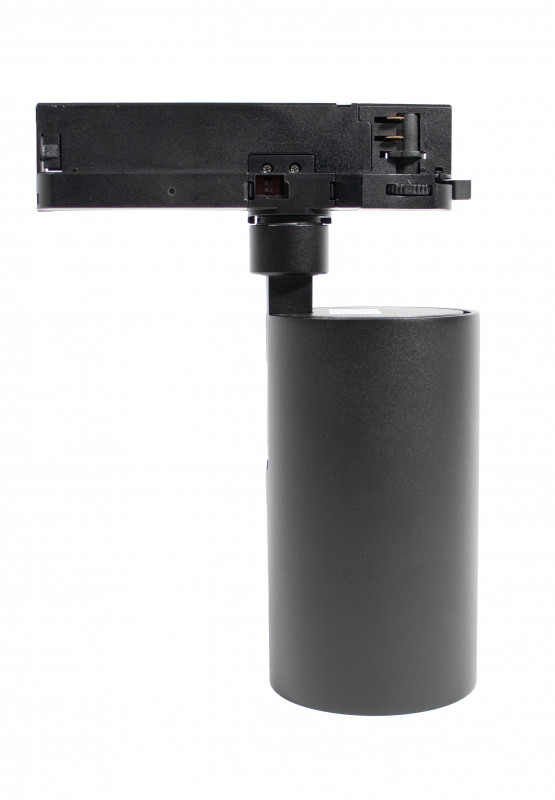

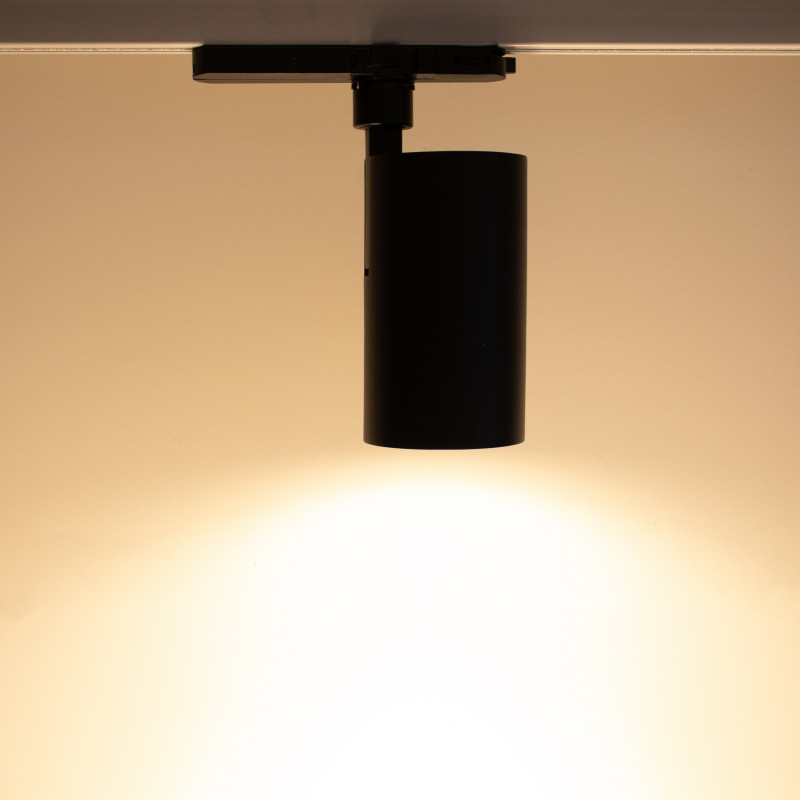

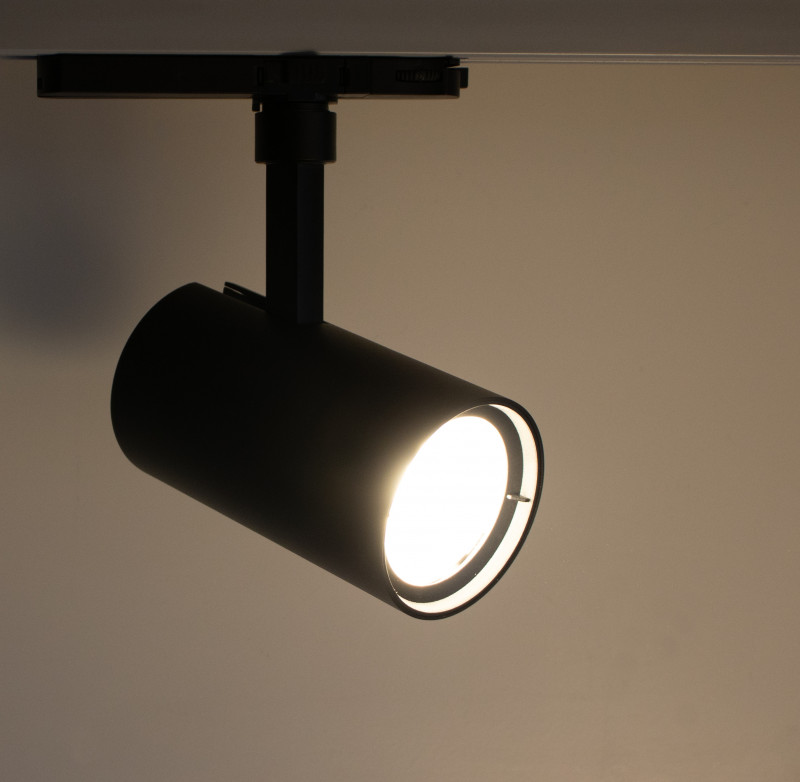

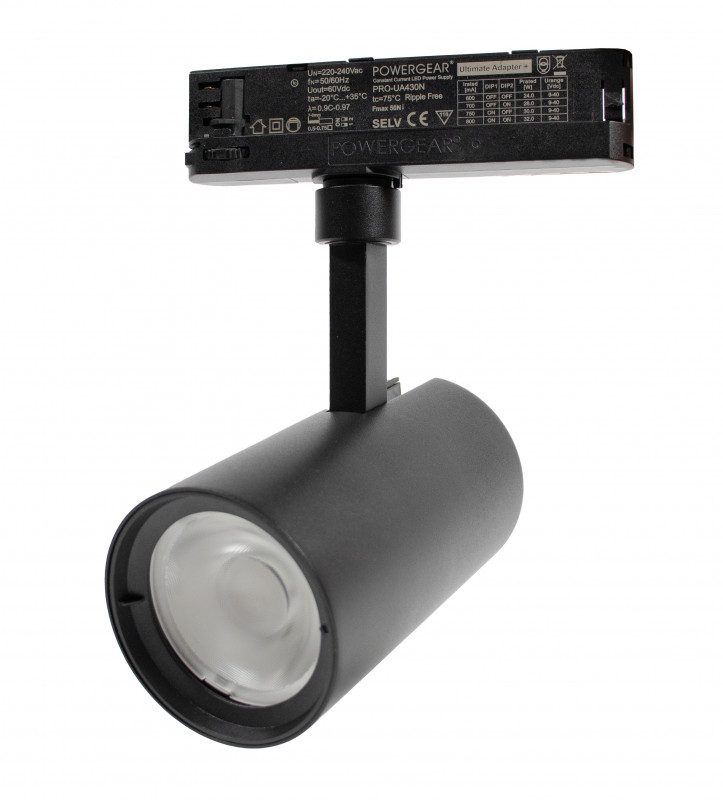

Modular LED track spotlight housing
The Varia-Flex track spotlight from the German manufacturer Litegear is based on a unique, innovative modular concept. The spotlight consists of combinable and interchangeable components such as a housing, screw-on LED ballast, an interchangeable LED module and a lens.
All parts can be assembled without tools in just a few seconds. In the event of a defect, individual components can be easily replaced, which is cost-efficient and sustainable. LED modules with different light colours can be replaced or optimised at any time.
- Standard LED driver with 4 selectable wattages: 23, 27, 29, 31 Watts
- Alternatively, Dali 2.0 dimmable LED drivers can also be plugged in
- Interchangeable lens available with 5 different beam angles: 20°, 24°, 38°, 45°, 60°
- 2 selectable housing colours: black and white
- compact LED module with bayonet catch: 4 selectable light colours: 2700K, 3000K, 4000K, 5000K
- Balanced surface-mounted housing can be tilted by 90° with a bracket for attachment to the LED power supply unit
- In order to obtain a complete track spotlight, users must combine various housing components with each other, delivery takes place in assembled condition!

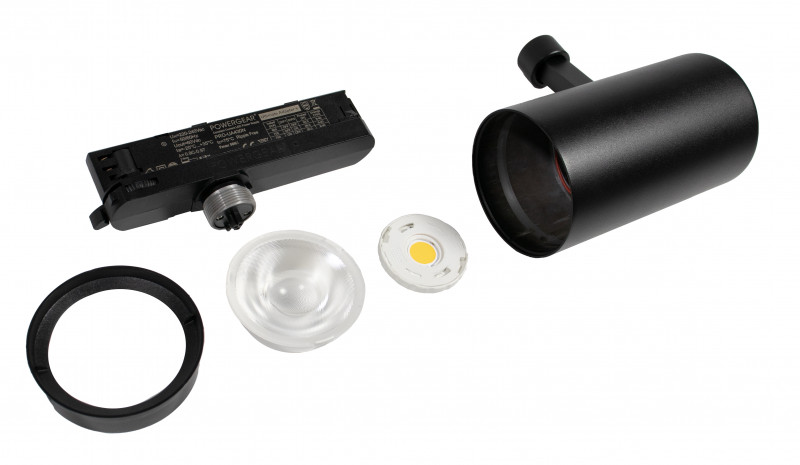

- A spotlight always consists of a housing, an LED driver, an LED module, an interchangeable lens and a front ring
- High system efficiency: max. 130lm/W using CREE LED-COB
- Long service life of the LED module and ballast 50,000h
- High-quality aluminium housing
Conceived in Germany - made for the world
Related links to "VARIA-FLEX Stromschienenstrahlertubus max. 32W"
Technical Details:
| Swappable Reflector: |  |
| Output of Driver: | DC 30-42V |
| CC/CV: | CC |
| Input Lamp: | Power rail |
| Ambient Temperature (TA): | -10°C - 45°C |
| Storage Temperature: | -20°C - 60°C |
| Dimensions: | 206x85x211 mm |
| Mounting: | Decke,Stromschiene |
| Montageart: | surface mounted |
| Pivot Range pan: | 350 ° |
| Pivot Range tilt: | 90 ° |
| IP Class: | 20 |
| Housing Color | black |
| Housing Material: | aluminum |
| Coating: | powder-coated |
| Special Feature of Housing: | for 3-Phase Track Adapter |
| Net Weight: | 802 g |
| Type of Packaging: | box |
| Weight incl. Packaging: | 0.92 kg |
| Content Master Package: | 12 |
| Dimensions of Master Package: | 540x400x300 mm |
| Weight Master Package: | 12,38 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405119090 |
| Certifications | CE,LM80 |
| Barcode: | 4250557826288 |
| Gehäuse zur Aufnahme von LED-Modul, Linse, Treiber | |
| housing to carry LED module, lens and driver | |
Modularer Stromschienenstrahler für komplett werkzeuglosen Austausch aller Komponenten, mit... more
Modularer Stromschienenstrahler für komplett werkzeuglosen Austausch aller Komponenten, mit Leistungsanpassung
Vorschaltgerät: nicht enthalten
Temperaturbereich: -10°C - 45°C
Maße: 206x85x211 mm
Montageart: Aufbau (Decke,Stromschiene)
Schutzart (DIN EN 60529): IP20
Außenfarbe: black
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Nettogewicht: 802 g
Garantie: 5 Jahre
Vorschaltgerät: nicht enthalten
Temperaturbereich: -10°C - 45°C
Maße: 206x85x211 mm
Montageart: Aufbau (Decke,Stromschiene)
Schutzart (DIN EN 60529): IP20
Außenfarbe: black
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Nettogewicht: 802 g
Garantie: 5 Jahre
