Preview: VARIA-QUICK Stromschienenstrahler 15W 1450lm, CRI90, Digital Display Dim + CCT

VARIA-QUICK Stromschienenstrahler 15W 1450lm, CRI90, Digital Display Dim + CCT

Product Info (PDF)

Order number: LG14510

Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Dimensions

Menü schließen

Order number: : LG14510
Luminous Flux: 1450 lm
Power Draw: 15 W
Light Color: dualwhite (2700-6500 K)
Input Current: AC 220-240V, 50/60Hz, DC 220-280V
Color Rendering Index (CRI): ≥90 Ra
IP Code: 20

Beam Angle: 50°
LED-Chip: Bridgelux COB
Housing Color: white
Dimensions: 205x65x180 mm
Warranty: 3 years

Luminous Flux

1450
lm

Power Draw

15 W

Light Color

2700-6500 K
dualwhite

Color Rendering Index (CRI)

CRI
>90 Ra

IP Code

IP 20

Beam Angle

50°

mounting type

Light Direction

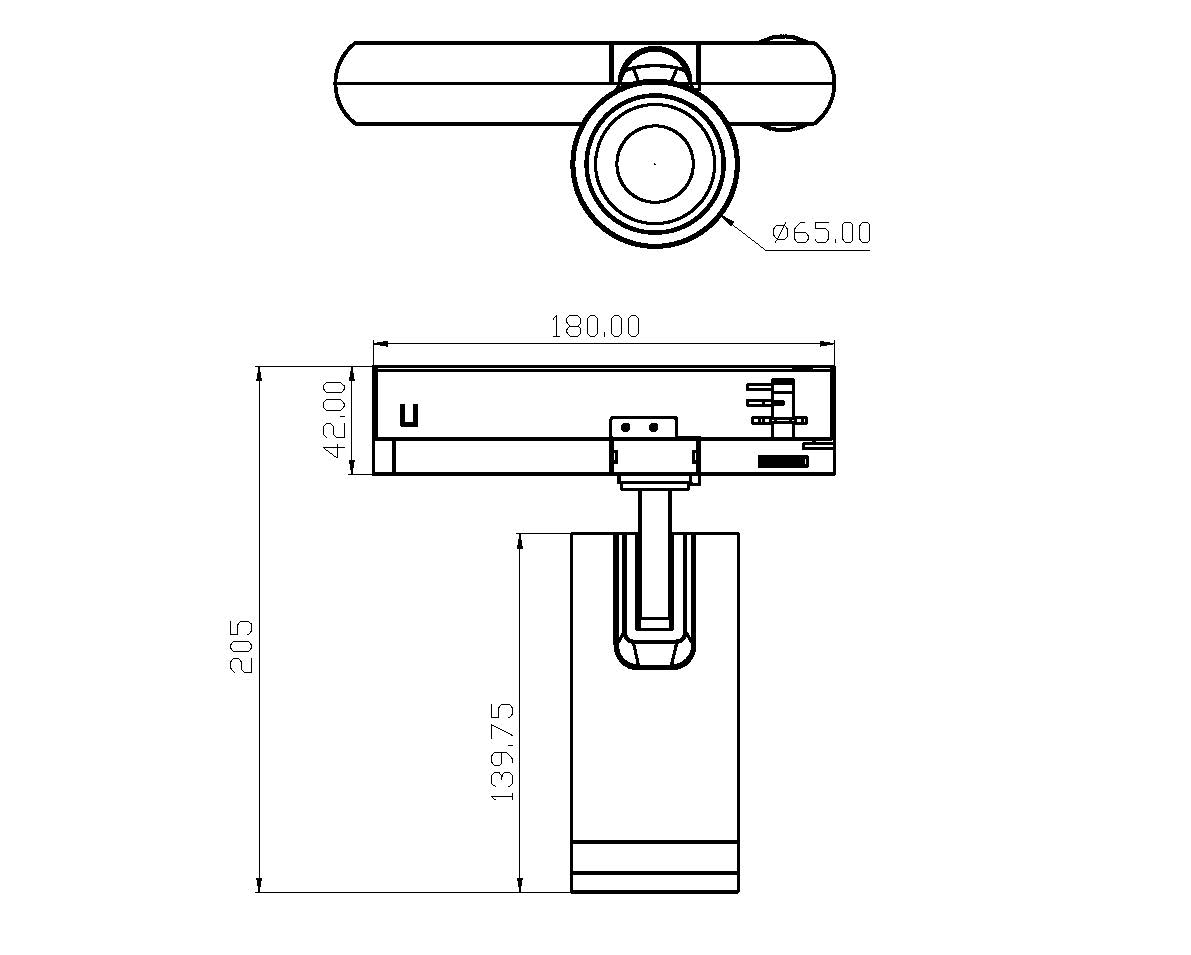

Dimensions

(LxBxH) in mm
205x65x180

Warranty

3 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

Unique and adjustable LED track light Varia Quick is a innovative and very... more

Close menu

Product information "VARIA-QUICK Stromschienenstrahler 15W 1450lm, CRI90, Digital Display Dim + CCT"

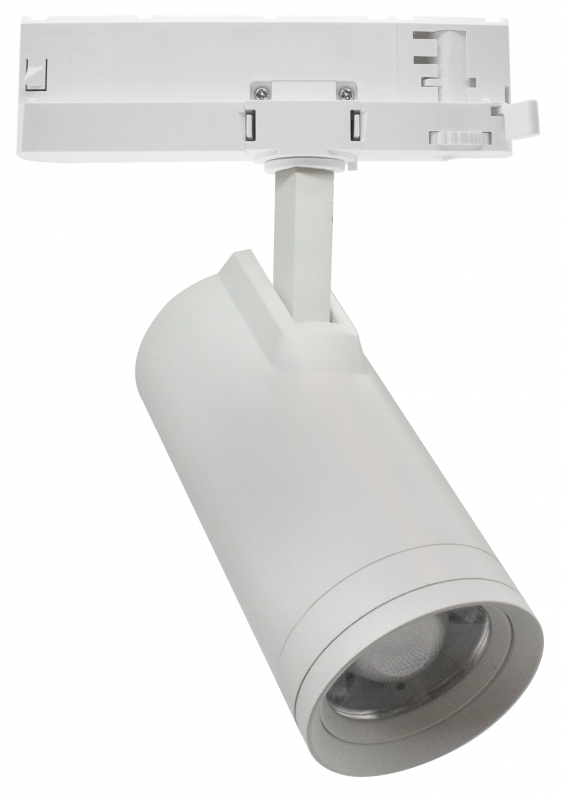

Unique and adjustable LED track light

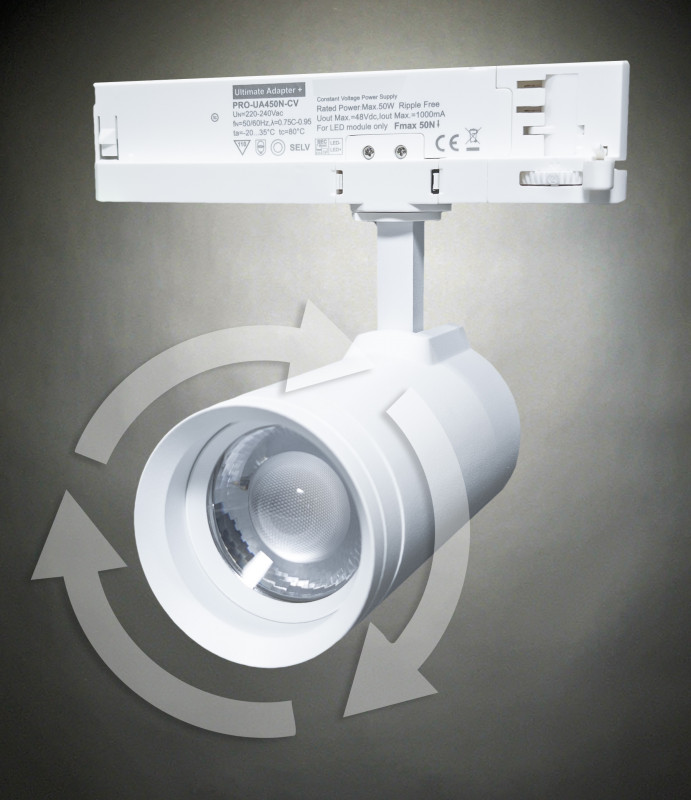

Varia Quick is a innovative and very flexible 3-Phase tracklight spot. Via a illuminated matrix display and a push potentiometer you can adjust the CCT light colour from 2700 Kelvin (warm white) to 6500 Kelvin (daylight) in steps of 50 Kelvin. You can also dimm the brightness through this Poti from 1% to 100% full brightness. Light on the point! The spot is equipped with a zoomable focus lens. through turning a ring you can adjust the beamabgle from 20° beam spot to max. 50° wide beam.

Varia Quick is a real "OneFitAll" luminaire. Versatile and unique!

Intrack LED-Driver
2 housing color options: black and white
High System efficiency through Bridgelux COB LED max. 110lm/W
long lifespan up to 50.000h
robust and stylish aluminum housing

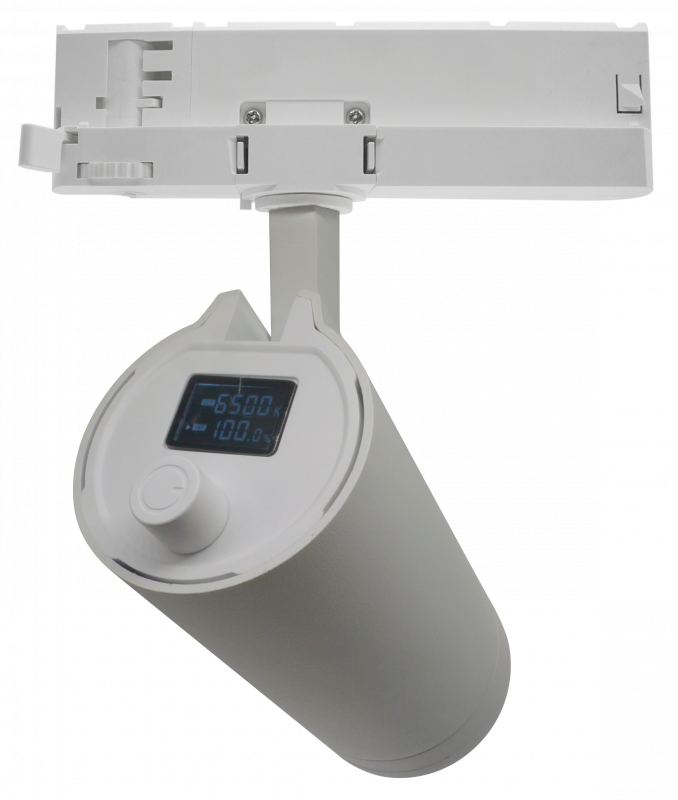

blue illuminated Matrix Display for Setup and adjustments

Applications:

Exhibition, Shop, Showroom, Museum, Supermarket

Related links to "VARIA-QUICK Stromschienenstrahler 15W 1450lm, CRI90, Digital Display Dim + CCT"

Zurück

Technical Details:

Luminous Flux:	1450 lm
Light Yield:	97 lm/W
Light Temperature:	2700-6500 K
Light Color:	dualwhite
Color Rendering Index:	≥90 Ra
Color Consistency (SDCM):	<5
Beam Angle:	50 °
Swappable Reflector:
Unified Glare Rating (UGR):	19
Light Emission:	downward
Dimmable:
Method of Dimming:	PWM,Poti
LED-Chip Manufacturer:	Bridgelux
LED-Chip:	COB
Number of LED:	1
Ignition Time:	<0,5 s

Input Current:	AC 220-240V, 50/60Hz, DC 220-280V
Power Consumption:	15 W
Contains Driver:
Driver Manufacturer:	Powergear
Power Factor (PF):	>0.9
Input Driver:	lighting track
Input Lamp:	Power rail
Switching Cycles:	>30.000
Electrical Protection Class:	II
Ambient Temperature (TA):	-15°C - 40°C
Storage Temperature:	-20°C - 50°C

Dimensions:	205x65x180 mm
Mounting:	Decke,Wand,Stromschiene
Montageart:	surface mounted
Pivot Range pan:	355 °
Pivot Range tilt:	90 °
IP Class:	20
IK Code:	06
Housing Color	white
Housing Color (RAL Code):	similar 9003
Housing Material:	aluminum
Coating:	powder-coated
Special Feature of Housing:	for 3-Phase Track Adapter
Cover:	Lens
Net Weight:	588 g

Type of Packaging:	box
Weight incl. Packaging:	0.732 kg
Content Master Package:	20
Dimensions of Master Package:	480x415x435 mm
Weight Master Package:	15,7 kg

Product Line:	Advance Line
Warranty	3 years
Operating Hours:	>60.000 h L80/B20
Disposal Obligation:
Customs Tariff Number:	9405119090
Certifications	CE,LM80
Barcode:	4250557826431

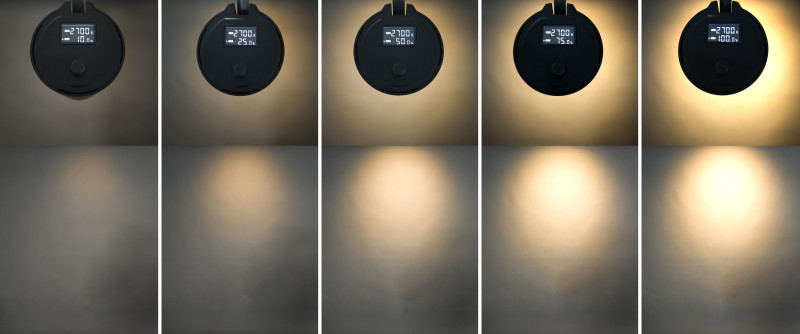

Blue Digital Display: CCT adjust and Dim: 1-100%

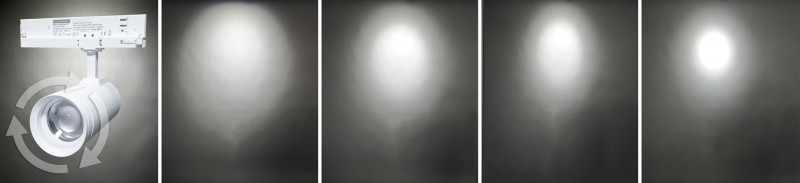

Zoom focus lens: 20-50°

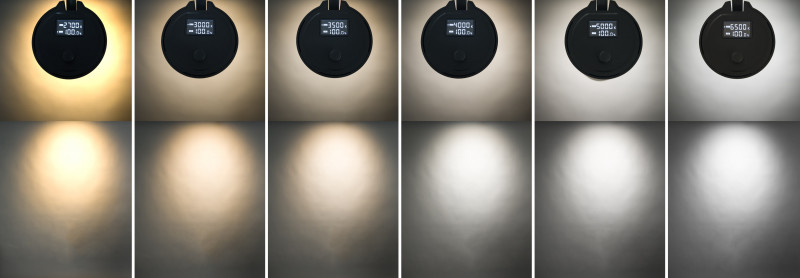

CCT change: 2700-6500 Kelvin in 50K steps

Technical Data Sheet (PDF)

Modularer Stromschienenstrahler für komplett werkzeuglosen Austausch aller Komponenten, mit... more

Zurück

Modularer Stromschienenstrahler für komplett werkzeuglosen Austausch aller Komponenten, mit Leistungsanpassung
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: -15°C - 40°C
Lichtstrom: 1450 lm
LED-Leistung: 15 W
Leuchten-Lichtausbeute: 97 lm/W
Farbtemperatur: 2700-6500 K
Lichtfarbe: dualwhite
Farbwiedergabeindex (Ra): >90
Farbtoleranz (SDCM): <5
Abstrahlwinkel: 50°
UGR: 19
Bildschirmgerecht gemäß EN12464-1 durch begrenzte Leuchtdichten L ≤ 3000 cd/m² für Ausstrahlungswinkel oberhalb 65° rundum
Lichtaustritt: direkt
Maße: 205x65x180 mm
Montageart: Aufbau (Decke,Wand,Stromschiene)
Schutzklasse (DIN EN 61140): II
Schutzart (DIN EN 60529): IP20
Stoßfestigkeitsgrad (IEC 62262): IK06
Außenfarbe: white (9003)
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: Linse
Nettogewicht: 588 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L80/B20): 60000 h
