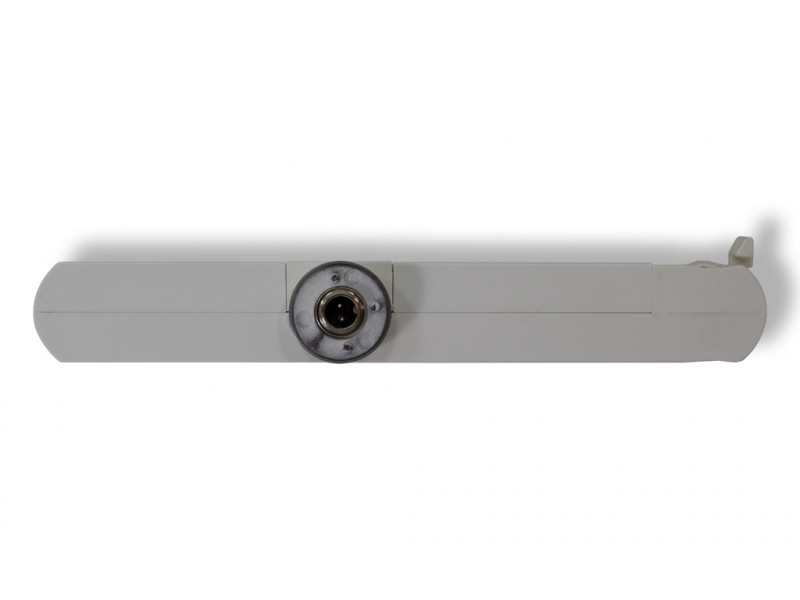

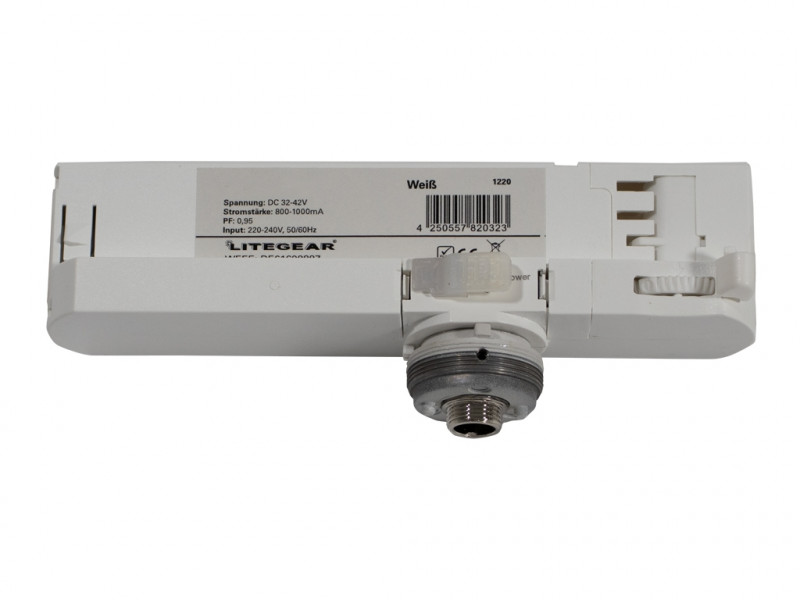

Preview: Varia-Style Inline Dali Dim Driver

Product Info (PDF)

Order number: LG14288W

Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Modular LED track spotlight Conceiled Inline LED driver for... more

Close menu

Product information "Varia-Style Inline Dali Dim Driver"

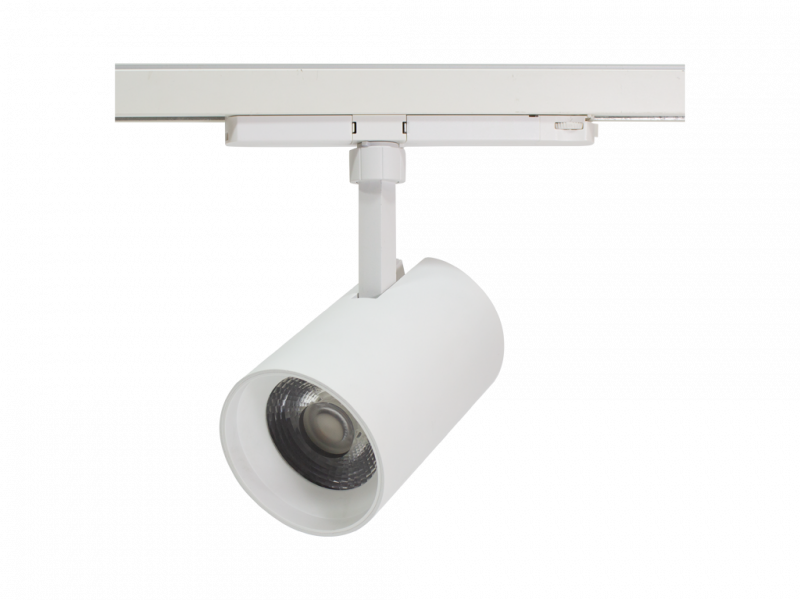

Modular LED track spotlight

Conceiled Inline LED driver for Varia-Style tracklight series
selectable power: 32, 35, 37, 40W
easy assembly with DC plug and turnlock
suitable for common 3-phase track rails

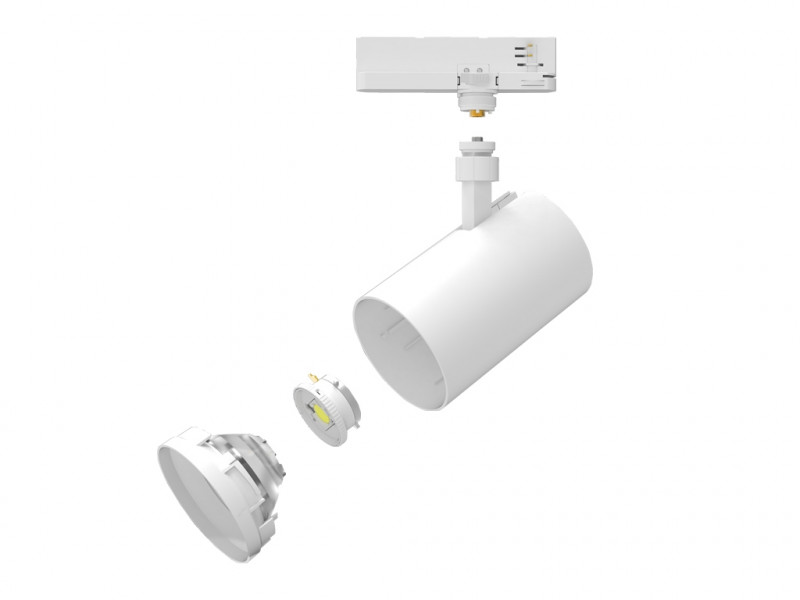

The Varia Tracklight from the German manufacturer Litegear is probably the most innovative LED surface-mounted spotlight in the world. The modular, service-friendly design allows the reflector, the LED module and the LED driver to be replaced in seconds without tools. So you can change the LED chip color with a different light color afterwards or equip the reflector against one with a more optimal beam angle. After a long period of use, the internal ballasts often fail, even the user himself can replace the ballast by simply plugging them in, similar to battery pack a screwdriver. The power adjustment of the LED power supplies by means of small DIP switches is also brilliant. The power of the LED track lights can be adjusted in 4 stages: 28W, 32W, 36W, 42W! Hereby one achieves either maximum performance or achieves maximum power savings. Customers have the choice between 3 housing colors or different color combinations in which one can combine the reflector ring or the cover of the driver housing differently.

Varia is extremly variable!

Varia is assembled according to her personal configuration in Germany.

Changeable and adjustable Dali dimming LED Driver. 40W 7 wire
Exchangeable LED COB module with the best quality of light and high efficiency: CRI> 80 or CRI> 90 with improved color rendering
Selectable light colors: 2700K, 3000K, 3500K, 4000K, 5700K, Gold for baked goods, Fresh Meat and Meat Plus for meat and sausage products, Exciting Color for fashion
long life: up to 50,000 hours L70
reflector exchangeable without tools: 15 °, 25 °, 36 °
3-phase power adapter, compatible with all standard track rails
3 Housing color available: white, gray, black or numerous combinations thereof
passive cooling, aluminum heat sink
modular design

maximum quantity of 40W (0,21A current) tracklights per circuit breaker:

10A: 24 pcs., 16A: 35 pcs., 20A: 45 pcs.

Related links to "Varia-Style Inline Dali Dim Driver"

Zurück

Technical Details:

Dimmable:
Method of Dimming:	DALI
Ignition Time:	<0,5 s
Glow Wire Test 650°C/30s

Input Current:	AC 220 - 240V, 50/60Hz
Power Consumption:	40 W
Contains Driver:
Driver Manufacturer:	Powergear
Power Factor (PF):	>0.95
Input Driver:	plug connector
Output of Driver:	DC 32-42V, 1000mA
CC/CV:	CC
Input Lamp:	Power rail
Switching Cycles:	>100.000
Electrical Protection Class:	II
Ambient Temperature (TA):	-10°C - 40°C
Storage Temperature:	-20°C - 50°C

Dimensions:	148x35x115 mm
IP Class:	20
Housing Color	white
Housing Material:	plastic
Net Weight:	268 g

Dimensions of Packaging:	220 x170x1
Weight incl. Packaging:	0.269 kg
Content Master Package:	36
Dimensions of Master Package:	415x245x330 mm
Weight Master Package:	11,4 kg

Product Line:	Premio Line
Warranty	3 years
Disposal Obligation:
Customs Tariff Number:	85044090
Certifications	CE,LM80,D
Barcode:	4250557820712
Inline LED-reiber für Varia-Style
Inline LED driver for Varia -Style

Technical Data Sheet (PDF)

Modularer Stromschienenstrahler für komplett werkzeuglosen Austausch aller Komponenten, mit... more

Zurück

Modularer Stromschienenstrahler für komplett werkzeuglosen Austausch aller Komponenten, mit Leistungsanpassung
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: -10°C - 40°C
LED-Leistung: 40 W
Maße: 148x35x115 mm
Schutzart (DIN EN 60529): IP20
Außenfarbe: white
Gehäusematerial: plastic
Nettogewicht: 268 g
Garantie: 3 Jahre
