Varia-Style Inline Treiber

Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

  • LG14286B
  • Power Draw: 32 W
  • Input Current: AC 220 - 240V, 50/60Hz
  • IP Code: 20
  • Housing Color: black
  • Dimensions: 148x35x115 mm
  • Warranty: 3 years

Power Draw

32 W

IP Code

IP 20


(LxBxH) in mm


3 years

Modular LED track spotlight   Conceiled Inline LED driver for... more
Product information "Varia-Style Inline Treiber"

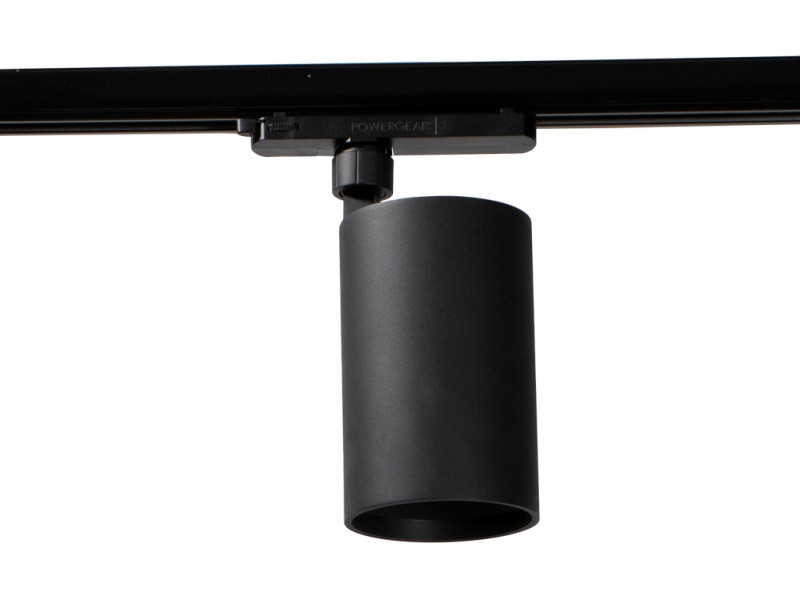

Modular LED track spotlight

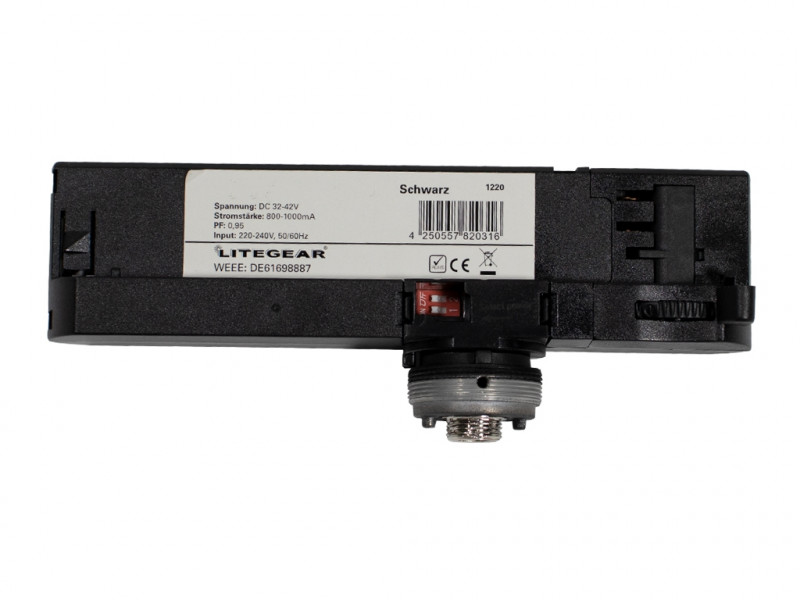

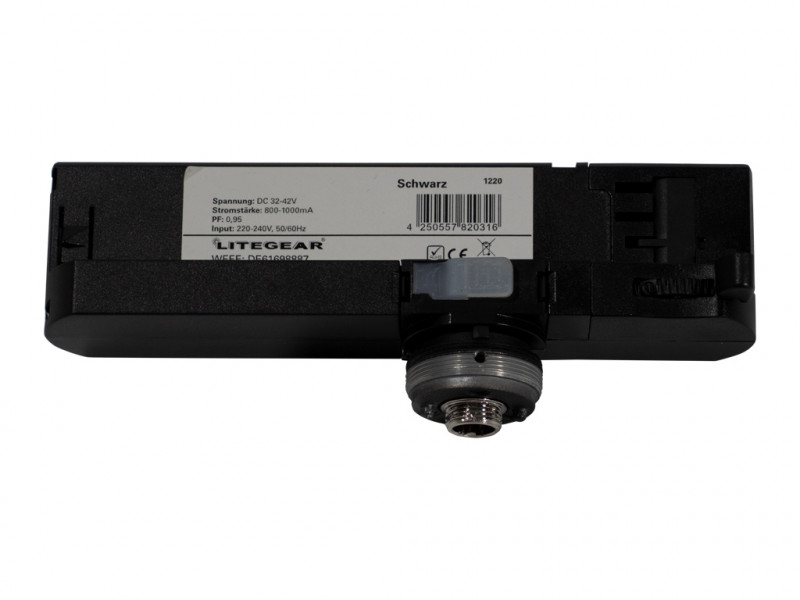

  • Conceiled Inline LED driver for Varia-Style tracklight series
  • selectable power: 23, 27, 30,32W
  • easy assembly with DC plud and turnlock
  • suitable for common 3-phase track rails

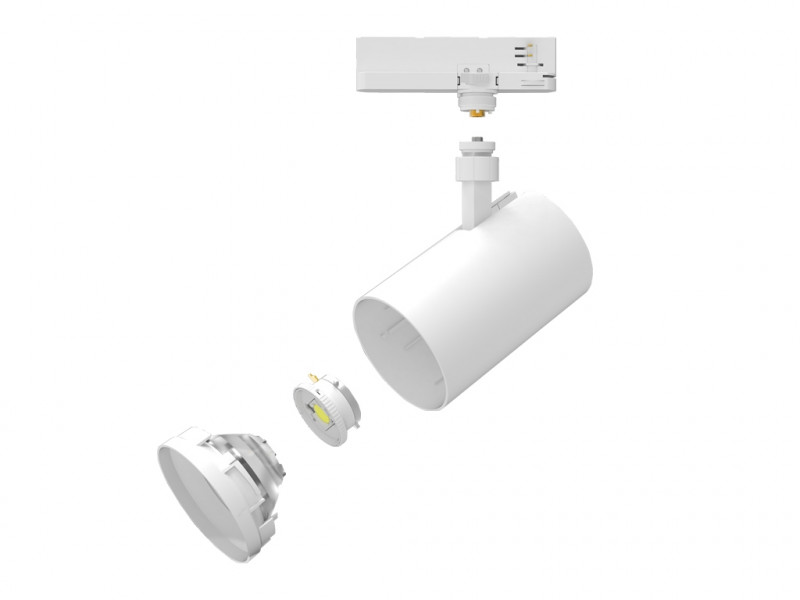

The Varia Tracklight from the German manufacturer Litegear is probably the most innovative LED surface-mounted spotlight in the world. The modular, service-friendly design allows the reflector, the LED module and the LED driver to be replaced in seconds without tools. So you can change the LED chip color with a different light color afterwards or equip the reflector against one with a more optimal beam angle. After a long period of use, the internal ballasts often fail, even the user himself can replace the ballast by simply plugging them in, similar to battery pack a screwdriver. The power adjustment of the LED power supplies by means of small DIP switches is also brilliant. The power of the LED track lights can be adjusted in 4 stages: 28W, 32W, 36W, 42W! Hereby one achieves either maximum performance or achieves maximum power savings. Customers have the choice between 3 housing colors or different color combinations in which one can combine the reflector ring or the cover of the driver housing differently.
Varia is extremly variable!
Varia is assembled according to her personal configuration in Germany.
  • Changeable and adjustable LED Driver: 28-42W
  • Exchangeable LED COB module with the best quality of light and high efficiency: CRI> 80 or CRI> 90 with improved color rendering
  • Selectable light colors: 2700K, 3000K, 3500K, 4000K, 5700K, Gold for baked goods, Fresh Meat and Meat Plus for meat and sausage products, Exciting Color for fashion
  • long life: up to 50,000 hours L70
  • reflector exchangeable without tools: 15 °, 25 °, 36 °
  • 3-phase power adapter, compatible with all standard track rails
  • 3 Housing color available: white, gray, black or numerous combinations thereof
  • passive cooling, aluminum heat sink
  • modular design
maximum quantity of 32W (0,17A current) tracklights per circuit breaker:
10A: 27 pcs., 16A: 42 pcs., 20A: 52 pcs.
Related links to "Varia-Style Inline Treiber"
Technical Details:
Ignition Time: <0,5 s
Glow Wire Test 650°C/30s ja
Input Current: AC 220 - 240V, 50/60Hz
Power Consumption: 32 W
Contains Driver: ja
Power Factor (PF): >0.95
Input Driver: plug connector
Output of Driver: DC 32-42V, 575-800mA
Output Current Adjustable: ja
Input Lamp: Power rail
Switching Cycles: >100.000
Electrical Protection Class: II
Ambient Temperature (TA): -10°C - 40°C
Storage Temperature: -20°C - 50°C
Dimensions: 148x35x115 mm
IP Class: 20
Housing Color black
Housing Material: plastic
Net Weight: 268 g
Dimensions of Packaging: 220 x170x1
Weight incl. Packaging: 0.269 kg
Content Master Package: 36
Dimensions of Master Package: 415x245x330 mm
Weight Master Package: 11,4 kg
Product Line: Premio Line
Warranty 3 years
Disposal Obligation: ja
Customs Tariff Number: 8504408390
Certifications CE,LM80,D
Barcode: 4250557820293
Inline LED-reiber für Varia-Style
Inline LED driver for Varia -Style
Modularer Stromschienenstrahler für komplett werkzeuglosen Austausch aller Komponenten, mit... more
Modularer Stromschienenstrahler für komplett werkzeuglosen Austausch aller Komponenten, mit Leistungsanpassung
Vorschaltgerät: LED-Treiber
Temperaturbereich: -10°C - 40°C
LED-Leistung: 32 W
Maße: 148x35x115 mm
Schutzart (DIN EN 60529): IP20
Außenfarbe: black
Gehäusematerial: plastic
Nettogewicht: 268 g
Garantie: 3 Jahre
