Preview: Varia LED-Modul 930/2200-3850lm

Product Info (PDF)

Order number: LG14295.2

Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

X Product information sheet (PDF)

Product information sheet

Dimensions

Menü schließen

Order number: : LG14295.2
Luminous Flux: 4000 lm
Power Draw: 40 W
Light Color: warmwhite (3000 K)
Color Rendering Index (CRI): ≥90 Ra
IP Code: 20

LED-Chip: Samsung COB
Housing Color: white
Dimensions: 50x44 mm
Warranty: 5 years

Luminous Flux

4000
lm

Power Draw

40 W

Light Color

3000 K
warmwhite

Color Rendering Index (CRI)

CRI
>90 Ra

IP Code

IP 20

Dimensions

(ØxH) in mm
50x44

Warranty

5 years

Modular LED track spotlight Exchangeable LED Module Cree COB... more

Close menu

Product information "Varia LED-Modul 930/2200-3850lm"

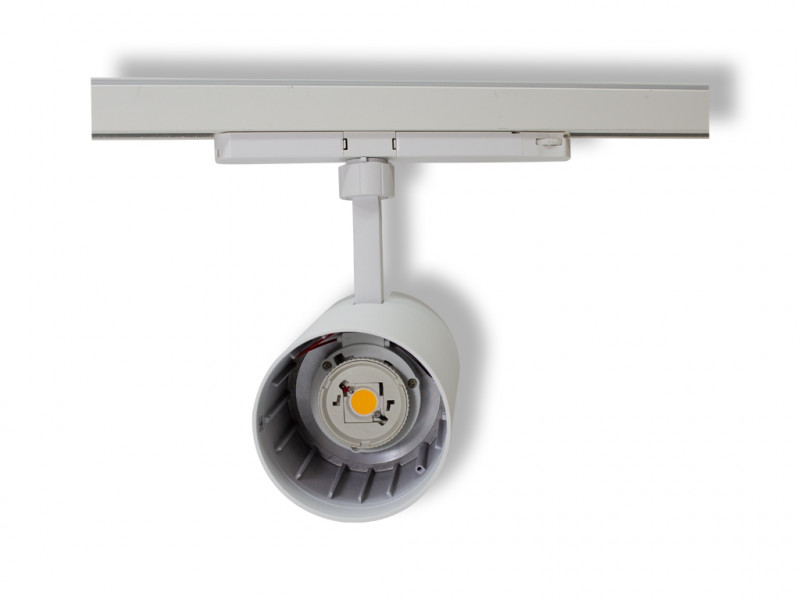

Modular LED track spotlight

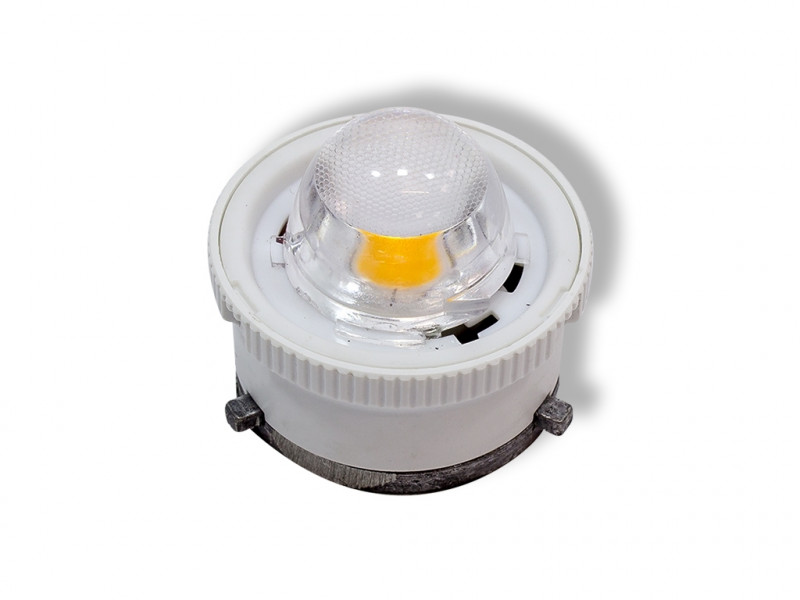

Exchangeable LED Module
Cree COB Chip

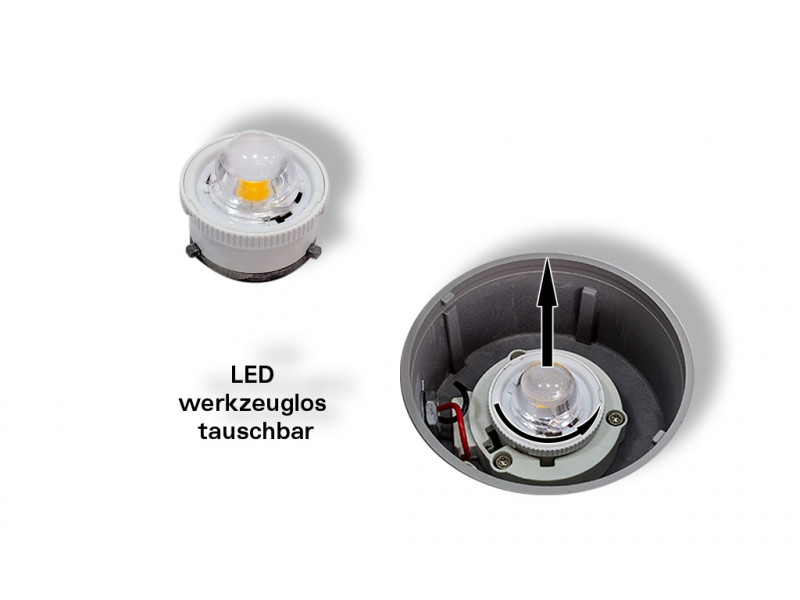

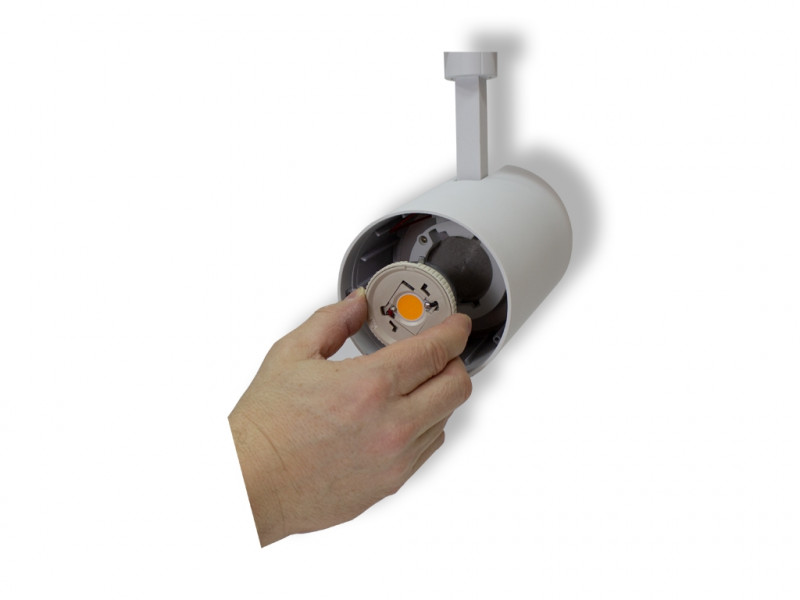

Module change without tools possible
Luminous flux efficency: 70-85 Lumen/Watt

The Varia Tracklight from the German manufacturer Litegear is probably the most innovative LED surface-mounted spotlight in the world. The modular, service-friendly design allows the reflector, the LED module and the LED driver to be replaced in seconds without tools. So you can change the LED chip color with a different light color afterwards or equip the reflector against one with a more optimal beam angle. After a long period of use, the internal ballasts often fail, even the user himself can replace the ballast by simply plugging them in, similar to battery pack a screwdriver. The power adjustment of the LED power supplies by means of small DIP switches is also brilliant. The power of the LED track lights can be adjusted in 4 stages: 28W, 32W, 36W, 42W! Hereby one achieves either maximum performance or achieves maximum power savings. Customers have the choice between 3 housing colors or different color combinations in which one can combine the reflector ring or the cover of the driver housing differently.

Varia is extremly variable!

Varia is assembled according to her personal configuration in Germany.

Changeable and adjustable LED Driver: 28-42W
Exchangeable LED COB module with the best quality of light and high efficiency: CRI> 80 or CRI> 90 with improved color rendering
Selectable light colors: 2700K, 3000K, 3500K, 4000K, 5700K, Gold for baked goods, Fresh Meat and Meat Plus for meat and sausage products, Exciting Color for fashion
long life: up to 50,000 hours L70
reflector exchangeable without tools: 15 °, 24 °, 36 °
3-phase power adapter, compatible with all standard track rails
3 Housing color available: white, gray, black or numerous combinations thereof
passive cooling, aluminum heat sink

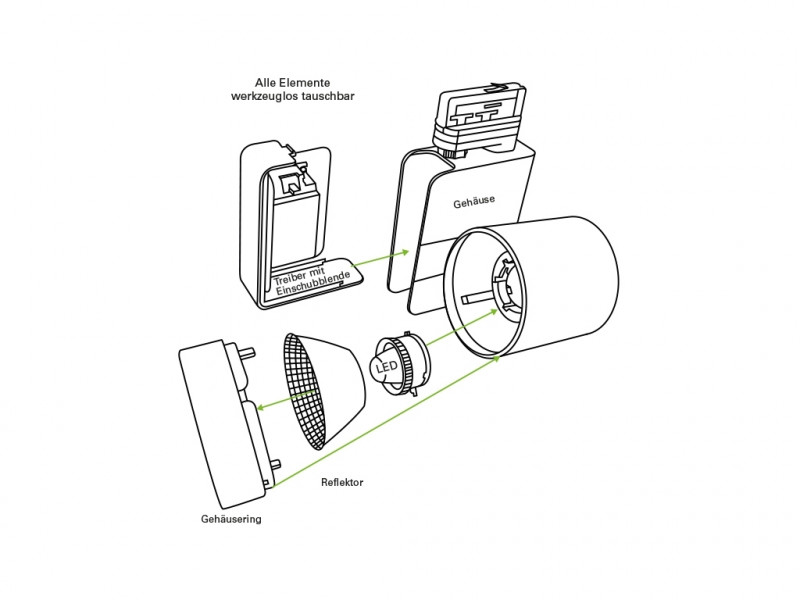

modular design

Related links to "Varia LED-Modul 930/2200-3850lm"

Zurück

Technical Details:

Luminous Flux:	4000 lm
LED Output:	40 W
Light Yield:	100 lm/W
Light Temperature:	3000 K
Light Color:	warmwhite
Color Rendering Index:	≥90 Ra
Color Consistency (SDCM):	<4
LED-Chip Manufacturer:	Samsung
LED-Chip:	COB
Number of LED:	1
Ignition Time:	<0,5 s

Power Consumption:	40 W
Output of Driver:	DC 32-42V, 575-1050mA
CC/CV:	CC
Input Lamp:	Rotary contact
Switching Cycles:	>100.000
Ambient Temperature (TA):	-10°C - 40°C
Storage Temperature:	-20°C - 55°C

Dimensions:	50x44 mm
IP Class:	20
Housing Color	white
Housing Material:	Aluminium+PC
Cover:	clear
Net Weight:	48 g

Type of Packaging:	bag
Dimensions of Packaging:	140x140x1
Weight incl. Packaging:	0.049 kg
Content Master Package:	100
Dimensions of Master Package:	285x285x220 mm
Weight Master Package:	7 kg

Product Line:	Premio Line
Warranty	5 years
Operating Hours:	>50.000 h L70/B50
Disposal Obligation:
Customs Tariff Number:	8539510000
Certifications	CE,LM80,ERP
Barcode:	4250557818597
COB-LED-Wechselmodul für Varia

Technical Data Sheet (PDF)

Modularer Stromschienenstrahler für komplett werkzeuglosen Austausch aller Komponenten und... more

Zurück

Modularer Stromschienenstrahler für komplett werkzeuglosen Austausch aller Komponenten und passivem Kühlkörper
Vorschaltgerät: nicht enthalten
Temperaturbereich: -10°C - 40°C
Lichtstrom: 4000 lm
LED-Leistung: 40 W
Leuchten-Lichtausbeute: 100 lm/W
Farbtemperatur: 3000 K
Lichtfarbe: warmwhite
Farbwiedergabeindex (Ra): >90
Farbtoleranz (SDCM): <4
Maße: 50x44 mm
Schutzart (DIN EN 60529): IP20
Außenfarbe: white
Gehäusematerial: Aluminium+PC
Abdeckung: klar
Nettogewicht: 48 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L70/B50): 50000 h

Zurück

Available downloads:
