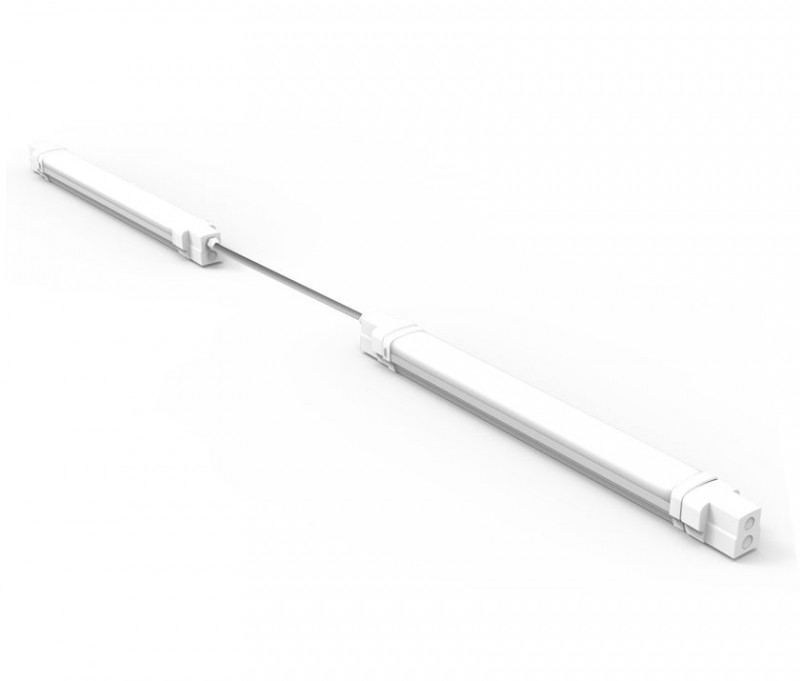

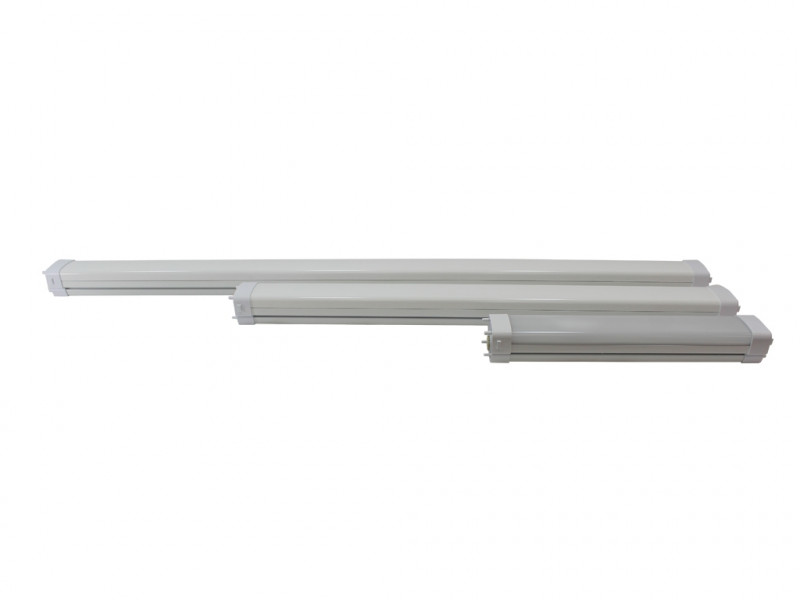

Alwetra 1500 30-47W-840-6700LM Wide Flood 1-10V Dim PWM

Prices are only visible after login.

Availability: low stock


  • LG32105
  • Luminous Flux: 6700 lm
  • Power Draw: 47 W
  • Light Color: neutralwhite (4000 K)
  • Input Current: AC 220-240V, 50/60Hz
  • Color Rendering Index (CRI): ≥80 Ra
  • IP Code: 65
  • Beam Angle: 120°
  • LED-Chip: SMD 2835
  • Housing Color: white
  • Warranty: 5 years

Luminous Flux


Power Draw

47 W

Light Color

4000 K

Color Rendering Index (CRI)

>80 Ra

IP Code

IP 65

Beam Angle


ceiling, wall

mounting type

Light Direction


5 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

Modular, weatherproof LED linear light system   Alwetra is a dustproof and... more
Product information "Alwetra 1500 30-47W-840-6700LM Wide Flood 1-10V Dim PWM"
Modular, weatherproof LED linear light system
Alwetra is a dustproof and splash-proof IP65, LED strip lighting system for use in wet rooms or outdoors under canopies. The system consists of luminaire modules with selectable output power 30-47W by means of small DIP switches and external dimming via an analog 1-10V signal. The feed in takes place via connectors and a seven-wire through-wiring. By means of a toggle switch, one of the three current phases can be selected, thus the luminaires can be switched on and off in groups as needed. In just a few seconds, two luminaire modules or luminaires and blank modules can be connected without tools. For weatherproof infeed, we have matching feed in boxes and suitable end caps. For permanent stabilization, the modules are additionally mechanically connected with a steel clamp. Mounting clips are attached for mounting on ceilings and can also be used with a hook to suspend the system on steel ropes or chains. Optionally, we will also offer battery-operated emergency lighting modules and sensor modules.
  • Impact-resistant and weatherproof design: IP65 / IK10
  • Internal through-wiring: 5 x 2.5mm² and 2 x 1.5mm² for analog dimming over 1-10V

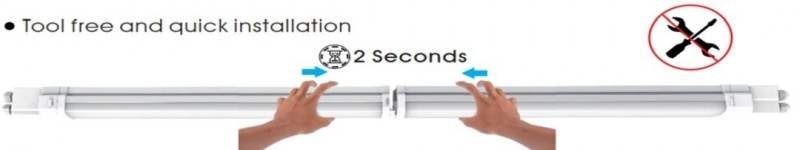

  • fast, almost tool-free installation
  • high system efficiency:> 130 lumens / watt
  • Selectable output power: 30, 36, 40, 47W (thus ideal replacement for one to two times 58W T8 (and 49W/T5) fluorescent tubes with 50-65% power saving
  • long life 50,000h and low maintenance costs
  • motion and daylight dimming controllable by external sensors
  • industry and food production
  • Waste recycling with high dust load
  • joineries, car washes
  • Outdoors under canopies or loading zones
  • cold stores and greenhouses
Related links to "Alwetra 1500 30-47W-840-6700LM Wide Flood 1-10V Dim PWM"
Technical Details:
Luminous Flux: 6700 lm
LED Output: 45 W
Light Yield: 143 lm/W
Light Temperature: 4000 K
Light Color: neutralwhite
Color Rendering Index: ≥80 Ra
Color Consistency (SDCM): <4
Beam Angle: 120 °
Unified Glare Rating (UGR): 24
Light Emission: downward
Dimmable: ja
Method of Dimming: 1-10V,PWM
LED-Chip: SMD 2835
Ignition Time: <0,5 s
Glow Wire Test 650°C/30s ja
Input Current: AC 220-240V, 50/60Hz
Power Consumption: 47 W
Contains Driver: ja
Driver Manufacturer: Boke
Power Factor (PF): >0.95
Input Driver: terminal
Output Current Adjustable: ja
Input Lamp: plug connector
Switching Cycles: >100.000
Electrical Protection Class: I
Ambient Temperature (TA): -20°C - 50°C
Storage Temperature: -40°C - 60°C
Mounting: ceiling,wall
Montageart: surface mounted
IP Class: 65
IK Code: 10
Housing Color white
Housing Material: Aluminium+PC
Special Feature of Housing: polycarbonate
Cover: opal
Net Weight: 2420 g
Weight incl. Packaging: 2.7 kg
Content Master Package: 6
Dimensions of Master Package: 1620x250x300 mm
Weight Master Package: 16,2 kg
Product Line: Premio Line
Warranty 5 years
Operating Hours: >50.000 h L80/B10
Disposal Obligation: ja
Customs Tariff Number: 9405409990
Certifications CE,LM80,D
Barcode: 4250557815695
Einfache, und schnelle Montage, In/Out
optionale Batterienotlichtmodule lieferbar
wählbare Ausgangsleistung: 30, 36, 40, 47W
dimmbare Version: 1-10V, Phasenwahl L1-L3
optional auch mediums Bewegungsmelder steuerbar
h h
Modulares LED-Lichtbandsystem mit hoher Schutzart IP65 für den Einsatz in Feuchträumen more
Modulares LED-Lichtbandsystem mit hoher Schutzart IP65 für den Einsatz in Feuchträumen
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: -20°C - 50°C
Lichtstrom: 6700 lm
LED-Leistung: 47 W
Leuchten-Lichtausbeute: 143 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 120°
UGR: 24
Lichtaustritt: direkt
Montageart: Aufbau (Decke,Wand)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP65
Stoßfestigkeitsgrad (IEC 62262): IK10
Außenfarbe: white
Gehäusematerial: Aluminium+PC
Abdeckung: opal
Nettogewicht: 2420 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B10): 50000 h
