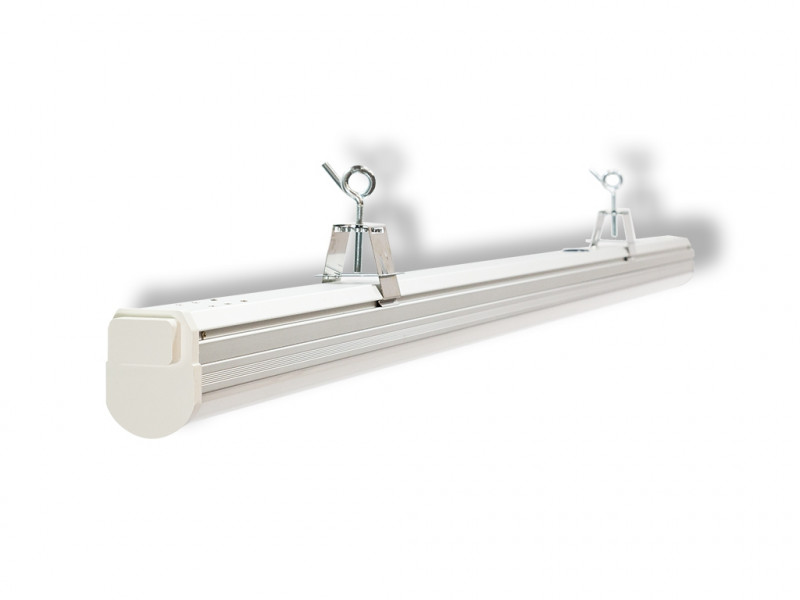

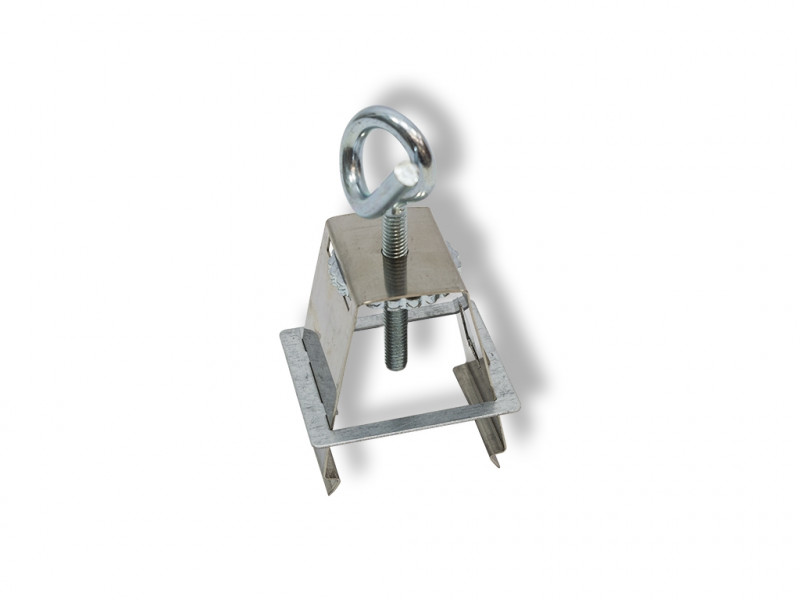

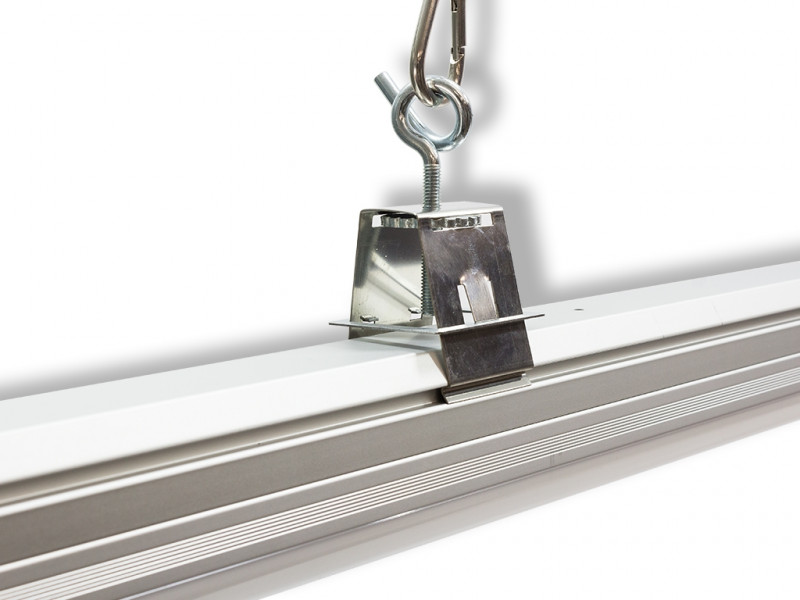

Velostra Line Chain Holder

LG302351
Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

  • LG302351
  • Housing Color: Alu
  • Warranty: 3 years

mounting type

Warranty

3 years

LED linear lighting system The Litegear® Velostra Line is a modular LED lighting system... more
Product information "Velostra Line Chain Holder"
LED linear lighting system
The Litegear® Velostra Line is a modular LED lighting system for indoor use. The Litegear® Velostra luminaire series impresses with its excellent price / performance ratio and the wide range of application possibilities. Further features are the homogeneous light distribution, a simple and fast assembly. The luminaire unit has a high system efficiency of 130 lumens / watt max. The system consists of two components: a trunking rail with 5-core cable routing and a light-emitting unit consisting of an electronic ballast and a LED board with an opal optical cover. The luminaire unit is manually pressed into the support rail by means of pressure. Two safety ropes serve as a safety device. The two units are electrically connected by a three-pole connector. The individual luminaire units are connected to each other without tools by inserting the fork connectors made from steel. The electrical supply lines are connected with a five-wire connector during the plugging process. The voltage supply is generally single-phase. You can use different additional functions via the two additional conductors: Three-phase operation by means of alternating phase tap on the LED unit. Emergency power supply with phase monitoring and battery supply for emergency power lighting. Or as an optional control signal +/- for 1-10V / Dali dimmable LED drivers. The light unit is available in 2 performance classes: 30W / 60W and two different light colors: 4000K neutral white or 6500K cold white.
applications:
Warehouse, shop, workshop, office, hall, production
Related links to "Velostra Line Chain Holder"
Technical Details:

Input Lamp: terminal
Ambient Temperature (TA): -10°C - 40°C
Mounting: Decke
Montageart: surface mounted
Housing Color Alu
Housing Material: aluminum
Net Weight: 129 g
Type of Packaging: bag
Dimensions of Packaging: 195x125x1
Weight incl. Packaging: 0.13 kg
Content Master Package: 150
Dimensions of Master Package: 610x370x270 mm
Weight Master Package: 9,8 kg
Product Line: ECO Line
Warranty 3 years
Customs Tariff Number: 83081000
Certifications CE
Barcode: 4250557810560
