Velostra Line 1500 30/60-840-4200/8400LM
Order number: LG30225PS
Prices are only visible after login.
Availability: low stock
- Order number: : LG30225PS
- Luminous Flux: 8400 lm
- Power Draw: Power Select (30, 60 W)
- Light Color: neutralwhite (4000 K)
- Input Current: AC 200 - 240V, 280/560mA, 50/60Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 20
- Beam Angle: 120°
- LED-Chip: Everlight SMD 2835
- Housing Color: Alu
- Dimensions: 1498x46x65,5 mm
- Warranty: 3 years
LED module for linear lighting system The Litegear® Velostra Line is a modular... more
Product information "Velostra Line 1500 30/60-840-4200/8400LM"
LED module for linear lighting system

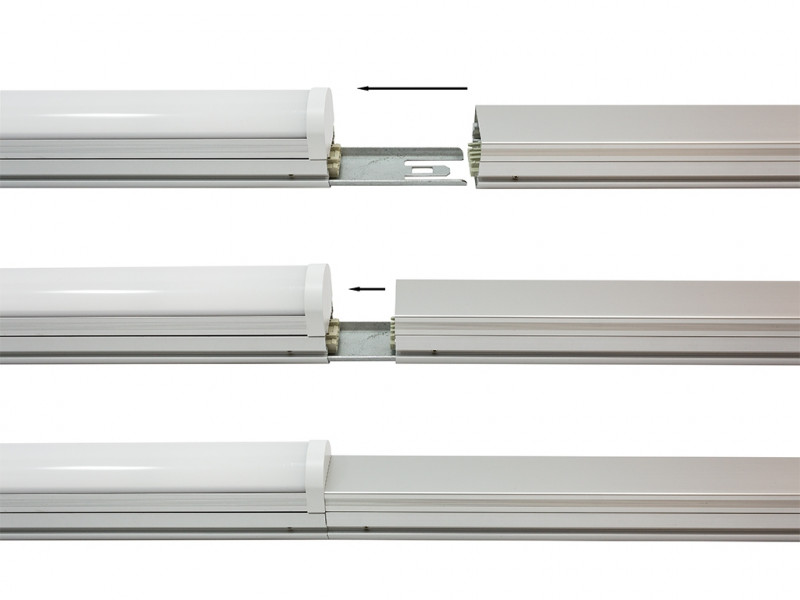

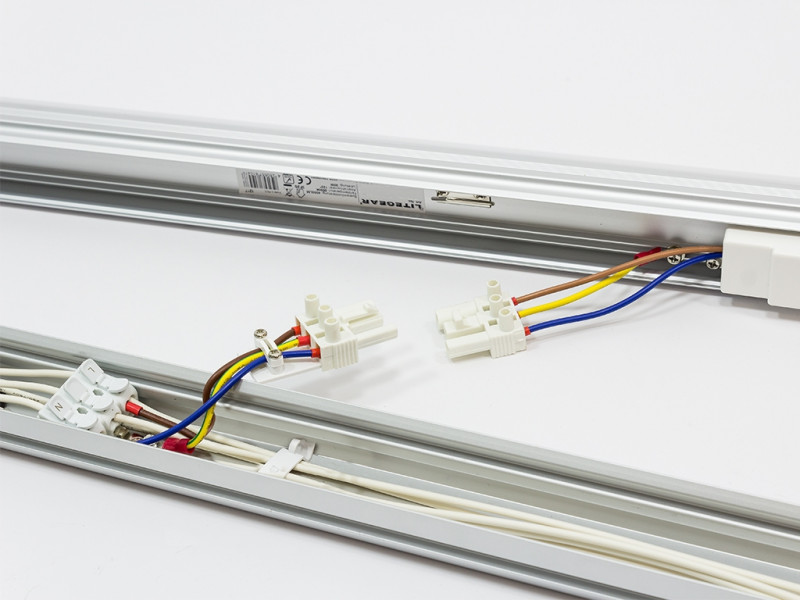

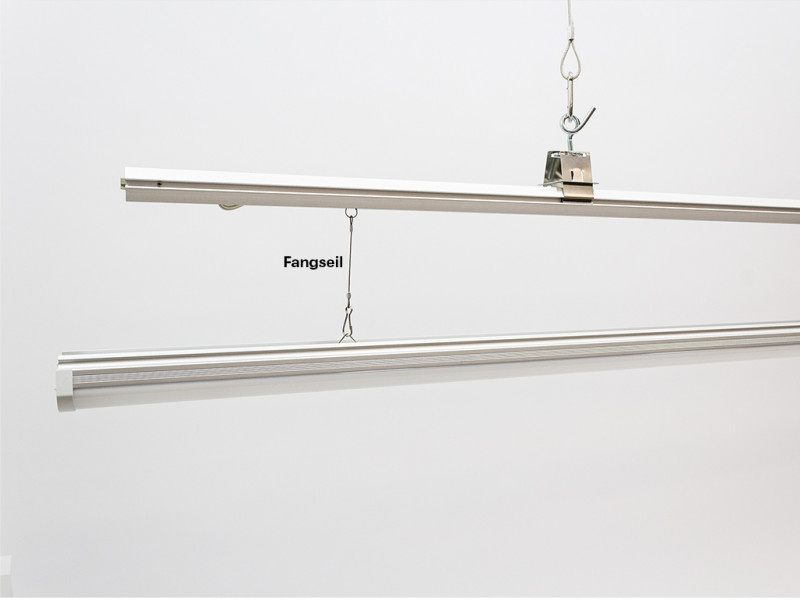

The Litegear® Velostra Line is a modular LED lighting system for indoor use. The Litegear® Velostra luminaire series impresses with its excellent price / performance ratio and the wide range of application possibilities. Further features are the homogeneous light distribution, a simple and fast assembly. The luminaire unit has a high system efficiency of 140 lumens / watt max. The system consists of two components: a trunking rail with 5-core cable routing and a light-emitting unit consisting of an electronic ballast and a LED board with an opal optical cover. The luminaire unit is manually pressed into the support rail by means of pressure. Two safety ropes serve as a safety device. The two units are electrically connected by a three-pole connector. The individual luminaire units are connected to each other without tools by inserting the fork connectors made from steel. The electrical supply lines are connected with a five-wire connector during the plugging process. The voltage supply is generally single-phase. You can use different additional functions via the two additional conductors: Three-phase operation by means of alternating phase tap on the LED unit. Emergency power supply with phase monitoring and battery supply for emergency power lighting. Or as an optional control signal +/- for 1-10V / Dali dimmable LED drivers. The output is selectable with a switch from 30W to 60W and available in two different light colors: 4000K neutral white or 6500K cold white. (4000K is the standard CCT which we keep on stock)
applications: Warehouse, shop, workshop, office, hall, production
Highlights:
- LED luminaire with Power Select: 30W to 60W switchable,:4200/8400lm/W with high system efficency: 140lm/W
- 3-wire connector for luminaire to trunking rail
- 2 additional L- phases: can be used for emergency lighting and battery charging, feed in for motion sensor
- wide light beam angle 140°, perfect for shelfing areas or rooms with low ceiling hight
- easy and fast installtion
Related links to "Velostra Line 1500 30/60-840-4200/8400LM"
Technical Details:
| Luminous Flux: | 8400 lm |
| Light Yield: | 140 lm/W |
| Light Temperature: | 4000 K |
| Light Color: | neutralwhite |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <5 |
| Beam Angle: | 120 ° |
| Unified Glare Rating (UGR): | 24 |
| Light Emission: | downward |
| LED-Chip Manufacturer: | Everlight |
| LED-Chip: | SMD 2835 |
| Number of LED: | 144 |
| Ignition Time: | <0,5 s |
| Input Current: | AC 200 - 240V, 280/560mA, 50/60Hz |
| Power Consumption: | Power Select (30, 60 W) |
| Contains Driver: |  |
| Power Factor (PF): | >0.9 |
| Input Driver: | terminal |
| CC/CV: | CC |
| Input Lamp: | cable with plug |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | -10°C - 40°C |
| Storage Temperature: | -20°C - 55°C |
| Dimensions: | 1498x46x65,5 mm |
| Mounting: | Decke |
| Montageart: | recessed |
| IP Class: | 20 |
| IK Code: | 08 |
| Housing Color | Alu |
| Housing Material: | aluminum |
| Special Feature of Housing: | PC Cover |
| Cover: | opal |
| Net Weight: | 820 g |
| Type of Packaging: | bag |
| Weight incl. Packaging: | 0.88 kg |
| Content Master Package: | 6 |
| Dimensions of Master Package: | 1640x188x160 mm |
| Weight Master Package: | 5,770 kg |
| Product Line: | ECO Line |
| Warranty | 3 years |
| Operating Hours: | >50.000 h L80/B20 |
| Disposal Obligation: | |
| Customs Tariff Number: | 94054239 |
| Certifications | CE,TÜV,LM80 |
| Barcode: | 4250557824635 |
| Einfache, und schnelle Montage | |
| LED-Modul für Tragschiene | |
| Power Select 30/60W max. 140lm/W | |
Modulares LED-Lichtbandsystem für den Einsatz im Innenbereich mit vielfältigen... more
Modulares LED-Lichtbandsystem für den Einsatz im Innenbereich mit vielfältigen Anwendungsmöglichkeiten
Vorschaltgerät: LED-Treiber
Temperaturbereich: -10°C - 40°C
Lichtstrom: 8400 lm
LED-Leistung: Power Select (30, 60 W)
Leuchten-Lichtausbeute: 140 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <5
Abstrahlwinkel: 120°
UGR: 24
Lichtaustritt: direkt
Maße: 1498x46x65,5 mm
Montageart: Einbau (Decke)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP20
Stoßfestigkeitsgrad (IEC 62262): IK08
Außenfarbe: Alu
Gehäusematerial: Aluminium
Abdeckung: opal
Nettogewicht: 820 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L80/B20): 50000 h
Vorschaltgerät: LED-Treiber
Temperaturbereich: -10°C - 40°C
Lichtstrom: 8400 lm
LED-Leistung: Power Select (30, 60 W)
Leuchten-Lichtausbeute: 140 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <5
Abstrahlwinkel: 120°
UGR: 24
Lichtaustritt: direkt
Maße: 1498x46x65,5 mm
Montageart: Einbau (Decke)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP20
Stoßfestigkeitsgrad (IEC 62262): IK08
Außenfarbe: Alu
Gehäusematerial: Aluminium
Abdeckung: opal
Nettogewicht: 820 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L80/B20): 50000 h
