Velostra Line 1500 Rail 1U
Order number: LG302342
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Short information
- Order number: : LG302342
- Input Current: AC 220 - 240V, 50/60Hz
- IP Code: 20
- Housing Color: Alu
- Dimensions: 1498x46,1x30 mm
- Warranty: 3 years
IP Code
IP 20
mounting type
Dimensions
(LxBxH) in mm
1498x46,1x30
Warranty
3 years
LED linear lighting system The Litegear® Velostra Line is a modular LED lighting... more
Product information "Velostra Line 1500 Rail 1U"
LED linear lighting system

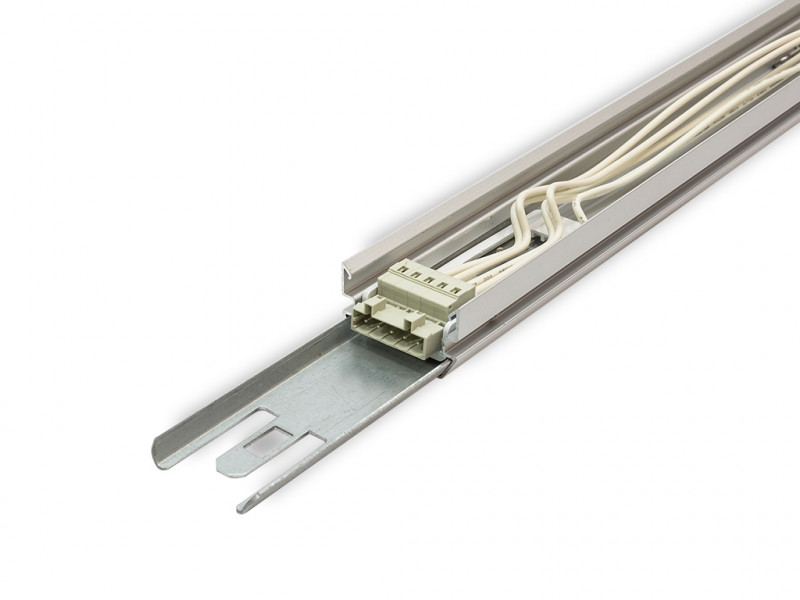

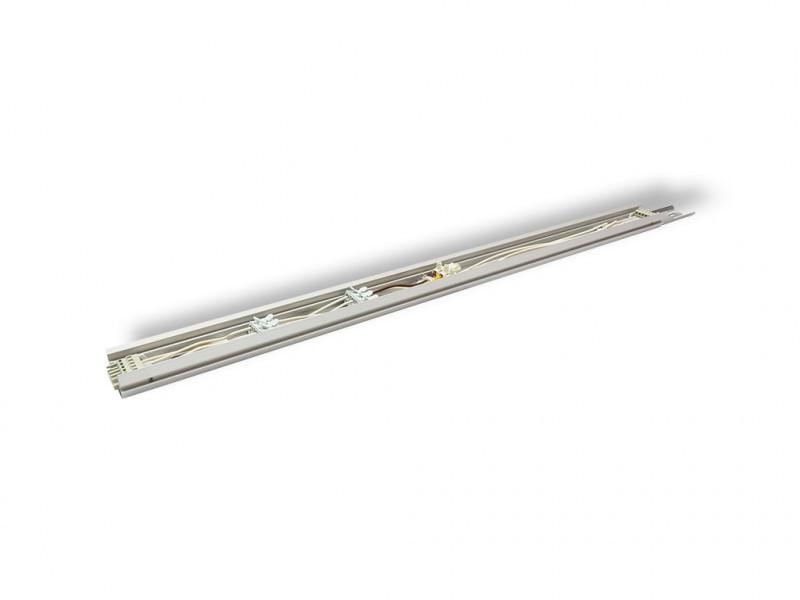

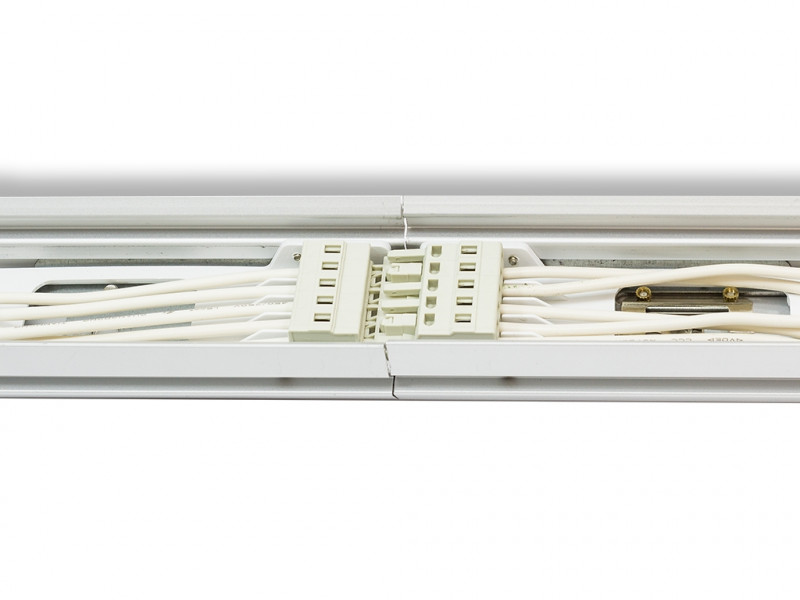

The Litegear® Velostra Line is a modular LED lighting system for indoor use. The Litegear® Velostra luminaire series impresses with its excellent price / performance ratio and the wide range of application possibilities. Further features are the homogeneous light distribution, a simple and fast assembly. The luminaire unit has a high system efficiency of 130 lumens / watt max. The system consists of two components: a trunking rail with 5-core cable routing and a light-emitting unit consisting of an electronic ballast and a LED board with an opal optical cover. The luminaire unit is manually pressed into the support rail by means of pressure. Two safety ropes serve as a safety device. The two units are electrically connected by a three-pole connector. The individual luminaire units are connected to each other without tools by inserting the fork connectors made from steel. The electrical supply lines are connected with a five-wire connector during the plugging process. The voltage supply is generally single-phase. You can use different additional functions via the two additional conductors: Three-phase operation by means of alternating phase tap on the LED unit. Emergency power supply with phase monitoring and battery supply for emergency power lighting. Or as an optional control signal +/- for 1-10V / Dali dimmable LED drivers. The light unit is available in 2 performance classes: 30W / 60W and two different light colors: 4000K neutral white or 6500K cold white.
applications:
Warehouse, shop, workshop, office, hall, production
Related links to "Velostra Line 1500 Rail 1U"
Technical Details:
| Input Current: | AC 220 - 240V, 50/60Hz |
| Input Lamp: | terminal |
| Ambient Temperature (TA): | -10°C - 40°C |
| Dimensions: | 1498x46,1x30 mm |
| Mounting: | Decke |
| Montageart: | surface mounted |
| IP Class: | 20 |
| Housing Color | Alu |
| Housing Material: | aluminum |
| Net Weight: | 770 g |
| Type of Packaging: | bag |
| Dimensions of Packaging: | 177x10x2 |
| Weight incl. Packaging: | 0.78 kg |
| Content Master Package: | 12 |
| Dimensions of Master Package: | 1650x190x160 mm |
| Weight Master Package: | 9,8 kg |
| Product Line: | ECO Line |
| Warranty | 3 years |
| Customs Tariff Number: | 9405409990 |
| Certifications | CE |
| Barcode: | 4250557810515 |
