VERSALINK MKII Blindmodul
Order number: LG32340
Prices are only visible after login.
Last Stock
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Dimensions
VERSALINK MKII blank cover length: 150cm material:... more
Product information "VERSALINK MKII Blindmodul"

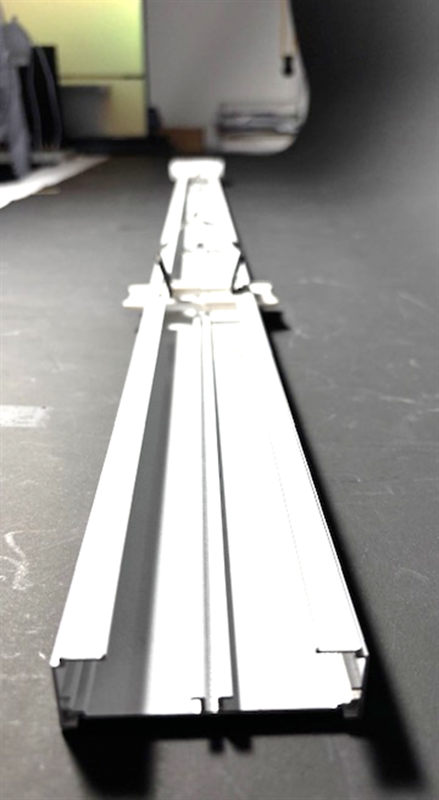

VERSALINK MKII blank cover
- length: 150cm
- material: aluminum

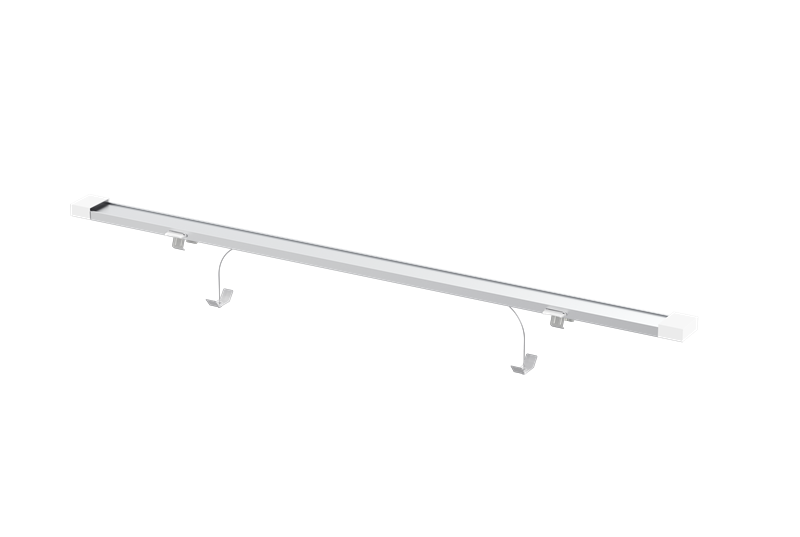

- installtionway: with 2 spring clips into 22 different trunking rails
Related links to "VERSALINK MKII Blindmodul"
Technical Details:
| Ambient Temperature (TA): | -20°C - 55°C |
| Storage Temperature: | -40°C - 60°C |

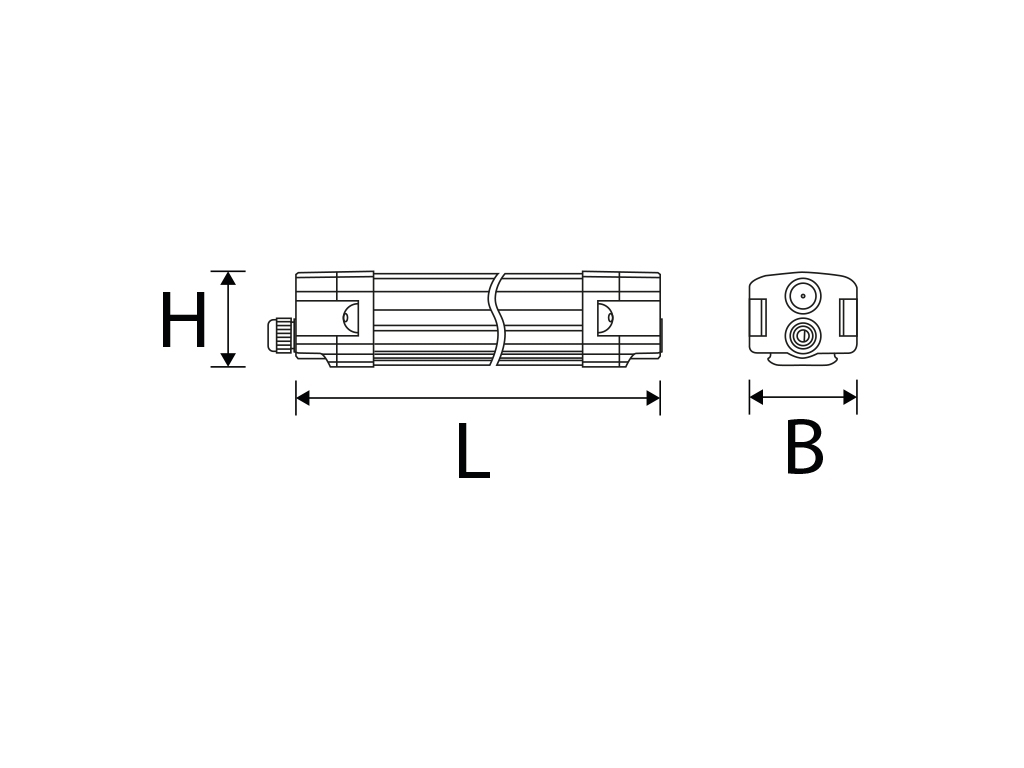

| Dimensions: | 1536x74x29,8 mm |
| Installation Depth: | 30 mm |
| IP Class: | 20 |
| Housing Color | white |
| Housing Material: | aluminum |
| Coating: | powder-coated |

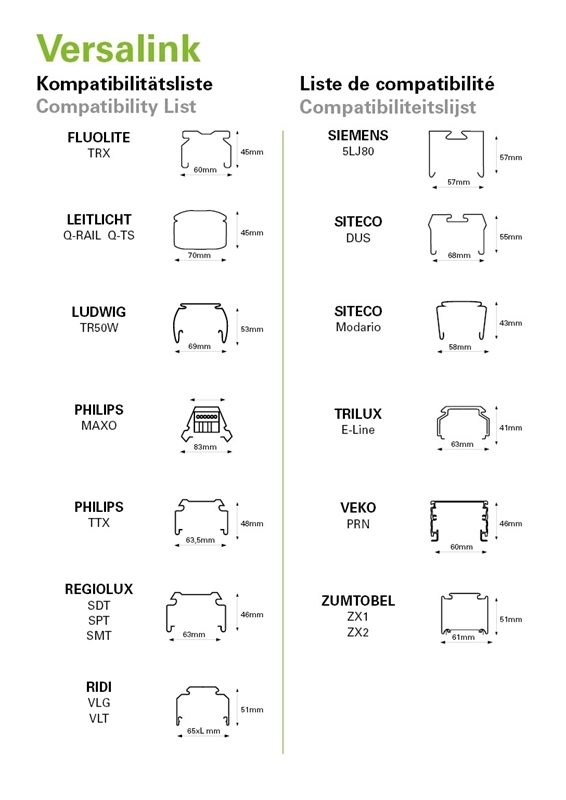

| Special Feature of Housing: | fits into 22 trunkings |
| Net Weight: | 800 g |
| Content Master Package: | 12 |
| Dimensions of Master Package: | 1510x235x310 mm |
| Weight Master Package: | 10,8 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Customs Tariff Number: | 9405499090 |
| Certifications | CE |
| Barcode: | 4250557827254 |
| Aluminium Blindmodul | |
| aluminum blank module | |
| MKII Series Aluminum | |
