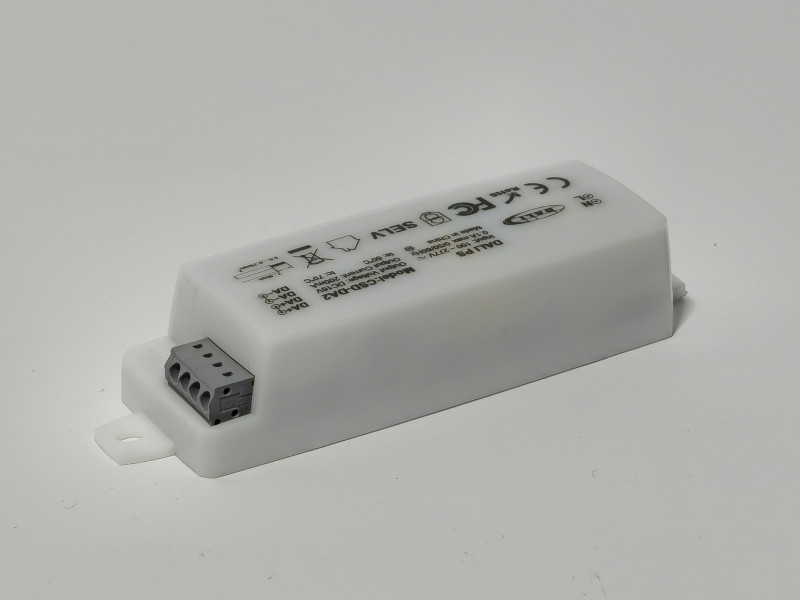

Xona Maxima Basic DALI PSU
Order number: LG31750
Prices are only visible after login.
Availability: low stock
- Order number: : LG31750
- Power Draw: 25 W
- Input Current: AC 100-277V, 100mA, 50/60Hz
- IP Code: 20
- Housing Color: white
- Warranty: 3 years
Power supply unit for Dali Bus Power supply unit for Dali bus >5,0V. For... more
Product information "Xona Maxima Basic DALI PSU"
Power supply unit for Dali Bus
Power supply unit for Dali bus >5,0V. For each linear light line with Dali control minimum one Dali PSU will be needed.
Related links to "Xona Maxima Basic DALI PSU"
Technical Details:
| Input Current: | AC 100-277V, 100mA, 50/60Hz |
| Power Consumption: | 25 W |
| Input Driver: | terminal |
| Output of Driver: | DC 16VV, 200mA |
| CC/CV: | CV |
| Input Lamp: | Terminal |
| Ambient Temperature (TA): | -20°C - 55°C |
| Storage Temperature: | -40°C - 60°C |
| Montageart: | Aufbau + Einbau |
| IP Class: | 20 |
| Housing Color | white |
| Housing Material: | plastic |
| Special Feature of Housing: | kompakte Abmessungen |
| Net Weight: | 45 g |
| Weight incl. Packaging: | 0.062 kg |
| Content Master Package: | 60 |
| Dimensions of Master Package: | 440x440x180 mm |
| Weight Master Package: | 3,72 kg |
| Product Line: | Advance Line |
| Warranty | 3 years |
| Disposal Obligation: |  |
| Customs Tariff Number: | 9405499090 |
| Certifications | CE |
| Barcode: | 4250557810799 |
| für 8-12 adrige Version | |
| for 8-12 wire version | |
| Dali-Bus Netzteil | |
