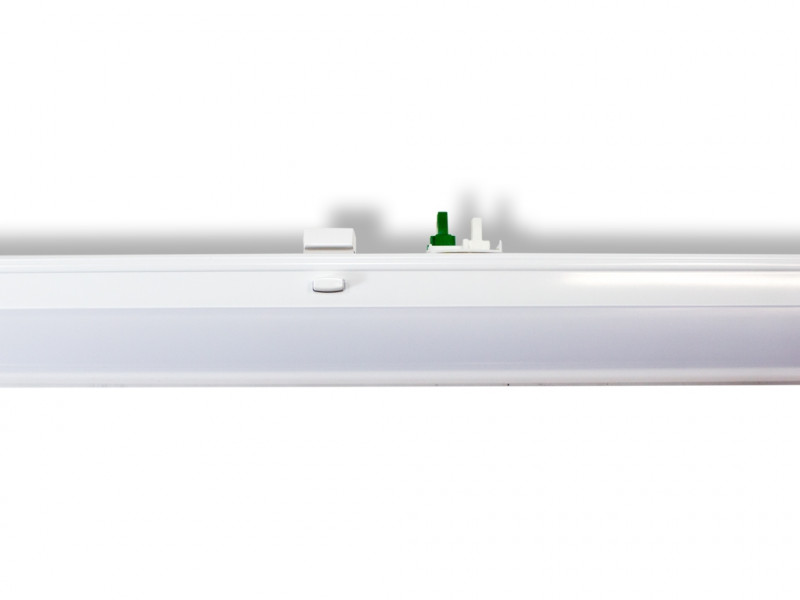

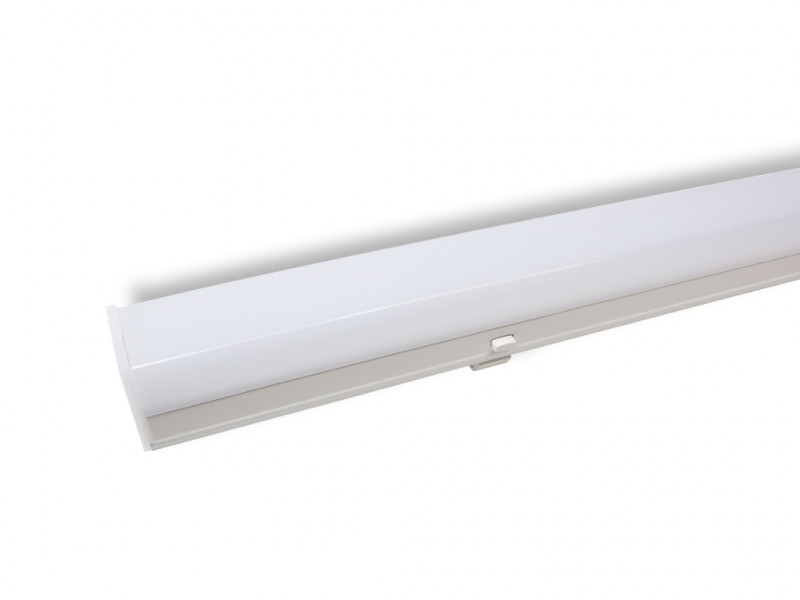

Xona Maxima Basic Unit 150WFL 70-860-10900LM

Prices are only visible after login.

Availability: on request

  • LG31664
  • Luminous Flux: 10900 lm
  • Power Draw: 70 W
  • Light Color: cold white (6000 K)
  • Input Current: AC 180 - 264V, 470mA, 50/60Hz, DC 170-230V
  • Color Rendering Index (CRI): ≥80 Ra
  • IP Code: 30
  • Beam Angle: 120°
  • LED-Chip: Epistar SMD 2835
  • Housing Color: white
  • Dimensions: 1498,5x70x39,4 mm
  • Warranty: 5 years

Luminous Flux


Power Draw

70 W

Light Color

6000 K
cold white

Color Rendering Index (CRI)

>80 Ra

IP Code

IP 30

Beam Angle


mounting type

Light Direction


(LxBxH) in mm


5 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

LED llinear light system   The Basic Edition is the most cost effective version of... more
Product information "Xona Maxima Basic Unit 150WFL 70-860-10900LM"
LED llinear light system

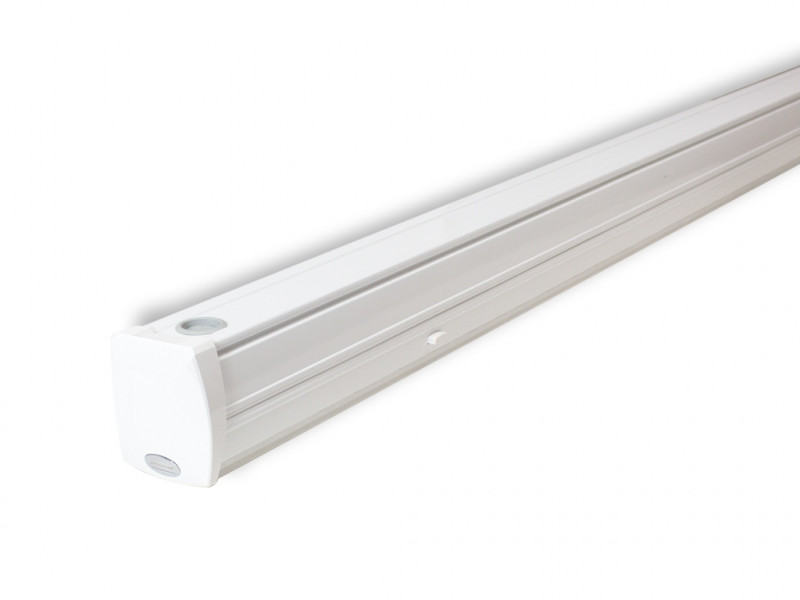

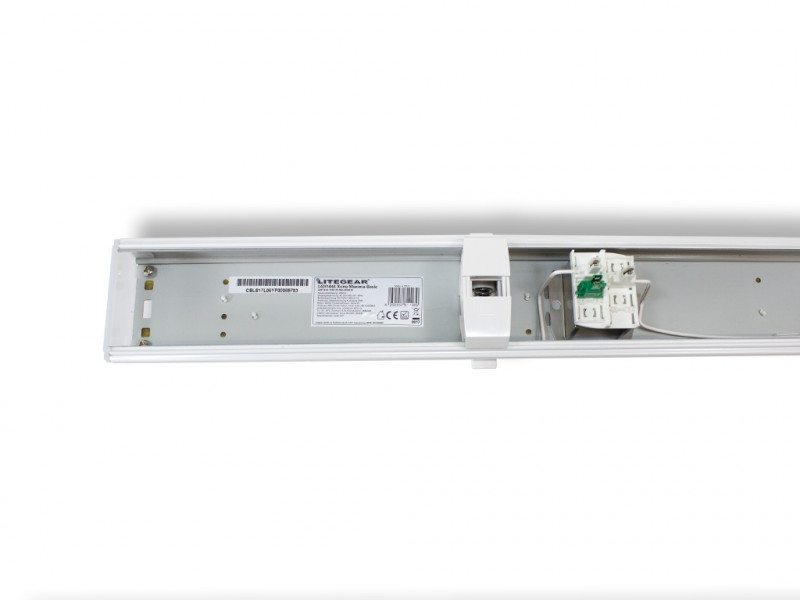

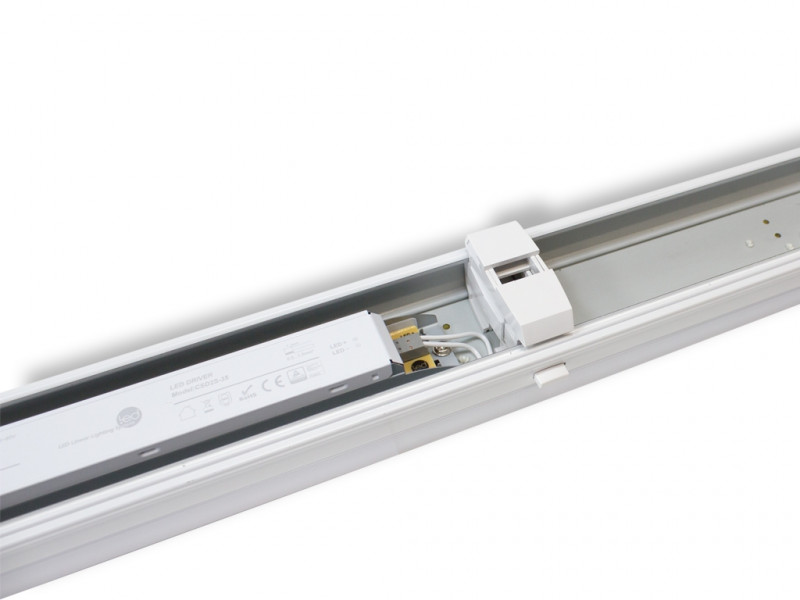

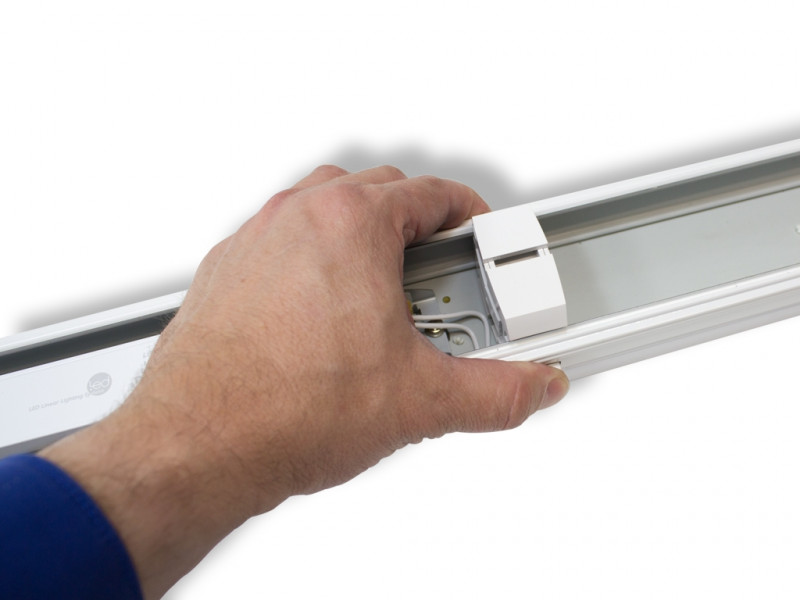

The Basic Edition is the most cost effective version of the modular Litegear® Maxima LED light line system. With a system efficiency of up to 160 lumens / watt, this system not only convinces with its technical best values ​​but also with a very attractive price. The system consists of a trunking support profile with integrated wiring and connectors for almost tool-free fast mounting and a light module which is locked into the mounting rail. The luminaire modules consist of an electronic ballast, LED boards and optical covers with selectable, different beam angles. The LED modules are available in 4 different light colors: 3000K, 4000K, 5000K and 6000 Kelvin as well as in 3 performance versions: 35W, 50W and 70W. This diversity results in lighting solutions for a wide variety of applications. The support profiles are available up to a length of 3U = 450cm in 3 versions: 5-wire (3 phases), 8-wire (3 phases with Dali / 1-10V and continuous current) and 12-core (3 phases, Dali / 1 -10V, emergency lighting). The trunking support profiles can be suspended from the ceiling by means of a steel cable, chain, clip or rod. In addition, special mounting clips for grid ceilings are available. Optionally, the luminaire modules are also available in dimmable version and with battery emergency power supply.
  • industry and warehouse
  • sales areas and exhibition
  • office and workshop
  • fast, cost-effective installation
  • high power savings through excellent system efficiency> 160lm / W
  • long life (70,000h) and very low maintenance costs
  • Dimming via Dali, 1-10V or sensors
  • emergency Capable
Daylight and motion sensors, corners and branches, dummy modules, end caps, connectors, support modules for escape lights or power outlets
Related links to "Xona Maxima Basic Unit 150WFL 70-860-10900LM"
Technical Details:
Luminous Flux: 10900 lm
LED Output: 67 W
Light Yield: 156 lm/W
Light Temperature: 6000 K
Light Color: cold white
Color Rendering Index: ≥80 Ra
Color Consistency (SDCM): <4
Beam Angle: 120 °
Unified Glare Rating (UGR): 25
Light Emission: downward
LED-Chip Manufacturer: Epistar
LED-Chip: SMD 2835
Ignition Time: <0,5 s
Input Current: AC 180 - 264V, 470mA, 50/60Hz, DC 170-230V
Power Consumption: 70 W
Contains Driver: ja
Driver Manufacturer: Litegear
Power Factor (PF): >0.95
Input Driver: terminal
Output of Driver: DC 55-70V, 1000mA
Input Lamp: plug connector
Switching Cycles: >100.000
Compatible with Emergency Current: ja
Ambient Temperature (TA): -20°C - 50°C
Dimensions: 1498,5x70x39,4 mm
Mounting: Decke
Montageart: surface mounted
IP Class: 30
IK Code: 02
Housing Color white
Housing Material: steel
Coating: coated
Cover: opal
Net Weight: 1780 g
Type of Packaging: box
Weight incl. Packaging: 1.85 kg
Content Master Package: 10
Dimensions of Master Package: 1550x390x210 mm
Weight Master Package: 20 kg
Product Line: Advance Line
Warranty 5 years
Operating Hours: >50.000 h L70/B20
Disposal Obligation: ja
Customs Tariff Number: 9405409990
Certifications CE,TÜV,ENEC,LM80
Barcode: 4250557815299
Connection: Terminal
h h
Konsteneffizienteste modulare Version des Maxima LED-Lichtbandsystems more
Konsteneffizienteste modulare Version des Maxima LED-Lichtbandsystems
Vorschaltgerät: LED-Treiber
Temperaturbereich: -20°C - 50°C
Lichtstrom: 10900 lm
LED-Leistung: 70 W
Leuchten-Lichtausbeute: 156 lm/W
Farbtemperatur: 6000 K
Lichtfarbe: kaltwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 120°
UGR: 25
Lichtaustritt: direkt
Maße: 1498,5x70x39,4 mm
Montageart: Aufbau (Decke)
Schutzart (DIN EN 60529): IP30
Stoßfestigkeitsgrad (IEC 62262): IK02
Außenfarbe: white
Gehäusematerial: Stahl
Gehäusebeschichtung: beschichtet
Abdeckung: opal
Nettogewicht: 1780 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L70/B20): 50000 h
