Xona Maxima Basic Unit 150NB 50-840-7800LM
Order number: LG31452
Prices are only visible after login.
Availability: on request
- Order number: : LG31452
- Luminous Flux: 7800 lm
- Power Draw: 50 W
- Light Color: neutralwhite (4000 K)
- Input Current: AC 170-264V, 330mA, 50/60Hz, DC 170-230V
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 30
- Beam Angle: 60°
- LED-Chip: Epistar SMD 2835
- Housing Color: white
- Dimensions: 1498,5x70x39,4 mm
- Warranty: 5 years
LED llinear light system The Basic Edition is the most cost effective version of... more
Product information "Xona Maxima Basic Unit 150NB 50-840-7800LM"
LED llinear light system

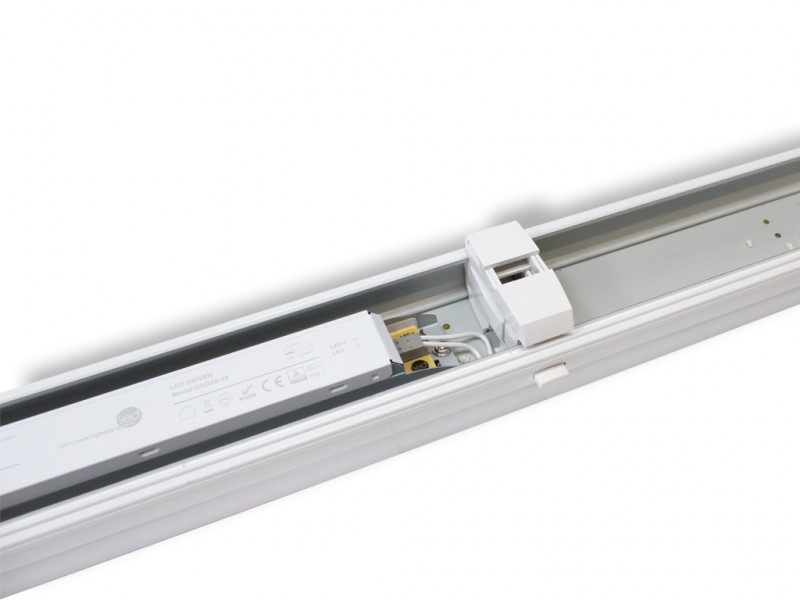

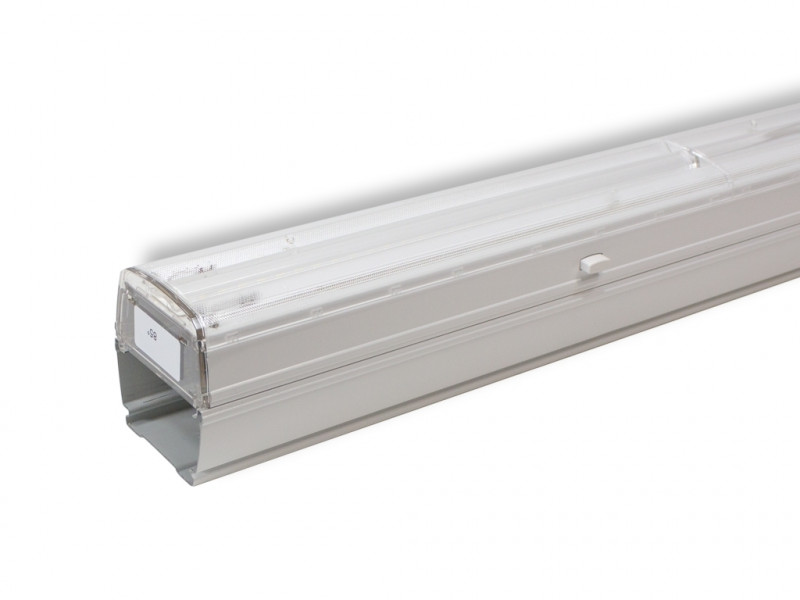

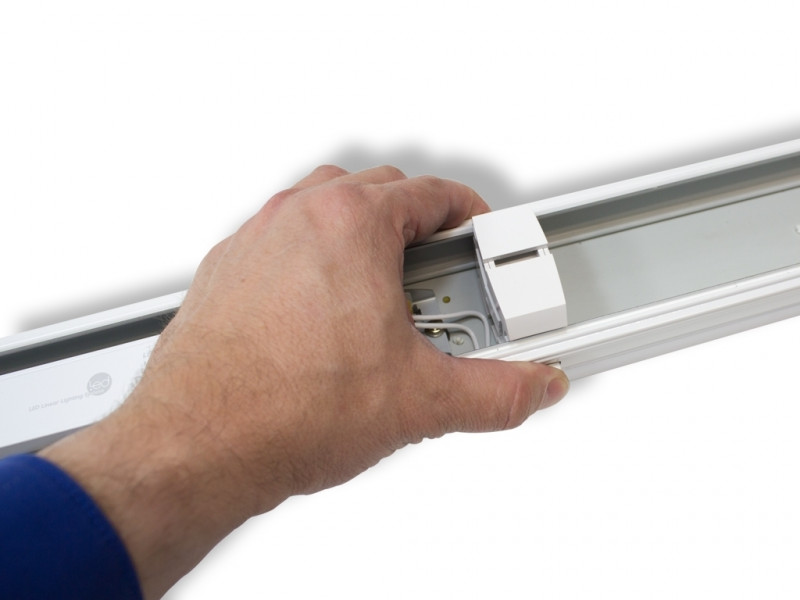

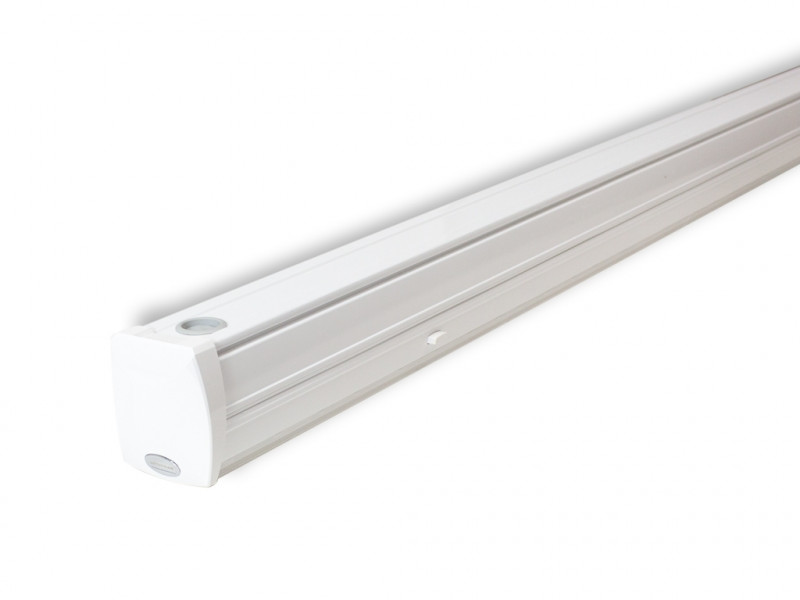

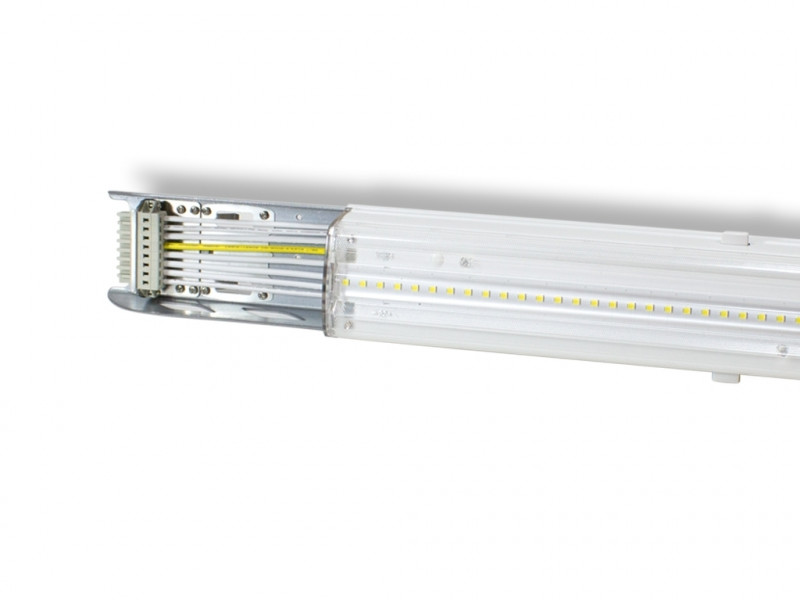

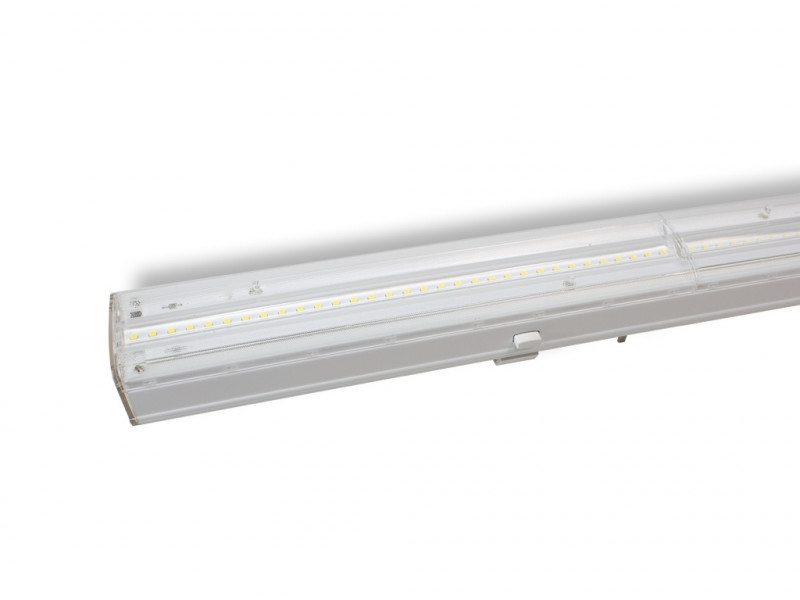

The Basic Edition is the most cost effective version of the modular Litegear® Maxima LED light line system. With a system efficiency of up to 160 lumens / watt, this system not only convinces with its technical best values but also with a very attractive price. The system consists of a trunking support profile with integrated wiring and connectors for almost tool-free fast mounting and a light module which is locked into the mounting rail. The luminaire modules consist of an electronic ballast, LED boards and optical covers with selectable, different beam angles. The LED modules are available in 4 different light colors: 3000K, 4000K, 5000K and 6000 Kelvin as well as in 3 performance versions: 35W, 50W and 70W. This diversity results in lighting solutions for a wide variety of applications. The support profiles are available up to a length of 3U = 450cm in 3 versions: 5-wire (3 phases), 8-wire (3 phases with Dali / 1-10V and continuous current) and 12-core (3 phases, Dali / 1 -10V, emergency lighting). The trunking support profiles can be suspended from the ceiling by means of a steel cable, chain, clip or rod. In addition, special mounting clips for grid ceilings are available. Optionally, the luminaire modules are also available in dimmable version and with battery emergency power supply.
Application:
- industry and warehouse
- sales areas and exhibition
- office and workshop
Advantages:
- fast, cost-effective installation
- high power savings through excellent system efficiency> 160lm / W
- long life (70,000h) and very low maintenance costs
- Dimming via Dali, 1-10V or sensors
- emergency Capable
Accesories:
Daylight and motion sensors, corners and branches, dummy modules, end caps, connectors, support modules for escape lights or power outlets
Related links to "Xona Maxima Basic Unit 150NB 50-840-7800LM"
Technical Details:
| Luminous Flux: | 7800 lm |
| LED Output: | 48 W |
| Light Yield: | 156 lm/W |
| Light Temperature: | 4000 K |
| Light Color: | neutralwhite |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <4 |
| Beam Angle: | 60 ° |
| Unified Glare Rating (UGR): | 19 |
| Light Emission: | downward |
| LED-Chip Manufacturer: | Epistar |
| LED-Chip: | SMD 2835 |
| Ignition Time: | <0,5 s |
| Input Current: | AC 170-264V, 330mA, 50/60Hz, DC 170-230V |
| Power Consumption: | 50 W |
| Contains Driver: |  |
| Driver Manufacturer: | Litegear |
| Power Factor (PF): | >0.95 |
| Input Driver: | terminal |
| Output of Driver: | DC 55-80V, 620mA |
| CC/CV: | CC |
| Input Lamp: | plug connector |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | I |
| Ambient Temperature (TA): | -20°C - 50°C |
| Dimensions: | 1498,5x70x39,4 mm |
| Mounting: | Decke |
| Montageart: | surface mounted |
| IP Class: | 30 |
| IK Code: | 02 |
| Housing Color | white |
| Housing Material: | steel |
| Coating: | lacquered |
| Cover: | clear |
| Net Weight: | 1780 g |
| Type of Packaging: | box |
| Weight incl. Packaging: | 1.85 kg |
| Content Master Package: | 10 |
| Dimensions of Master Package: | 1550x390x210 mm |
| Weight Master Package: | 19,8 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >50.000 h L70/B20 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405409990 |
| Certifications | CE,TÜV,ENEC,LM80 |
| Barcode: | 4250557814827 |
Konsteneffizienteste modulare Version des Maxima LED-Lichtbandsystems more
Konsteneffizienteste modulare Version des Maxima LED-Lichtbandsystems
Vorschaltgerät: LED-Treiber
Temperaturbereich: -20°C - 50°C
Lichtstrom: 7800 lm
LED-Leistung: 50 W
Leuchten-Lichtausbeute: 156 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 60°
UGR: 19
Bildschirmgerecht gemäß EN12464-1 durch begrenzte Leuchtdichten L ≤ 3000 cd/m² für Ausstrahlungswinkel oberhalb 65° rundum
Lichtaustritt: direkt
Maße: 1498,5x70x39,4 mm
Montageart: Aufbau (Decke)
Schutzart (DIN EN 60529): IP30
Stoßfestigkeitsgrad (IEC 62262): IK02
Außenfarbe: white
Gehäusematerial: Stahl
Gehäusebeschichtung: lackiert
Abdeckung: klar
Nettogewicht: 1780 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L70/B20): 50000 h
Vorschaltgerät: LED-Treiber
Temperaturbereich: -20°C - 50°C
Lichtstrom: 7800 lm
LED-Leistung: 50 W
Leuchten-Lichtausbeute: 156 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 60°
UGR: 19
Bildschirmgerecht gemäß EN12464-1 durch begrenzte Leuchtdichten L ≤ 3000 cd/m² für Ausstrahlungswinkel oberhalb 65° rundum
Lichtaustritt: direkt
Maße: 1498,5x70x39,4 mm
Montageart: Aufbau (Decke)
Schutzart (DIN EN 60529): IP30
Stoßfestigkeitsgrad (IEC 62262): IK02
Außenfarbe: white
Gehäusematerial: Stahl
Gehäusebeschichtung: lackiert
Abdeckung: klar
Nettogewicht: 1780 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L70/B20): 50000 h
