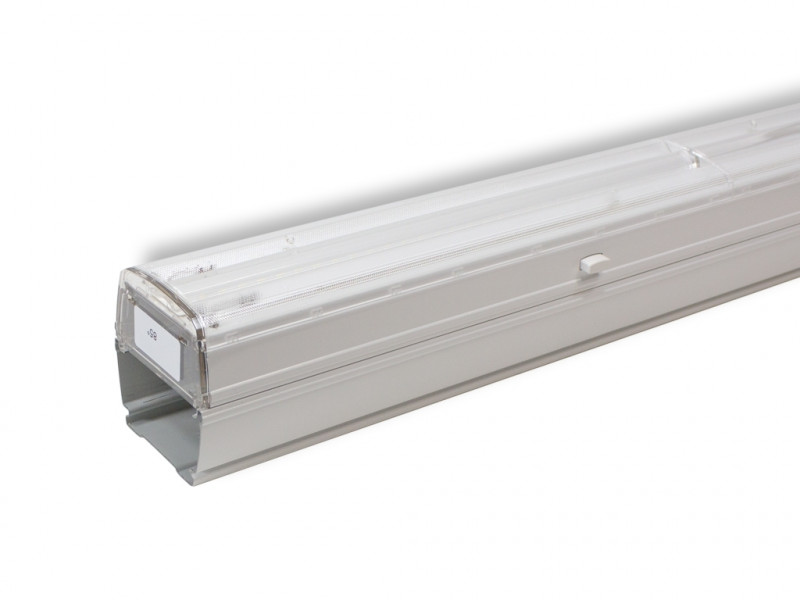

Xona Maxima Basic Unit 150FL 35-840-5600LM DALI

LG31443DA
Prices are only visible after login.

Availability: low stock

  • LG31443DA
  • Luminous Flux: 5600 lm
  • Power Draw: 35 W
  • Light Color: neutralwhite (4000 K)
  • Input Current: AC 170-264V, 230mA, 50/60Hz
  • Color Rendering Index (CRI): ≥82 Ra
  • IP Code: 30
  • Beam Angle: 90°
  • LED-Chip: Epistar SMD 2835
  • Housing Color: white
  • Dimensions: 1498,5x70x39,4 mm
  • Warranty: 5 years

Luminous Flux

5600
lm

Power Draw

35 W

Light Color

4000 K
neutralwhite

Color Rendering Index (CRI)

CRI
>82 Ra

IP Code

IP 30

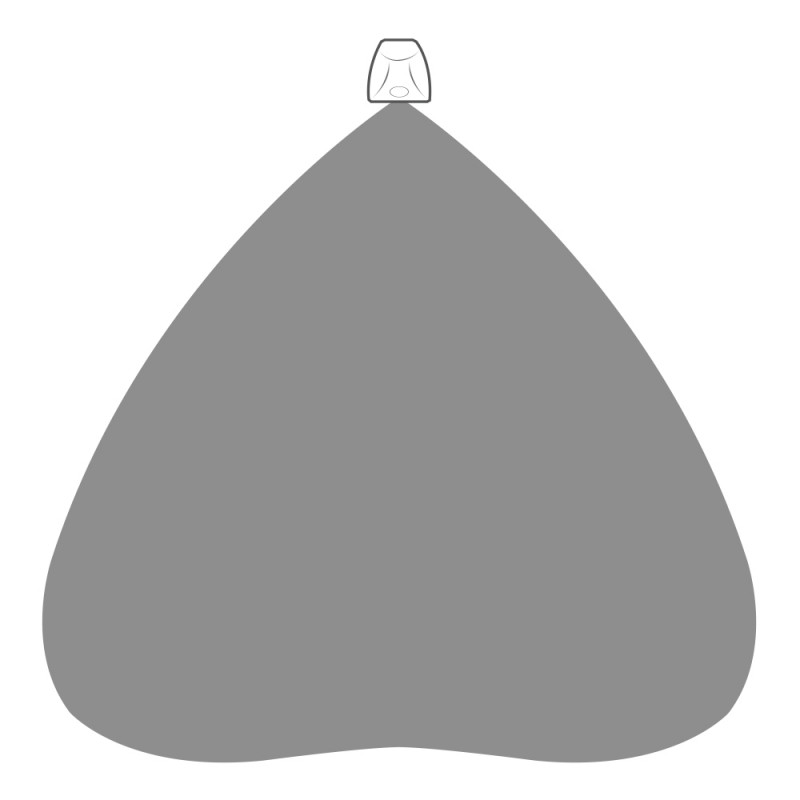

Beam Angle

90°

mounting type

Light Direction

Dimensions

(LxBxH) in mm
1498,5x70x39,4

Warranty

5 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

LED llinear light system   The Basic Edition is the most cost effective version of... more
Product information "Xona Maxima Basic Unit 150FL 35-840-5600LM DALI"
LED llinear light system

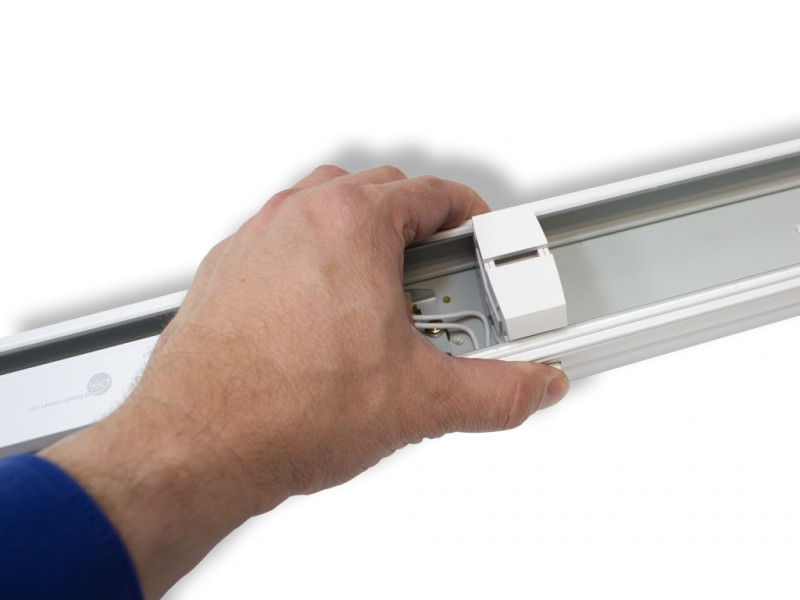

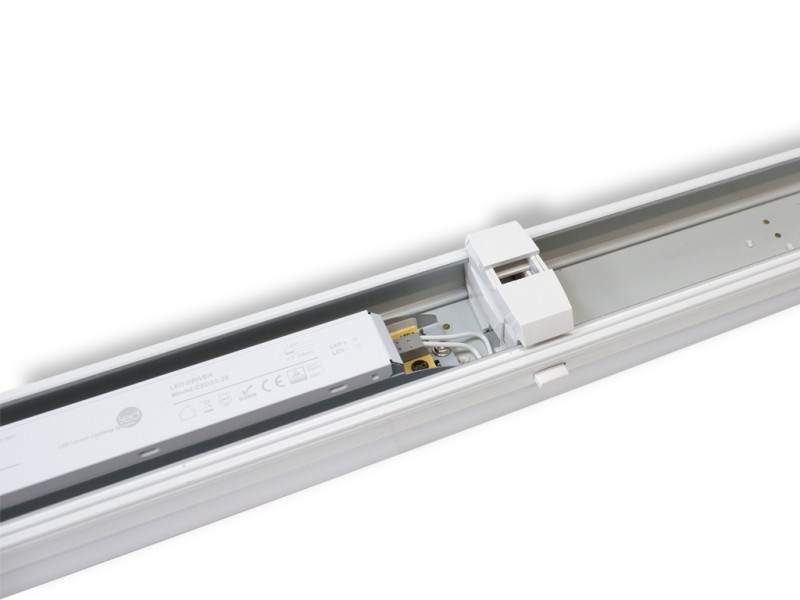

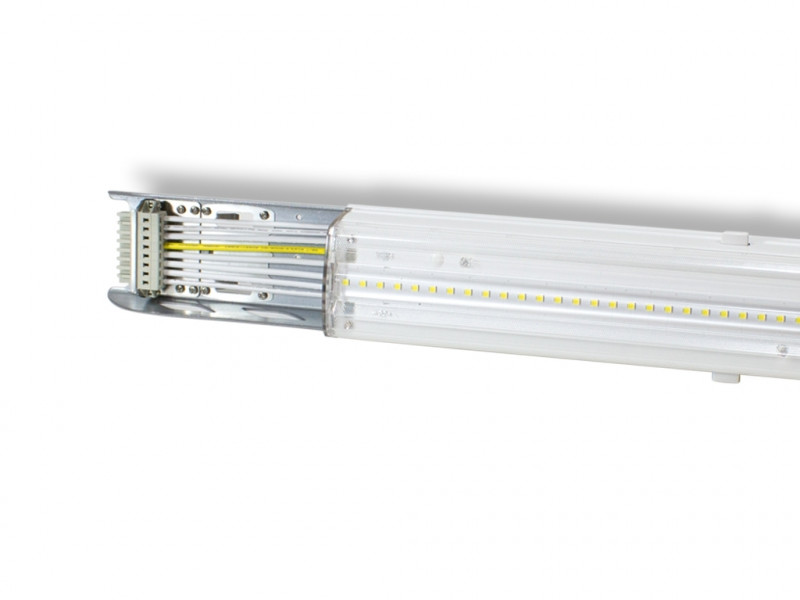

The Basic Edition is the most cost effective version of the modular Litegear® Maxima LED light line system. With a system efficiency of up to 160 lumens / watt, this system not only convinces with its technical best values ​​but also with a very attractive price. The system consists of a trunking support profile with integrated wiring and connectors for almost tool-free fast mounting and a light module which is locked into the mounting rail. The luminaire modules consist of an electronic ballast, LED boards and optical covers with selectable, different beam angles. The LED modules are available in 4 different light colors: 3000K, 4000K, 5000K and 6000 Kelvin as well as in 3 performance versions: 35W, 50W and 70W. This diversity results in lighting solutions for a wide variety of applications. The support profiles are available up to a length of 3U = 450cm in 3 versions: 5-wire (3 phases), 8-wire (3 phases with Dali / 1-10V and continuous current) and 12-core (3 phases, Dali / 1 -10V, emergency lighting). The trunking support profiles can be suspended from the ceiling by means of a steel cable, chain, clip or rod. In addition, special mounting clips for grid ceilings are available.

Application:
  • industry and warehouse
  • sales areas and exhibition
  • office and workshop

Advantages:
  • fast, cost-effective installation
  • high power savings through excellent system efficiency> 160lm / W
  • long life (70,000h) and very low maintenance costs
  • Dimming via Dali, 1-10V or sensors
  • emergency Capable

Accesories:
Daylight and motion sensors, corners and branches, dummy modules, end caps, connectors, support modules for escape lights or power outlets
Related links to "Xona Maxima Basic Unit 150FL 35-840-5600LM DALI"
Technical Details:

Luminous Flux: 5600 lm
LED Output: 34 W
Light Yield: 160 lm/W
Light Temperature: 4000 K
Light Color: neutralwhite
Color Rendering Index: ≥82 Ra
Color Consistency (SDCM): <5
Beam Angle: 90 °
Unified Glare Rating (UGR): 22
Light Emission: downward
Dimmable: ja
Method of Dimming: DALI
LED-Chip Manufacturer: Epistar
LED-Chip: SMD 2835
Ignition Time: <0,5 s
Input Current: AC 170-264V, 230mA, 50/60Hz
Power Consumption: 35 W
Contains Driver: ja
Driver Manufacturer: Litegear
Power Factor (PF): >0.96
Input Driver: terminal
Output of Driver: DC 55-80V, 430mA
CC/CV: CC
Input Lamp: plug connector
Switching Cycles: >100.000
Electrical Protection Class: I
Compatible with Emergency Current: ja
Ambient Temperature (TA): -20°C - 45°C
Storage Temperature: -20°C - 55°C
Dimensions: 1498,5x70x39,4 mm
Mounting: Decke
Montageart: recessed
IP Class: 30
IK Code: 03
Housing Color white
Housing Material: steel
Cover: clear
Net Weight: 1670 g
Type of Packaging: none
Weight incl. Packaging: 1.67 kg
Content Master Package: 10
Dimensions of Master Package: 1570x400x210 mm
Weight Master Package: 18,0 kg
Product Line: Advance Line
Warranty 5 years
Operating Hours: >50.000 h L80/B10
Disposal Obligation: ja
Customs Tariff Number: 9405119090
Certifications CE,TÜV,ENEC,LM80
Barcode: 4250557814766
h h
Konsteneffizienteste modulare Version des Maxima LED-Lichtbandsystems more
Konsteneffizienteste modulare Version des Maxima LED-Lichtbandsystems
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: -20°C - 45°C
Lichtstrom: 5600 lm
LED-Leistung: 35 W
Leuchten-Lichtausbeute: 160 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >82
Farbtoleranz (SDCM): <5
Abstrahlwinkel: 90°
UGR: 22
Lichtaustritt: direkt
Maße: 1498,5x70x39,4 mm
Montageart: Einbau (Decke)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP30
Stoßfestigkeitsgrad (IEC 62262): IK03
Außenfarbe: white
Gehäusematerial: Stahl
Abdeckung: klar
Nettogewicht: 1670 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B10): 50000 h
