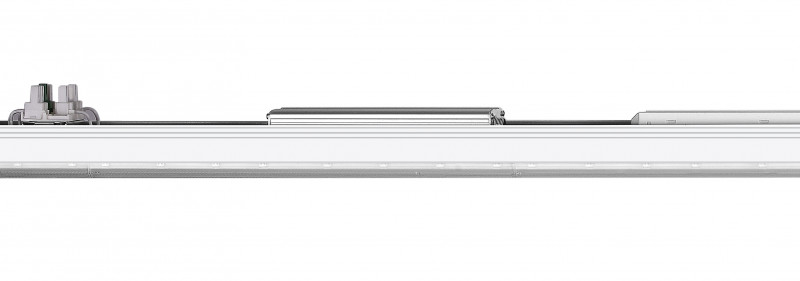

Xona Maxima Basic Unit 150FL 55/70-840-11300LM DALI DIM + Battery Emergency light

Product Info (PDF)

Order number: LG31463EM.DA

Prices are only visible after login.

Availability: Only on Request. Estimated delivery time more than 8 weeks.

Menü schließen

Order number: : LG31463EM.DA
Luminous Flux: 11300 lm
Power Draw: 70 W
Light Color: neutralwhite (4000 K)
Input Current: AC 180 - 264V, 470mA, 50/60Hz, DC 170-230V
Color Rendering Index (CRI): ≥80 Ra
IP Code: 30

Beam Angle: 90°
LED-Chip: Epistar SMD 2835
Housing Color: white
Dimensions: 1498,5x70x39,4 mm
Warranty: 5 years

Luminous Flux

11300
lm

Power Draw

70 W

Light Color

4000 K
neutralwhite

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 30

Beam Angle

90°

mounting type

Light Direction

Dimensions

(LxBxH) in mm
1498,5x70x39,4

Warranty

5 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

LED llinear light system The Basic Edition is the most cost effective version of... more

Close menu

Product information "Xona Maxima Basic Unit 150FL 55/70-840-11300LM DALI DIM + Battery Emergency light"

LED llinear light system

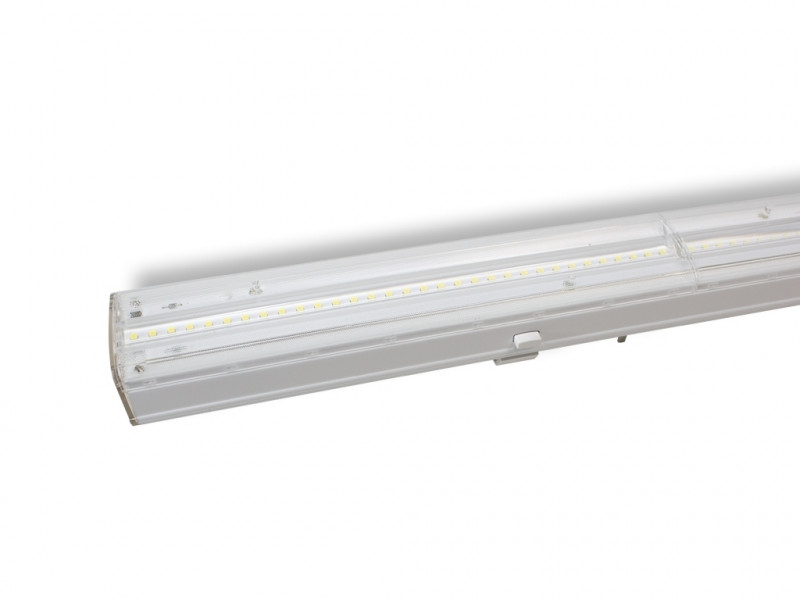

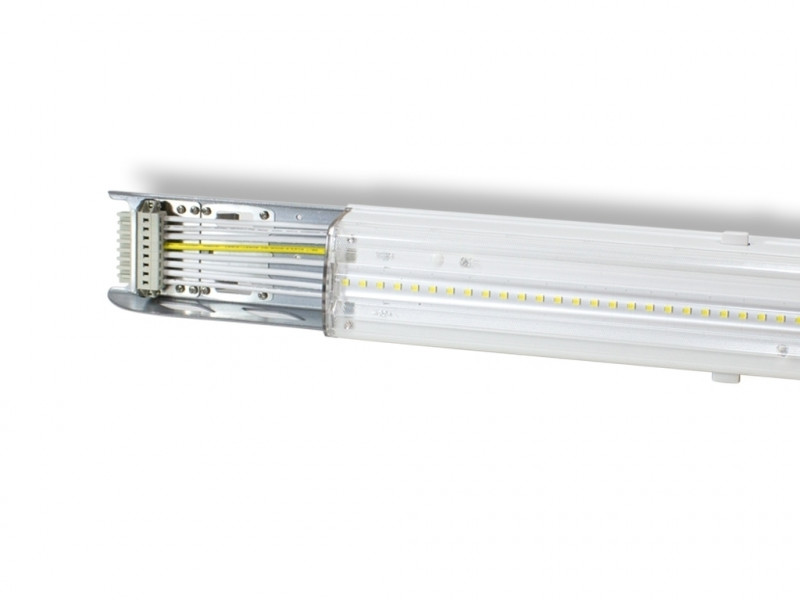

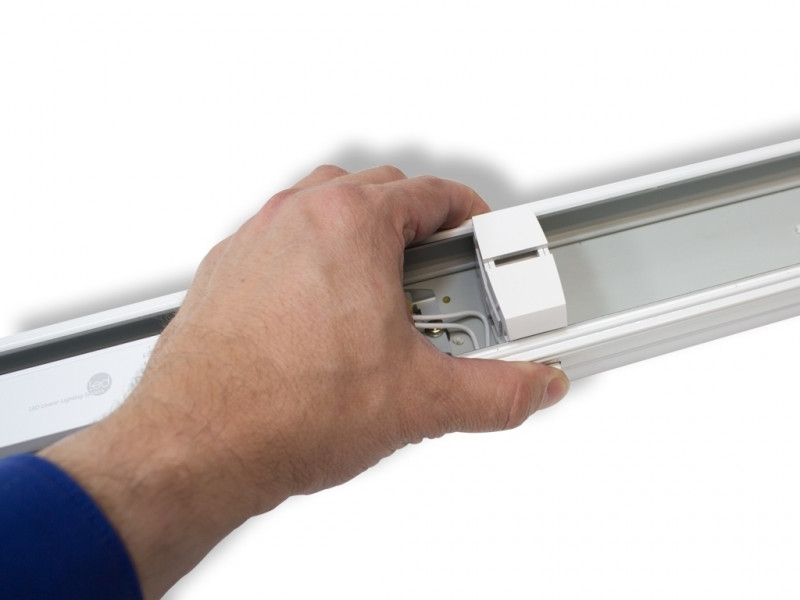

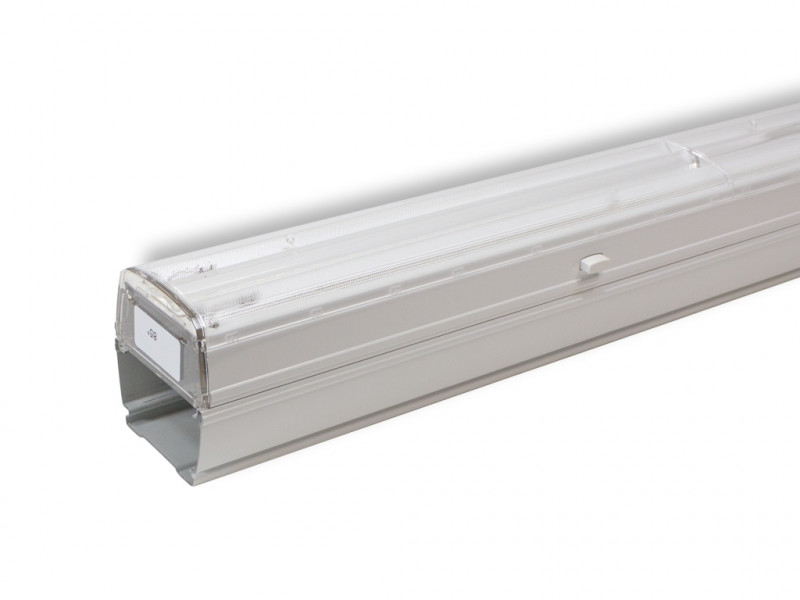

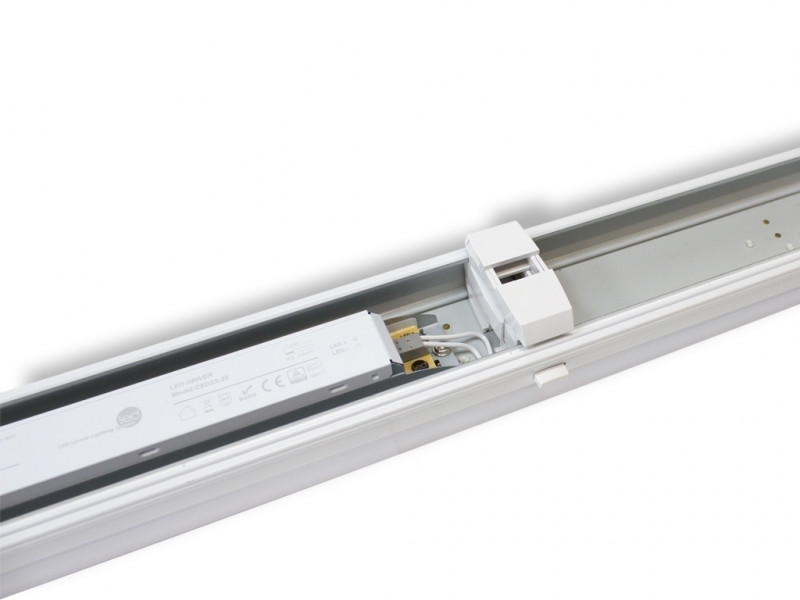

The Basic Edition is the most cost effective version of the modular Litegear® Maxima LED light line system. With a system efficiency of up to 160 lumens / watt, this system not only convinces with its technical best values but also with a very attractive price. The system consists of a trunking support profile with integrated wiring and connectors for almost tool-free fast mounting and a light module which is locked into the mounting rail. The luminaire modules consist of an electronic ballast, LED boards and optical covers with selectable, different beam angles. The LED modules are available in 4 different light colors: 3000K, 4000K, 5000K and 6000 Kelvin as well as in 3 performance versions: 35W, 50W and 70W. This diversity results in lighting solutions for a wide variety of applications. The support profiles are available up to a length of 3U = 450cm in 3 versions: 5-wire (3 phases), 8-wire (3 phases with Dali / 1-10V and continuous current) and 12-core (3 phases, Dali / 1 -10V, emergency lighting). The trunking support profiles can be suspended from the ceiling by means of a steel cable, chain, clip or rod. In addition, special mounting clips for grid ceilings are available. Optionally, the luminaire modules are also available in dimmable version and with battery emergency power supply.

Dali dimming version

Integrated battery emergency light: 6W max. 960lm
Battery capacity: 3 hours
Can be used only with 8- to 12 wire trunking rails!

Application:

industry and warehouse
sales areas and exhibition
office and workshop

Advantages:

fast, cost-effective installation
high power savings through excellent system efficiency> 160lm / W
long life (70,000h) and very low maintenance costs
Dimming via Dali, 1-10V or sensors
emergency Capable

Accesories:

Daylight and motion sensors, corners and branches, dummy modules, end caps, connectors, support modules for escape lights or power outlets

Related links to "Xona Maxima Basic Unit 150FL 55/70-840-11300LM DALI DIM + Battery Emergency light"

Zurück

Technical Details:

Luminous Flux:	11300 lm
LED Output:	67 W
Light Yield:	161 lm/W
Light Temperature:	4000 K
Light Color:	neutralwhite
Color Rendering Index:	≥80 Ra
Color Consistency (SDCM):	<4

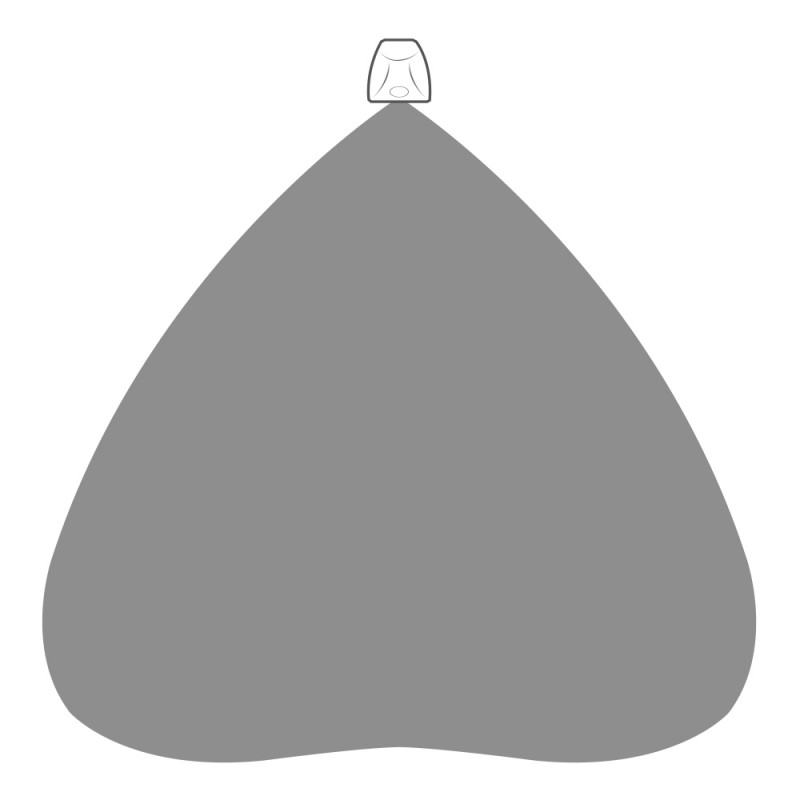

Beam Angle:	90 °
Unified Glare Rating (UGR):	25
Light Emission:	downward
Dimmable:
Method of Dimming:	DALI
LED-Chip Manufacturer:	Epistar
LED-Chip:	SMD 2835
Ignition Time:	<0,5 s

Input Current:	AC 180 - 264V, 470mA, 50/60Hz, DC 170-230V
Power Consumption:	70 W
Contains Driver:
Driver Manufacturer:	Litegear
Power Factor (PF):	>0.95
Input Driver:	terminal
Output of Driver:	DC 55-70V, 780-1000mA
CC/CV:	CC
Input Lamp:	plug connector
Switching Cycles:	>100.000
Electrical Protection Class:	I
Compatible with Emergency Current:
Ambient Temperature (TA):	-20°C - 50°C
Storage Temperature:	-40°C - 60°C

Dimensions:	1498,5x70x39,4 mm
Mounting:	Decke
Montageart:	surface mounted
IP Class:	30
IK Code:	04
Housing Color	white
Housing Material:	steel
Coating:	coated
Special Feature of Housing:	Battery Emergency incl.
Cover:	clear
Net Weight:	1780 g
Luminaire Type:	Fluchtwegleuchtung
Testing Facility:	manuell
Battery Warranty:	2
Discharge Duration:	≥3 h
Battery Type:	NiCd
Battery Current:	1800 mA
Battery Charge Duration:	12 h
Initial Charge Duration:	20 h
Charging Power Consumption:	8 W
Luminous Flux in Battery Mode:	960 lm
Standards for emergency luminaires:	DIN EN 60598-2-22, Anforderung nach DIN EN 50172

Type of Packaging:	box
Weight incl. Packaging:	1.85 kg
Content Master Package:	10
Dimensions of Master Package:	1550x390x210 mm
Weight Master Package:	20 kg

Product Line:	Advance Line
Warranty	5 years
Operating Hours:	>50.000 h L80/B20
Disposal Obligation:
Customs Tariff Number:	9405119090
Certifications	CE,TÜV,ENEC,LM80
Barcode:	4250557822129
Dali dimming
Battery emergency: 6W, 960lm max, 1800mA 3h
Batterie Notlicht: 6W, 960lm max, 1800mA 3h

Technical Data Sheet (PDF)

Konsteneffizienteste modulare Version des Maxima LED-Lichtbandsystems more

Zurück

Konsteneffizienteste modulare Version des Maxima LED-Lichtbandsystems
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: -20°C - 50°C
Lichtstrom: 11300 lm
LED-Leistung: 70 W
Leuchten-Lichtausbeute: 161 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 90°
UGR: 25
Lichtaustritt: direkt
Maße: 1498,5x70x39,4 mm
Montageart: Aufbau (Decke)
Schutzart (DIN EN 60529): IP30
Stoßfestigkeitsgrad (IEC 62262): IK04
Außenfarbe: white
Gehäusematerial: Stahl
Gehäusebeschichtung: beschichtet
Abdeckung: klar
Nettogewicht: 1780 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B20): 50000 h
